RJF-80V680MH3#-G59 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> RJF-80V680MH3#-G59

RJF-80V680MH3#-G59: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 80V, 20% +Tol, 20% -Tol, 68uF,; CategoryPassive components capacitor; File Size239KB，3 Pages; ManufacturerELNA; Environmental Compliance

Download Datasheet Parametric View All

RJF-80V680MH3#-G59 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 80V, 20% +Tol, 20% -Tol, 68uF,

RJF-80V680MH3#-G59 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	252138158
package instruction	,
Reach Compliance Code	unknown
Country Of Origin	Thailand
ECCN code	EAR99
YTEOL	7.35
capacitance	68 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	10 mm
dielectric materials	ALUMINUM (WET)
length	12.5 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	80 V
ripple current	480 mA
Terminal pitch	5 mm

Preview

Download Datasheet

View All

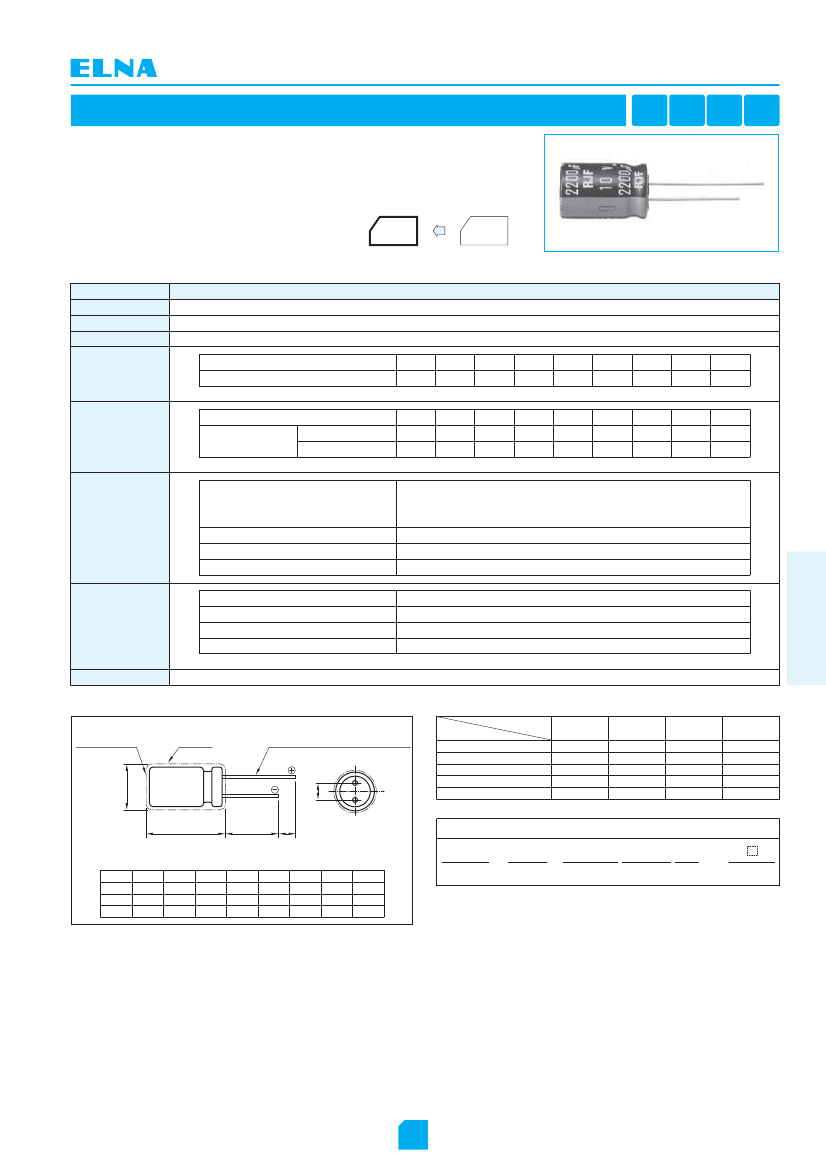

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

RJF

●

Higher ripple current than RJB Series.

Low impedance

Marking color : White print on a black sleeve

Speciﬁcations

Item

Category temperature range (℃)

Tolerance at rated capacitance (%)

Performance

−40 to ＋105

±20

Less than 0.01CV or 3 whichever is larger (after 2 minutes) C : Rated capacitance (µF) ; V : Rated voltage (V)

Rated voltage (V)

tanδ (max.)

6.3

0.22

0.19

0.16

0.14

0.12

0.10

0.09

100

0.08

(20℃,120Hz)

6.3

100

(120Hz)

5L & 7L :

φ5 & φ6.3 :

φ8 & φ10 :

φ12.5 to φ18 :

1000

2000

3000

5000

hours

hours (63 to 100WV:5000 hours)

hours (63 to 100WV:7000 hours)

hours (63 to 100WV:10000 hours)

(20℃,120Hz)

(20℃)

Leakage current (µA)

Tangent of loss angle

(tanδ)

0.02 is added to every 1000µF increase over 1000µF.

Rated voltage (V)

Characteristics at high

and low temperature

Impedance ratio

(max.)

Ｚ

−25℃/Ｚ

＋20℃

Ｚ

−40℃/Ｚ

＋20℃

Test time

Endurance (105℃)

(Applied ripple current)

Leakage current

Percentage of capacitance change

Tangent of the loss angle

The initial speciﬁed value or less

Within

±25%

of initial value

200% or less of the initial speciﬁed value

Miniature

Aluminum Electrolytic Capacitors

Test time

Leakage current

Shelf life (105℃)

Percentage of capacitance change

Tangent of the loss angle

Voltage application treatment

Applicable standards

1000 hours

The initial speciﬁed value or less

Within

±25%

of initial value

200% or less of the initial speciﬁed value

JIS C5101-1, -4 1998 (IEC 60384-1 1992, -4 1985)

Outline Drawing

Vent (except φ5, 5L＆7L)

φD＋0.5max.

Sleeve

Unit : mm

Coeﬃcient of Frequency for Rated Ripple Current

Frequency (Hz)

Rated

capacitance (µF)

5.6 to 180

220 to 390

470 to 1800

2200 to 3900

4700 to 6800

120

0.40

0.50

0.60

0.75

0.85

0.75

0.85

0.87

0.90

0.95

10k

0.90

0.94

0.95

0.98

100k

φd±0.05 copper clad steel wire (tinned)

L＋αmax.

15min.

min.

F±0.5

Part numbering system (example : 10V1000µF)

RJF

Rated voltage

symbol

102

H4 # ̶

Taping(Forming)

symbol

φD

φd

1.5

0.45

1.0

2.0

0.5

1.0

6.3

2.5

0.5

1.0

3.5

0.6

1.0

5.0

0.6

2.0

12.5

5.0

0.6

2.0

7.5

0.8

2.0

7.5

0.8

2.0

Series code

Rated capacitance

Capacitance

Casing

symbol

tolerance symbol symbol

• The electric characteristics are described on page 172.

• The standard ratings are described on the next page.

NOTE

Design, Speciﬁcations are subject to change without notice.

Ask factory for technical speciﬁcations before purchase and/or use.

105

CAT.No.2013/2014E
