Sulfur Resistant Thick Film Chip Resistors
FEATURES
• EIA STANDARD SIZING 0201, 0402, 0603, 0805, 1206, 1210, 2010 AND 2512
• SUIT FOR HIGH RELIABILITY APPLICATIONS IN HARSH ENVIRONMENTS
•
AEC-Q200 QUALIFIED OPTION AVAILABLE
(SEE PAGE 3 FOR AUTOMOTIVE
PART NUMBERING SYSTEM)
•
AVAILABLE IN STANDARD AND HIGH POWER RATINGS
• SAC REFLOW SOLDERABLE (THREE TIMES AT 260°C FOR 10 SECONDS)
NRC-AS Series
includes all homogeneous materials
RoHS
Compliant
*See Part Number System for Details
STANDARD POWER SPECIFICATIONS
Type
NRC-AS02
NRC-AS04
NRC-AS06
NRC-AS10
NRC-AS12
NRC-AS25
NRC-AS50
NRC-AS100
EIA
Size
0201
0402
0603
0805
1206
1210
2010
2512
Max. *1
Power Rating
Working
at 70°C
Voltage
0.05W
0.063W
0.10W
0.125W
0.25W
0.33W
0.75W
1.0W
25V
50V
75V
150V
200V
200V
200V
250V
Max. *2
Overload
Voltage
50V
100V
100V
300V
400V
400V
400V
500V
Resistance
Tolerance
Code
±1%(F), ±5%(J)
±0.5%(D), ±1%(F),
±5%(J)
±0.5%(D), ±1%(F),
±5%(J)
±0.5%(D), ±1%(F),
±5%(J)
±0.5%(D), ±1%(F),
±5%(J)
±0.5%(D), ±1%(F),
±5%(J)
±0.5%(D), ±1%(F),
±5%(J)
±0.5%(D), ±1%(F),
±5%(J)
Temperature
Coefficient
(ppm/°C)
±200ppm
±100ppm
±200ppm
±100ppm
±200ppm
±100ppm
±200ppm
±100ppm
±200ppm
±100ppm
±200ppm
±100ppm
±200ppm
±100ppm
±200ppm
Resistance
Range (Ω)*3
1 ~ 10M
10 ~ 1M
1 ~ 9.76
1.02M ~ 10M
10 ~ 1M
1 ~ 9.76
1.02M ~ 10M
10 ~ 1M
1 ~ 9.76
1.02M ~ 10M
10 ~ 1M
1 ~ 9.76
1.02M ~ 10M
10 ~ 1M
1 ~ 9.76
1.02M ~ 10M
10 ~ 1M
1 ~ 9.76
1.02M ~ 10M
10 ~ 1M
1 ~ 9.76
1.02M ~ 10M
Resistance
Values
E-24 & 96
E-24 & 96
E-24 & 96
E-24 & 96
E-24 & 96
E-24 & 96
E-24 & 96
E-24 & 96
Operating
Temperature
Range
-55°C ~ +125°C
-55°C ~ +155°C
HIGH POWER SPECIFICATIONS
Type
NRC-AS02P
NRC-AS04P
NRC-AS06P
NRC-AS10P
NRC-AS12P
NRC-AS25P
NRC-AS50P
EIA
Size
0201
0402
0603
0805
1206
1210
2010
Max. *1
Power Rating
Working
at 70°C
Voltage
0.083W
0.10W
0.25W
0.33W
0.33W
0.50W
1.0W
25V
50V
75V
150V
200V
200V
200V
Max. *2
Overload
Voltage
50V
100V
150V
300V
400V
400V
400V
Resistance
Tolerance
Code
±1%(F), ±5%(J)
±1%(F), ±5%(J)
±1%(F), ±5%(J)
±1%(F), ±5%(J)
±1%(F), ±5%(J)
±1%(F), ±5%(J)
±1%(F), ±5%(J)
Temperature
Coefficient
(ppm/°C)
±200ppm
±100ppm
±200ppm
±100ppm
±200ppm
±100ppm
±200ppm
±100ppm
±200ppm
±100ppm
±200ppm
±100ppm
±200ppm
Resistance
Range (Ω)*3
10 ~ 1M
10 ~ 1M
1 ~ 9.76
10 ~ 1M
1 ~ 9.76
10 ~ 1M
1 ~ 9.76
10 ~ 1M
1 ~ 9.76
10 ~ 1M
1 ~ 9.76
10 ~ 1M
1 ~ 9.76
Resistance
Values
E-24 & 96
E-24 & 96
E-24 & 96
E-24 & 96
E-24 & 96
E-24 & 96
E-24 & 96
Operating
Temperature
Range
-55°C ~ +125°C
-55°C ~ +155°C
1
NIC COMPONENTS CORP.
www.niccomp.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
Sulfur Resistant Thick Film Chip Resistors
Note *1
- Maximum allowable continuous Working Voltage
NRC-AS Series
for all resistors is the lower of the two values:
“Maximum Working Voltage” as specified above
or the result of the following formula
Power rating (Watts) x Resistance (Ohms)

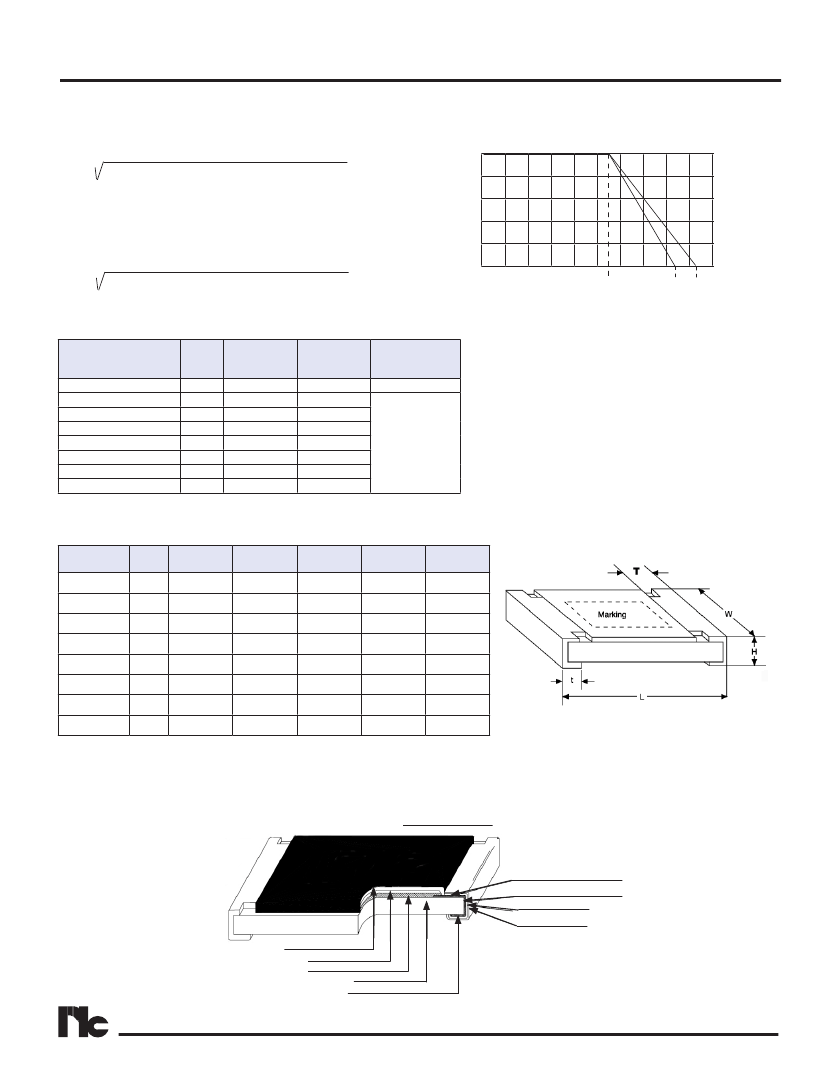

Power Derating Curve:
For operation above
70
o
C, power ratingmust be derated according
to the following chart:
100
80
RATE (%)
60
40
20
0
-20
20
60
100 120
125°C 155°C
0201 0402
0603
0805
1206
1210
2010
2512
Note *2 - "Maximum Overload Voltage" for all resistors is the
lower of the two values:
"Maximum Overload Voltage" as specified above
or 2x the result of the following formula
Power rating (Watts) x Resistance (Ohms)
70
o
C
ZERO OHM JUMPERS*
Part Number
EIA
Size
Max. Current
at 70°C
Max.
Resistance
NRC-AS02ZOTRF
0201
1A
<50mΩ
NRC-AS04ZOTRF
0402
1A
<50mΩ
NRC-AS06ZOTRF
0603
1A
<50mΩ
NRC-AS10ZOTRF
0805
2A
<50mΩ
NRC-AS12ZOTRF
1206
2A
<50mΩ
NRC-AS25ZOTRF
1210
2.5A
<50mΩ
NRC-AS50ZOTRF
2010
3.5A
<50mΩ
NRC-AS100ZOTRF
2512
4A
<50mΩ
*Optional AEC Q-200 Qualified "TRQYF"
is also available
Operating
Temperature
Range
-55°C ~ +125°C
-55°C ~ +155°C
DIMENSIONS (mm)
Type
NRC-AS02
NRC-AS04
NRC-AS06
NRC-AS10
NRC-AS12
NRC-AS25
NRC-AS50
NRC-AS100
EIA
Size
0201
0402
0603
0805
1206
1210
2010
2512
L
W
H
T
t
0.60 ± 0.03 0.30 ± 0.03 0.23 ± 0.03 0.15 ± 0.05 0.15 ± 0.05
1.00 ± 0.05 0.50 ± 0.05 0.35 ± 0.05 0.20 ± 0.10 0.20 ± 0.10
1.60 ± 0.10 0.80 ± 0.10 0.45 ± 0.10 0.30 ± 0.20 0.30 ± 0.20
2.00 ± 0.10 1.25 ± 0.10 0.50 ± 0.10 0.35 ± 0.20 0.40 ± 0.20
3.10 ± 0.10 1.55 ± 0.10 0.55 ± 0.10 0.50 ± 0.25 0.50 ± 0.20
3.10 ± 0.10 2.60 ± 0.15 0.55 ± 0.10 0.50 ± 0.25 0.50 ± 0.20
5.00 ± 0.10 2.50 ± 0.15 0.55 ± 0.10 0.60 ± 0.25 0.50 ± 0.20
6.35 ± 0.10 3.10 ± 0.15 0.55 ± 0.10 0.60 ± 0.25 0.50 ± 0.20
CONSTRUCTION
Top Electrode Base (Ag-Pd)
Edge Electrode Base (NiCr)
Barrier Layer (Ni)
Finish Layer (Sn)
2nd Overcoat (Epoxy)
1st Overcoat (Glass)
Resistive Layer RuO2/Ag
Alumina Substrate
Bottom Electrode Base (Ag)
2
NIC COMPONENTS CORP.
www.niccomp.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
Sulfur Resistant Thick Film Chip Resistors
PART NUMBER SYSTEM
PART NUMBER SYSTEM (E-24 VALUES)
NRC-AS 12 J 103 TR F
RoHS compliant
Tape & Reel Packaging
Resistance Code: First 2 figures are significant,
3rd digit is the multiplier, “R”
indicates a decimal point.
Tolerance Code: J = ±5%
Case Size and
Power Rating Code (add "P" for higher power rated parts)
Series
PART NUMBER SYSTEM (E-96 VALUES)
NRC-AS 12 F 1002 TR F
RoHS compliant
Tape & Reel Packaging
Resistance Code: First 3 figures are significant,
4th digit is the multiplier, “R”
indicates a decimal point.
Tolerance Code: F = ±1%
Case Size and
Power Rating Code (add "P" for higher power rated parts)
Series
NRC-AS Series
PART NUMBER SYSTEM - AUTOMOTIVE OPTION
(Standard
Power Ratings Only)
PART NUMBER SYSTEM (E-24 VALUES)
NRC-AS 12 J 103 TR QY F
RoHS compliant
Tape & Reel Packaging
Resistance Code: First 2 figures are significant,
3rd digit is the multiplier, “R”
indicates a decimal point.
Tolerance Code: J = ±5%
Case Size
Series
"QY" denotes optional AEC Q-200 qualified parts suitable for
automotive equipment, sourced to special production and inspection
at IATF-16949 certified production site
PART NUMBER SYSTEM (E-96 VALUES)
NRC-AS 12 F 1002 TR QY F
RoHS compliant
Tape & Reel Packaging
Resistance Code: First 3 figures are significant,
4th digit is the multiplier, “R”
indicates a decimal point.
Tolerance Code: F = ±1%
Case Size
Series
"QY" denotes optional AEC Q-200 qualified parts suitable for
automotive equipment, sourced to special production and inspection
at IATF-16949 certified production site
3
NIC COMPONENTS CORP.
www.niccomp.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
Sulfur Resistant Thick Film Chip Resistors
ENVIRONMENTAL CHARACTERISTICS (NON--AUTOMOTIVE)
Item
Temperature Coefficient
of Resistance
Short Time Overload
Insulation Resistance
Load Life
Damp Heat (with load)
Resistance to Dry Heat
Temperature Cycling
Bending Strength
∆R
±2% +0.10Ω
∆R
±2% +0.10Ω
∆R
±1% +0.05Ω
∆R
±0.5% +0.05Ω
∆R
±1% +0.05Ω
∆R
±1% +0.05Ω
NRC-AS Series
Specification
±0.5% & ±1%
tolerance
±5%
tolerance
As
specified
∆R
±2% +0.05Ω
>10GΩ
∆R
±3% +0.10Ω
∆R
±3% +0.10Ω
∆R
±1.5% +0.05Ω
∆R
±1% +0.05Ω
∆R
±2% +0.05Ω
∆R
±1% +0.05Ω
<100mΩ
<100mΩ
<50mΩ
<50mΩ
<50mΩ
<50mΩ
<50mΩ
<50mΩ
Zero Ohm
Jumper
Test Method
-55°C ~ +125°C, +25°C reference point
RCWV x 2.5 or Max Overloading Voltage for 5 Seconds
Maximum Overload Voltage for 1 Minute
Max. WV +70°C, 1.5 hours ON, 0.5 hours OFF
Total time 1,000
+40°C, 90% ~ 95% RH, Max. WV 1.5 hours ON, 0.5 hours OFF
Total time 1,000
+125°C or +155°C for 1000 hours
-55°C to +125°C or +155°C, 5 cycles
Bending amplitude 3mm (2mm for 2010 & 2512)
One bend for 5 seconds
260°C ±5°C for 10 seconds
1,000ppm H2S, +50°C ± 2°C, 91 ~ 93% RH
for 1,000 hours (no power)
+260°C for 30 seconds
Resistance to Soldering
∆R
±0.5% +0.05Ω
Heat
Sulfur Test
Leaching Test
∆R
±0.5% +0.05Ω
∆R
±0.5% +0.05Ω
Individual leaching are < 5%
Total leaching area < 10%
4
NIC COMPONENTS CORP.
www.niccomp.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
Sulfur Resistant Thick Film Chip Resistors
ENVIRONMENTAL CHARACTERISTICS (AUTOMOTIVE GRADE PRODUCTS)
Item
Temperature Coefficient
of Resistance
Short Time Overload
Insulation Resistance
Load Life
Biased Humidity
High Temperature
Exposure
Temperature Cycling
Bending Strength
Resistance to Solvents
Terminal Strength
Solderability
∆R
±2% +0.10Ω
∆R
±2% +0.10Ω
∆R
±1% +0.05Ω
∆R
±1% +0.05Ω
NRC-AS Series
Specification
±0.5% & ±1%
tolerance
±5%
tolerance
As
specified
∆R
±2% +0.05Ω
>10GΩ
∆R
±3% +0.10Ω
∆R
±3% +0.10Ω
∆R
±1.5% +0.05Ω
<100mΩ
<100mΩ
<50mΩ
<50mΩ
<50mΩ
<50mΩ
Zero Ohm
Jumper
Test Method
JIS C5201-1 4.8, IEC 60115-1 4.8
-55°C ~ +125°C, +25°C reference temperature
JIS C5201-1 4.13, IEC 60115-1 4.13
RCWV x 2.5 or Max Overloading Voltage whichever is less
for 5 Seconds
JIS C5201-1 4.6, IEC 60115-1 4.6
Maximum Overload Voltage for 1 Minute
JIS C5201-1 4.25, IEC 60115-1 4.25.1, MIL-STD-202, Method 108
Rated WV, +70°C, 1.5 hours ON, 0.5 hours OFF
Total time 1,000 hours
MIL-STD-202, Method 103
1000 hours, +85°C/85% RH 10% of operating power
MIL-STD-202, Method 108
+155°C for 1000 hours
JESD22 Method JA-104
-55°C to +125°C, 1000 cycles
AEC-Q200-005
Bending amplitude 3mm (2mm for 2010 & 2512)
One bend for 60 seconds
MIL-STD-202, Method 215
Add aquesous wash chemical (OKEM clean or equivalent). Do
not use banned solvents
AEC-Q200-006
Force of 1.8kg for 60 seconds
JIS C5201-1 4.17, IEC 60115-1 4.17, J-STD-002
+245°C ±5°C for 3 seconds
∆R
±0.5% +0.05Ω
∆R
±1.5% +0.05Ω
∆R
±1% +0.05Ω
∆R
±1% +0.05Ω
No visible damage of appearance and marking
No broken terminals
>95% Coverage
∆R
±1% +0.05Ω
<50mΩ
Resistance to Soldering
∆R
±0.5% +0.05Ω
Heat
Voltage Proof
Flammability
Sulfur Test
Leaching Test
Mechanical Shock
Vibration
ESD
MIL-STD-202, Method 210
260°C ±5°C for 10 seconds
JIS C5201-1 4.7, IEC 60115-1 4.7
1.42 times maximum operating voltage for 1 minute
UL-94
V-0 or V-1 are acceptable. Electrical test not required
ASTM-B-809-95
H2S, +50°C ± 2°C, 91 ~ 93% RH
for 1,000 hours (no power)
JIS C5201-1 4.18, IEC 60068-2-58 8.2.1
+260°C for 30 seconds
No breakdown or flashover
No ignition of the tissue paper or scorching of the
pinewood board
∆R
±0.5%
Individual leaching are < 5%
Total leaching area < 10%
∆R
±0.25%
+0.05Ω
∆R
±1.0% +0.05Ω
<50mΩ
<50mΩ
<50mΩ
<50mΩ
∆R
±0.5% +0.05Ω
∆R
±1.0% +0.05Ω
∆R
±1.0% +0.05Ω
MIL-STD-202, Method 213
Wave Form: Tolerance for half sine wave pulse.
Peak Value is 100g's. Normal duration (D) is 6.
MIL-STD-202, Method 204
5g's for 20 minutes, 12 cycles each of 3 orientations,
10 ~ 2000Hz
AEC-Q200-002
Human body, 2KV
5
NIC COMPONENTS CORP.
www.niccomp.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
Electronics Design Contest
京公网安备 11010802033920号
EEWORLD
