CN1J2KTTDD162J: DescriptionArray/Network Resistor, Isolated, Metal Glaze/thick Film, 0.063W, 1600ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0606, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size209KB，2 Pages; ManufacturerKOA; Environmental Compliance

Download Datasheet Parametric View All

CN1J2KTTDD162J Overview

Array/Network Resistor, Isolated, Metal Glaze/thick Film, 0.063W, 1600ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0606, CHIP, ROHS COMPLIANT

CN1J2KTTDD162J Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1729932718
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Chip
Component power consumption	0.063 W
The first element resistor	1600 Ω
JESD-609 code	e3
Installation features	SURFACE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	2
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.5 mm
Package length	1.6 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	1.6 mm
method of packing	TR, PAPER, 10 INCH
Rated power dissipation(P)	0.063 W
Rated temperature	70 °C
resistance	1600 Ω
Resistor type	ARRAY/NETWORK RESISTOR
size code	0606
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	50 V

Preview

Download Datasheet

View All

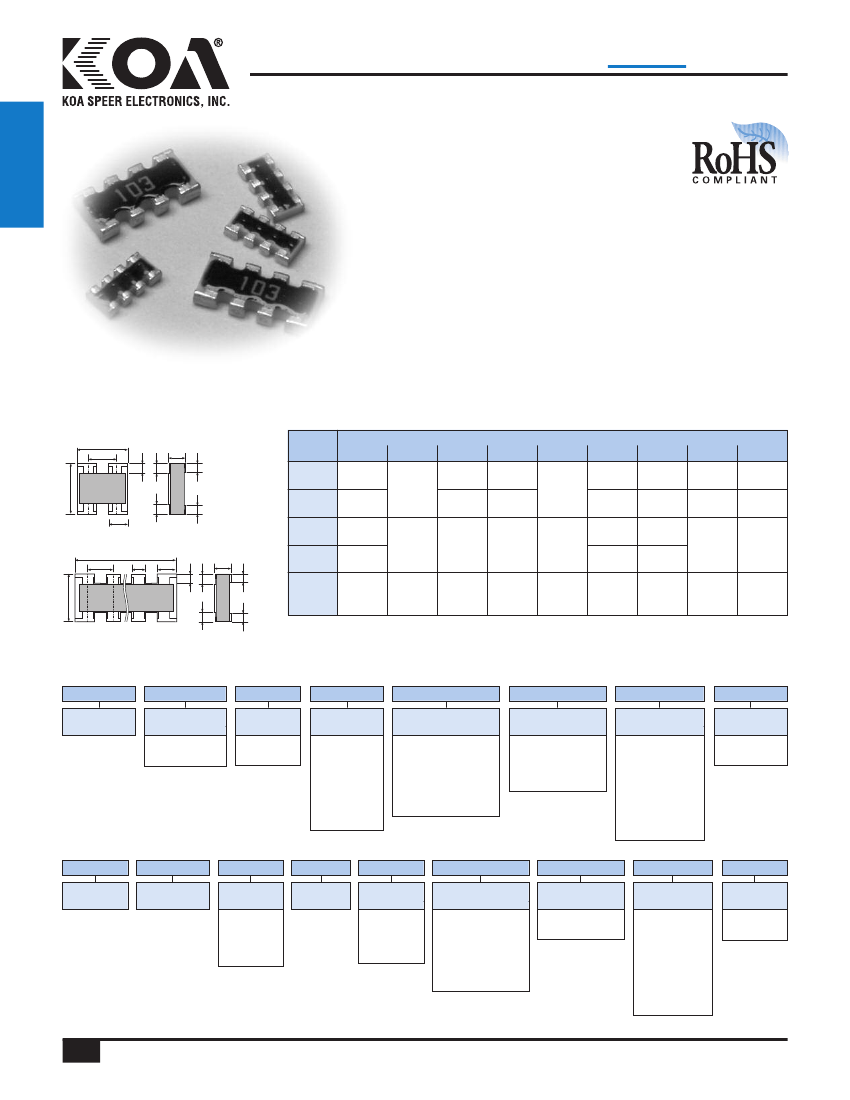

NOT RECOMMENDED FOR NEW DESIGN

K/N

convex termination with square corners

resistor array

resistors

features

•

Manufactured to type RK73 standards

Less board space than individual chips

Isolated resistor elements

Convex terminations with square corners (CN_K)

Flat termination with square corners (CN_N)

Products with lead-free terminations meet EU RoHS

requirements. EU RoHS regulation is not intended for

Pb-glass contained in electrode, resistor element and glass.

•

AEC-Q200 Qualified: CN1E4K and CN1J4K only

dimensions and construction

CN1E2K, CN1J2K

Size

Code

Dimensions

inches

(mm)

.006±.004 .010±.004

(0.15±0.1) (0.25±0.1)

.014±.004

.006±.004 .010±.008

(0.35±0.1)

(0.15±0.1) (0.25±0.2)

.013±.004

(0.33±0.1)

—

.007±.002

(0.17±0.05)

.026

(0.67)

.020

(0.5)

0.031

(0.8)

.020

(0.5)

CN1E4K, CN1J4K, CN1F8K, CN1FN8K

1E2K

.039±.004

(0402x2)

(1.0±0.1)

.039±.004

1E4K

.079±.004

(1.0±0.1)

(0402x4)

(2.0±0.1)

1J2K

.063±.006

(0603x2)

(1.6±0.15)

.063±.006

1J4K

.126±.006

(1.6±0.15)

(0603x4)

(3.2±0.15)

1F8K

.149±.004 .063±.004

1FN8K

(3.8±0.1) (1.6±0.1)

(0602x8)

.012±.006 .016±.006 .006±.004

(0.3±0.15) (0.4±0.15) (0.15±0.1)

.024±.006

—

.012±.008 .010±.004 .020±.004

(0.6±0.15)

.012±.004

(0.3±0.2) (0.25±0.1) (0.5±0.1)

.020±.006 .026±.006

(0.3±0.1)

(0.5±0.15) (0.65±0.15)

.012±.004 .012±.004 .018±.004 .012±.004

(0.3±0.1) (0.3±0.1) (0.45±0.1) (0.30±0.1)

—

.006

(0.15)

ordering information

Type

Size

Elements

Terminal

Convex

K: Convex

type with

square

corners

N: Flat type

with square

corners

Termination

Material

T: Sn

(1E, 1J: Other

termination styles may

be available, please

contact factory for

options)

Packaging

TD:

7" paper tape

TDD:

10" paper tape

101

Nominal

Resistance

2 significant

figures + 1

multiplier

for ±5%

3 significant

figures + 1

multiplier

for ±1%

101

Nominal

Resistance

2 significant

figures + 1

multiplier

for ±5%

3 significant

figures + 1

multiplier

for ±1%

Tolerance

F: ±1%

J: ±5%

Type

Size

Marking

Blank:

Marking

N: No

Marking

Elements

Terminal

Convex

K: Convex

type with

square

corners

Termination

Material

T: Sn

(Other termination

styles may be

available, please

contact factory

for options)

Packaging

TD:

7" paper tape

Tolerance

F: ±1%

J: ±5%

For further information on packaging, please refer to Appendix A.

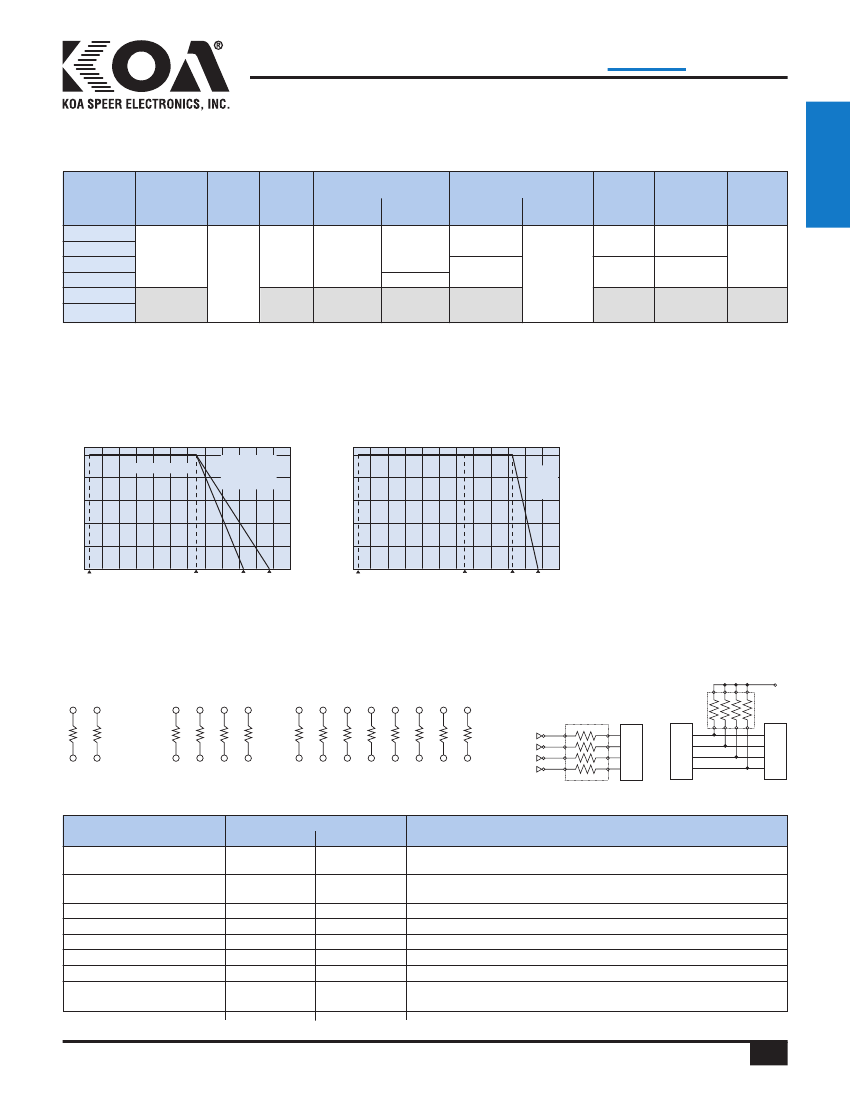

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

11/14/17

128

KOA Speer Electronics, Inc.

• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
