PC815 Serise
PC815 Series
..
s
Features
High Sensitivity, High Density
Mounting Type Photocoupler
s
Applications
g
Lead forming type ( I type ) and taping reel type ( P type ) are also available. (
PC815I/PC815P
)
gg
TUV ( VDE0884 ) approved type is also available as an option.
1. High current transfer ratio
1. System appliances, measuring instruments
( CTR: MIN. 600% at I
F
= 1mA, V
CE
= 2V)
2. Industrial robots
2. High isolation voltage between input and
3. Copiers, automatic vending machines
output
4. Signal transmission between circuits of
( V
iso
: 5 000V
rms
)
different potentials and impedances
3. Compact dual-in-line package
PC815
: 1-channel type
PC825
: 2-channel type
PC835
: 3-channel type
PC845
: 4-channel type
4. Recognized by UL file No. E64380
s

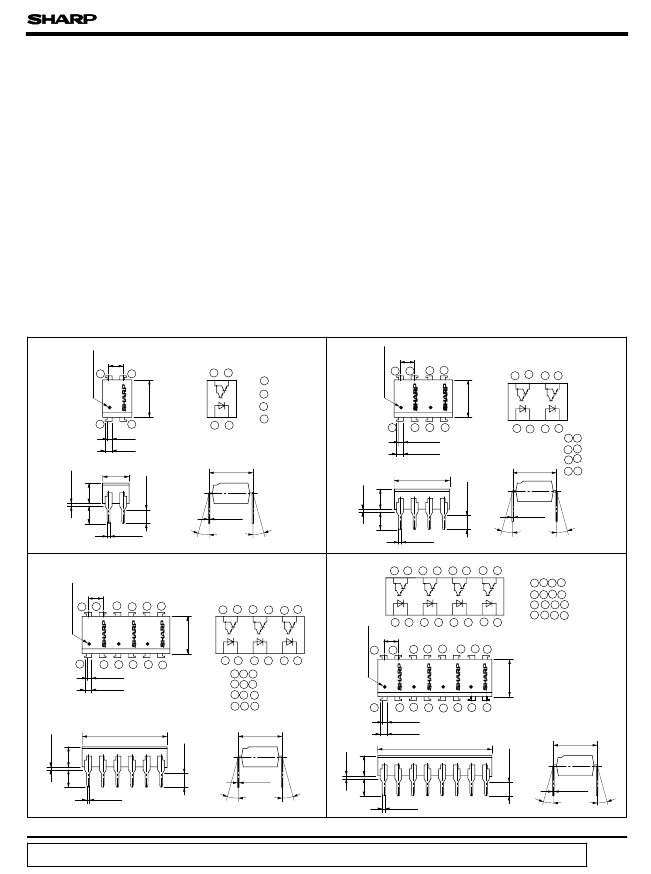

Outline Dimensions
Anode mark
Anode mark
( Unit : mm )
Internal connection diagram
4
3
1
2
3
4
Anode
Cathode
Emitter
Collector
PC815
PC825
2.54
±
0.25
4
PC815
3
6.5
±
0.5
2.54
±
0.25
8
7
PC815
6
5
PC815
6.5
±
0.5
Internal connection
diagram
8 7
6 5
1
2
0.9
±
0.2
1.2
±
0.3
1
2
1
2 3 4
0.9
±
0.2
1.2
±
0.3
9.66
±
0.5
2.7
±
0.5
1
2
3
4
1
2
5
6
3
4
7
8
Anode
Cathode
Emitter
Collector
0.5
TYP.
3.5
±
0.5
2.7
±
0.5
0.5
TYP.
3.5
±
0.5
4.58
±
0.5
7.62
±
0.3
7.62
±
0.3
3.0
±
0.5
3.0
±
0.5
0.26
±
0.1
0.5
±
0.1
θ
θ
=
0 to 13
˚
θ
0.26
±
0.1
θ
θ
=
0 to 13
˚
θ
0.5
±
0.1
PC835
Anode mark
2.54
±
0.25
12 11
10
PC845
Internal connection
diagram
12 11 10
9
8 7
6.5
±
0.5
Anode mark
Internal connection diagram
16 15 14 13 12 11 10
9
1 3 5 7 Anode
2 4 6 8 Cathode
9
11 13 15
Emitter
10 12 14 16
Collector
9
PC815
8
7
PC815
PC815
1 2 3
2.54
±
0.25
16
15
14 13
4
12
5
6
11 10
7
9
8
PC815
PC815
PC815
PC815
6
7
8
1
3.0
±
0.5
3.5
±
0.5
0.5
TYP.
14.74
±
0.5
2.7
±
0.2
7.62
±
0.3
3.0
±
0.5
3.5
±
0.5
0.5
TYP.
2 3 4
0.9
±
0.2
1.2
±
0.3
5
6.5
±
0.5
1
2 3 4
0.9
±
0.2
1.2
±
0.3
5
6
1
2 3
1 3 5
2 4 6
7 9
11
8
10 12
4 5 6
Anode
Cathode
Emitter
Collector
19.82
±
0.5
2.7
±
0.5
7.62
±
0.3
0.26
±
0.1
0.5
±
0.1
θ
θ
=
0 to 13
˚
θ
0.26
±
0.1
0.5
±
0.1
θ
θ
θ
=
0 to 13
˚
“
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that occur in equipment using any of SHARP's devices, shown in catalogs,
data books, etc. Contact SHARP in order to obtain the latest version of the device specification sheets before using any SHARP's device.
”
PC815 Series
s
Absolute Maximum Ratings
Parameter
Forward current
*1
Peak forward current
Reverse voltage
Power dissipation
Collector-emitter voltage
Emitter-collector voltage
Collector current
Collector power dissipation
Total power dissipation
*2
Isolation voltage
Operating temperature
Storage temperature
*3
Soldering temperature
Symbol
I
F
I
FM
V
R
P
V
CEO
V
ECO
I
C
P
C
P
tot
V
iso
T
opr
T
stg
T
sol
Rating
50
1
6
70
35
6
80
150
200
5 000
- 30 to + 100
- 55 to + 125
260
( Ta = 25˚C )
Unit
mA
A
V
mW
V
V
mA
mW
mW
V
rms
˚C
˚C
˚C
Input
Output
*1 Pulse width<=100
µ
s, Duty ratio : 0.001
*2 40 to 60% RH, AC for 1 minute
*3 For 10 seconds
s
Electro-optical Characteristics
Parameter
Forward voltage
Peak forward voltage
Reverse current
Terminal capacitance
Collector dark current
Current transfer ratio
Collector-emitter saturation voltage
Isolation resistance
Floating capacitance
Cut-off frequency
Rise time
Response time
Fall time
Symbol
V
F
V
FM
I
R
C
t
I
CEO
CTR
V
CE ( sat )
R
ISO
C
f
f
c
t
r
t
f
Conditions
I
F
= 20mA
I
FM
= 0.5A
V
R
= 4V
V = 0, f = 1kHz
V
CE
= 10V, I
F
= 0
I
F
= 1mA, V
CE
= 2V
I
F
= 20mA, I
C
= 5mA
DC500V, 40 to 60% RH
V = 0, f = 1MHz
V
CE
= 2V, I
C
= 2mA, R
L
= 100
Ω
V
CE
MIN.
-
-
-
-
-
600
-
5 x 10
10
-
1
-
= 2V, I
C
= 10mA, R
L
= 100
Ω
-
TYP.
1.2
-
-
30
-
-
0.8
10
11
0.6
6
60
53
( Ta = 25˚C )
MAX.
1.4
3.0
10
250
10
- 6
7 500
1.0
-
1.0
-
300
250
Unit
V
V
µ
A
pF
A
%
V
Ω
pF
kHz
µ
s
µ
s
Input
Output
Transfer
charac-
teristics

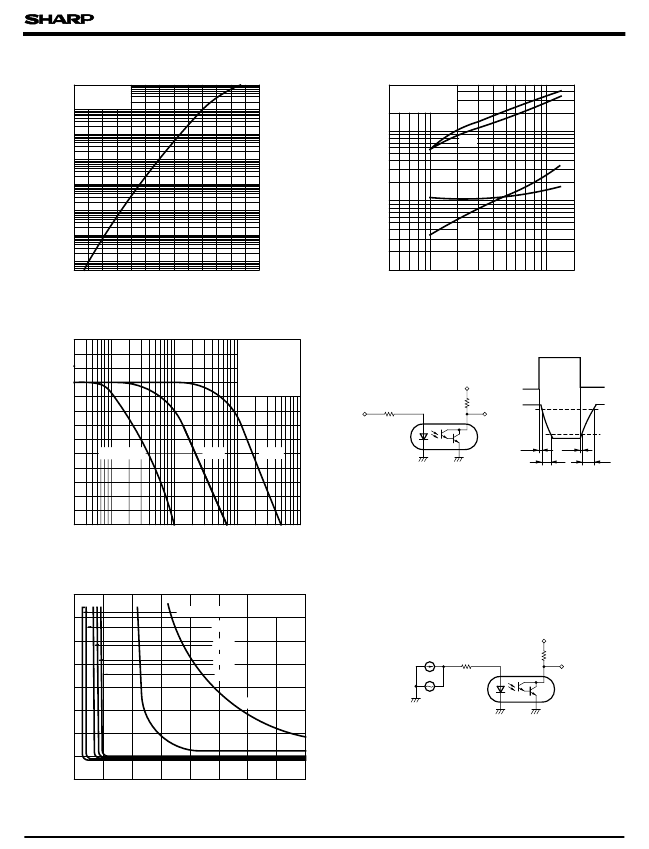

Fig. 1 Forward Current vs.
Ambient Temperature
60
Fig. 2 Collector Power Dissipation vs.
Ambient Temperature
200
Collector power dissipation P
C
( mW )
50
Forward current I
F
( mA )
150
40
30
100
20
50
10
0
- 30
0
25
50
75
100
( ˚C )
Ambient temperature Ta
125
0
- 30
0
25
50
75
100
Ambient temperature Ta ( ˚C )
125
PC815 Series
Fig. 3 Peak Forward Current vs. Duty Ratio
10 000
5 000
Peak forward current I
FM
( mA )
2 000
1 000
500
200
100
50
20
10
5
5
Fig. 4 Forward Current vs. Forward Voltage
500
200
Forward current I
F
( mA )
100
50
20
10
5
2
1
T
a
= 75˚C
50˚C
25˚C
0˚C
- 25˚C
Pulse width <=100µs
T
a
= 25˚C
10
-3
2
5
10
-2
2
5
10
-1
2
5
1
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
Duty ratio
Forward voltage V
F
( V )
Fig. 5 Current Transfer Ratio vs.
Forward Current
2 000
Current transfer ratio CTR ( % )
1 800
1 600
1 400
1 200
1 000
800
600
400
200
0
0.1
V
CE
= 2V
T
a
= 25˚C
Fig. 6 Collector Current vs.
Collector-emitter Voltage
100
90
80
Collector current I
C
( mA )
I
F
= 10mA
70
60
50
40
2mA
30
20
10
1mA
5mA
P
C
( MAX. )
Ta = 25˚C
0.2
0.5
1
F
2
( mA )
5
10
0
0
Forward current I
1
2
3
Collector-emitter voltage V
CE
4
(V)
5
150
I
F
= 1mA
V
CE
= 2V
Relative current transfer ratio ( % )
Collector-emitter saturation voltage V
CE ( sat )
( V )
Fig. 7 Relative Current Transfer Ratio vs.
Ambient Temperature
Fig. 8 Collector-emitter Saturation Voltage
vs. Ambient Temperature
1.3
1.2
1.1
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
- 30
I
F
= 20mA
I
C
= 5mA
100
50
0
- 30
0
25
50
75
100
0
25
50
a
75
( ˚C )
100
Ambient temperature T
a
( ˚C )
Ambient temperature T
Application Circuits
