PC844XJ0000F Series
PC844XJ0000F
Series
∗
DIP 16pin (4-channel)
AC Input Photocoupler
1-channel package type is also available.
(model No.
PC814XJ0000F Series)
■
Description
PC844XJ0000F Series
contains an IRED optically
coupled to a phototransistor.
It is packaged in a 4-channel 16pin DIP.
Input-output isolation voltage(rms) is 5.0kV.
Collector-emitter voltage is 80V and CTR is 20% to
300% at input current of
±1mA.
■
Agency approvals/Compliance
1. Recognized by UL1577, file No. E64380 (as model
No.
PC844)
2. Package resin : UL flammability grade
(94V-0)
■
Applications
1. Programmable controllers
2. Telephone sets, telephone exchangers
3. System appliances
4. Signal tranmission between circuits of different poten-
tials and impedances
■
Features
1. 16pin DIP 4-channel package
2. Double transfer mold package (ldeal for Flow Solder-
ing)
3. AC input type
4. High collector-emitter voltage (V
CEO
: 80V)
5. Current transfer ratio
(CTR : MIN. 20% at I
F
=±1mA, V
CE
=5V)
6. High isolation voltage between input and output
(V
iso(rms)
: 5.0kV)
7. Lead-free and RoHS directive compliant
Notice The content of data sheet is subject to change without prior notice.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
1
Sheet No.: D2-A03603EN
Date Sep. 1. 2006
© SHARP Corporation
PC844XJ0000F Series
■
Internal Connection Diagram
16
15
14
13
12
11
10
9
Anode/Cathode
Cathode/Anode
9 11 13 15
Emitter
10 12 14 16
Collector
1 3 5 7
2 4 6 8
1
2
3
4
5
6
7
8
■

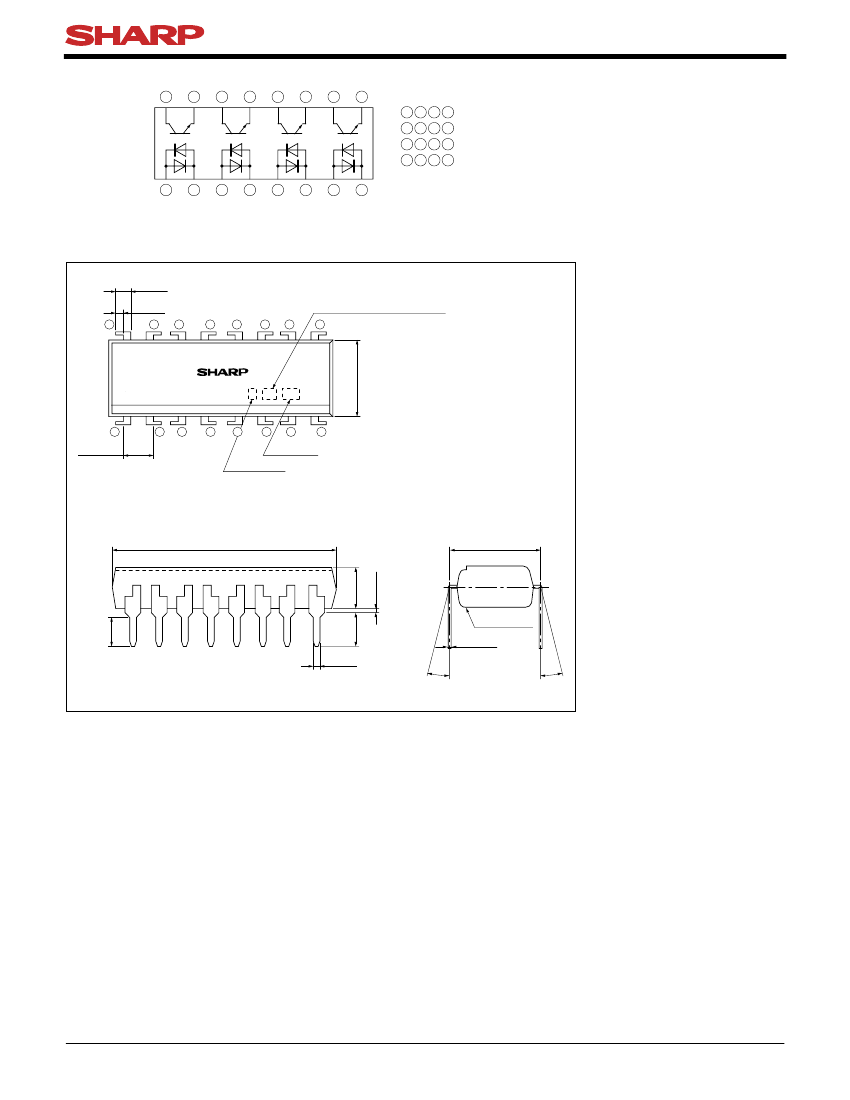

Outline Dimensions
1.2
0.6
16
±0.3
±0.2
(Unit : mm)
Factory identification mark
14
13
12
11
10
9
15
1
2
3
4
5
6
7
8
2.54
±0.25
Date code
Rank mark
6.5
±0.5
PC844
19.82
±0.50
7.62
0.5
TYP.
±0.5
±0.30
±0.5
±0.5
3.5
Epoxy resin
0.26
θ
θ
:
0 to 13˚
±0.10
2.7
0.5
±0.1
3.0
θ
Product mass : approx. 1.0g
Plating material : SnCu (Cu : TYP. 2%)
Sheet No.: D2-A03603EN
2
PC844XJ0000F Series
Date code (2 digit)
1st digit
Year of production
A.D
Mark
2002
A
2003
B
2004
C
2005
D
2006
E
2007
F
2008
H
2009
J
2010
K
2011
L
2012
M
·
·
N
·
2nd digit
Month of production
Month
Mark
January
1
February
2
March
3
April
4
May
5
June
6
July
7
August
8
September
9
October
O
November
N
December
D
A.D.
1990
1991
1992
1993
1994
1995
1996
1997
1998
1999
2000
2001
Mark
P
R
S
T
U
V
W
X
A
B
C
·
·
·
repeats in a 20 year cycle
Factory identification mark
Factory identification Mark
no mark
Japan
Indonesia
Philippines
China
* This factory marking is for identification purpose only.
Please contact the local SHARP sales representative to see the actual status of the
production.
Country of origin
Rank mark
Refer to the Model Line-up table
Sheet No.: D2-A03603EN
3
PC844XJ0000F Series
■
Absolute Maximum Ratings
Parameter
Symbol
I
F
Forward current
*1
Peak forward current
I
FM
P
Power dissipation
Collector-emitter voltage V
CEO
Emitter-collector voltage V
ECO
I
C
Collector current
Collector power dissipation
P
C
P
tot
Total power dissipation
*2
Isolation voltage
V
iso (rms)
T
opr
Operating temperature
T
stg
Storage temperature
*3
Soldering temperature
T
sol
Input
(T
a
=25˚C)
Rating
Unit
±50
mA
±1
A
70
mW
80
V
6
V
50
mA
150
mW
200
mW
5.0
kV
−30
to
+100
˚C
−55
to
+125
˚C
260
˚C
*1 Pulse width≤100µs, Duty ratio : 0.001
*2 40 to 60%RH, AC for 1 minute, f = 60Hz
*3 For 10s
■
Electro-optical Characteristics
Parameter
Forward voltage
Peak forward voltage
Terminal capacitance
Collector dark current
Collector-emitter breakdown voltage
Emitter-collector breakdown voltage
Collector current
Collector-emitter saturation voltage
Isolation resistance
Floating capacitance
Cut-off frequency
Rise time
Response time
Fall time
Symbol
V
F
V
FM
C
t
I
CEO
BV
CEO
BV
ECO
I
C
V
CE (sat)
R
ISO
C
f
f
c
t
r
t
f
Output
Transfer characteristics Output Input
Conditions
I
F
=±20mA
I
FM
=±0.5V
V=0, f=1kHz
V
CE
=50V,
I
F
=0
I
C
=0.1mA,
I
F
=0
I
E
=10µA,
I
F
=0
I
F
=±1mA,
V
CE
=5V
I
F
=±20mA,
I
C
=1mA
DC500V, 40 to 60%RH
V=0, f=1MHz
V
CE
=5V,
I
C
=2mA,
R
L
=100Ω,
−3dB
V
CE
=2V,
I
C
=2mA,
R
L
=100Ω
MIN.
−
−
−
−
80
6
0.2
−
5×10
10
−
15
−
−
TYP.
1.2
−
50
−
−
−
−
0.1
1×10
11
0.6
80
4
3
MAX.
1.4
3.0
250
100
−
−
3.0
0.2
−
1.0
−
18
18
(T
a
=25˚C)
Unit
V
V
pF
nA
V
V
mA
V
Ω
pF
kHz
µs
µs
Sheet No.: D2-A03603EN
4
