592-2727-013F

Description
led prism 3mm ylw/ylw smd
CategoryLED optoelectronic/LED    photoelectric
File Size112KB,2 Pages
ManufacturerDIALIGHT
Websitehttps://www.dialight.com
Environmental Compliance
Download Datasheet Parametric Compare View All

592-2727-013F Online Shopping

Suppliers Part Number Price MOQ In stock
592-2727-013F - - View Buy Now

592-2727-013F Overview

led prism 3mm ylw/ylw smd

592-2727-013F Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerDIALIGHT
package instructionROHS COMPLIANT PACKAGE-4
Reach Compliance Codecompliant
colorYELLOW
color@wavelengthYellow
ConfigurationSEPARATE, 2 ELEMENTS
Maximum forward current0.05 A
Maximum forward voltage2.4 V
JESD-609 codee2
Nominal luminous intensity33.6 mcd
Installation featuresSURFACE MOUNT
Number of functions2
Number of terminals4
Maximum operating temperature100 °C
Minimum operating temperature-55 °C
Optoelectronic device typesSINGLE COLOR LED ARRAY
total height10.92 mm
method of packingTAPE AND REEL 13\"
Maximum reverse voltage5 V
shapeROUND
size3 mm
surface mountYES
T codeT-1
Terminal surfaceTin/Silver/Nickel (Sn/Ag/Ni)
Terminal pitch2.794 mm
perspective40 deg
Base Number Matches1

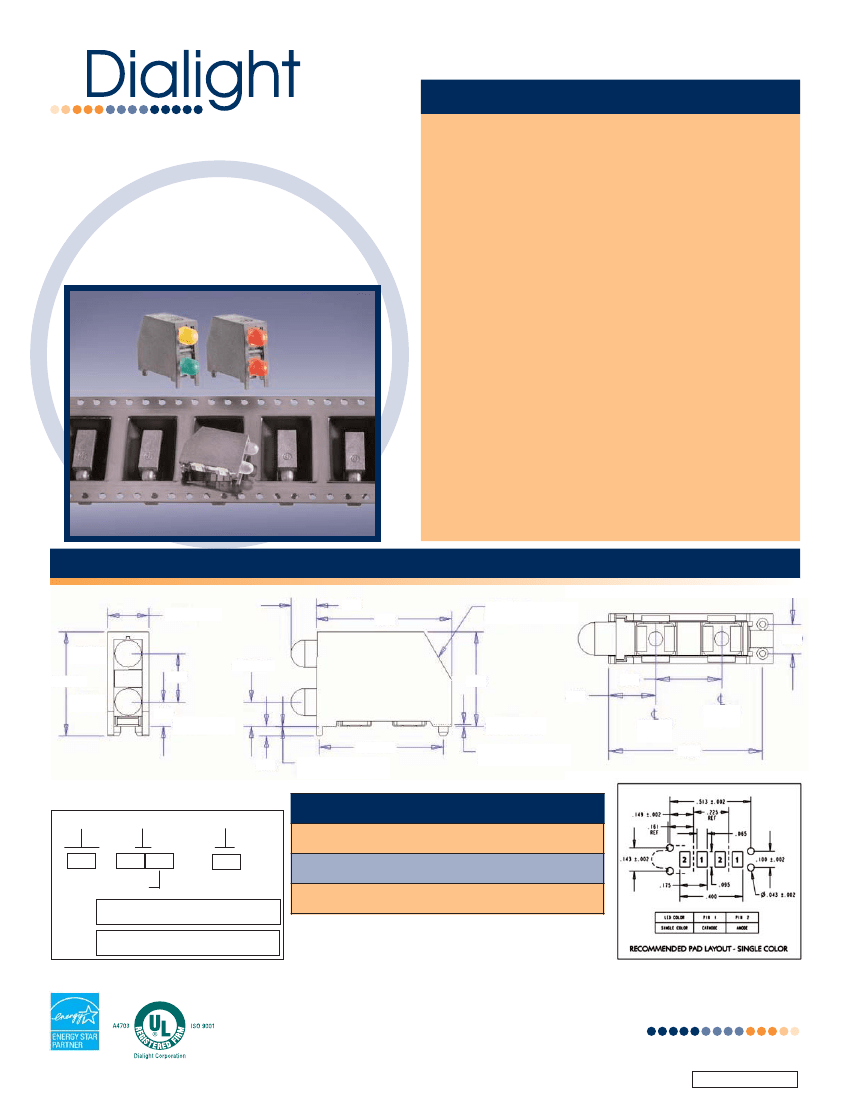

FEATURES / BENEFITS
Incorporates latest LED technology, specifically designed for
surface mounting.
Compatible with automatic placement equipment.
Compatible with surface mount reflow soldering processes.
Black housing enhances contrast ratio.
Housing material meet UL-94V-0 flammability ratings.
Patented Bi-level design provides increased indication
without increased space.
Illumination areas compatible with industry standard 3mm
through-hole Bi-level Circuit Board Indicators.
Packaged in moisture barrier bags for dry packaging per
IPC/JEDEC J-STD-033.
Helps to eliminate mixed technology pc board processing.
592 SERIES
3mm Bi-level Prism
CBI
Surface Mount LED
BRIGHT SINGLE COLOR
SPECIFICATIONS
.105
.170 MAX
.560
CATHODE ID
(ANGLED SURFACE)
.100
POS. 1
.100 REF
.430 REF
.200
.390
.160
.100
.225
POS. 2
SURFACE A
.513 REF
.040
.004 MAX
BELOW SURFACE A
SURFACE A
.007 MAX
ABOVE SURFACE A
OF LED
REF
.525
OF LED
REF
PART NUMBER CODE
SERIES
Position 1
Package option
PART NUMBER
592-2121-0XX
COLOR COMBO
AlGaAs Red/AlGaAs Red
GREEN/GREEN
AllnGaP Yellow/AllnGaP Yellow
592
2X
Position 2
2X
0XX
592-2222-0XX
592-2727-0XX
Color = 21) AlGaAs Red,
22) Green
24) AllnGaP Yellow, 00) blank
Package Size Options
-002 = 10 piece strip -013 = 13” reel dia.
Note: Custom color combinations available upon request.
Check with factory for details.
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732.919.3119 • Fax: (1) 732.751.5778 • www.dialight.com
a Roxboro Group Company
MDEF592D001_A
