PEH 169
•
•
•
•
•
105°C
RoHS
Compliant
high performance
long life, > 10 years at 50°C
low esr and esl
high stability, 10 years shelf life
optimized designs available on request
appliCation
basiC design
PEH 169 is a Long Life electrolytic capacitor
with outstanding reliability and electrical
performance. Polarized, all-welded design,
heavy duty screw terminals, extended
cathode construction, safety vent and
plastic insulation. The PEH 169 winding is
housed in a cylindrical aluminium can with
a reinforced moulded lid incorporating a
safety vent. The sealing system is designed
Smoothing, energy storage, or pulse
operation in telecommunication demanding
power supplies, process control, AC-motor
control, traction, welding and measuring.
for electrolyte leakage free operation and
a very low gas-diffusion rate of electrolyte.
Mechanical contact between the winding
and the case allows excellent heat transfer
from the winding to the ambient, which
means cooler operation. Low ESR is a result
of a low resistive paper/electrolyte system,
at least two tabs per foil and all-welded
design.

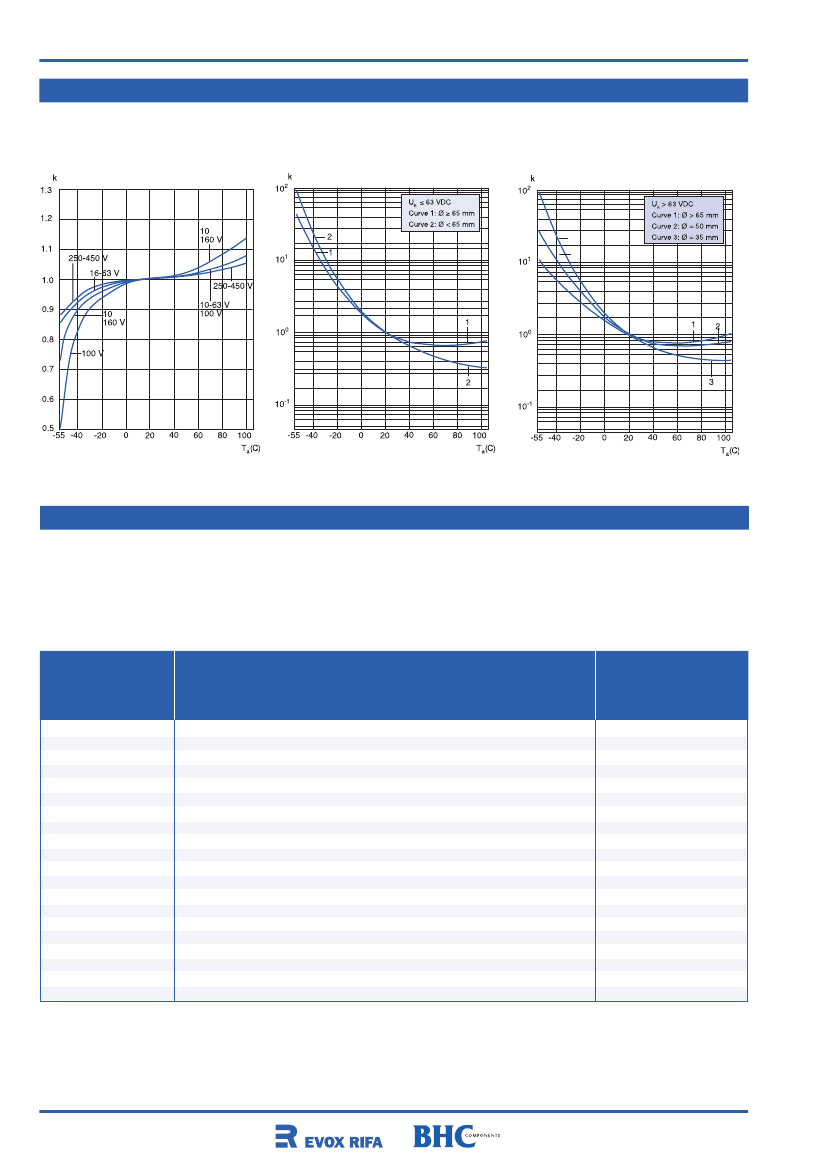

speCifiCation
standards
Standards IEC 60384-4 Long Life Grade
40/105/56, DIN 41240, type 1A
CECC 30300
DIN 40040 GPF, DIN 41248
CECC 30301-030,
Corresponding to
CECC 30301-803
100–330000 µF
–10 to +30%
10–350 VDC
–40 to +105°C
25000 h at 105°C
Case Ø = 90 mm
5000h at 0V +105°C, or
10 years at 0V +40°C
35–90 mm
CeCC
Capacitance range
Capacitance tolerance
rated voltage
temperature range
operational life time
shelf life
diameter range

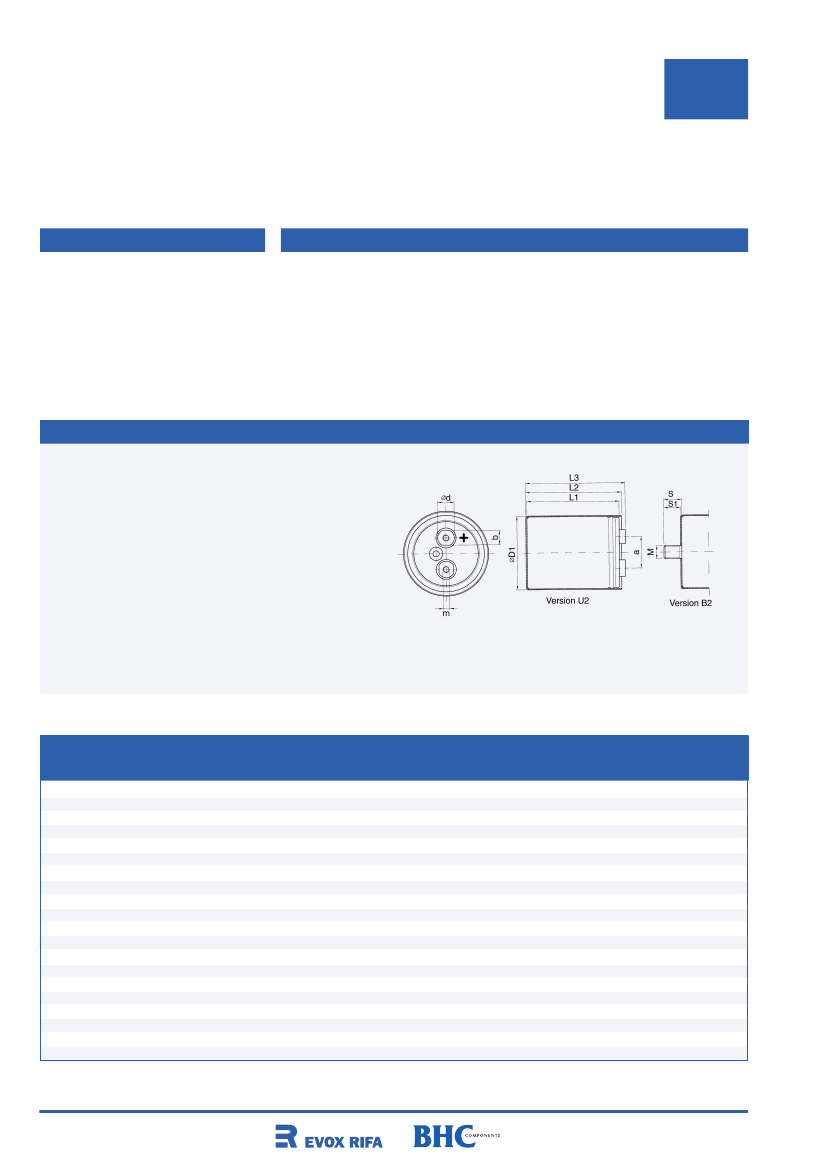

dimensions table peh 169 (mm)
dxl
35 x 51
35 x 60
35 x 75
35 x 95
50 x 75
50 x 95
50 x 105
50 x 115
65 x 105
65 x 115
65 x 130
75 x 78
75 x 98
75 x 105
75 x 115
75 x 145
75 x 220
90 x 78
90 x 98
90 x 145
Case
code
A
B
C
D
H
J
K
I**
O
Q**
S**
L
P**
T
U
V
X
M
N
Y
d1
±1.0
36.6
36.6
36.6
36.6
51.6
51.6
51.6
51.6
66.6
66.6
66.6
76.6
76.6
76.6
76.6
76.6
76.6
91.6
91.6
91.6
l1
±1.0
51.5
59.5
73.5
94.5
74.5
95.5
103.5
115.5
106.0
118.0
129.0
77.0
98.0
106.0
118.0
146.0
221.0
76.5
97.5
145.5
l2
±1.0
54.5
62.5
76.5
97.5
77.5
98.5
106.5
118.5
109.2
121.2
132.2
80.2
101.2
109.2
121.2
149.2
224.2
79.7
100.7
148.7
l3
±1.0
58.9
66.9
80.9
101.9
82.4
103.4
111.4
123.4
113.0
125.0
136.0
84.0
105.0
113.0
125.0
153.0
228.0
83.4
104.4
152.4
s
12
12
12
12
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
s1
11.0
11.0
11.0
11.0
15.0
15.0
15.0
15.0
14.8
14.8
14.8
14.8
14.8
14.8
14.8
14.8
14.8
14.8
14.8
14.8
m
M8
M8
M8
M8
M12
M12
M12
M12
M12
M12
M12
M12
M12
M12
M12
M12
M12
M12
M12
M12
a
±0.5
13.0
13.0
13.0
13.0
22.0
22.0
22.0
22.0
28.5
28.5
28.5
32.0
32.0
32.0
32.0
32.0
32.0
32.0
32.0
32.0
b
—
—
—
—
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
d
8
8
8
8
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
m*
M5
M5
M5
M5
M5
M5
M5
M5
M5
M5
M5
M5
M5
M5
M5
M5
M5
M5
M5
M5
weight
approx (g)
70
85
105
130
180
240
265
300
415
460
520
430
530
585
640
800
1400
750
950
1400
* M6 and other threads on request.
**on request
