K080ASX-068415G datasheet, PDF

Datasheet> All Categories > The connector> The connector> K080ASX-068415G

K080ASX-068415G: DescriptionBoard Stacking Connector, 68 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Socket; CategoryThe connector The connector; File Size419KB，1 Pages; ManufacturerKycon

Download Datasheet Parametric View All

K080ASX-068415G Overview

Board Stacking Connector, 68 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Socket

K080ASX-068415G Parametric

Parameter Name	Attribute value
Objectid	1595767016
Reach Compliance Code	unknown
Body/casing type	SOCKET
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	K080ASX
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	68
UL Flammability Code	94V-0

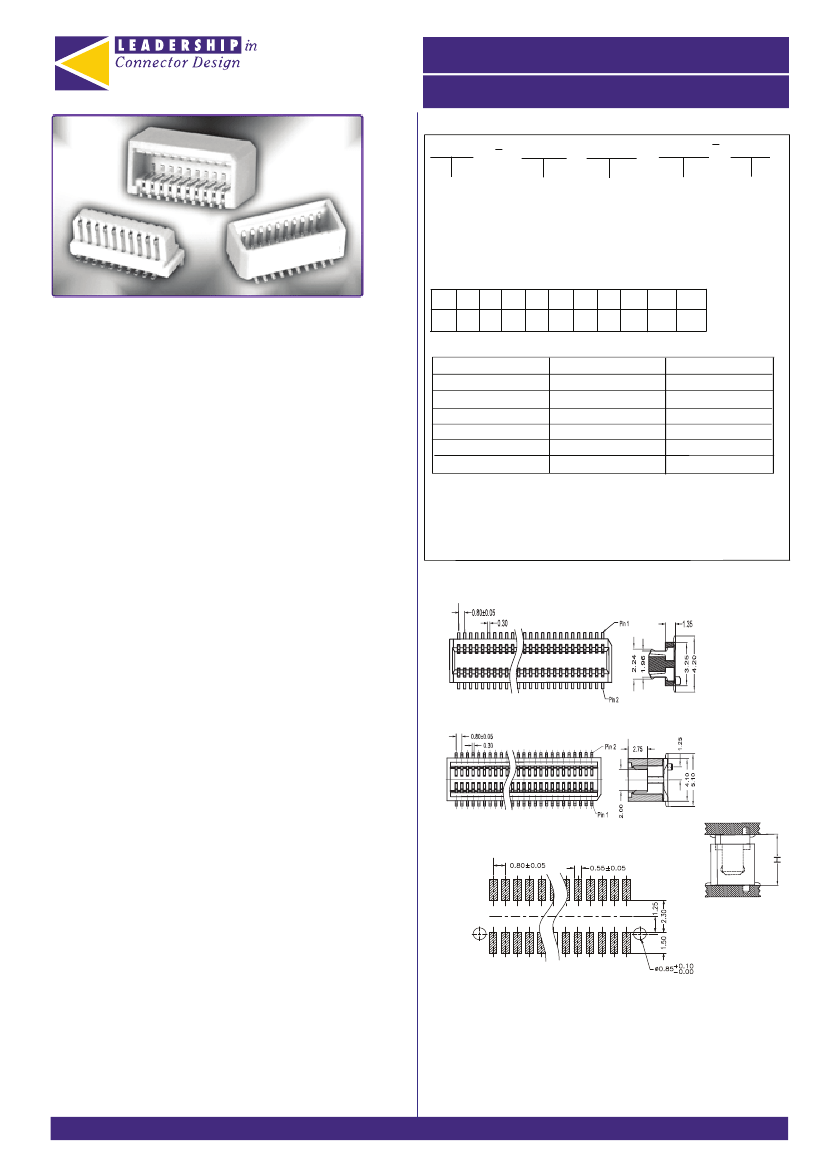

Preview

Download Datasheet

View All

KYCON

Ordering Information

Series

No of

Contacts

Height

0.8mm Board to Board

K080ASX/VPX/RPX Series

Plating

Packaging

Option

K080ASX - 0.8mm Socket

K080VPX - 0.8mm Plug

K080RPX - 0.8mm Plug

Feature

K080ASX/VPX/RPX

0.8mm Board to Board Socket/Plug

Number of Contact

10 12 14 16 18 20 22 24 26 28 30

32 34 36 40 50 60 68 70 80 90 100

Mating Height

(mm)

K080ASX- XXX-355-G

K080ASX-XXX- 405-G

•

Mating Height as low as 4.5mm - 7.0mm

•

Allows for more cost-efficient and space-saving solutions

•

Used in digital cameras, set top boxes,computers, posterminals,

Hand hied Products and more,

•

Surface mount plug and socket

K080VPX-XXX-365-G

K080VPX-XXX-415-G

K080VPX-XXX-515-G

K080VPX-XXX-565-G

K080RPX-XXX-470-G

4.5

5.0

6.0

6.5

5.65

•

Circuit sizes range from 10-100

7.0

6.15

Performance Specifications

Insulator :

High Temp Plastic (UL94V-0)

Contact :

Phosphor Bronze

Plated :

Gold Plated

Current Rating :

0.5A AC/DC

Voltage Rating :

50V AC/DC

Resistance :

40m ohm. max.

Insulation Resistance :

100M ohm. At 100V DC

Withstanding Voltage :

500V AC for one Minute

Operating Temperature Range :

-40ºC to +105ºC

Materials and Finish

G - Gold

Plating

Blank - Bulk

T - Tape and Reel Packaging

K080ASX Series

Packaging Option

Electrical Characteristics

K080VPX Series

Mating Height (H)

Plug or Socket PCB LAYOUT

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com

2007
