3SK268TX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 3SK268TX

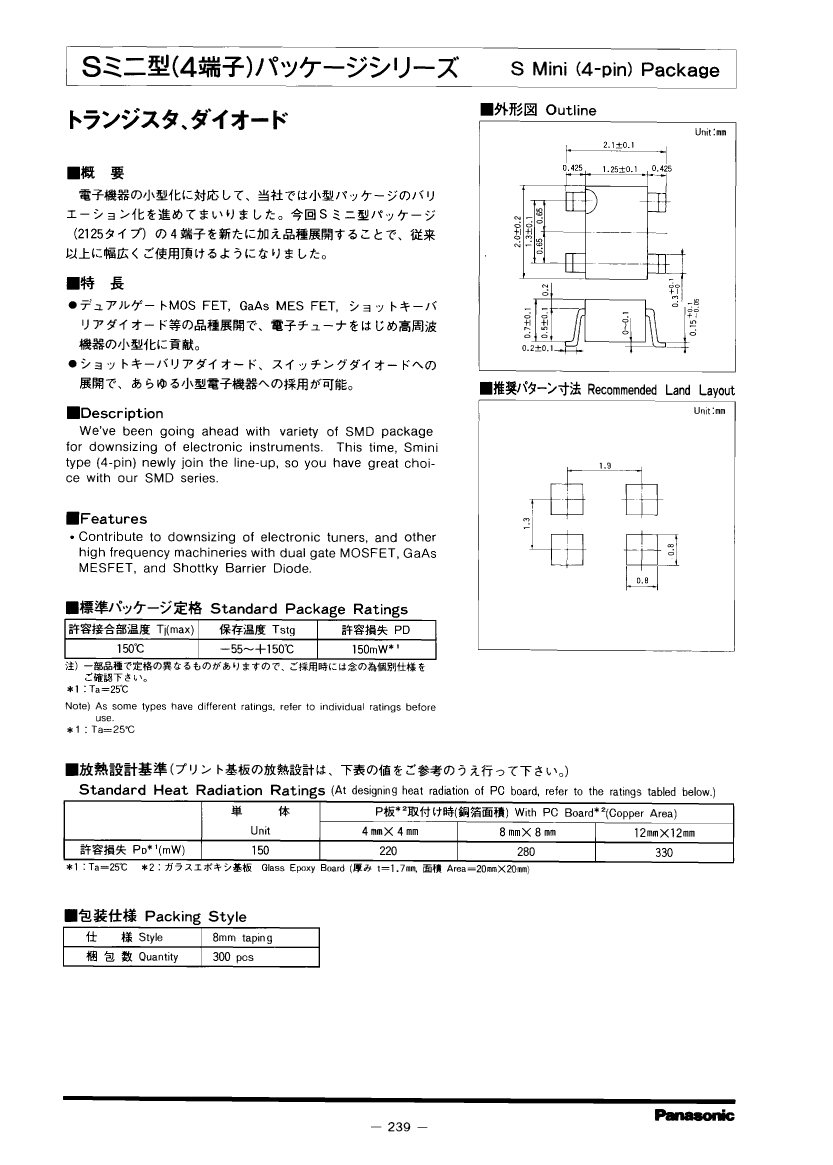

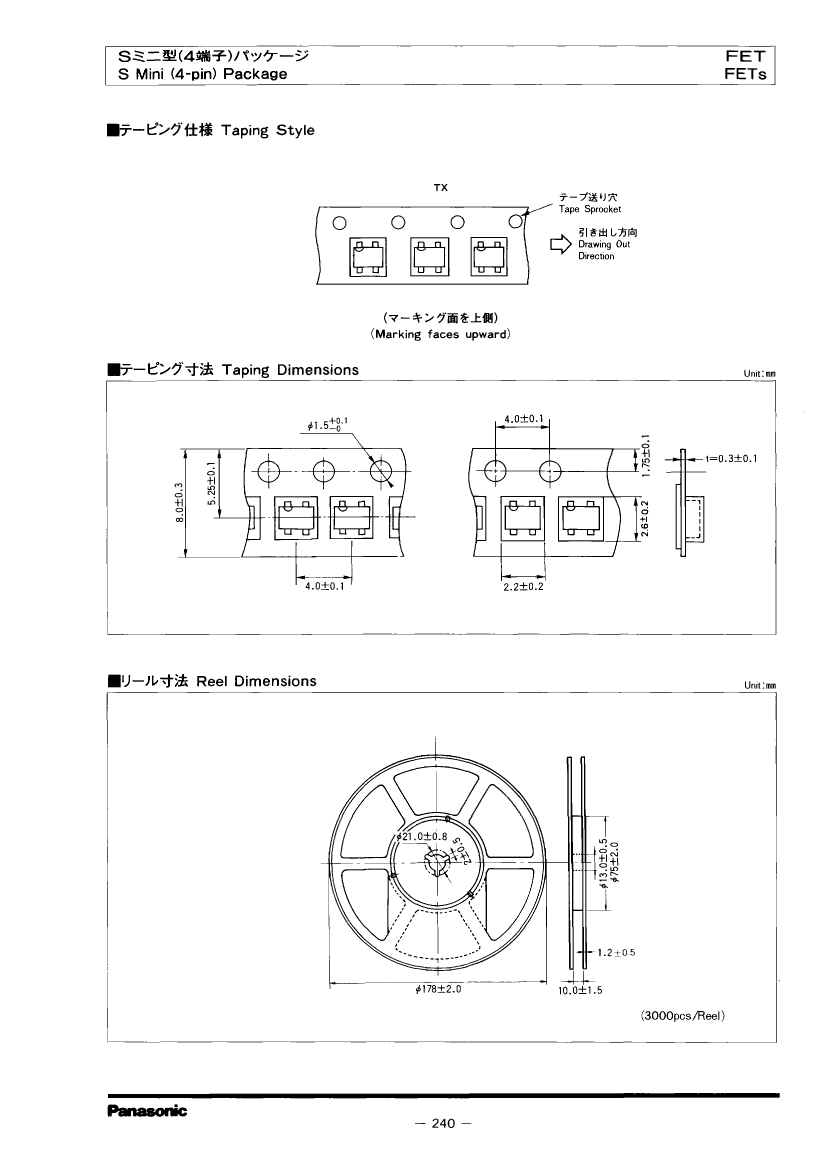

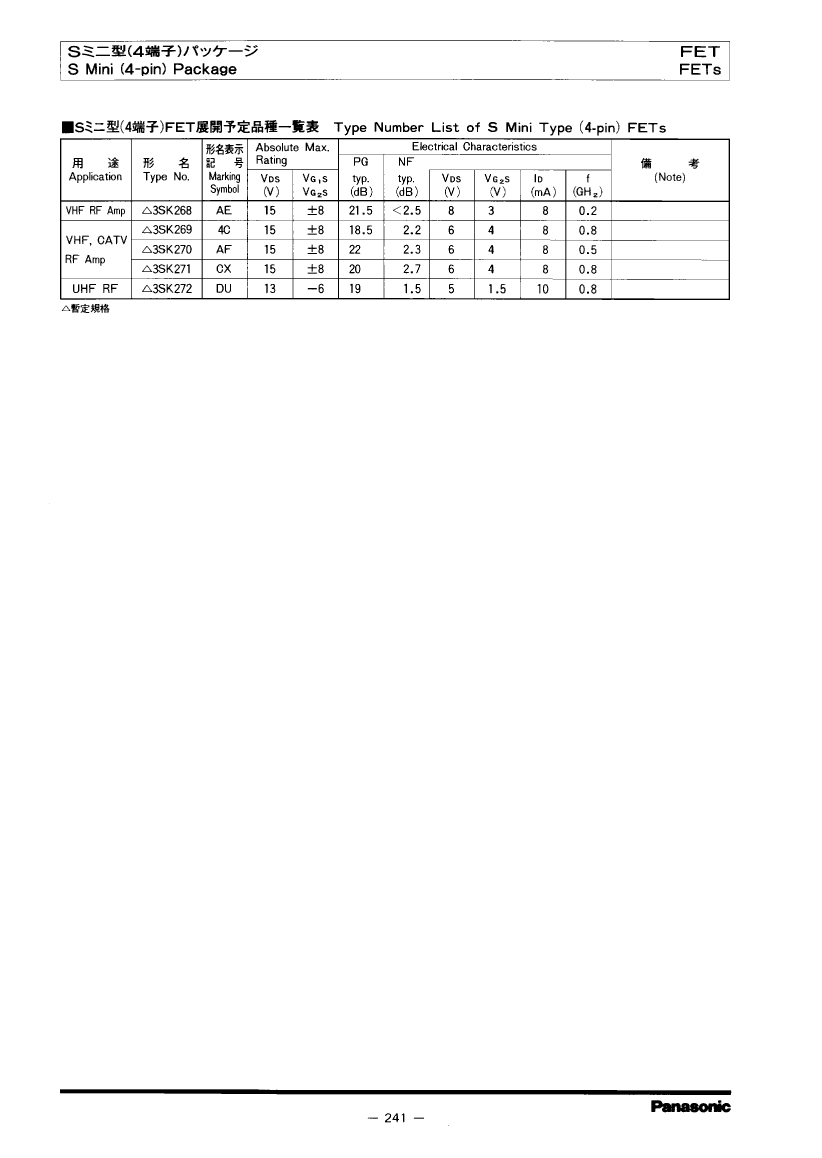

3SK268TX: DescriptionRF Small Signal Field-Effect Transistor, 1-Element, Very High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET; CategoryDiscrete semiconductor The transistor; File Size75KB，3 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

3SK268TX Overview

RF Small Signal Field-Effect Transistor, 1-Element, Very High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET

3SK268TX Parametric

Parameter Name	Attribute value
package instruction	SMALL OUTLINE, R-PDSO-G4
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Minimum drain-source breakdown voltage	15 V
Maximum drain current (ID)	0.008 A
FET technology	METAL-OXIDE SEMICONDUCTOR
highest frequency band	VERY HIGH FREQUENCY BAND
JESD-30 code	R-PDSO-G4
Number of components	1
Number of terminals	4
Operating mode	DUAL GATE, ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	N-CHANNEL
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Base Number Matches	1

Preview

Download Datasheet

View All

3SK268TX Related Products

	3SK268TX	3SK272TX	3SK270TX	3SK271TX	3SK269TX
Description	RF Small Signal Field-Effect Transistor, 1-Element, Very High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET	RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Silicon, N-Channel, Metal Semiconductor FET	RF Small Signal Field-Effect Transistor, 1-Element, Very High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET	RF Small Signal Field-Effect Transistor, 1-Element, Very High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET	RF Small Signal Field-Effect Transistor, 1-Element, Very High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET
package instruction	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum drain-source breakdown voltage	15 V	13 V	15 V	15 V	15 V
Maximum drain current (ID)	0.008 A	0.01 A	0.008 A	0.008 A	0.008 A
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
highest frequency band	VERY HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	VERY HIGH FREQUENCY BAND	VERY HIGH FREQUENCY BAND	VERY HIGH FREQUENCY BAND
JESD-30 code	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4
Number of components	1	1	1	1	1
Number of terminals	4	4	4	4	4
Operating mode	DUAL GATE, ENHANCEMENT MODE	DEPLETION MODE	DUAL GATE, ENHANCEMENT MODE	DUAL GATE, ENHANCEMENT MODE	DUAL GATE, ENHANCEMENT MODE
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Base Number Matches	1	1	1	1	1
transistor applications	AMPLIFIER	-	AMPLIFIER	AMPLIFIER	AMPLIFIER
