8810-36H-2-01SA datasheet, PDF

Datasheet> All Categories > The connector> The connector> 8810-36H-2-01SA

8810-36H-2-01SA: DescriptionCircular Connector, 1 Contact(s), Nickel Aluminum Bronze, Male, Plug; CategoryThe connector The connector; File Size168KB，9 Pages; ManufacturerEsterline Technologies Corporation

Download Datasheet Parametric View All

8810-36H-2-01SA Overview

Circular Connector, 1 Contact(s), Nickel Aluminum Bronze, Male, Plug

8810-36H-2-01SA Parametric

Parameter Name	Attribute value
Maker	Esterline Technologies Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WORKING VOLTAGE 750VAC WET, 750VAC AFTER SUBSEA CONDITIONS, SEAL MATERIAL: RUBBER, PRESSURE: 300 BAR
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Installation type	CABLE
Options	WATERPROOF
Shell material	NICKEL ALUMINUM BRONZE
Total number of contacts	1
Base Number Matches	1

Preview

Download Datasheet

View All

8810 Series

Applications

All underwater mateable equipments.

Description

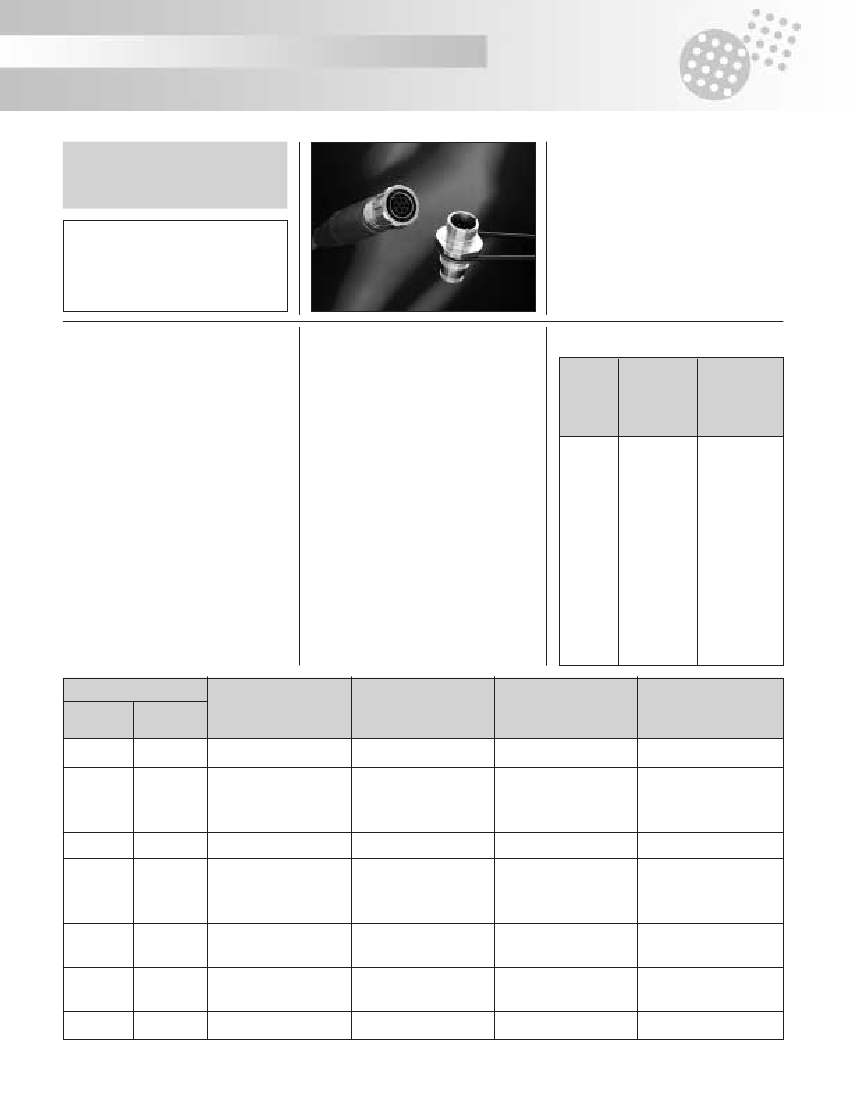

• The 8810 range is designed to be wet or under-

water mated and can be used at depths down to

3000 meters. The metal body shells feature rug-

ged, square cut coupling threads to enhance the

8810’s suitability for repeated coupling and

uncoupling in severe environmental conditions.

Connector front faces can withstand either 150 or

300 bars uncoupled wet pressure. Underwater

sealing caps are available for use on connectors

power on or for long term immersion.

Standards

Characteristics

Mechanical

• Pressure resistance : working pressure

(Mated or non mated connectors)

- Shell sizes 1, 2, 3, 4, 7

Fitted with cable gland endbell : 300 bar

Fitted with longitudinally sealed : 300 bar

endbell

- Shell sizes 5, 6

Fitted with all endbell types : 150 bar

• Endurance 500 mating/unmating

operations

• Metal shell* : Nickel aluminum bronze

• Insulators : Molded rubber

• Contacts : Gold plated copper alloy

• Band and buckles stainless steel 316L

• Stainless steel 316L, inconel, monel,

titanium, aluminum…

available on request

Operational

• Working temperature

Ambient : -30°C + 70°C

Subsea : -3°C + 40°C

• Shocks 75 g - 11 ms (3 axis)

Shell size 1, 2, 3, 4, 7

• Vibrations

0.1 Hz to 1 Hz (25 mm amplitude peak to peak 50)

1 Hz to 5 Hz (0.1 g acceleration)

5 Hz to 22 Hz (1 mm amplitude peak to peak 2)

22 Hz to 50 Hz (2 g acceleration)

• Underwater explosion shock tests (heavy

weight high impact)

Tested in accordance with,

Specification MIL-S 901C (NAVY) and HI

Test procedure n° HT 0458-TP-1 Original issue

Grade : «A»

Equipment classification : Hull Mounted

external

Class : «I»

Test classification : Heavy Weight

Type : «A»

Tested for the US Navy (NCSC)

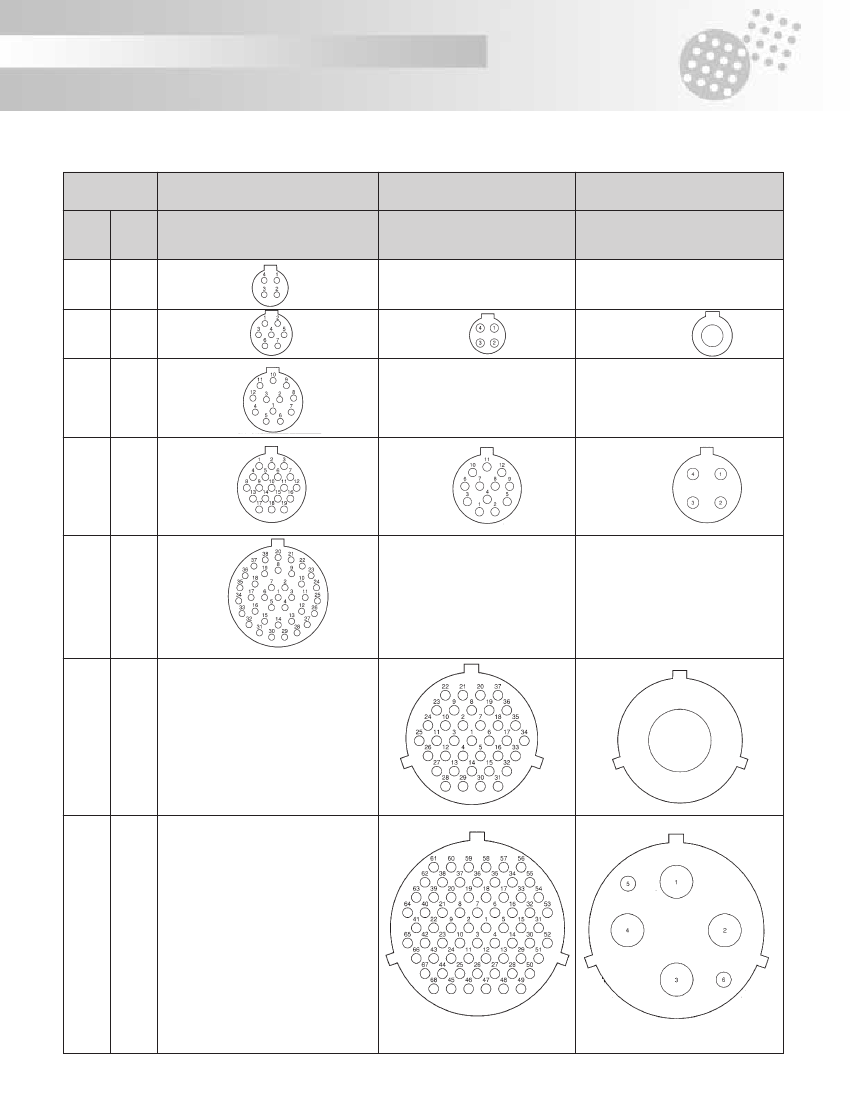

Electrical

Layouts

Maximum

current rating

per contact

(A)

4 cts # 20

7 cts # 20

12 cts # 20

19 cts # 20

38 cts # 20

4 cts # 16

12 cts # 16

37 cts # 16

66 cts # 16

1 Ø 7 mm

4#8

1 Ø 18 mm

4 Ø 10+2#8

7.5

100

400

150 + 45

Maximum bundle

current capacity

per contact

(A)

7.5

6.5

5.5

4.5

3.5

6.5

100

400

150 + 45

Layouts

Shell

size

Number

of contacts

Ø 10 mm

# 20

3750

2500

Ø 18 mm

# 16

7500

2500

Contacts

sizes

Test voltage

(Vrms)

Working voltage in

external wet

conditions

ambient (Vrms)

500

750

500

750

500

1500

500

750

500

Working voltage

after subsea mating

conditions

complied (Vrms)

220

750

220

360

220

1500

220

360

220

# 20

# 16

Ø 7 mm

# 20

# 16

2500

3750

2500

3750

2500

* After 5 mating/demating operations in clear water and suitable lubricate insulator (with silicone grease)
