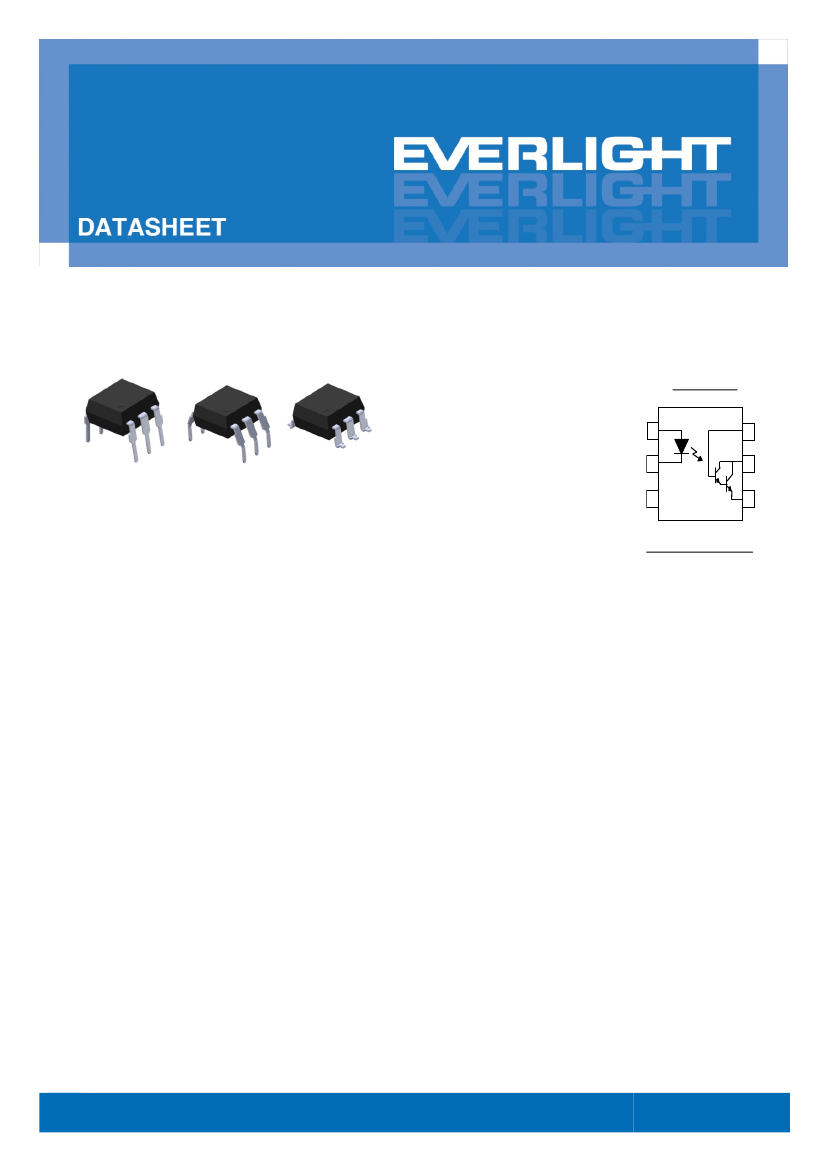

6 PIN DIP PHOTODARLINGTON PHOTOCOUPLER
TIL113, 4NXX, H11BX Series
Schematic
1
2
6
5
4
Features:
•
4NXX series: 4N29, 4N30, 4N31, 4N32, 4N33
•
H11BX series: H11B1, H11B2, H11B3, H11B255
•
High isolation voltage between input
and output (Viso=5000 V rms )
•
Creepage distance >7.62 mm
•
Operating temperature up to +110°
C
•
Compact small outline package
•
Pb free and RoHS compliant.
•
UL approved (No. E214129)
•
VDE approved (No. 132249)
•
SEMKO approved
•
NEMKO approved
•
DEMKO approved
•
FIMKO approved
•
CSA approved
3
Pin Configuration
1. Anode
2. Cathode
3. No Connection
4. Emitter
5. Collector
6. Base
Description
The TIL113, 4NXX and H11BX series of devices each consist of an infrared emitting diode optically coupled to a
photo darlington detector.
They are packaged in a 6-pin DIP package and available in wide-lead spacing and SMD option.
Applications
Low power logic circuits
Telecommunications equipment
Portable electronics
Interfacing coupling systems of different potentials and impedances
1
Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No:
DPC-0000021
Rev. 2
www.everlight.com
DATASHEET
6 PIN DIP PHOTODARLINGTON PHOTOCOUPLER
TIL113, 4NXX, H11BX Series
Absolute Maximum Ratings (Ta=25℃)
℃
Parameter
Input
Forward current
Peak forward current (1us, pulse)
Reverse voltage
Power dissipation
No derating required up to Ta = 100°C
Output
Power dissipation
Derating factor (above Ta = 80°
C)
Collector-Emitter voltage
Collector-Base voltage
Emitter-Collector voltage
Emitter-Base voltage
Total power dissipation
Isolation voltage
Operating temperature
Storage temperature
Soldering temperature
*2
Symbol
I
F
I
FP
V
R
P
D
Rating
60
1
6
120
3.8
150
Unit
mA
A
V
mW
mW/°
C
mW
mW/°
C
V
V
V
V
mW
Vrms
°
C
°
C
°
C
P
C
V
CEO
V
CBO
V
ECO
V
EBO
P
TOT
V
ISO
T
OPR
T
STG
T
SOL
6.5
55
55
7
7
200
5000
-55~+100
-55~+125
260
Notes:
*1
AC for 1 minute, R.H.= 40 ~ 60% R.H. In this test, pins 1, 2 & 3 are shorted together, and pins 4, 5 & 6 are shorted together.
*
2 For 10 seconds
2
Copyright © 2010, Everlight All Rights Reserved. Release Date : October 5, 2012. Issue No:
DPC-0000021 Rev. 2
www.everlight.com
DATASHEET
6 PIN DIP PHOTODARLINGTON PHOTOCOUPLER
TIL113, 4NXX, H11BX Series
Electro-Optical Characteristics (Ta=25
℃
unless specified otherwise)
Input
Parameter
Forward Voltage
Reverse Current
Input capacitance
Symbol
V
F
I
R
C
in
Min.
-
-
-
Typ.*
1.2
-
50
Max.
1.5
10
-
Unit
V
µA
pF
Condition
I
F
= 10mA
I
F
= 50mA for H11B3
V
R
= 6V
V = 0, f = 1MHz
Output
Parameter
Collector-Emitter dark
current
Collector-Emitter
breakdown voltage
Emitter-Collector
breakdown voltage
Emitter-Collector
breakdown voltage
Symbol
I
CEO
BV
CEO
BV
CBO
BV
ECO
Min.
-
55
55
7
Typ.*
-
-
-
-
Max.
100
-
-
-
Unit
nA
V
V
V
Condition
V
CE
= 10V
I
c
=1mA
I
C
=0.1mA
I
E
=0.1mA
Transfer Characteristics (T
a
=25° unless specified otherwise)
C
Parameter
4N32
4N33
4N29
4N30
4N31
Current
transfer
ratio
H11B1
H11B2
H11B3
H11B255
TIL113
CTR
Symbol
Min
500
100
50
500
200
100
100
300
Typ.
-
-
-
-
-
-
-
-
Max.
-
-
-
-
-
-
-
-
I
F
= 10mA ,V
CE
= 5V
I
F
= 10mA ,V
CE
= 1V
%
I
F
= 1mA ,V
CE
= 5V
I
F
= 10mA ,V
CE
= 10V
Unit
Condition
3
Copyright © 2010, Everlight All Rights Reserved. Release Date : October 5, 2012. Issue No:
DPC-0000021 Rev. 2
www.everlight.com
DATASHEET
6 PIN DIP PHOTODARLINGTON PHOTOCOUPLER
TIL113, 4NXX, H11BX Series
Transfer Characteristics (T
a
=25° unless specified otherwise)
C
Parameter
4N29
4N30
4N32
4N33
Collector-e
mitter
saturation
voltage
4N31
TIL113
H11B1
H11B2
H11B3
H11B255
Isolation resistance
Input-output
Capacitance
H11B1
H11B2
H11B3
H11B255
4N29
4N30
4N31
4N32
4N33
TIL113
H11B1
H11B2
H11B3
H11B255
4N32
4N33
TIL113
4N29
4N30
4N31
R
IO
C
IO
V
CE(sat)
Symbol
Min
Typ.
Max.
Unit
Condition
-
-
1.0
I
F
= 8mA ,I
c
= 2mA
-
-
1.2
V
I
F
= 8mA ,I
c
= 2mA
-
-
10
-
11
-
-
-
0.8
1.0
1.0
-
-
Ω
pF
I
F
= 1mA ,I
c
= 1mA
I
F
= 50mA ,I
c
= 50mA
V
IO
= 500Vdc
V
IO
= 0, f = 1MHz
V
CC
= 10V, I
F
= 10mA,
R
L
= 100Ω
µs
-
25
-
Turn-on
time
Ton
-
-
5
V
CC
= 10V, I
C
= 50mA,
I
F
=200mA
-
18
-
V
CC
= 10V,
I
F
= 10mA,
R
L
= 100Ω
µs
V
CC
= 10V,
I
C
= 50mA,
I
F
=200mA
Turn-off
time
Toff
-
-
100
-
-
40
* Typical values at T
a
= 25°C
4
Copyright © 2010, Everlight All Rights Reserved. Release Date : October 5, 2012. Issue No:
DPC-0000021 Rev. 2
www.everlight.com
DATASHEET
6 PIN DIP PHOTODARLINGTON PHOTOCOUPLER
TIL113, 4NXX, H11BX Series

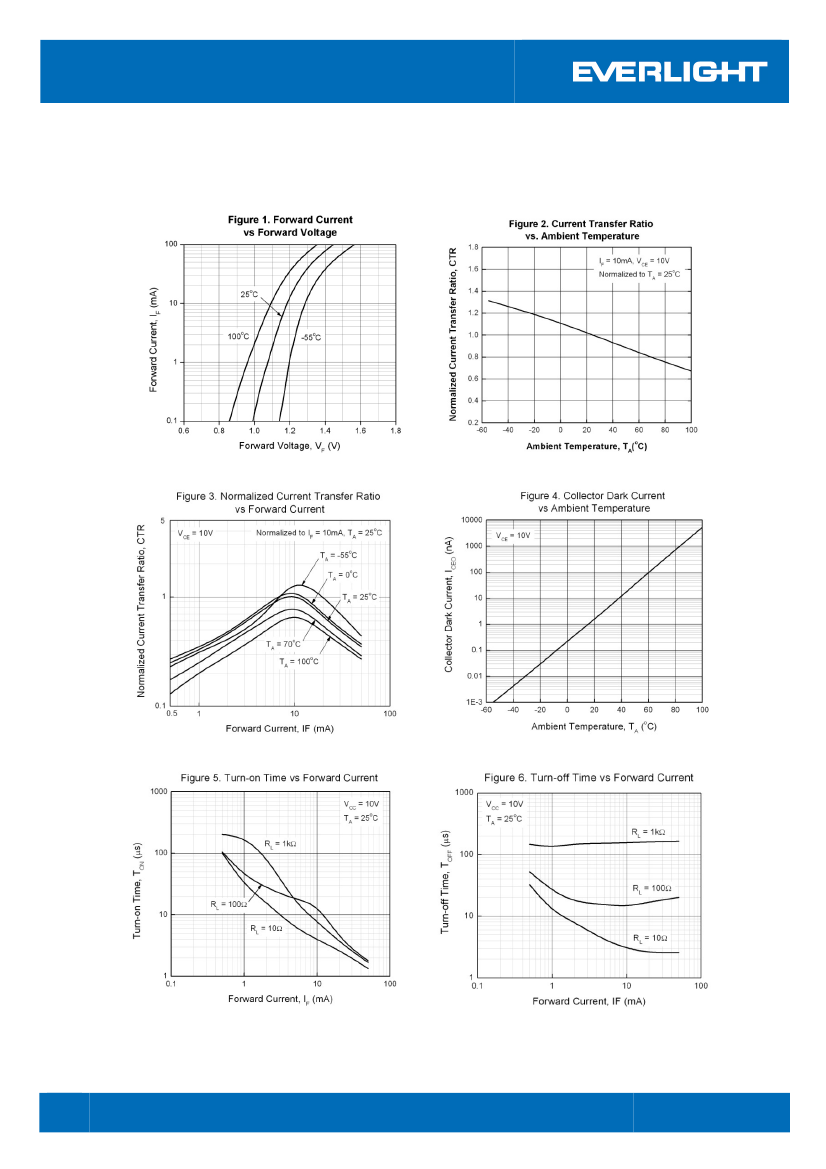

Typical Electro-Optical Characteristics Curves
