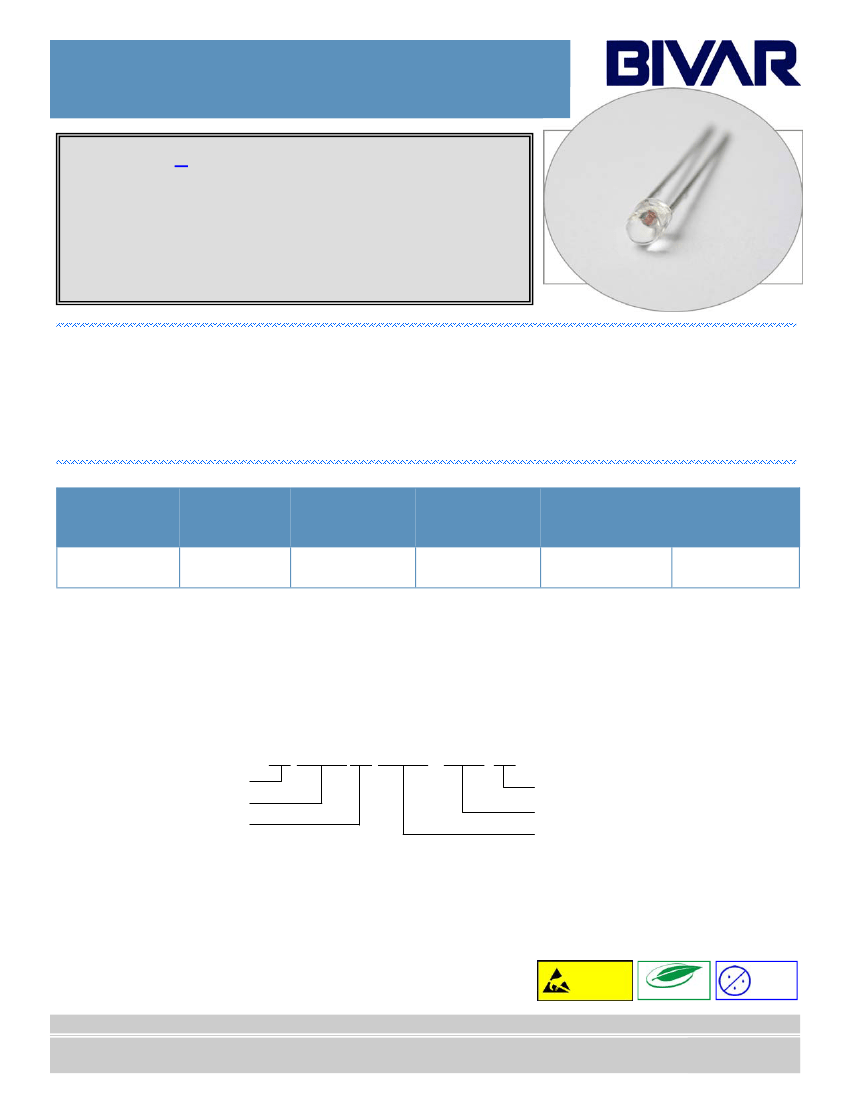

3mm (T1) Package Discrete LED
3mm (T1) Package Discrete LED
EMERALD GREEN
AMBER
EMERALD GREEN
3EGC2.030X
♦
♦
♦
♦
♦
♦
♦
Industry Standard 3mm (T1) Package
RoHS Compliant
Water Clear Lens
Available in Shouldered (S) Lead Frame Styles
Up to 2000 mcd Luminous Intensity at 20 mA
Ideal for Status Indication and Display
Recommended for Bivar Flexible Light Pipe assemblies
Bivar 3mm T1 Package LED is ideal for those applications where intensive ambient lighting exists such
as Back Lighting, Signage, and Sunlight Readable applications.. Bivar offers water clear LED lens for
maximum light output. The Shouldered Lead frame is ideal for vertical spacer assemblies and also has
a built in strain relief feature which is ideal for Right Angle Holder assemblies that require lead bends.
Part Number
3EGC2.030-S
Material
GaN/SiC
Emitted Color
EMERALD
GREEN
Peak. Wavelength
λp(nm)
TYP.
525nm
Lens Appearance
Water Clear
Viewing Angle
30°
Part Number Designation
3 C C L N.N V V X
LED Body, mm
Emitted Color
Lens Appearance
Lead Frame & Body Style
i.e. -F, -S,
Viewing Angle (Degrees)
Luminous Intensity (1000mcd)
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE DEVICES
RoHS
Compliant
Moisture
Sensitivity
Levels 1
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision B 06/15
Page 1 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
BLUE
AMBER
EMERALD GREEN

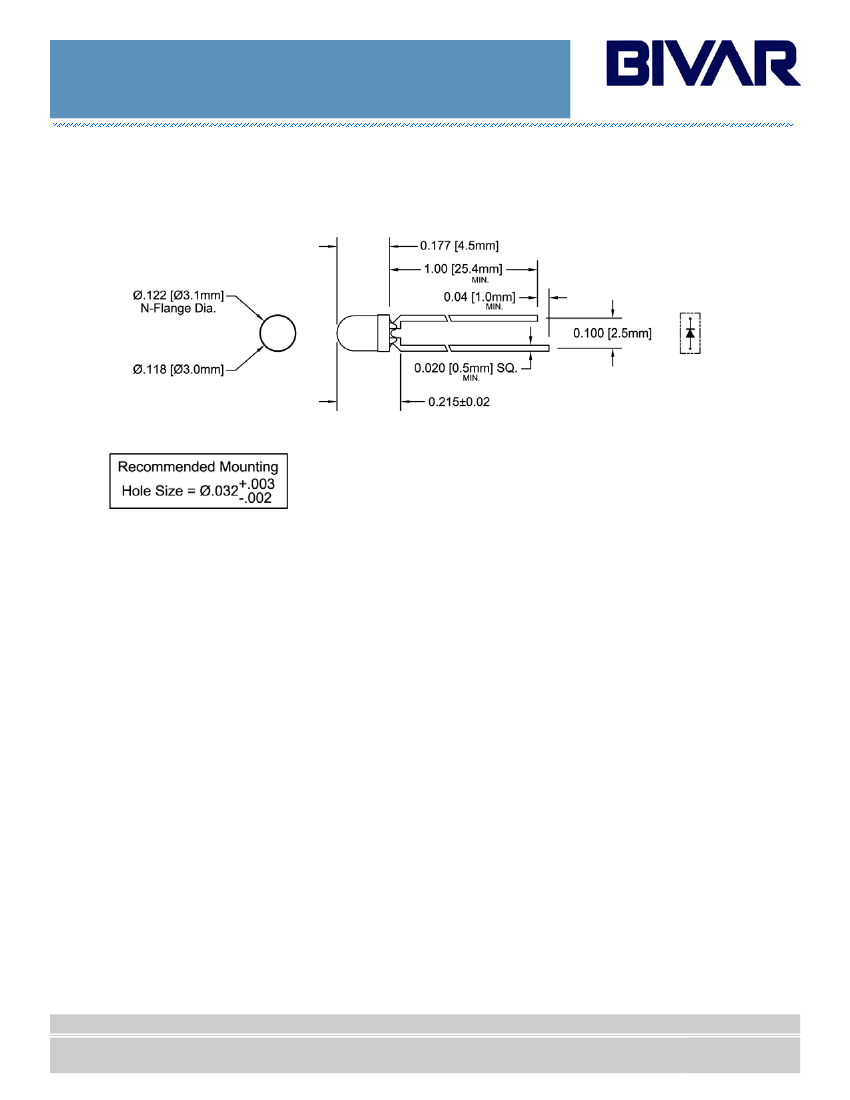

Outline Dimensions
Shouldered Lead “3CCLN.NVVS” LED
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance: ±0.010" unless otherwise noted.
3. Tolerance of overall epoxy outline: ±0.020" unless otherwise noted.
4. Epoxy meniscus may extend to 0.060" max.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision B 06/15
Page 2 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
BLUE
AMBER
EMERALD GREEN
Absolute Maximum Ratings
T
A
= 25°C unless otherwise noted
Power Dissipation
Forward Current ( DC )
Peak Forward Current
1
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature ( 3 mm from the base of the epoxy bulb )
2
Notes: 1. 10% Duty Cycle, Pulse Width
≤
0.1 msec.
150 mW
20 mA
70 mA
5V
-25 ~ +85°C
-30 ~ +100°C
260°C
2. Solder time less than 5 seconds at temperature extreme.
Electrical / Optical Characteristics
T
A
= 25°C & I
F
= 20 mA unless otherwise noted
Forward
Voltage (V)
1
Recommend
Forward
Current (mA)
Reverse
Dominant
Current
Wavelength (nm)
2
(μA)
MAX
100
MIN
/
TYP
/
MAX
/
Luminous
Intensity Iv (mcd)
MIN
/
TYP
2000
MAX
/
Viewing
Angle
2
Ө
½
(deg)
TYP
30
Part Number
MIN TYP MAX MIN TYP MAX
3EGC2.030-S
/
3.5
4.0
/
20
/
Notes: 1. Tolerance of forward voltage : ±0.05V.
2. Tolerance of dominant wavelength : ±1.0nm.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision B 06/15
Page 3 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
BLUE
AMBER
EMERALD GREEN

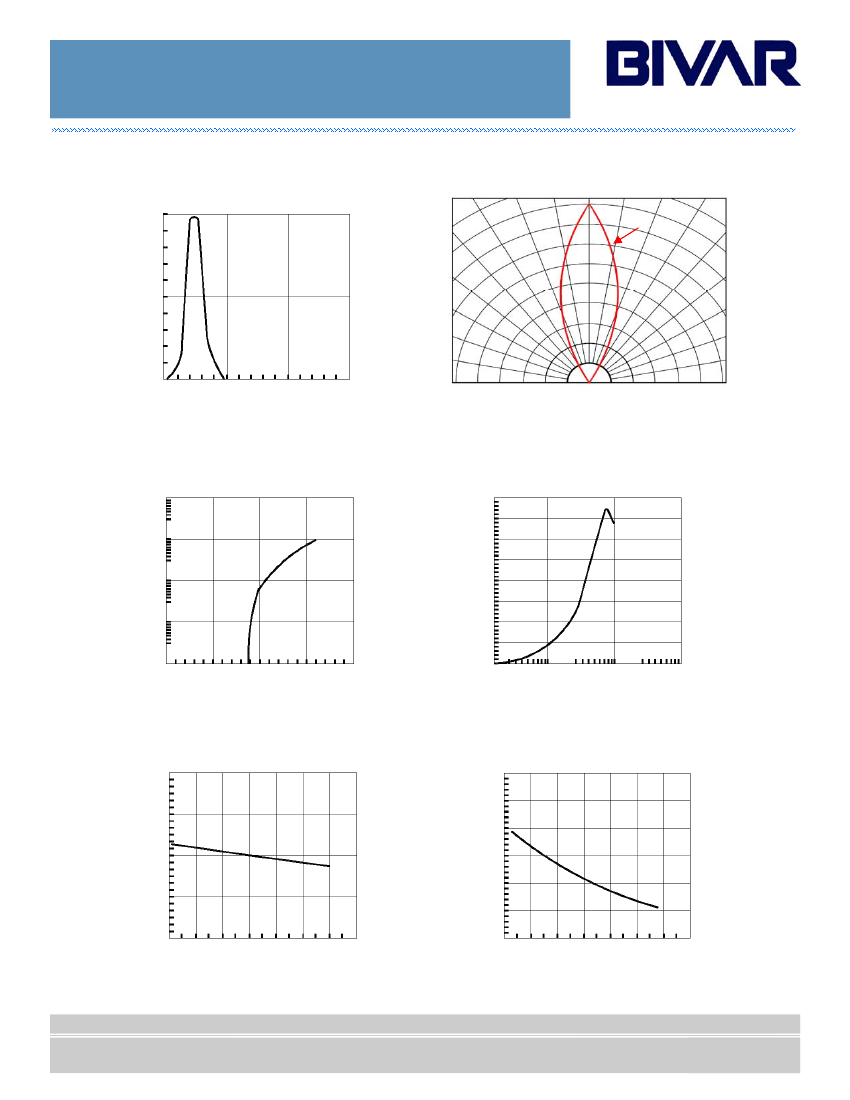

Typical Electrical / Optical Characteristics
T
A
= 25°C unless otherwise noted
Iv
0°
10°
30°
20°
30°
40°
50°
1.0
0.5
60°
70°
80°
0.0
500
λ(nm)
550
600
650
90°
0.5
0.3
0.1
0.2
0.4
0.6
Fig. 2 Directivity Radiation Diagram
Fig. 1 Relative Luminous Intensity vs. Wavelength
@ 20mA
If (mA)
1000
100
10
1
0.1
1.0
Vf (V)
4.0
3.0
2.0
1.0
0.0
Iv
2.0
3.0
4.0
5.0
Fig. 3 Forward Current vs. Forward Voltage
1
10
100
1000
Fig. 4 Relative Luminous Intensity vs. Forward Current
Normalize @ 20 mA
Iv
If (mA)
Vf (V)
1.2
1.1
1.0
0.9
0.8
-40
T (°C)
3.0
2.0
1.0
0
40
80
0.0
T (°C)
-40
0
40
80
Fig. 5 Forward Voltage vs. Temperature
Fig. 6 Relative Luminous Intensity vs. Temperature
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision B 06/15
Page 4 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
BLUE
AMBER
EMERALD GREEN
Recommended Soldering Conditions
Recommended Lead Free Wave Soldering Profile
Preheat Temperature: 100ºC Max.
Preheat Time: 20 ~ 50 Seconds
Peak Temperature: 260ºC Max.
Solder Time Above 217ºC: 5 Seconds Max.
Note: Turn off top heater at preheat to prevent the lamp body directly exposed to the heat source.
Packaging and Labeling Plan
AntiStatic Poly Bag with Desiccant
(500 pcs Max. per Bag)
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Rev. A 01/16/08
Revision B 06/15
Page 4 of 4
Page 5 of 5
