6 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER
TIL11X Series
MCT2X Series
Schematic
Features:
•
TIL11X series: TIL111, TIL117
•
MCT2X series: MCT2, MCT2E
•
High isolation voltage between input and output
Viso = 5000 Vrms
•
Creepage distance >7.6mm
•
Compact dual-in-line package
•
Operating temperature up to +110°C
•
Pb free and RoHS compliant.
•
UL approved (No. E214129)
•
VDE approved (No. 132249)
•
SEMKO approval
•
NEMKO approved
•
DEMKO approved
•
FIMKO approved
•
CSA approved
•
CQC approved
Pin Configuration
1. Anode
2. Cathode
3. No Connection
4. Emitter
5. Collector
6. Base
Description
The TIL11X series and MCT2X series of devices each consist of an infrared emitting diode
optically coupled to a phototransistor detector.
They are packaged in a 6-pin DIP package and available in wide-lead spacing and SMD option.
Applications
Power supply regulators
Digital logic inputs
Microprocessor inputs
Appliance system
Industrial controls
1
Copyright © 2010, Everlight All Rights Reserved. Release Date : May 23, 2013. Issue No: DPC-0000048 Rev. 4
www.everlight.com
DATASHEET
6 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER
TIL11X Series
MCT2X Series
Absolute Maximum Ratings (Ta=25℃)
Parameter
Forward current
Peak forward current (t = 10µs)
Input
Reverse voltage
Power dissipation
Derating factor (above 100°C)
Collector-Emitter voltage
Collector-Base voltage
Output
Emitter-Collector voltage
Power dissipation
Derating factor (above 100°C)
Total Power Dissipation
Isolation Voltage*
1
Operating Temperature
Storage Temperature
Soldering Temperature*
2
Symbol
I
F
I
FM
V
R
P
D
V
CEO
V
CBO
V
ECO
P
C
P
TOT
V
ISO
T
OPR
T
STG
T
SOL
Rating
60
1
6
100
3.8
80
80
7
150
9.0
200
5000
-55 to 110
-55 to 125
260
Unit
mA
A
V
mW
mW/°C
V
V
V
mW
mW/°C
mW
V rms
°C
°C
°C
Notes:
*1
AC for 1 minute, R.H.= 40 ~ 60% R.H. In this test, pins 1, 2 & 3 are shorted together, and pins 4, 5 & 6 are shorted together.
*
2 For 10 seconds
2
Copyright © 2010, Everlight All Rights Reserved. Release Date : May 23, 2013. Issue No: DPC-0000048 Rev.4
www.everlight.com
DATASHEET
6 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER
TIL11X Series
MCT2X Series
Electro-Optical Characteristics (Ta=25℃ unless specified otherwise)
Input
Parameter
TIL111
Symbol
Min.
-
-
Forward
voltage
TIL117
V
F
-
-
MCT2
MCT2E
Reverse current
I
R
-
-
Typ.
1.22
-
1.32
1.1
1.23
-
Max.
1.4
1.4
-
-
1.5
10
µA
V
Unit
Condition
I
F
= 16mA
T
A
=0-70℃,
I
F
= 16mA
T
A
= -55℃, I
F
= 16mA
T
A
=110℃, I
F
= 16mA
I
F
= 20mA
V
R
= 6V
Output
Parameter
Collector-Base dark current
Collector-
Emitter
dark current
All
I
CEO
TIL117
BV
CEO
BV
CBO
BV
ECO
BV
EBO
Symbol
I
CBO
Min
-
-
-
80
80
7
7
Typ.
-
1
0.2
-
-
-
-
Max.
20
50
50
-
-
-
-
nA
Unit
nA
Condition
V
CB
= 10V
V
CE
= 10V, IF=0mA
V
CE
= 30V, I
F
= 0mA,
T
A
=70℃
I
c
=1mA
I
C
=0.01mA
I
E
=0.1mA
I
E
=0.1mA
Collector-Emitter
breakdown voltage
Collector-Base
breakdown voltage
Emitter-Collector
breakdown voltage
Emitter-Base
breakdown voltage
* Typical values at T
a
= 25°C
V
V
V
V
Transfer Characteristics
Parameter
Collector current
(Phototransistor
operation)
Collector current
(Photodiode
operation)
Current Transfer
Ratio
Symbol
Min
2
TIL111
I
C(ON)
7
TIL117
MCT2
MCT2E
CTR
20
-
-
50
-
-
-
-
%
I
F
= 10mA ,V
CE
= 10V
µA
I
F
= 16mA ,V
CB
= 0.4V
I
F
= 10mA ,V
CE
= 10V
Typ.
-
Max.
-
Unit
mA
Condition
I
F
= 16mA ,V
CE
= 0.4V
3
Copyright © 2010, Everlight All Rights Reserved. Release Date : May 23, 2013. Issue No: DPC-0000048 Rev.4
www.everlight.com
DATASHEET
6 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER
TIL11X Series
MCT2X Series
Transfer Characteristics
Parameter
Collector-Emitter
saturation voltage
Isolation resistance
Input-output capacitance
Turn-on time
Turn-off time
Rise time
Fall time
Turn-on time
Turn-off time
Rise time
Fall time
TIL117
TIL117
TIL117
TIL111
TIL117
TIL111
MCT2
MCT2E
MCT2
MCT2E
MCT2
MCT2E
MCT2
MCT2E
All
V
CE(sat)
TIL117
R
IO
C
IO
T
on
T
off
t
r
t
f
T
on
T
off
t
r
t
f
-
10
11
-
-
-
-
-
-
-
-
-
-
-
-
10
9
6
8
3
3
3
3
0.4
-
2
12
12
µs
10
10
10
10
µs
10
10
V
CC
= 10V,
I
F
= 10mA, R
L
= 100Ω
V
CC
= 10V,
I
C
= 2mA, R
L
= 100Ω
Ω
pF
Symbol
Min
-
Typ.
-
Max.
0.4
V
I
F
= 10mA , I
C
= 0.5mA
V
IO
= 500Vdc
V
IO
= 0, f = 1MHz
Unit
Condition
I
F
= 16mA , I
C
= 2mA
* Typical values at T
a
= 25°C
4
Copyright © 2010, Everlight All Rights Reserved. Release Date : May 23, 2013. Issue No: DPC-0000048 Rev.4
www.everlight.com
DATASHEET
6 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER
TIL11X Series
MCT2X Series

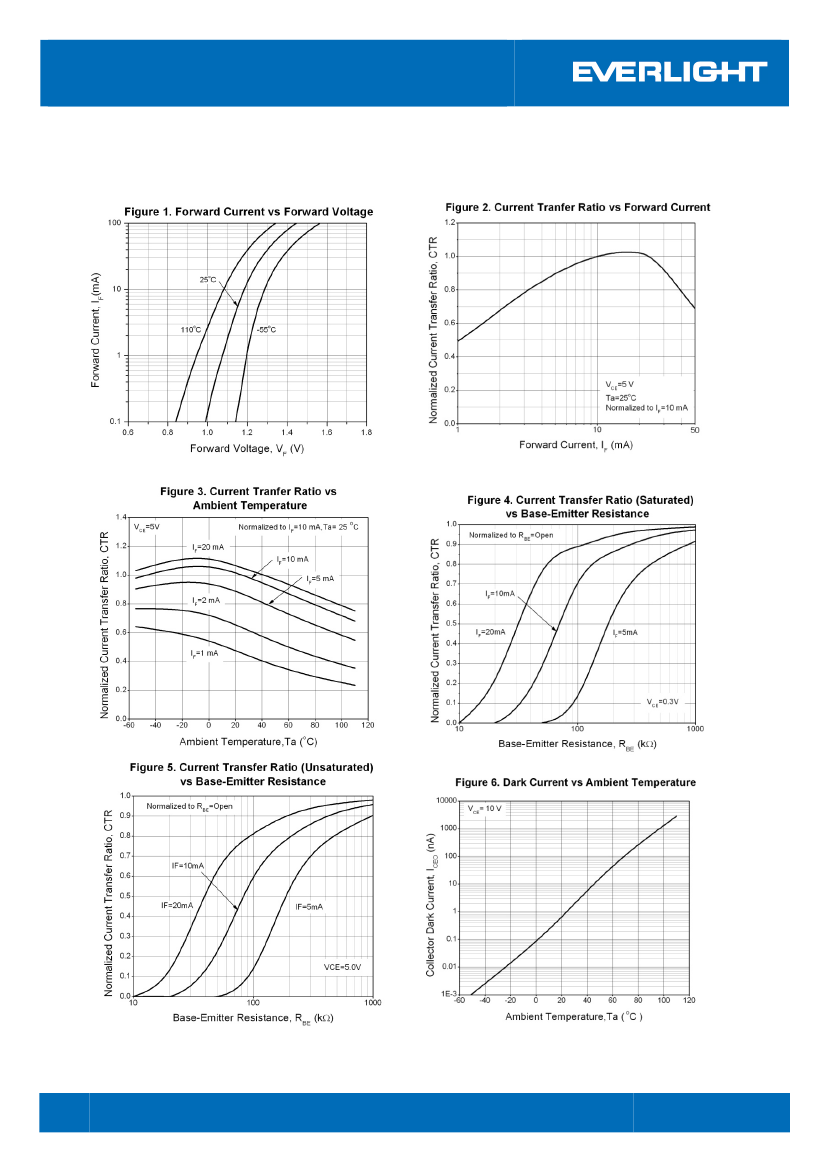

Typical Electro-Optical Characteristics Curves
5
Copyright © 2010, Everlight All Rights Reserved. Release Date : May 23, 2013. Issue No: DPC-0000048 Rev.4
www.everlight.com
