1FKA360-757G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> 1FKA360-757G

1FKA360-757G: DescriptionIC Socket, BGA360, 360 Contact(s),; CategoryThe connector socket; File Size743KB，2 Pages; ManufacturerAdvanced Interconnections Corp.; Environmental Compliance

Download Datasheet Parametric View All

1FKA360-757G Overview

IC Socket, BGA360, 360 Contact(s),

1FKA360-757G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	SOCKET ADAPTER
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact material	BRASS/COPPER ALLOY
Device slot type	IC SOCKET
Type of equipment used	BGA360
JESD-609 code	e4
Number of contacts	360
Base Number Matches	1

Preview

Download Datasheet

View All

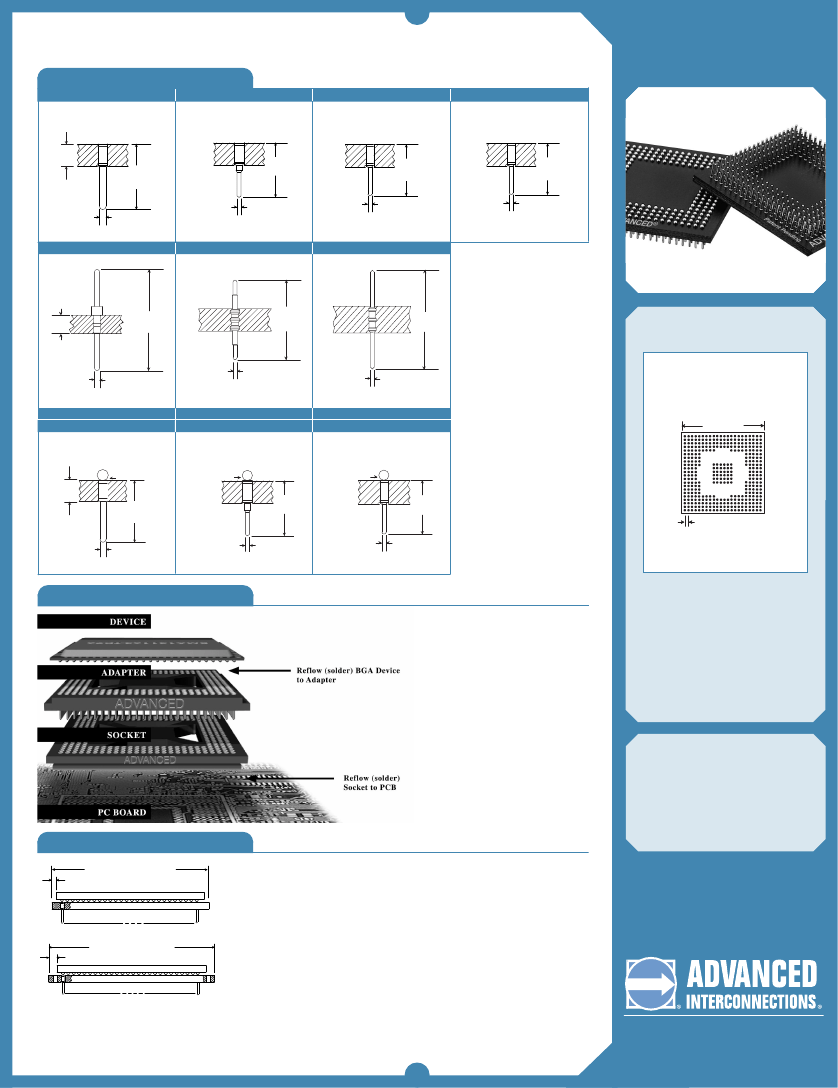

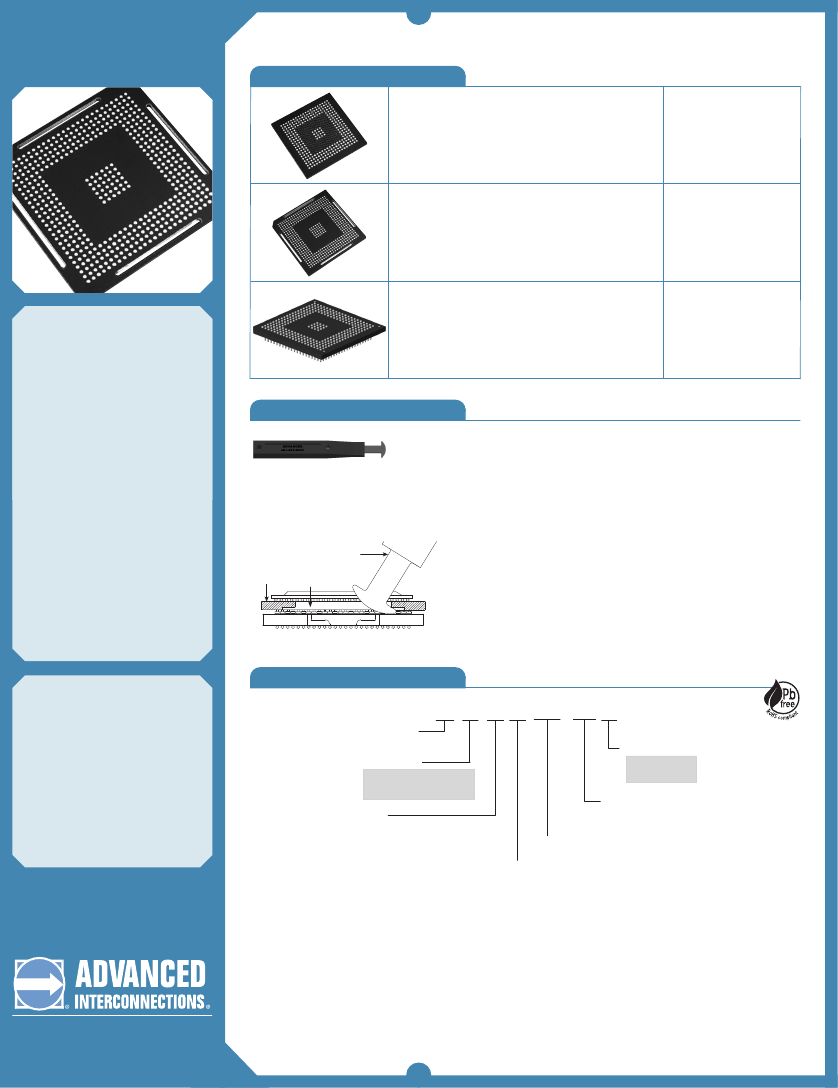

BGA Adapters

Table of Models

Ball Grid Array (BGA) Adapters

Description:

Standard Adapter (A)

Material: FR-4 Fiberglass Epoxy Board

Index: -40°C to 140°C (-40°F to 284°F)

Note: Mates with Standard Socket (S)

Insulator Size:

BGA device body

+.079/(2.00mm)

Description:

Extraction Slot Adapter (AX)

Material: FR-4 Fiberglass Epoxy Board

Index: -40°C to 140°C (-40°F to 284°F)

Note: Mates with Extraction Socket (SB)

Insulator Size:

BGA device body

+.157/(4.00mm)

Features:

• Soldering BGA Device to adapter

subjects BGA to less thermal

stress than soldering BGA directly

to a PCB due to the adapter’s

lower mass.

• Uses same footprint as BGA

device.

• Custom adapters available for

heat sink attachment.

• Gold plated screw-machined

terminals for superior durability.

• Unique SMT Adapter provides

reliable solution for mounting or

socketing LGA or re-worked BGA

devices.

• SMT Adapters mate with our BGA

Sockets for LGA to BGA

conversion or SMT Board to

Board applications.

Extraction

Tool

Adapter

Extraction

Slot

BGA Device

Description:

SMT Adapter (A or AX)

Material: FR-4 Fiberglass Epoxy Board

Index: -40°C to 140°C (-40°F to 284°F)

Note: For use with LGA or reworked BGA

devices

Insulator Size:

BGA device body

+.079/(2.00mm)[A]

+.157/(4.00mm)[AX]

Options

Extraction Tool

P/N 8125

• Insert “T” bar end of tool into extraction slot adapter.

• Slide tool to end of slot and pry adapter from socket.

• Repeat in additional slots until adapter is separated from socket.

• Works with LCP or FR-4 sockets.

Socket

Specifications:

Terminals:

Brass - Copper Alloy

(C36000) ASTM-B-16

Plating:

G - Gold over Nickel

Gold per MIL-G-45204

Nickel per QQ-N-290

How To Order

Footprint Dash #

If Applicable

H A XXX - 715 G

Terminal Plating

RoHS Compliant:

Body Type

RoHS Compliant Insulators:

G - Gold

Terminal Type

F - FR-4

Pitch

G = .050/(1.27mm)

H = .039/(1.00mm)

J = .0315/(0.80mm)

K = .0295/(0.75mm)

See options

Number of Positions

See footprint section online

Model Type

A = Standard Adapter

AX = Extraction Slot Adapter

(1.27 and 1.00mm only)

5 Energy Way, West Warwick, RI 02893 USA

Tel: 800.424.9850 | 401.823.5200

Fax: 401.823.8723

info@advanced.com | www.advanced.com

Cat. 16 Rev. 1

Products shown covered by patents issued and/or pending. Specifications subject to change without notice.

inch/(mm)
