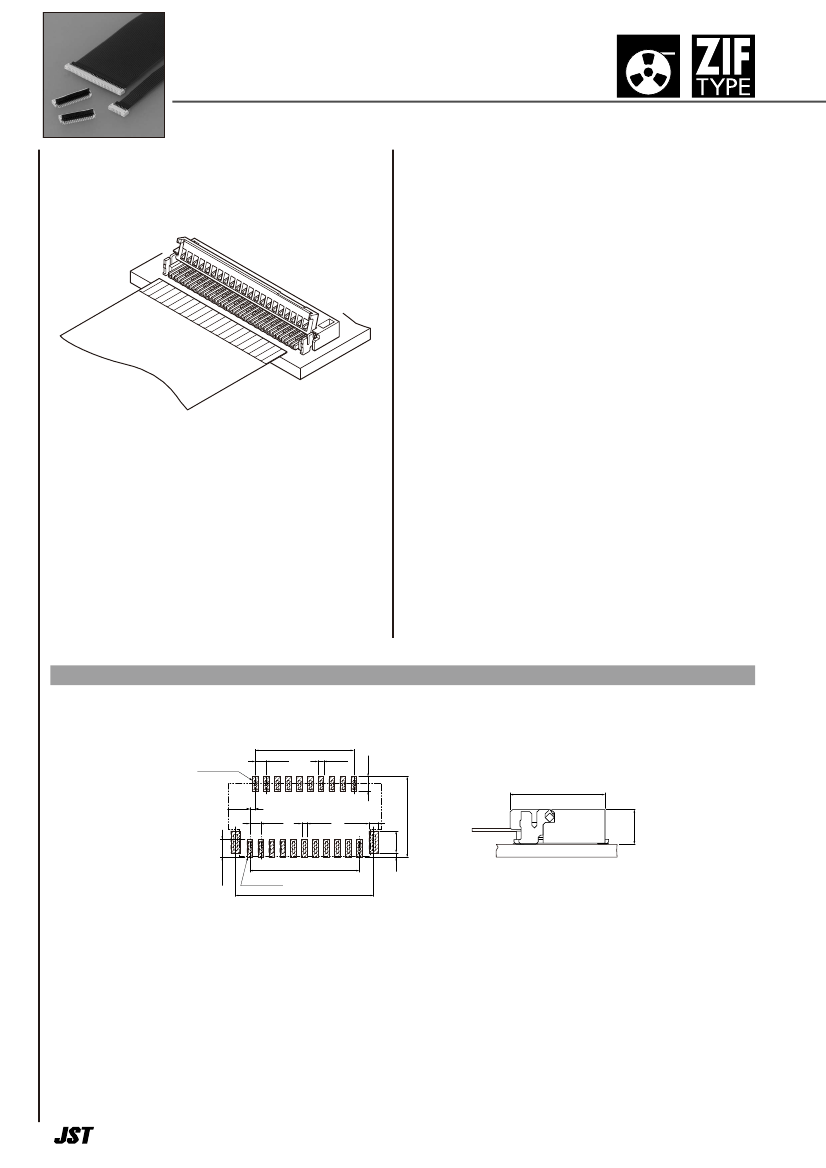

0.3mmピッチ
0.3mm pitch/Connectors for FPC
FXZ
CONNECTOR
Emboss Tape
Specifications –––––––––––––––––––
• Current rating: 0.2A AC, DC
• Voltage rating: 50V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/60m
Ω
max.
After environmental testing/60m
Ω
max.
(variation from initial value)
• Insulation resistance:
50M
Ω
min.
• Withstanding voltage: 200V AC/minute
• Applicable FPC: Conductor pitch/0.3mm
Conductor width/0.3mm
Mating part thickness/0.2±0.03mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
This connector realizes space saving
and low profile features demanded by
the market, and it provides excellent
operability. Various number of circuits can
be available.
• Double ZIF design for easy insertion
operation of FPC
• Self-lock mechanism enables the cover to
close by 'one-touch' operation
• Versatile number of circuit
PC board layout (viewed from component side) and Assembly layout
A
±0.05
Circuit No.2
0.8
±0.05
0.6
±0.03
0.3
±0.05
3.95
4.35
±0.05
0.3
±0.03
0.6
±0.03
0.3
±0.05
0.5
±0.05
1.2
±0.05
0.95
±0.05
B
±0.05
Circuit No.1
C
±0.05
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. The dimensions above should serve as a guideline. Contact JST for details.
1
0.2
1.4
FXZ CONNECTOR
Connector
Circuits
15
17
1.5
0.6
A
Model No.
15FXZ-RSM1-GAN-ETF
17FXZ-RSM1-GAN-ETF
23FXZ-RSM1-GAN-ETF
25FXZ-RSM1-GAN-ETF
29FXZ-RSM1-GAN-ETF
31FXZ-RSM1-GAN-ETF
35FXZ-RSM1-GAN-ETF
39FXZ-RSM1-GAN-ETF
51FXZ-RSM1-GAN-ETF
53FXZ-RSM1-GAN-ETF
61FXZ-RSM1-GAN-ETF
73FXZ-RSM1-GAN-ETF
Dimensions (mm)
A
3.6
4.2
6.0
6.6
7.8
8.4
9.6
10.8
14.4
15.0
17.4
21.0
B
4.2
4.8
6.6
7.2
8.4
9.0
10.2
11.4
15.0
15.6
18.0
21.6
C
5.8
6.4
8.2
8.8
10.0
10.6
11.8
13.0
16.6
17.2
19.6
23.2
D
6.6
7.2
9.0
9.6
10.8
11.4
12.6
13.8
17.4
18.0
20.4
24.0
Q'ty /
reel
2,500
2,500
2,500
2,500
2,500
2,500
2,500
2,500
2,500
2,500
2,500
2,500
23
25
29
31
35
39
1.2
B
D
3.95
51
53
61
73
1.4
0.3
C
Material and Finish
Contact: Copper alloy, nickel-undercoated, gold-plated (nickel-stripe)
Housing: Heat resisting resin, UL94V-0
Solder tab: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
Cover: Heat resisting resin, UL94V-0
RoHS compliance
This product displays (LF)(SN) on a label.
Note: 1. This products listed above are supplied on embossed-tape.
2. Contact JST for tin-plated products.
Lead section dimensions of FPC
±
0.3
（N＋1）
0.05
0.3
±0.07
±
0.3
（N−1）
0.03
0.3
±0.07
0.2
±0.03
0.3
（N−3）
0.6
±0.02
0.3
＋0.04
−0.03
±0.03
2.6min
Note: N --- Number of circuits
3.6
±0.5
Reinforcing layer
