Data sheet...
DK-SERIES
DKO DK5 24VUC
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

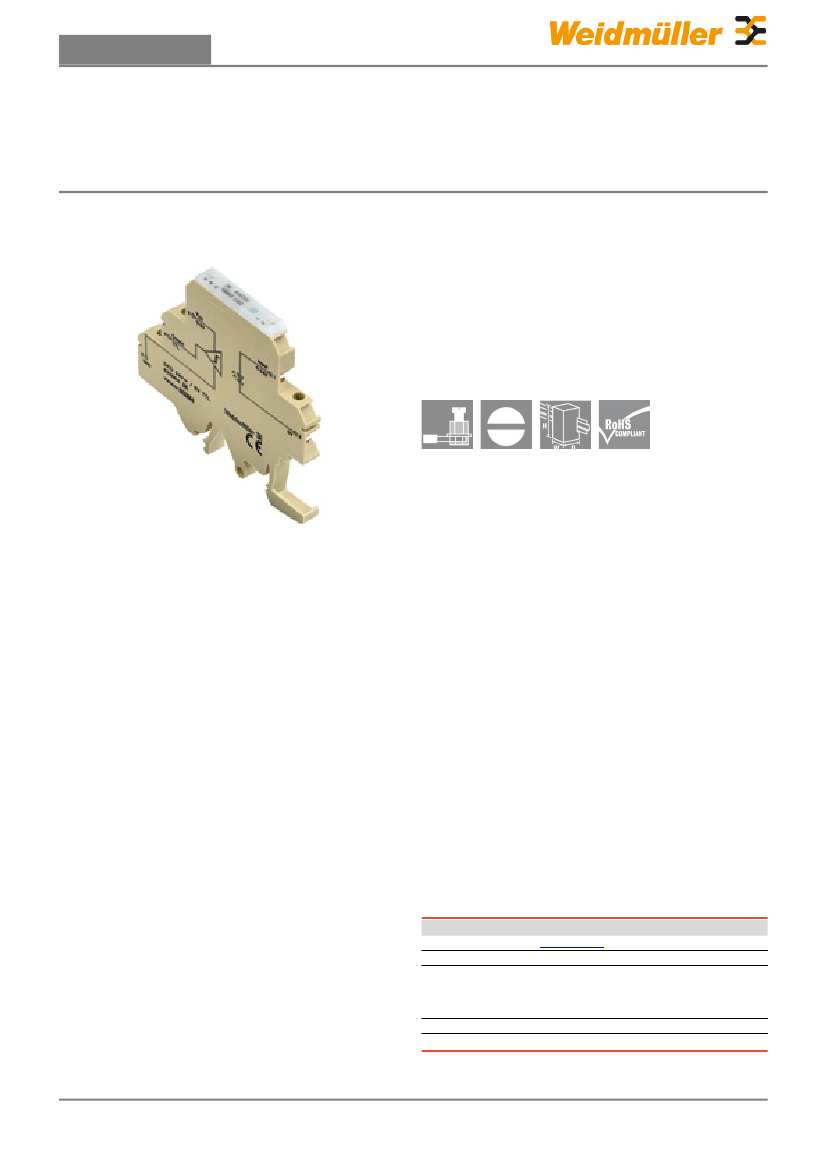

At just 6 mm wide, all components of the DKO range of
minicouplers have an extremely narrow design.
Four or five screw connections with a nominal cross-
section of 4 mm² are available.
The minicouplers are suitable for a wide range of
applications in
the coupling of digital sensor/actuator signals with
automation devices and the process field.
General ordering data
Order No.
Type
Version
GTIN (EAN)
Qty.
8228630000
DKO DK5 24VUC
DK-SERIES, Solid-state relay, Rated control voltage:
24 V UC ±20 % , Rated switching voltage: 24
VDC ±20%, Rated switching current: 2 A, Screw
connection
4008190193881
10 pc(s).
Creation date March 6, 2013 9:54:00 PM CET
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
1
Data sheet...
DK-SERIES
DKO DK5 24VUC
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
6 mm
77 mm
Height
Net weight
Dimensions and weights
Width
Depth
77 mm
25.5 g
Temperatures
Operating temperature
-25 °C...+50 °C
Storage temperature
-40 °C...+85 °C
Probability of failure
MTTF
1,806 Years
Connection data
Clamping range, rated connection
4 mm²
Clamping range, rated connection, max.
4 mm²
Clamping range, rated connection, min. 0.5 mm²
Wire connection cross section, finely
stranded, max.
4 mm²
Control side
Rated control voltage
Input frequency
Rated auxiliary voltage
24 V UC ±20 %
≤ 10 Hz
No
Power rating
Cut-in (switch-on) voltage
Max.: 220 mVA / 195 mW
approx. 16 V AC/DC
Load side
Rated switching voltage
Switch-on delay
Load side status indicator
Rated auxiliary voltage
24 VDC ±20%
2 ms
LED *
No
Rated switching current
Switch-off delay
Short-circuit-proof
Pulse duty factor (gen.)
2A
< 7 ms
Yes
1:2
General data
Solid-state type
Conductor connection system
Standards
Wire connection cross section, finely
stranded, max.
Transistor
Screw connection
DIN EN 50178
4 mm²
No. of poles
Humidity
Wire cross-section, solid, max.
1
40 °C / 93 % rel. humidity,
no condensation
4 mm²
Insulation coordination
Rated voltage
300 V
6 kV
III
Clearance and creepage distances for
control side - load side
Pollution severity
≥ 5.5 mm
2
Impulse withstand voltage
Surge voltage category
Further details of approvals
Standards
DIN EN 50178
Creation date March 6, 2013 9:54:00 PM CET
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
2
Data sheet...
DK-SERIES
DKO DK5 24VUC
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
EC001504
30-21-18-01
27-27-09-90
27-27-09-90
ETIM 3.0
eClass 4.1
eClass 6.0
Classifications
ETIM 2.0
UNSPSC
eClass 5.1
eClass 7.0
EC001504
27-27-09-00
27-14-11-20
Approvals
Approvals
Downloads
Declaration of Conformity
3-D model
K072_08_09.pdf
Creation date March 6, 2013 9:54:00 PM CET
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
3
Data sheet...
DK-SERIES
DKO DK5 24VUC
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Drawings
Electric symbol
Creation date March 6, 2013 9:54:01 PM CET
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
4
