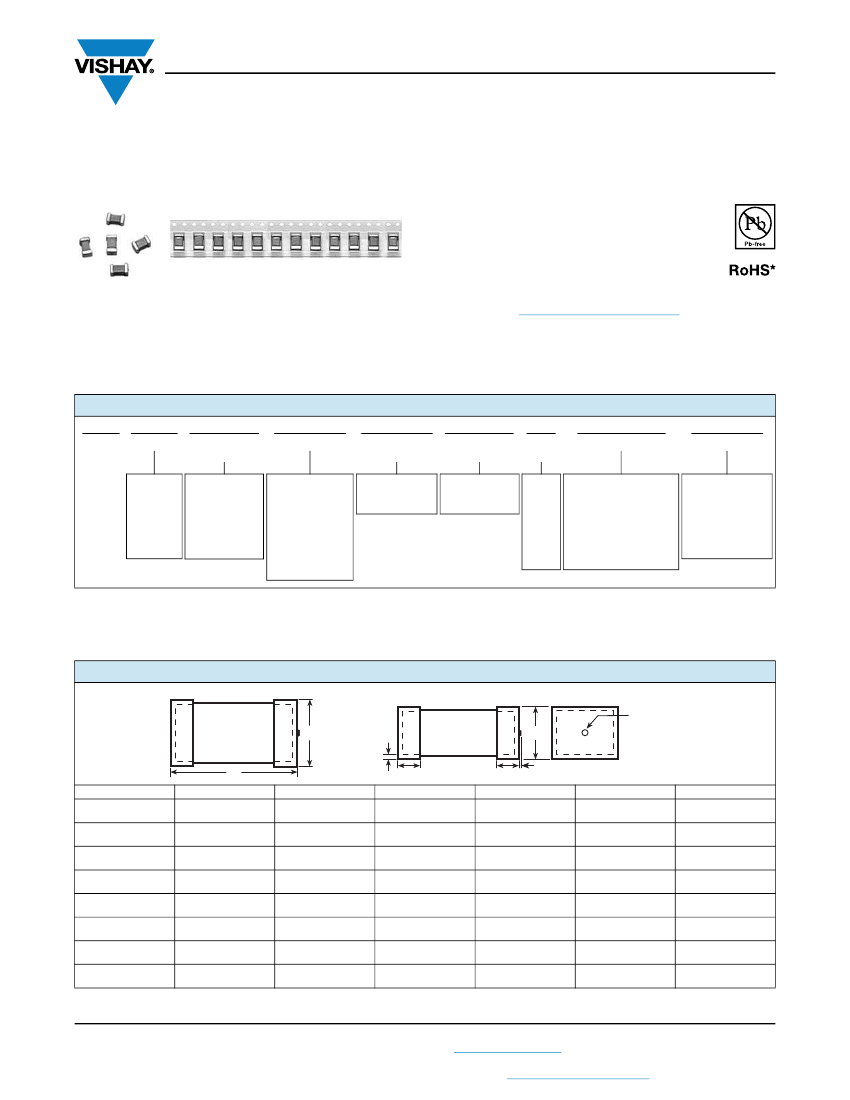

CWR16
www.vishay.com
Vishay Sprague
Solid Tantalum Surface Mount Capacitors
T
ANTAMOUNT®
Conformal Coated, Extended Range,
Military, MIL-PRF-55365/13 Qualified
FEATURES
• Weibull failure rates B, C, T
• Tape and reel available per EIA 481
Available
• Termination finishes available: gold plate,
solder plated, solder fused, and hot solder
Available
dipped
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are
RoHS-compliant and/or parts that are non-RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information/tables in this datasheet for details.
PERFORMANCE CHARACTERISTICS
Operating Temperature:
-55 °C to +125 °C
(above 85 °C, voltage derating is required)
Capacitance Range:
0.33 μF to 330 μF
Capacitance Tolerance:
± 5 %, ± 10 %, ± 20 %
Voltage Rating:
4 V
DC
to 35 V
DC
ORDERING INFORMATION
CWR16
TYPE
D
VOLTAGE
B
TERMINATION
FINISH
B = gold
C = hot solder
dipped
H = solder
plated
K = solder
fused
335
CAPACITANCE
K
CAPACITANCE
TOLERANCE
J=±5%
K = ± 10 %
M = ± 20 %
B
FAILURE RATE
%/1000 h
B = 0.1
C = 0.01
T = 0.01
(1)
A
CASE
CODE
A
B
C
D
E
F
G
H
A
SURGE CURRENT
/TR
PACKAGING
(2)
C=4V
D=6V
F = 10 V
H = 15 V
J = 20 V
K = 25 V
M = 35 V
This is expressed
in picofarads.
The first two
digits are the
significant
figures.
The third is the
number of
zeros to follow.
A = 10 cycles
at +25 °C
B = 10 cycles
at -55 °C and +85 °C
C = 10 cycles
at -55 °C and +85 °C
(before Weibull grading)
Z = no surge current
Blank = bulk,
plastic tray
/FA = waffle pack
/PR = 100 pcs
reel
/HR = half reel
/TR = full reel
Notes
(1)
T level requires surge current option “C”. Capacitors are recommended for “space applications”. Shipped in tape and reel / or waffle
packaging only.
(2)
Individual reels may include capacitors of two date codes that will be separated by an empty pocket.
Reel labels will show both date codes. The date code on the top (DC1) is the inner tape layers or first capacitors reeled.
DIMENSIONS
in inches [millimeters]
-
+
Weld and
dimple
projection
identifies
anode (+)
terminal
W
T
1
L
P
P
H
T
2
(max.)
CASE CODE
A
B
C
D
E
F
G
H
L
0.100 ± 0.015
[2.54 ± 0.38]
0.150 ± 0.015
[3.81 ± 0.38]
0.200 ± 0.015
[5.08 ± 0.38]
0.150 ± 0.015
[3.81 ± 0.38]
0.200 ± 0.015
[5.08 ± 0.38]
0.220 ± 0.015
[5.59 ± 0.38]
0.265 ± 0.015
[6.73 ± 0.38]
0.285 ± 0.015
[7.24 ± 0.38]
W
0.050 ± 0.015
[1.27 ± 0.38]
0.050 ± 0.015
[1.27 ± 0.38]
0.050 ± 0.015
[1.27 ± 0.38]
0.100 ± 0.015
[2.54 ± 0.38]
0.100 ± 0.015
[2.54 ± 0.38]
0.135 ± 0.015
[3.43 ± 0.38]
0.110 ± 0.015
[2.79 ± 0.38]
0.150 ± 0.015
[3.81 ± 0.38]
H
0.050 ± 0.015
[1.27 ± 0.38]
0.050 ± 0.015
[1.27 ± 0.38]
0.050 ± 0.015
[1.27 ± 0.38]
0.050 ± 0.015
[1.27 ± 0.38]
0.050 ± 0.015
[1.27 ± 0.38]
0.070 ± 0.015
[1.78 ± 0.38]
0.110 ± 0.015
[2.79 ± 0.38]
0.110 ± 0.015
[2.79 ± 0.38]
P
0.030 ± 0.005
[0.76 ± 0.13]
0.030 ± 0.005
[0.76 ± 0.13]
0.030 ± 0.005
[0.76 ± 0.13]
0.030 ± 0.005
[0.76 ± 0.13]
0.030 ± 0.005
[0.76 ± 0.13]
0.030 ± 0.005
[0.76 ± 0.13]
0.050 ± 0.005
[1.27 ± 0.13]
0.050 ± 0.005
[1.27 ± 0.13]
T
1
0.005
[0.13]
0.005
[0.13]
0.005
[0.13]
0.005
[0.13]
0.005
[0.13]
0.005
[0.13]
0.005
[0.13]
0.005
[0.13]
T
2
(max.)
0.015
[0.38]
0.015
[0.38]
0.015
[0.38]
0.015
[0.38]
0.015
[0.38]
0.015
[0.38]
0.015
[0.38]
0.015
[0.38]
Note
• When solder coated terminations are required, add 0.015" [0.38 mm] to termination dimension tolerance.
Revision: 28-Oct-14
Document Number: 40094
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
CWR16
www.vishay.com
Vishay Sprague
6V
10 V
15 V
20 V
25 V
A
A
A
A
B
B, C, D
D, E
D, E
E, F
F
F, G
G, H
G, H
H
A
A
B
B
D
E
E
E, F
F
G
H
H
B
D
E
F
G
G, H
H
G
H
H
35 V
A
RATINGS AND CASE CODES
μF
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
4V
A
A
A
B
B
B, D
D, E
E
E
F
G
H
H
A
A
B
B
B, D, E
D, E
E
F
F, G
G
G
H
H
A
A
B, C
B, C, D
B, C, D, E
D, E
E
F
F, G
G
G, H
H
H
MARKING AND POLARITY
Conformal coated capacitors have no marking on capacitor body.
Rating and date code information is provided on the reel label.
Negative end cap or termination is identified by black epoxy.
Positive end cap or termination is sealed with pink epoxy, in addition
to the weld projection.
Cathode
termination
Black epoxy
Pink epoxy
Anode
termination
STANDARD RATINGS
MAX. DCL (μA) AT
CAPACITANCE CASE
(μF)
CODE
PART NUMBER
+25 °C
+85 °C
+125 °C
MAX. DF (%) AT
+25 °C
+85 °C
+125 °C
8
8
8
10
10
10
10
10
10
10
10
12
12
12
12
-55 °C
MAX. ESR
AT +25 °C
100 kHz
()
12.0
12.0
12.0
8.0
8.0
8.0
4.0
4.0
3.0
3.0
3.0
2.0
1.0
1.0
0.9
3.3
4.7
6.8
10
15
22
22
33
33
47
68
100
150
220
330
A
A
A
B
B
B
D
D
E
E
E
F
G
H
H
4 V
DC
AT +85 °C; 2.7 V
DC
AT +125 °C
CWR16C(1)335(2)(3)A(4)(5)
1
10
12
CWR16C(1)475(2)(3)A(4)(5)
1
10
12
CWR16C(1)685(2)(3)A(4)(5)
1
10
12
CWR16C(1)106(2)(3)B(4)(5)
1
10
12
CWR16C(1)156(2)(3)B(4)(5)
1
10
12
CWR16C(1)226(2)(3)B(4)(5)
1
10
12
CWR16C(1)226(2)(3)D(4)(5)
1
10
12
CWR16C(1)336(2)(3)D(4)(5)
2
20
24
CWR16C(1)336(2)(3)E(4)(5)
2
20
24
CWR16C(1)476(2)(3)E(4)(5)
2
20
24
CWR16C(1)686(2)(3)E(4)(5)
3
30
36
CWR16C(1)107(2)(3)F(4)(5)
4
40
48
CWR16C(1)157(2)(3)G(4)(5)
6
60
72
CWR16C(1)227(2)(3)H(4)(5)
8
80
96
CWR16C(1)337(2)(3)H(4)(5)
10
100
120
6
6
6
8
8
8
8
8
8
8
8
10
10
10
10
8
8
8
10
10
10
12
12
12
12
12
12
12
12
12
Note
• Part number definitions:
(1) Termination finish: B, C, H, K
(2) Capacitance tolerance: J, K, M
(3) Failure rate: B, C, T
(4) Surge current: A, B, C, Z
(5) Packaging: blank, /FA, /HR, /PR, /TR
Revision: 28-Oct-14
Document Number: 40094
2
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
CWR16
www.vishay.com
Vishay Sprague
MAX. DCL (μA) AT
MAX. DF (%) AT
+25 °C
+85 °C
+125 °C
-55 °C
MAX. ESR
AT +25 °C
100 kHz
()
12.0
12.0
8.0
8.0
8.0
5.0
3.0
5.0
3.5
3.5
3.5
1.5
1.0
1.1
1.1
0.9
0.9
12.0
12.0
8.0
5.5
8.0
5.5
5.0
8.0
5.5
4.0
3.5
5.0
3.0
2.0
1.5
1.5
1.0
1.1
1.1
0.9
0.9
0.9
STANDARD RATINGS
CAPACITANCE CASE
(μF)
CODE
PART NUMBER
+25 °C
+85 °C
+125 °C
6 V
DC
AT +85 °C; 4 V
DC
AT +125 °C
3.3
4.7
6.8
10
15
15
15
22
22
33
47
68
68
100
150
220
330
2.2
3.3
4.7
4.7
6.8
6.8
6.8
10
10
10
10
15
15
22
33
47
47
68
100
100
150
220
A
A
B
B
B
D
E
D
E
E
F
F
G
G
G
H
H
A
A
B
C
B
C
D
B
C
D
E
D
E
E
F
F
G
G
G
H
H
H
CWR16D(1)335(2)(3)A(4)(5)
CWR16D(1)475(2)(3)A(4)(5)
CWR16D(1)685(2)(3)B(4)(5)
CWR16D(1)106(2)(3)B(4)(5)
CWR16D(1)156(2)(3)B(4)(5)
CWR16D(1)156(2)(3)D(4)(5)
CWR16D(1)156(2)(3)E(4)(5)
CWR16D(1)226(2)(3)D(4)(5)
CWR16D(1)226(2)(3)E(4)(5)
CWR16D(1)336(2)(3)E(4)(5)
CWR16D(1)476(2)(3)F(4)(5)
CWR16D(1)686(2)(3)F(4)(5)
CWR16D(1)686(2)(3)G(4)(5)
CWR16D(1)107(2)(3)G(4)(5)
CWR16D(1)157(2)(3)G(4)(5)
CWR16D(1)227(2)(3)H(4)(5)
CWR16D(1)337(2)(3)H(4)(5)
CWR16F(1)225(2)(3)A(4)(5)
CWR16F(1)335(2)(3)A(4)(5)
CWR16F(1)475(2)(3)B(4)(5)
CWR16F(1)475(2)(3)C(4)(5)
CWR16F(1)685(2)(3)B(4)(5)
CWR16F(1)685(2)(3)C(4)(5)
CWR16F(1)685(2)(3)D(4)(5)
CWR16F(1)106(2)(3)B(4)(5)
CWR16F(1)106(2)(3)C(4)(5)
CWR16F(1)106(2)(3)D(4)(5)
CWR16F(1)106(2)(3)E(4)(5)
CWR16F(1)156(2)(3)D(4)(5)
CWR16F(1)156(2)(3)E(4)(5)
CWR16F(1)226(2)(3)E(4)(5)
CWR16F(1)336(2)(3)F(4)(5)
CWR16F(1)476(2)(3)F(4)(5)
CWR16F(1)476(2)(3)G(4)(5)
CWR16F(1)686(2)(3)G(4)(5)
CWR16F(1)107(2)(3)G(4)(5)
CWR16F(1)107(2)(3)H(4)(5)
CWR16F(1)157(2)(3)H(4)(5)
CWR16F(1)227(2)(3)H(4)(5)
1
1
1
1
1
1
1
1
2
2
3
4
4
6
10
10
20
1
1
1
1
1
1
1
1
1
1
1
1
2
3
3
4
4
6
10
10
15
20
10
10
10
10
10
10
10
10
20
20
30
40
40
60
100
100
200
10
10
10
10
10
10
10
10
10
10
10
10
20
30
30
40
40
60
100
100
150
200
12
12
12
12
12
12
12
12
24
24
36
48
48
72
120
120
240
12
12
12
12
12
12
12
12
12
12
12
12
24
36
36
48
48
72
120
120
180
240
6
6
6
6
8
8
8
6
8
6
8
10
10
10
10
10
10
6
6
6
6
6
6
6
8
6
6
6
6
8
8
8
10
10
10
10
10
10
10
8
8
8
8
10
10
10
8
10
8
10
12
12
12
12
12
12
8
8
8
8
8
8
8
10
8
8
8
8
10
10
10
12
12
12
12
12
12
12
8
8
8
8
10
12
12
8
12
8
12
12
12
12
12
12
12
8
8
8
8
8
8
8
10
8
8
8
8
10
10
10
12
12
12
12
12
12
12
10 V
DC
AT +85 ºC; 7 V
DC
AT +125 ºC
Note
• Part number definitions:
(1) Termination finish: B, C, H, K
(2) Capacitance tolerance: J, K, M
(3) Failure rate: B, C, T
(4) Surge current: A, B, C, Z
(5) Packaging: blank, /FA, /HR, /PR, /TR
Revision: 28-Oct-14
Document Number: 40094
3
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
CWR16
www.vishay.com
Vishay Sprague
MAX. DCL (μA) AT
MAX. DF (%) AT
+25 °C
+85 °C
+125 °C
8
8
8
8
8
8
8
8
10
8
8
8
10
10
8
10
10
10
10
10
12
8
8
8
8
8
8
8
8
8
8
10
10
10
8
8
8
8
8
8
8
8
10
8
8
10
8
-55 °C
MAX. ESR
AT +25 °C
100 kHz
()
15.0
15.0
15.0
9.0
5.0
5.5
6.0
6.0
3.0
6.0
4.0
4.0
3.0
3.0
3.0
1.1
1.1
0.9
1.1
0.9
0.9
15.0
15.0
9.0
9.0
6.0
6.0
5.0
5.0
3.0
3.0
2.5
0.9
0.9
15.0
10.0
6.0
4.0
3.0
1.4
1.4
0.9
0.9
22.0
1.5
0.9
0.9
STANDARD RATINGS
CAPACITANCE CASE
(μF)
CODE
PART NUMBER
+25 °C
+85 °C
+125 °C
1.0
1.5
2.2
3.3
4.7
4.7
4.7
6.8
6.8
10
10
15
15
22
33
33
47
47
68
68
100
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
10
15
22
33
47
0.47
1.0
2.2
3.3
6.8
15
22
22
33
0.33
6.8
10
15
A
A
A
B
B
C
D
D
E
D
E
E
F
F
F
G
G
H
G
H
H
A
A
B
B
D
E
E
E
F
F
G
H
H
A
B
D
E
F
G
G
H
H
A
G
H
H
15 V
DC
AT +85 ºC; 10 V
DC
AT +125 ºC
CWR16H(1)105(2)(3)A(4)(5)
1
10
12
CWR16H(1)155(2)(3)A(4)(5)
1
10
12
CWR16H(1)225(2)(3)A(4)(5)
1
10
12
CWR16H(1)335(2)(3)B(4)(5)
1
10
12
CWR16H(1)475(2)(3)B(4)(5)
1
10
12
CWR16H(1)475(2)(3)C(4)(5)
1
10
12
CWR16H(1)475(2)(3)D(4)(5)
1
10
12
CWR16H(1)685(2)(3)D(4)(5)
1
10
12
CWR16H(1)685(2)(3)E(4)(5)
1
10
12
CWR16H(1)106(2)(3)D(4)(5)
2
20
24
CWR16H(1)106(2)(3)E(4)(5)
2
20
24
CWR16H(1)156(2)(3)E(4)(5)
2
20
24
CWR16H(1)156(2)(3)F(4)(5)
2
20
24
CWR16H(1)226(2)(3)F(4)(5)
3
30
36
CWR16H(1)336(2)(3)F(4)(5)
5
50
60
CWR16H(1)336(2)(3)G(4)(5)
6
60
72
CWR16H(1)476(2)(3)G(4)(5)
10
100
120
CWR16H(1)476(2)(3)H(4)(5)
10
100
120
CWR16H(1)686(2)(3)G(4)(5)
10
100
120
CWR16H(1)686(2)(3)H(4)(5)
10
100
120
CWR16H(1)107(2)(3)H(4)(5)
15
150
180
20 V
DC
AT +85 ºC; 13 V
DC
AT +125 ºC
CWR16J(1)684(2)(3)A(4)(5)
1
10
12
CWR16J(1)105(2)(3)A(4)(5)
1
10
12
CWR16J(1)155(2)(3)B(4)(5)
1
10
12
CWR16J(1)225(2)(3)B(4)(5)
1
10
12
CWR16J(1)335(2)(3)D(4)(5)
1
10
12
CWR16J(1)475(2)(3)E(4)(5)
1
10
12
CWR16J(1)685(2)(3)E(4)(5)
2
20
24
CWR16J(1)106(2)(3)E(4)(5)
2
20
24
CWR16J(1)106(2)(3)F(4)(5)
2
20
24
CWR16J(1)156(2)(3)F(4)(5)
3
30
36
CWR16J(1)226(2)(3)G(4)(5)
4
40
48
CWR16J(1)336(2)(3)H(4)(5)
6
60
72
CWR16J(1)476(2)(3)H(4)(5)
10
100
120
25 V
DC
AT +85 ºC; 17 V
DC
AT +125 ºC
CWR16K(1)474(2)(3)A(4)(5)
1
10
12
CWR16K(1)105(2)(3)B(4)(5)
1
10
12
CWR16K(1)225(2)(3)D(4)(5)
1
10
12
CWR16K(1)335(2)(3)E(4)(5)
1
10
12
CWR16K(1)685(2)(3)F(4)(5)
2
20
24
CWR16K(1)156(2)(3)G(4)(5)
4
40
48
CWR16K(1)226(2)(3)G(4)(5)
6
60
72
CWR16K(1)226(2)(3)H(4)(5)
6
60
72
CWR16K(1)336(2)(3)H(4)(5)
10
100
120
35 V
DC
AT +85 ºC, 23 V
DC
AT +125 ºC
CWR16M(1)334(2)(3)A(4)(5)
1
10
12
CWR16M(1)685(2)(3)G(4)(5)
3
30
36
CWR16M(1)106(2)(3)H(4)(5)
4
40
48
CWR16M(1)156(2)(3)H(4)(5)
6
60
72
6
6
6
6
6
6
6
6
8
6
6
6
8
8
6
8
8
8
8
8
10
6
6
6
6
6
6
6
6
6
6
8
8
8
6
6
6
6
6
6
6
6
8
6
6
8
6
8
8
8
8
8
8
8
8
12
8
8
8
10
10
8
10
10
10
10
10
12
8
8
8
8
8
8
8
8
8
8
10
10
10
8
8
8
8
8
8
8
8
10
8
8
10
8
Note
• Part number definitions:
(1) Termination finish: B, C, H, K
(2) Capacitance tolerance: J, K, M
(3) Failure rate: B, C, T
(4) Surge current: A, B, C, Z
(5) Packaging: blank, /FA, /HR, /PR, /TR
Revision: 28-Oct-14
Document Number: 40094
4
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
CWR16
www.vishay.com
Vishay Sprague

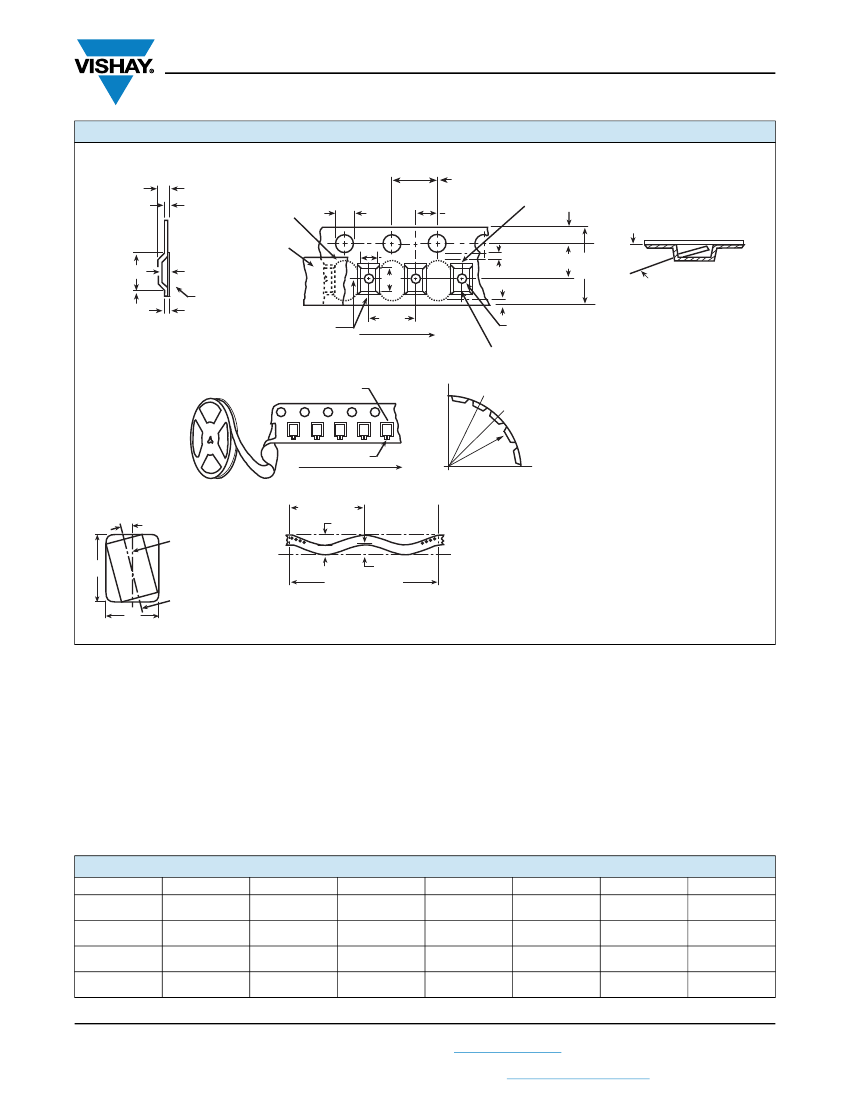

TAPE AND REEL PACKAGING
in inches [millimeters]
T
2
(max.)
0.024
[0.600]
max.
0.157 ± 0.004
[4.0 ± 0.10]
Deformation
between
embossments
Top
cover
tape
B
1
(max.)
(6)
0.059 + 0.004 - 0.0
[1.5 + 0.10 - 0.0]
10 pitches cumulative
tolerance on tape
± 0.008 [0.200]
Embossment
0.079 ± 0.002
0.069 ± 0.004
[2.0 ± 0.05]
[1.75 ± 0.10]
A
0
B
0
K
0
Top
cover
tape
0.030 [0.75]
min.
(3)
0.030 [0.75]
min.
(4)
F
W
20°
Maximum
component
rotation
(Side or front sectional view)
For tape feeder
reference only
including draft.
Concentric around B
0
0.004 [0.10]
max.
Center lines
of cavity
P
1
USER DIRECTION
OF FEED
D
1
(min.) for components
.
0.079 x 0.047 [2.0 x 1.2] and larger
(5)
Maximum
cavity size
(1)
Cathode (-)
Anode (+)
DIRECTION OF FEED
20° maximum
component rotation
Typical
component
cavity
center line
Typical
component
center line
3.937 [100.0]
0.039 [1.0]
max.
Tape
0.039 [1.0]
max.
0.9843 [250.0]
Camber
(Top view)
Allowable camber to be 0.039/3.937 [1/100]
Non-cumulative over 9.843 [250.0]
R
min.
Bending radius
(2)
R minimum:
8 mm = 0.984" (25 mm)
12 mm and 16 mm = 1.181" (30 mm)
B
0
Tape and reel specifications:
all case sizes are
available on plastic embossed tape per EIA-481.
Standard reel diameter is 7" (178 mm).
A
0
(Top view)
Notes
• Metric dimensions will govern. Dimensions in inches are rounded and for reference only.
(1)
A , B , K , are determined by the maximum dimensions to the ends of the terminals extending from the component body and / or the body
0
0
0
dimensions of the component. The clearance between the ends of the terminals or body of the component to the sides and depth of the
cavity (A
0
, B
0
, K
0
) must be within 0.002" (0.05 mm) minimum and 0.020" (0.50 mm) maximum. The clearance allowed must also prevent
rotation of the component within the cavity of not more than 20°.
(2)
Tape with components shall pass around radius “R” without damage. The minimum trailer length may require additional length to provide
“R” minimum for 12 mm embossed tape for reels with hub diameters approaching N minimum.
(3)
This dimension is the flat area from the edge of the sprocket hole to either outward deformation of the carrier tape between the embossed
cavities or to the edge of the cavity whichever is less.
(4)
This dimension is the flat area from the edge of the carrier tape opposite the sprocket holes to either the outward deformation of the carrier
tape between the embossed cavity or to the edge of the cavity whichever is less.
(5)
The embossed hole location shall be measured from the sprocket hole controlling the location of the embossement. Dimensions of
embossement location shall be applied independent of each other.
(6)
B dimension is a reference dimension tape feeder clearance only.
1
CARRIER TAPE DIMENSIONS
in inches [millimeters]
CASE CODE
A
B, C, D, E
F
G, H
TAPE SIZE
8 mm
12 mm
12 mm
double pitch
16 mm
B
1
(max.)
0.179 [4.55]
0.323 [8.2]
0.323 [8.2]
0.476 [12.1]
D
1
(min.)
0.039 [1.0]
0.059 [1.5]
0.059 [1.5]
0.059 [1.5]
F
0.138 ± 0.002
[3.5 ± 0.05]
0.217 ± 0.002
[5.5 ± 0.05]
0.217 ± 0.002
[5.5 ± 0.05]
0.295 ± 0.004
[7.5 ± 0.1]
P
1
0.157 ± 0.004
[4.0 ± 0.1]
0.157 ± 0.004
[4.0 ± 0.1]
0.315 ± 0.004
[8.0 ± 0.10]
0.315 ± 0.004
[8.0 ± 0.10]
T
2
(max.)
0.098
[2.5]
0.256
[6.5]
0.256
[6.5]
0.315
[8.0]
W
0.315 ± 0.004
[8.0 ± 0.10]
0.472 ± 0.012
[12.0 ± 0.30]
0.472 ± 0.012
[12.0 ± 0.30]
0.642 max.
[16.3] max.
Revision: 28-Oct-14
Document Number: 40094
5
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Embedded System
京公网安备 11010802033920号
EEWORLD
