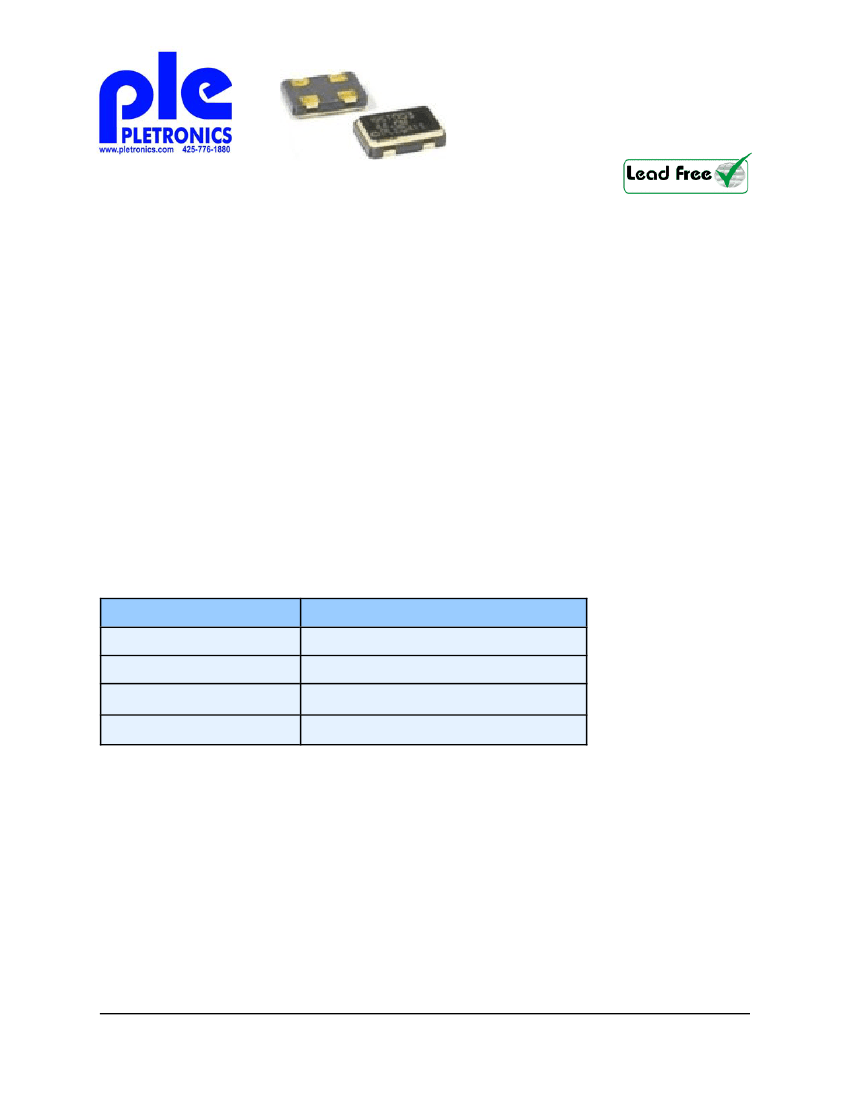

SM55M Series 3.3 V
CMOS Clock Oscillators
April 2007
• Pletronics’ SM55 Series is a quartz crystal
controlled precision square wave generator with a
CMOS output.
• The package is designed for high density surface
mount designs.
• This is a low cost mass produced oscillator.
• Tape and Reel or cut tape packaging is available.
1.5 to 190 MHz
3.2 x 5 mm LCC Ceramic Package
Enable/Disable Function
Disable function includes low standby power
mode
• Low Jitter
• Optimized for low power applications (battery)
•
•
•
•
Pletronics Inc. certifies this device is in accordance with the
RoHS 6/6 (2002/95/EC) and WEEE (2002/96/EC) directives.
Pletronics Inc. guarantees the device does not contain the following:
Cadmium, Hexavalent Chromium, Lead, Mercury, PBB’s, PBDE’s
Weight of the Device: 0.064 grams
Moisture Sensitivity Level: 1 As defined in J-STD-020C
Second Level Interconnect code: e4
Absolute Maximum Ratings:
Parameter
V
CC
Supply Voltage
Vi
Vo
Io
Input Voltage
Output Voltage
Output Current
Unit
-0.5V to +7.0V
-0.5V to V
CC
+ 0.5V
-0.5V to V
CC
+ 0.5V
+25 mA to -25 mA
Thermal Characteristics
The maximum die or junction temperature is 155
o
C
The thermal resistance junction to board is 30 to 50
o
C/Watt depending on the solder pads, ground plane
and construction of the PCB.
Product information is current as of publication date. The product conforms
to specifications per the terms of the Pletronics standard warranty. Production
processsing does not necessarily include testing of all parameters.
Copyright © 2006, 2007, Pletronics Inc.
SM55M Series 3.3 V
CMOS Clock Oscillators
April 2007
Part Number:
SM55
45
M
E
V
-
75.0M
-XX
Packaging code or blank
T250 = 250 per Tape and Reel
T500 = 500 per Tape and Reel
T1K = 1000 per Tape and Reel
Frequency in MHz
Supply Voltage V
CC
V
= 3.3V _ 10%
+
Optional Enhanced OTR
Blank
= Temp. range -10 to +70
o
C
E
= Temp. range -40 to +85
o
C
Series Model
Frequency Stability
45
= _ 50 ppm
+
44
= _ 25 ppm
+
20
= _ 20 ppm
+
Series Model
Marking Legend:
PLE = Pletronics
FF.FFF
M = Frequency in MHz
YYWW or YWW or
YMD
= Date of Manufacture (year and week, or year-month-day)
All other marking is internal factory codes
Specifications such as frequency stability, supply voltage and operating temperature range, etc. are
not identified from the marking. External packaging labels and packing list will correctly identify the
ordered Pletronics part number.
Codes for Date Code YMD
Code
Year
Code
Month
Code
Day
Code
Day
Code
Day
1
1
D
13
T
25
6
2006
A
JAN
2
2
E
14
U
26
7
2007
B
FEB
3
3
F
15
V
27
8
2008
C
MAR
4
4
G
16
W
28
9
2009
D
APR
E
MAY
5
5
H
17
X
29
0
2010
F
JUN
6
6
J
18
Y
30
1
2011
G
JUL
7
7
K
19
Z
31
H
AUG
8
8
L
20
2
2012
J
SEP
9
9
M
21
K
OCT
A
10
N
22
L
NOV
B
11
P
23
M
DEC
C
12
R
24
Part Marking:
PFF.FFF M
C
YMDxx
or
PFF.FFF M
C
YYWWxx
or
PLE SM55
FF.FFF
M
CYMDxx
or
P5xYWWx
C
FF.FF Mxxx
or
5xYWWxx
FF.FFF
M
CPLE
xxx
www.pletronics.com
425-776-1880
2
SM55M Series 3.3 V
CMOS Clock Oscillators
April 2007
Electrical Specification for 3.30V +10% over the specified temperature range
_
Item
Frequency Range
Frequency Accuracy
“45"
“44"
“20"
Output Waveform
Output High Level
Output Low Level
Output Symmetry
Jitter
Enable/Disable Internal Pull-up
V disable
V enable
Output leakage
V
OUT
= V
CC
V
OUT
= 0V
Standby Current I
CC
Enable time
Disable time
Start up time
Operating Temperature Range
Storage Temperature Range
90
-
45
-
-
50
-
70
-10
-10
-
-
-
-
-10
-40
-55
Min
1.5
-50
-25
-20
Max
190
+50
+25
+20
CMOS
-
10
55
0.6
2.5
-
30
-
+10
+10
3
100
100
3
+70
+85
+125
%
%
%
pS RMS
pS RMS
Kohm
%
%
uA
uA
uA
nS
nS
mS
o
o
o
Unit
MHz
ppm
Condition
For all supply voltages, load changes, aging for 1
year, shock, vibration and temperatures
of V
CC
(See load circuit)
at 50% point of V
CC
12 KHz to 20 MHz from the output frequency
10 Hz to 1 MHz from the output frequency
to V
CC
of V
CC
applied to pad 1
Pad 1 low, device disabled
Time for output to reach a logic state
Time for output to reach a high Z state
Time for output to reach specified frequency
Standard Temperature Range
Extended Temperature Range
“E” Option
C
C
C

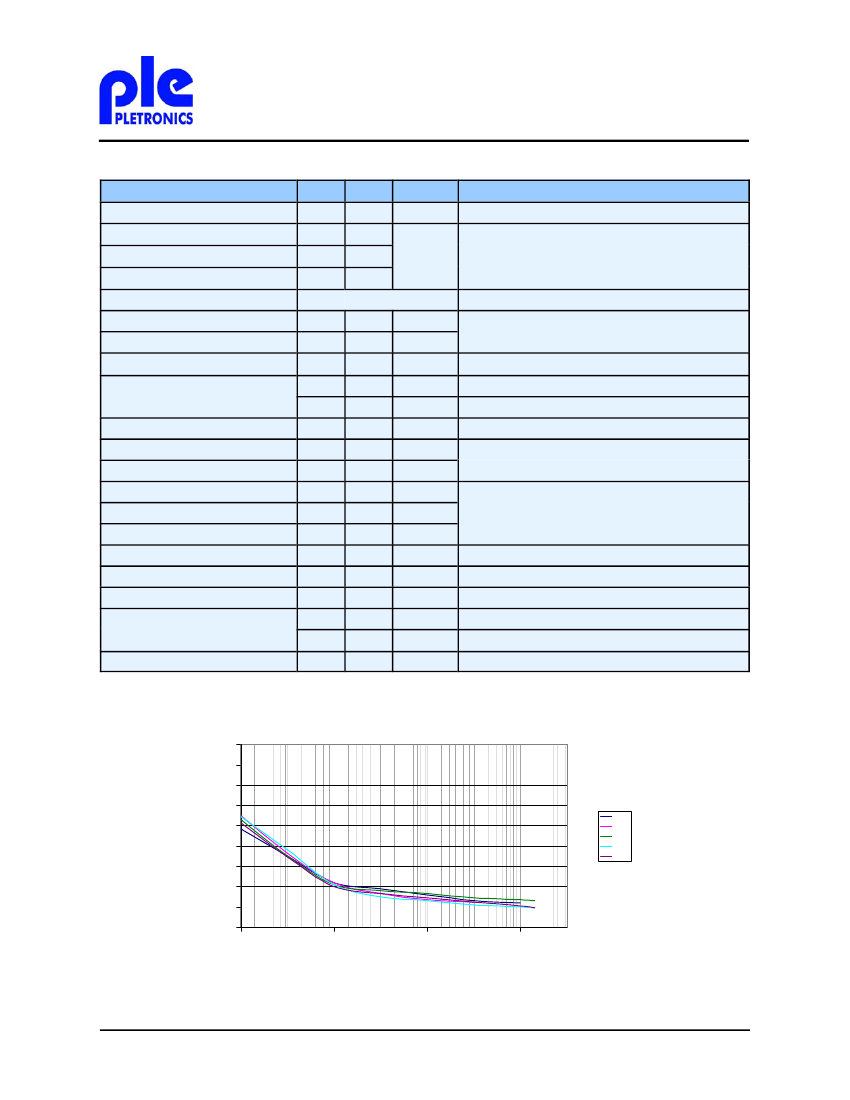

Typical phase noise plot for 5 oscillators at different output frequencies.
0
-20
-40
-60
dBc/Hz
19.4M
25M
32M
50M
66.7M
-80
-100
-120
-140
-160
-180
10
1,000
100,000
10,000,000
Frequency (Hz)
www.pletronics.com
425-776-1880
3
SM55M Series 3.3 V
CMOS Clock Oscillators
April 2007
Electrical Specification for 3.30V +10% over the specified temperature range
_
Item
Output T
RISE
and T
FALL
Typ
2.5
1.5
1
4
3
2
V
CC
Supply Current (I
CC
)
2
3
4
12
23
45
3
4
6
16
30
Max
5
3
2
8
5
3
4
5
6
18
36
70
5
6
8
22
43
Unit
nS
nS
nS
nS
nS
nS
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
Condition
< 35 MHz
> 35 MHz and < 70 MHz
> 70 MHz
< 35 MHz
> 35 MHz and < 70 MHz
> 70 MHz
< 8 MHz
> 8 MHz and < 16 MHz
> 16 MHz and < 35 MHz
> 35 MHz and < 70 MHz
> 70 MHz and <120 MHz
> 120 MHz
< 8 MHz
> 8 MHz and < 16 MHz
> 16 MHz and < 35 MHz
> 35 MHz and < 70 MHz
> 70 MHz and <120 MHz
C
LOAD
= 30 pF
C
LOAD
= 15 pF
C
LOAD
=30 pF
10% to 90% of V
CC
See Load Circuit
C
LOAD
= 15 pF
10% to 90% of V
CC
See Load Circuit
Specifications with Pad 1 E/D open circuit
www.pletronics.com
425-776-1880
4
SM55M Series 3.3 V
CMOS Clock Oscillators
April 2007

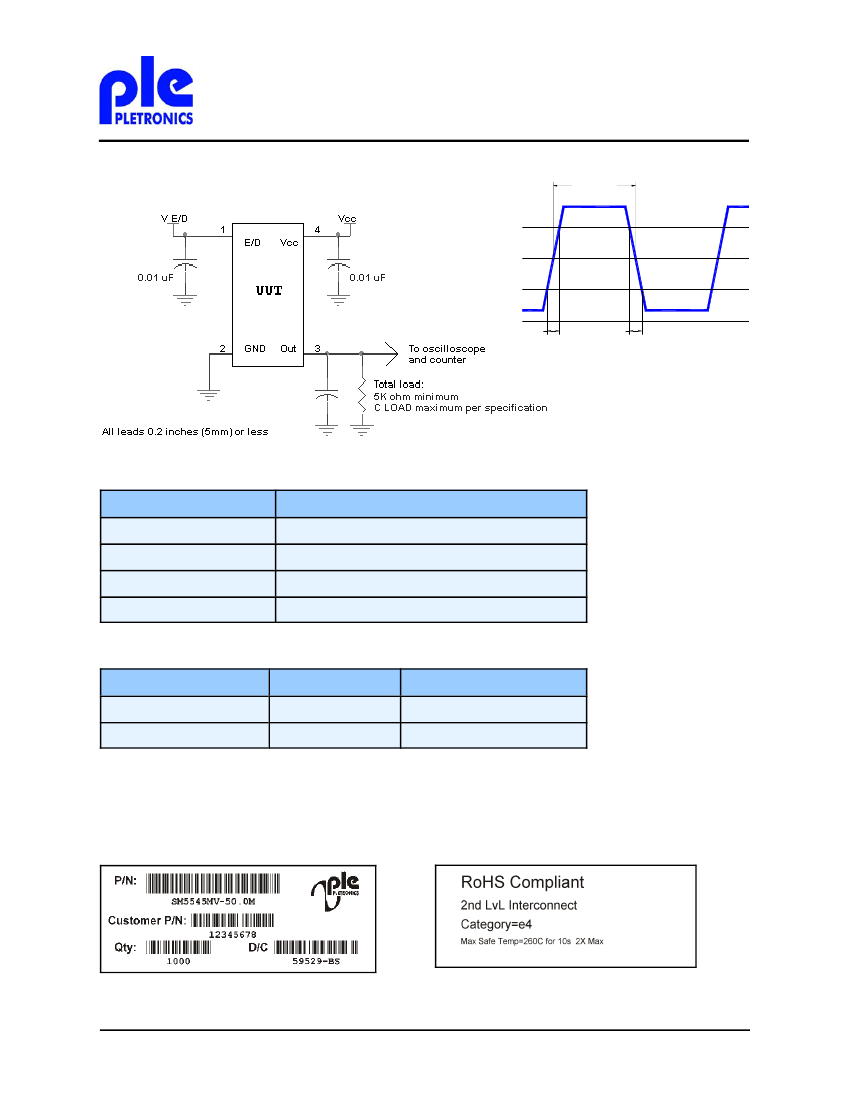

Load Circuit and Test Waveform
Vhigh
90% * Vcc
50% * Vcc
10% * Vcc
Vlow
Ground
Trise
Symmetry
Tfall
Reliability
: Environmental Compliance
Parameter
Mechanical Shock
Vibration
Solderability
Thermal Shock
Condition
MIL-STD-883 Method 2002, Condition B
MIL-STD-883 Method 2007, Condition A
MIL-STD-883 Method 2003
MIL-STD-883 Method 1011, Condition A
ESD Rating
Model
Human Body Model
Charged Device Model
Minimum Voltage
1500
1000
Conditions
MIL-STD-883 Method 3115
JESD 22-C101
Package Labeling
Label is 1" x 2.6" (25.4mm x 66.7mm)
Font is Courier New
Bar code is 39-Full ASCII
Label is 1" x 2.6" (25.4mm x 66.7mm)
Font is Arial
www.pletronics.com
425-776-1880
5
