RECOMMENDED PANEL
CUTOUT
EMPFOHLENER FRONTPLATTEN AUSSCHNITT
74.04
±0.25
[2.915
±.010]
20.60 [.811]
TOP OF PCB
LP
72.40±0.20 [2.850±0.008]
3.20±0.20 [.126±.008]
13.50 [.531]
10.59 [.417]
RECOMMENDED PCB
LAYOUT
LOCHBILD FUER LEITERPLATTE
66.04 [2.600]
52.07 [2.050]
38.10 [1.500]
24.13 [.950]
10.16 [.400]
8
1
1
8
1
8
1
8
1
8
2.54 [.100]
1.27 [.050]
8.89 [.350]
2.54 [.100]
ø0.89±0.08 [ø.035±.003](X64)
ø3.25±0.08 [ø.128±.003]
67.31 [2.650]
MATERIALS AND FINISH
HOUSING: GLASS FILLED POLYESTER UL 94
4
V-O BLACK
SHIELDING: Cu ALLOY, PLATED WITH 1.0µm
[40µin] MIN. Ni.
CONTACTS: PHOSPHOR BRONZE
CONTACT FINISH: 30
µin
Au OVER Ni, Sn
TERMINALS
MECHANICAL CHARACTERISTICS
DURABILITY: 1000 M
ATING CYCLES
ELECTRICAL CHARACTERISTICS
CURRENT/VOLTAGE: 150 Vac AT 1.5 AMPS
MAX AT 25˚C
DIELECTRIC WITHSTAND VOLTAGE: 1000 Vac
RMS MIN., 60Hz
INSULATION RESISTANCE: 500 MEGAOHMS MIN.
CONTACT RESISTANCE: 30 MILLIOHMS MAX
OPERATING TEMPERATUR
E: -40˚C + 125˚C
NOTE 1: PANEL GROUND TOP AND SIDES (G5)
NOTE 2: C-UL APPROVED E145613 AND MEETS FCC REQUIREMENTS
Information:
Tolerances
All Dimensions
Scale
2:1
in mm [in]
Consider protection memo from DIN 34
All rights reserved.
Only for information.
To insure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
Subject to modification without
prior notice.
Drawing will not be updated.
Designation
MOD JACK - MJH
1X5, 8P8C, RIGHT ANGLE
ERNI Components
CHESTER, VA U.S.A.
Rev.
Date
Group/Type
133193
MAXMJ
14.42 [.568]
0.10 [.004]MAX
I
...

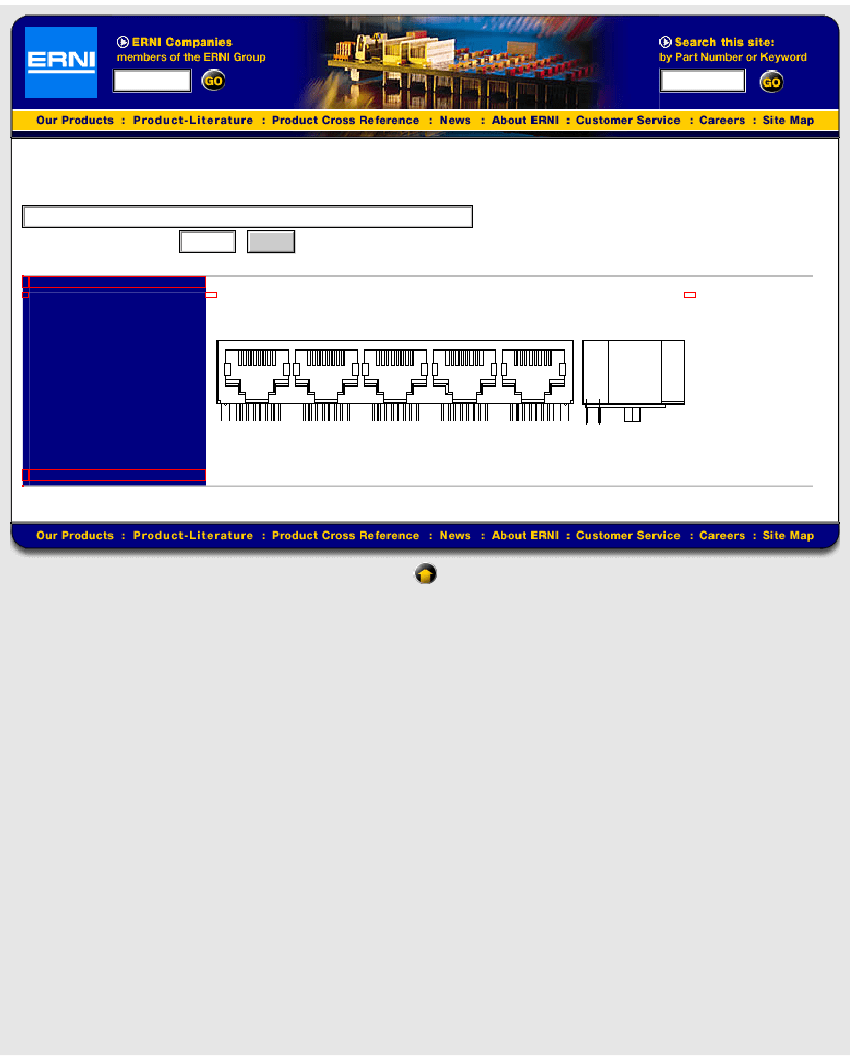

Modular Jacks:
MJH-G Series - Non Shielded, Shielded 2 to 12 Ports
Show another Category
or 6-Digit Part Number:
Now!
PART NUMBER 133193
Drawings:
JPG (view)
DXF
(24 KB)
PDF
(27 KB)
Catalog:
PDF N.A.
Request:
Information
8P-8C 1X5 NON-SHIELDED
Maxconn Partnumber: MJH-G-88-5
133193
Termination:
Solder
No. of
Positions:
8
No. of Ports:
5
No. of Pins:
8
