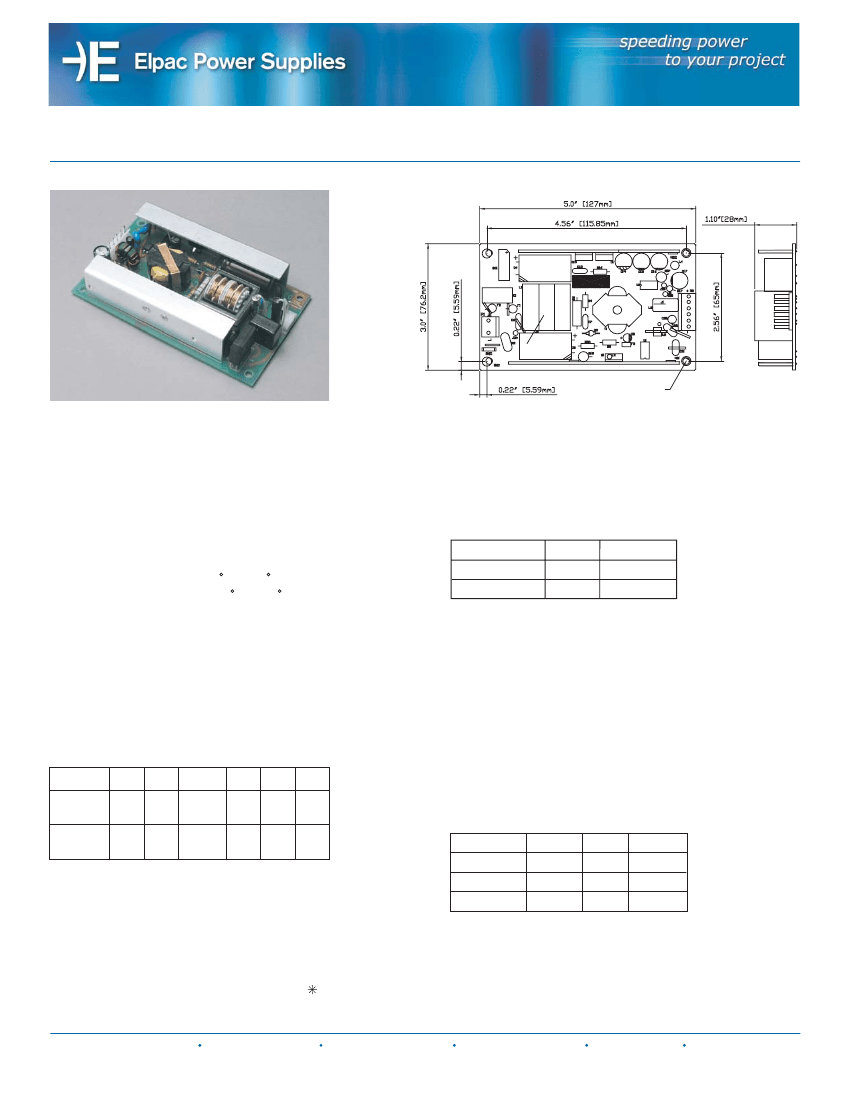

MSM65 series
65 Watt Medical Grade Power Supply
4 x 0.155" [3.94mm]
Features
Wide range AC input
Fully regulated output
High efficiency
Medical grade approval
5 year warranty
Electrical Specifications
Input
Voltage................................ 100 - 240 VAC
Current................................ 2.0 Amp @ 100 VAC
Frequency........................... 50 - 60 Hz
Max. Earth leakage current:
Test Voltage
132 VAC 60 Hz
264 VAC 50 Hz
Normal Single-fault
40 uA
62 uA
60 uA
120 uA
Environmental
Operating temperature.......... 0 C to 50 C
Storage temperature............. -55 C to 85 C
Weight = 0.85 lbs
EMI/EMC
Meets FCC class B, CISPR 11 class B
EMC per EN60601-1-2
Safety
UR/cUR
CE Marked
Polarity
Input
P1
Output
P2
UL2601-1
EN60601-1-2:2001
1
Line
+V1
2
-
+V1
3
Neutral
+V1
4
-
5
-
6
-
Output
Line regulation.................... TYP +/- 0.5%
Load regulation................... TYP +/- 2%
Hold up time........................ 20 ms min at full load, 115 VAC
Transient response............. 2 ms for 50% to 100% load change
Over voltage protection....... Built-in
Over current protection....... Built-in
Short circuit protection........ Pulsing mode, auto recovery
Efficiency............................ 80% min at full load and 115 VAC
Ripple/noise (V
p-p
)............... +/-1% (20 MHz bandwidth)
Com Com Com
Input P1 GND 0.25" FASTON TAB
Model No.
MSM6512
MSM6515
MSM6524
Voltage Power Current
12V
65W
5.4A
15V
65W
4.3A
24V
65W
2.7A
Input and Output Connections
Input connector (P1) = AMP p/n 640445-3
Input mating connector = AMP p/n 640250-3
Output connector (P2) = AMP p/n 640445-6
Output mating connector = AMP p/n 640250-6
Mating connector contacts = AMP p/n 770476-
Rev 0704
Elpac Power Supplies 1562 Reynolds Ave. Irvine, CA 92614 USA TEL +1 949-476-6070 www.elpac.com info@elpac.com
