1453000253 datasheet, PDF - EEWORLD Datasheet

1453000253: DescriptionD Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, Hole .115-.125, Plug; CategoryThe connector The connector; File Size125KB，1 Pages; ManufacturerAcmelux Taiwan Inc; Websitehttp://www.acmelux.com

Download Datasheet Parametric View All

1453000253 Overview

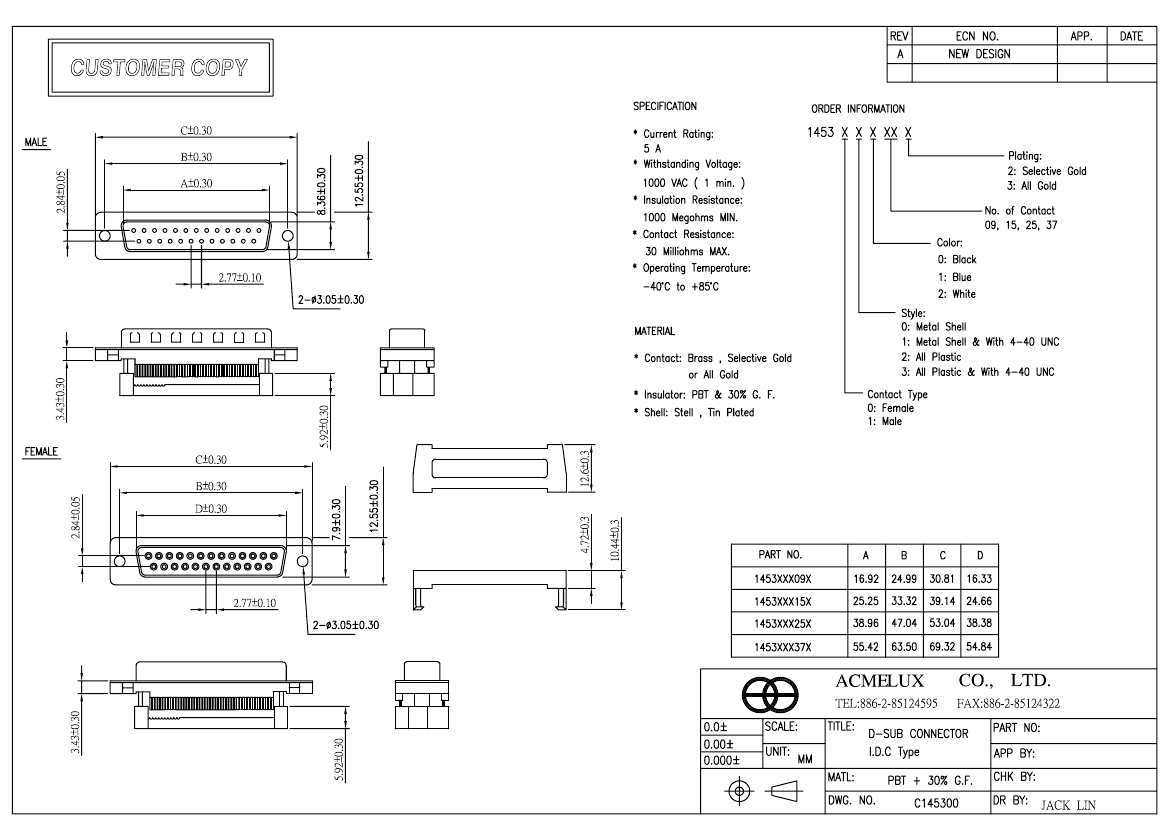

D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, Hole .115-.125, Plug

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.494 inch
body length	2.088 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	1453
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .115-.125
Installation option 2	LOCKING
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Rated current (signal)	5 A
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.13 inch
Termination type	SOLDER LUG
Total number of contacts	25
Base Number Matches	1
