350LSG18000MM590X241 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> 350LSG18000MM590X241

Preview

350LSG18000MM590X241: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 350V, 20% +Tol, 20% -Tol, 18000uF, Chassis Mount, CAN, ROHS COMPLIANT; CategoryPassive components capacitor; File Size173KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

350LSG18000MM590X241 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 350V, 20% +Tol, 20% -Tol, 18000uF, Chassis Mount, CAN, ROHS COMPLIANT

350LSG18000MM590X241 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1646443772
package instruction	,
Reach Compliance Code	compliant
Country Of Origin	Japan
ECCN code	EAR99
YTEOL	7.2
capacitance	18000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
leakage current	7.53 mA
Manufacturer's serial number	LSG
Installation features	CHASSIS MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	350 V
surface mount	NO
Delta tangent	0.25
Terminal shape	BINDING POST

Preview

Download Datasheet

View All

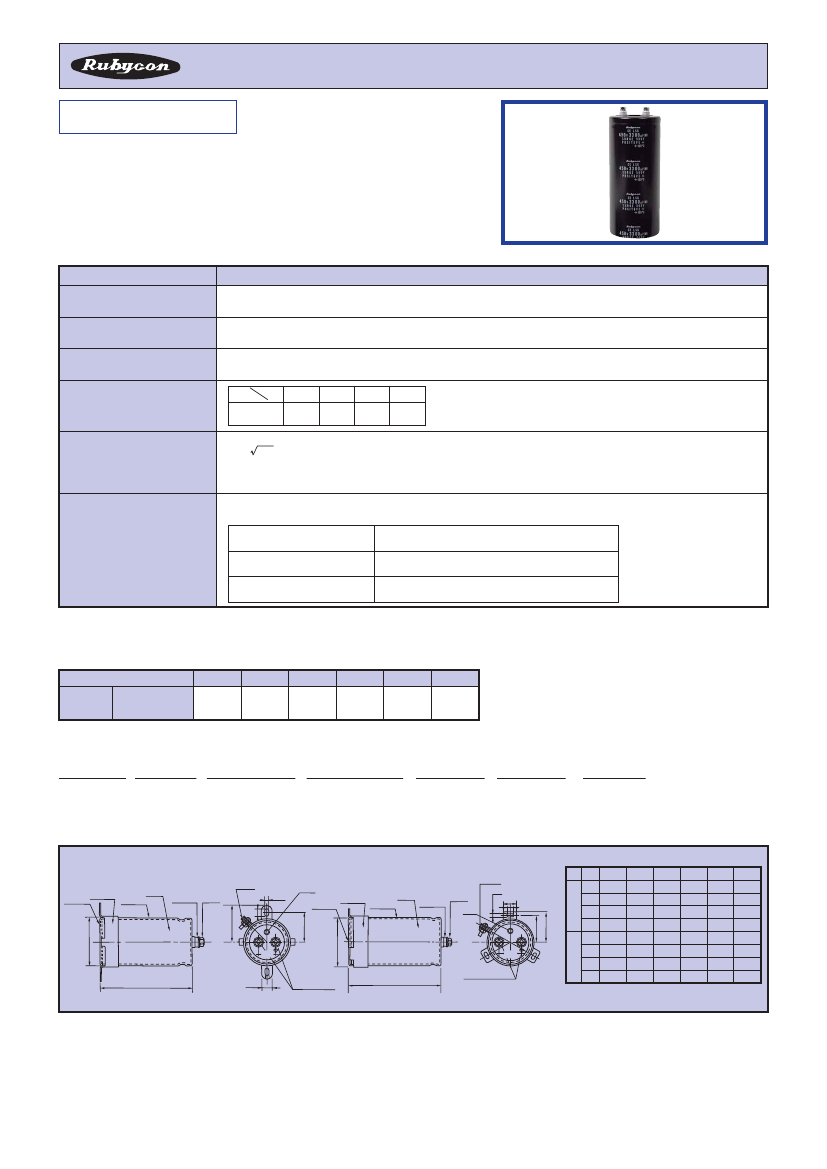

LARGE CAN TYPE ALUMINUM ELECTROLYTIC CAPACITORS

LSG

SERIES

105℃ 5000 hours, Screw Terminal Type

◆FEATURES

・

Load Life : 105℃ 5000 hours.

・

RoHS compliance.

◆SPECIFICATIONS

Items

Category Temperature Range

Rated Voltage Range

Capacitance Tolerance

Characteristics

−25∼＋105℃

350∼450V.DC

±20％

（20℃，

120Hz）

WV

φD

51

0.2

64

0.25

77

0.25

90

0.25

(tanδ)

Dissipation Factor(MAX)

(

20℃,

)

120Hz

350∼450

Leakage Current(MAX)

I＝3

CV or 5mA whichever is smaller. (After 5 minutes application of rated voltage)

I＝

Leakage Current

(μA) C＝

Capacitance

(μF) V＝

Rated Voltage

(V)

After applying rated voltage with rated ripple current for 5000 hours at 105℃,

the capacitors shall meet the following requirements.

Endurance

Capacitance Change

Dissipation Factor

Leakage Current

Within ±20％ of the initial value.

Not more than 200％ of the speciﬁed value.

Not more than the speciﬁed value.

◆MULTIPLIER FOR RIPPLE CURRENT

Frequency Coeﬃcient

Frequency

（Hz）

Coeﬃcient

60 50）（100） 300

（

120

0.80

1.00

1.17

500

1.23

1k

1.30

10k≦

1.40

350∼450WV

◆PART NUMBER

□□□

Rated Voltage

LSG

Series

□□□□□

Capacitance

M

Capacitance Tolerance

□□□

Option

□□

Clamp Code

D×L

Case Size

◆Dimensions in mm (not to scale)

〈I type〉

Plate

Mounting

Clamp

Case

Sleeve

Screw

Terminal Bolt

W2±2

Clamp

Bolt

W3

W4

〈Y type〉

Vent

Plate

W1±2

Mounting

Clamp

Sleeve

Case Screw

Bolt

Terminal

Vent

W5

W4

W2±2

W1±2

D±2

F±1

M5 P=0.8Bolt

L±3

W5

M5 P=0.8Bolt

L±3

Y type

I type

Clamp

Bolt

W3

φD

51

64

77

90

51

64

77

90

W1

34.0

40.0

47.0

54.0

32.5

38.0

44.5

50.8

W2

40.0

45.0

53.0

60.0

37.5

43.0

49.0

56.0

W3

3.5

4.5

W4

6.0

7.0

6.0

8.0

7.0

8.0

W5

12

14

12

14

16

(mm)

F

21.8

28.2

31.4

21.8

28.2

31.4
