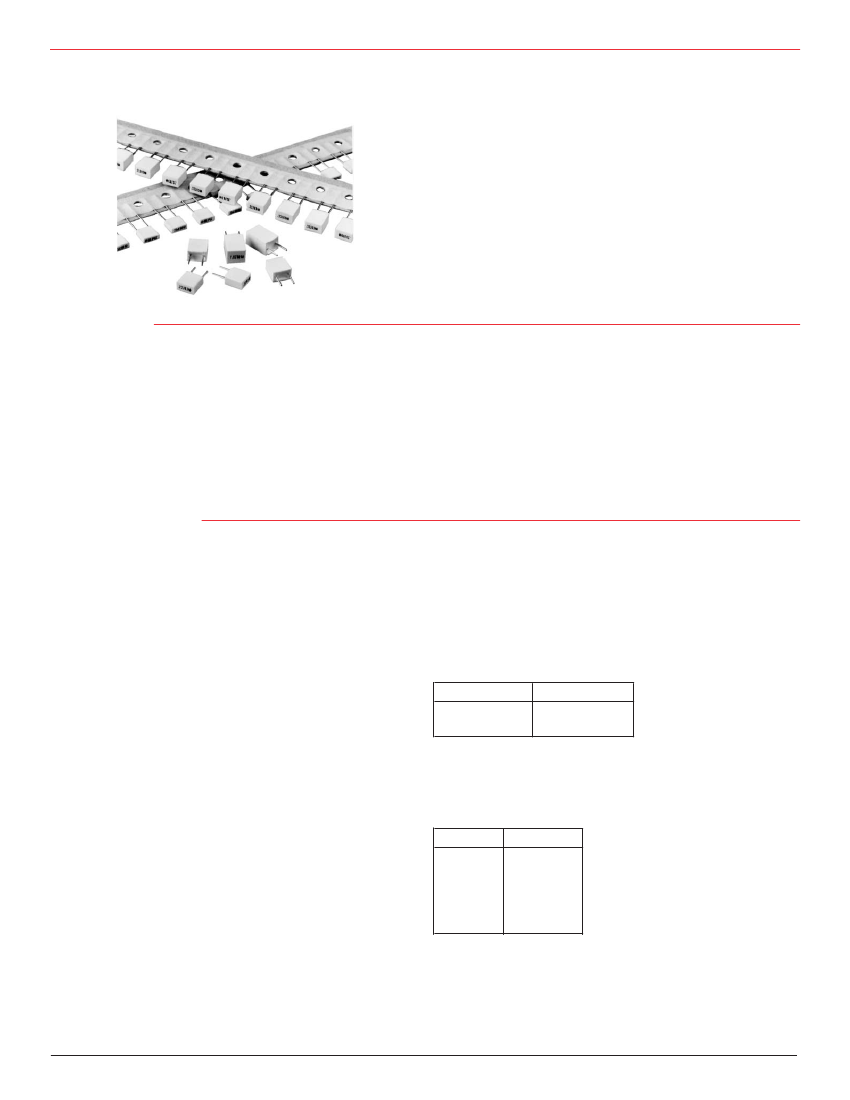

Type 167/184
Metallized Polyester Radial Lead Capacitors
Radial Box Metallized Polyester Capacitors for Automatic Insertion
The Type 167/184 series radial lead metallized polyester
box capacitors are available in bulk (Type 167) or on ammo
pack or radial tape and reel (Type 184). These capacitors
are constructed in rugged rectangular plastic cases and all
come with 7.5 mm (0.3”) lead spacing. They are good for
general purpose applications such as bypass, decoupling,
energy storage/discharge and arc suppression.
Highlights
♦
♦
♦
♦
♦
♦
Rugged plastic case
Case and epoxy fill meets UL94V0
7.5 mm (0.3”) lead spacing
Bulk, tape and reel or ammo pack
Non-inductively wound
Non-polar
Specifications
Capacitance Range:
Voltage Range:
Capacitance Tolerance:
Operating Temperature Range:
Dielectric Withstand Voltage:
Dissipation Factor (DF):
0.001 µF to 1.0 µF
63 Vdc to 630 Vdc
(40 Vac to 220 Vac, 60 Hz)
±5%, ±10%, ±20%
–55 ºC to +125 ºC (with 50% Vdc derating >85 ºC)
1.6 x rated voltage for 2 sec @ +25 ºC ±5 ºC
tgδ x 10
–4
at 25 ºC ±5 ºC
kHz
1
10
tgδ x 10
–4
≤100
≤150
1.002
Total Self Inductance (L):
Approximately 8 nH
Long Term Stability (after two years):
Maximum Pulse Rise Time (dv/dt):
Capacitance change
∆C/C ≤
±3% under standard
environmental conditions
Vn
63
100
250
400
630
V/ms
12
20
32
41
70
If the working voltage (V) is less than the nominal voltage (Vn),
the capacitor can work at higher dv/dt. In this case, the maxi-
mum value allowed is obtained by multiplying the above value
with the ratio Vn/V.
CDE Cornell Dubilier•1605 E. Rodney French Blvd.•New Bedford, MA 02744•Ph: (508)996-8561•Fax: (508)996-3830• www.cde.com
Type 167/184
Metallized Polyester Radial Lead Capacitors
Outline Drawing
L
Max
H
Max
.
217 ±.039
(5.5 ±1.0 mm)
Test Method and Performance
T
Max
Insulation Resistance
Test Conditions
Temperature
25 ºC ±5 ºC
Voltage Charge Time
1 minute
Voltage Charge
50 Vdc for Vn < 100 Vdc
100 Vdc for Vn
≥
100 Vdc
Performance
≥30,000
MΩ (50,000 MΩ typical)
For Vn > 100 Vdc
For Vn
≤100
Vdc
≥10,000
MΩ for C
≤
0.1µF
≥1,000
MΩ x µF for
≤
0.1µF
Damp Heat Test
Test Conditions
Temperature
+40 ºC
Relative Humidity
95%
Test Duration
21 days
Performance
Capacitance Change
∆C/C ≤
±5%
4
DF Change
∆tgδ
≤50
x 10 at 1 kHz
Insulation Resistance
≥
50% of limit value
Life Test
Test Conditions
Temperature
+85 ºC
Test Duration
1000 hrs
Voltage Applied
1.25 x Vn
Performance
Capacitance Change
∆C/C ≤
±5%
–4
DF Change
∆tgδ
≤30
x 10 at 10 kHz
Insulation Resistance
≥
50% of limit value
S
±.015
(±0.4 mm)
Lead length shown is as supplied on 167 Series
Soldering
Test Conditions
Soldering Temperature
Soldering Duration
Performance
Capacitance Change
∆C/C
DF Change
∆tgδ
Insulation Resistance
260 ºC ±5 ºC
10 sec ±1 sec
≤
±2%
–4
≤30
x 10 at 10 kHz
≥
limit value
Ratings
Inches
Millimeters
L
T
H
S
Ød
L
T
H
S
63 Vdc / 40 Vac
167683*63A
184683*63#A>
0.068 0.413 0.138 0.276 0.295 0.024 10.5
3.5 7.0 7.5
167104*63A
184104*63#A>
0.10
0.413 0.138 0.276 0.295 0.024 10.5
3.5 7.0 7.5
167154*63A
184154*63#A>
0.15
0.413 0.138 0.276 0.295 0.024 10.5
3.5 7.0 7.5
167224*63A
184224*63#A>
0.22
0.413 0.138 0.276 0.295 0.024 10.5
3.5 7.0 7.5
167274*63A
184274*63#A>
0.27
0.413 0.138 0.276 0.295 0.024 10.5
3.5 7.0 7.5
167334*63A
184334*63#A>
0.33
0.413 0.138 0.276 0.295 0.024 10.5
3.5 7.0 7.5
167474*63B
184474*63#B>
0.47
0.413 0.157 0.354 0.295 0.024 10.5
4.0 9.0 7.5
167684*63C
184684*63#C>
0.68
0.413 0.197 0.433 0.295 0.024 10.5
5.0 11.0 7.5
167105*63C
184105*63#C>
1.00
0.413 0.197 0.433 0.295 0.024 10.5
5.0 11.0 7.5
100 Vdc / 63 Vac
167333*100A 184333*100#A>
0.033 0.413 0.138 0.276 0.295 0.024 10.5
3.5 7.0 7.5
167473*100A 184473*100#A>
0.047 0.413 0.138 0.276 0.295 0.024 10.5
3.5 7.0 7.5
167683*100A 184683*100#A>
0.068 0.413 0.138 0.276 0.295 0.024 10.5
3.5 7.0 7.5
167104*100A 184104*100#A>
0.10
0.413 0.138 0.276 0.295 0.024 10.5
3.5 7.0 7.5
167124*100B 184124*100#B>
0.12
0.413 0.157 0.354 0.295 0.024 10.5
4.0 9.0 7.5
167154*100B 184154*100#B>
0.15
0.413 0.157 0.354 0.295 0.024 10.5
4.0 9.0 7.5
167224*100C 184224*100#C>
0.22
0.413 0.197 0.433 0.295 0.024 10.5
5.0 11.0 7.5
167334*100C 184334*100#C>
0.33
0.413 0.197 0.433 0.295 0.024 10.5
5.0 11.0 7.5
* Indicates capacitance tolerance: J = ±5%, K = ±10%, M = ±20%
# Indicates packaging type: R = Tape and Reel, A = Ammo Pack
> Indicates tooling code: A = 16.5 mm, B = 18.5 mm, C = 16.0 mm (See H dimension in taping specifications)
Catalog
Part Number
Tape & Reel
Ammo Pack
Cap
(µF)
Ød
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
CDE Cornell Dubilier•1605 E. Rodney French Blvd.•New Bedford, MA 02744•Ph: (508)996-8561•Fax: (508)996-3830• www.cde.com
Type 167/184
Metallized Polyester Radial Lead Capacitors
Catalog
Part Number
167103*250A
167153*250A
167183*250A
167223*250A
167273*250B
167333*250B
167393*250B
167473*250B
167683*250C
167104*250C
167472*400A
167562*400A
167682*400A
167103*400A
167153*400B
167223*400C
167333*400C
167102*630A
167152*630A
167222*630A
167332*630A
167472*630B
167682*630B
167103*630C
167153*630D
Tape & Reel
Ammo Pack
184103*250#A>
184153*250#A>
184183*250#A>
184223*250#A>
184273*250#B>
184333*250#B>
184393*250#B>
184473*250#B>
184683*250#C>
184104*250#C>
184472*400#A>
184562*400#A>
184682*400#A>
184103*400#A>
184153*400#B>
184223*400#C>
184333*400#C>
184102*630#A>
184152*630#A>
184222*630#A>
184332*630#A>
184472*630#B>
184682*630#B>
184103*630#C>
184153*630#D>
Cap
(µF)
0.01
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.068
0.1
0.0047
0.0056
0.0068
0.010
0.015
0.022
0.033
$0.00
0.0015
0.0022
0.0033
0.0047
0.0068
0.010
0.015
Inches
L
T
H
250 Vdc / 160 Vac
0.413 0.138 0.276
0.413 0.138 0.276
0.413 0.138 0.276
0.413 0.138 0.276
0.413 0.157 0.354
0.413 0.157 0.354
0.413 0.157 0.354
0.413 0.157 0.354
0.413 0.197 0.433
0.413 0.197 0.433
400 Vdc / 200 Vac
0.413 0.138 0.276
0.413 0.138 0.276
0.413 0.138 0.276
0.413 0.138 0.276
0.413 0.157 0.354
0.413 0.197 0.433
0.413 0.197 0.433
630 Vdc / 220 Vac
0.413 0.138 0.276
0.413 0.138 0.276
0.413 0.138 0.276
0.413 0.138 0.276
0.413 0.157 0.354
0.413 0.157 0.354
0.413 0.197 0.433
0.413 0.236 0.472
Millimeters
T
H
S
3.5
3.5
3.5
3.5
4.0
4.0
4.0
4.0
5.0
5.0
3.5
3.5
3.5
3.5
4.0
5.0
5.0
3.5
3.5
3.5
3.5
4.0
4.0
5.0
6.0
7.0
7.0
7.0
7.0
9.0
9.0
9.0
9.0
11.0
11.0
7.0
7.0
7.0
7.0
9.0
11.0
11.0
7.0
7.0
7.0
7.0
9.0
9.0
11.0
12.0
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
S
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
0.295
Ød
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
L
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
Ød
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
* Indicates capacitance tolerance: J = ±5%, K = ±10%, M = ±20%
# Indicates packaging type: R = Tape and Reel, A = Ammo Pack
> Indicates tooling code: A = 16.5 mm, B = 18.5 mm, C = 16.0 mm (See H dimension in taping specification)
Part Numbering System for Bulk Items
167
Series
167
104
Capacitance
392 = .0039 µF
103 = .01 µF
104 = .1 µF
105 = 1.0 µF
K
100
A
Case
Code
A
B
C
D
Tolerance
Voltage
J = ±5%
63 = 63 Vdc
K = ±10% 100 = 100 Vdc
M = ±20% 250 = 250 Vdc
630 = 630 Vdc
CDE Cornell Dubilier•1605 E. Rodney French Blvd.•New Bedford, MA 02744•Ph: (508)996-8561•Fax: (508)996-3830• www.cde.com
Type 167/184
Metallized Polyester Radial Lead Capacitors

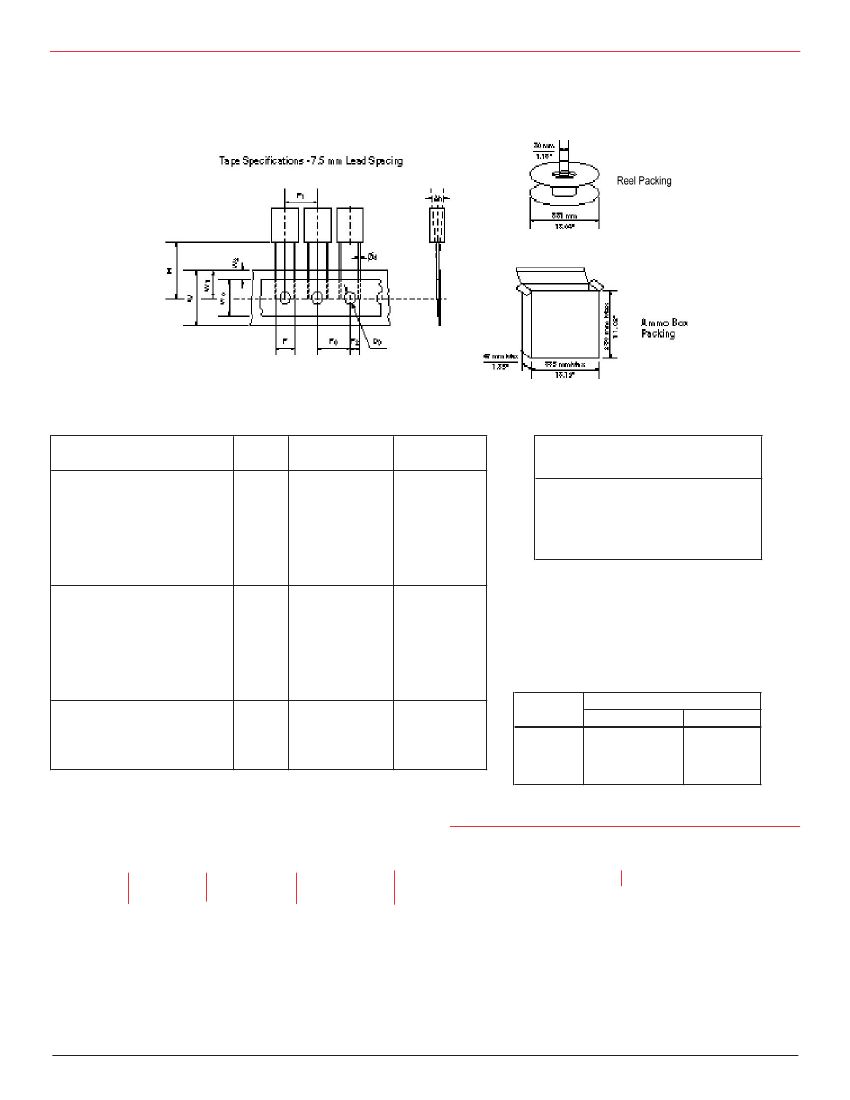

Tape Specification - 7.5 mm Lead Spacing
Item
Lead-Wire Diameter
Lead-to-Lead Distance
Feed Hole Pitch
Pitch of Component
Hole Center to Lead
Component Alignment, F-R
Tape Width
Hold-down Tape Width
Hole Position
Hold-down Tape Position
Height of Component
from Tape Center
Feed Hole Diameter
Code
Ød
P
P
0
P
1
P
2
∆h
W
W
0
W
1
W
2
H
D
0
Millimeters
0.6
+0.04 –0.01
+0.6 –0.2
Inches
.024
±.001
+.024 –.040
Case
Code
A
B
C
D
Quantity
Reeled
1800
1500
1200
1000
Quantity
Ammo Pack
1500
1500
1000
1000
7.5
12.7
±0.3
12.7
±1.0
8.95
±0.7
0
±2.0
.295
.5
±.012
.5
±.039
.352
±.028
0
±.079
.709
+.039 –.004
.236 min
.355
+.030 –.001
.118 Max
>
.157
±.012
18
+1.0 –0.1
6.0 min
9.0
+0.75 –0.05
3.0 Max
>
4.0
±0.3
> The H dimension depends on the
insertion equipment used. Specify
the proper tooling code as indicated
below.
Tooling
Code
A
B
C
H Dim e nsions
Millim e te rs
Inche s
±0.75
16.5
.679
±.030
18.5
±0.75
.728
±.030
16.0
±0.75
.630
±030
Part Numbering System for Auto Insertion
184
104
K
100
R
Packaging
Type
(#)
A = Ammo
R = Tape & Reel
A
Case
Code
A
B
C
D
B
*Tooling
Code
(>)
A
B
C
Series Capacitance Tolerance
184 392 = .0039 µF J = ±5%
103 = .01 µF
K = ±10%
104 = .1 µF
M = ±20%
105 = 1.0 µF
Voltage
63 = 63 Vdc
100 = 100 Vdc
250 = 250 Vdc
630 = 630 Vdc
* Tooling code (>) depends on the users insertion equipment requirements. See table for available options.
CDE Cornell Dubilier•1605 E. Rodney French Blvd.•New Bedford, MA 02744•Ph: (508)996-8561•Fax: (508)996-3830• www.cde.com
