MV1471/CG/DGAS datasheet, PDF - EEWORLD Datasheet

MV1471/CG/DGAS: DescriptionHDB3/AMI ENCODER/DECODER; CategoryWireless rf/communication Telecom circuit; File Size479KB，9 Pages; ManufacturerZarlink Semiconductor (Microsemi); Websitehttp://www.zarlink.com/

Download Datasheet Parametric Compare View All

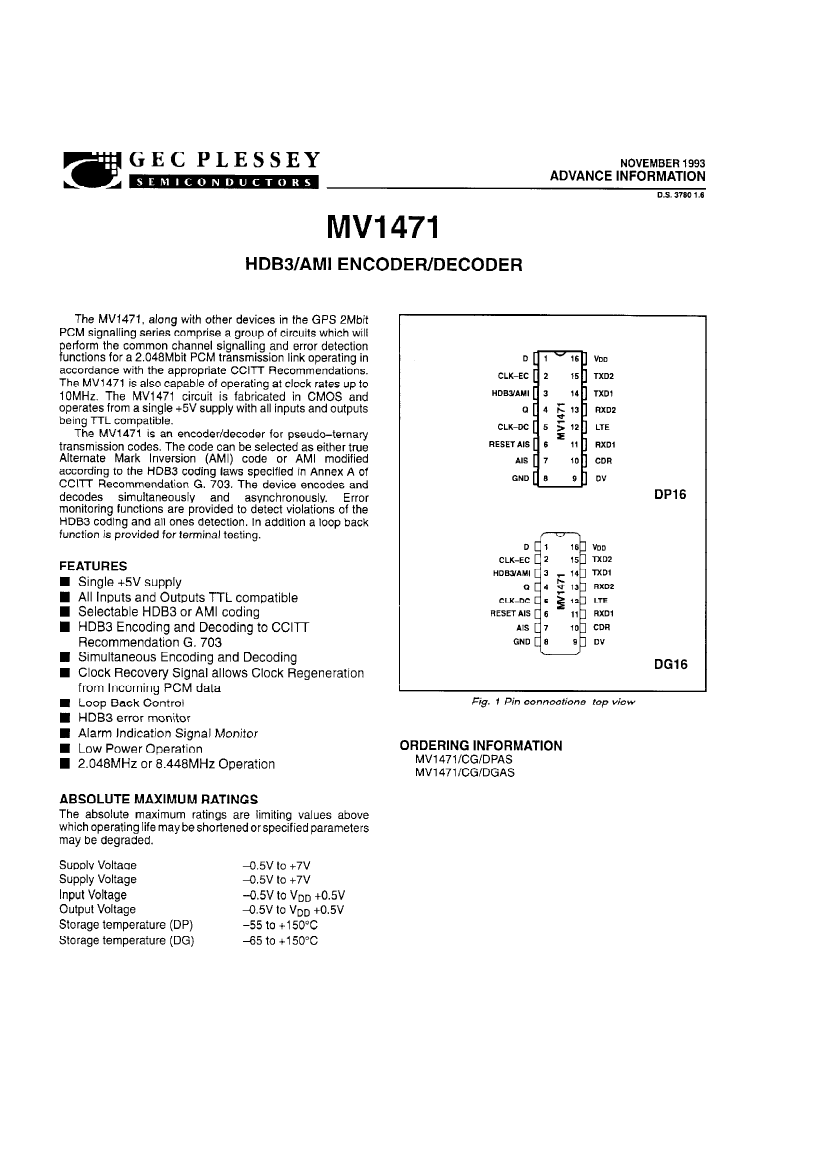

MV1471/CG/DGAS Overview

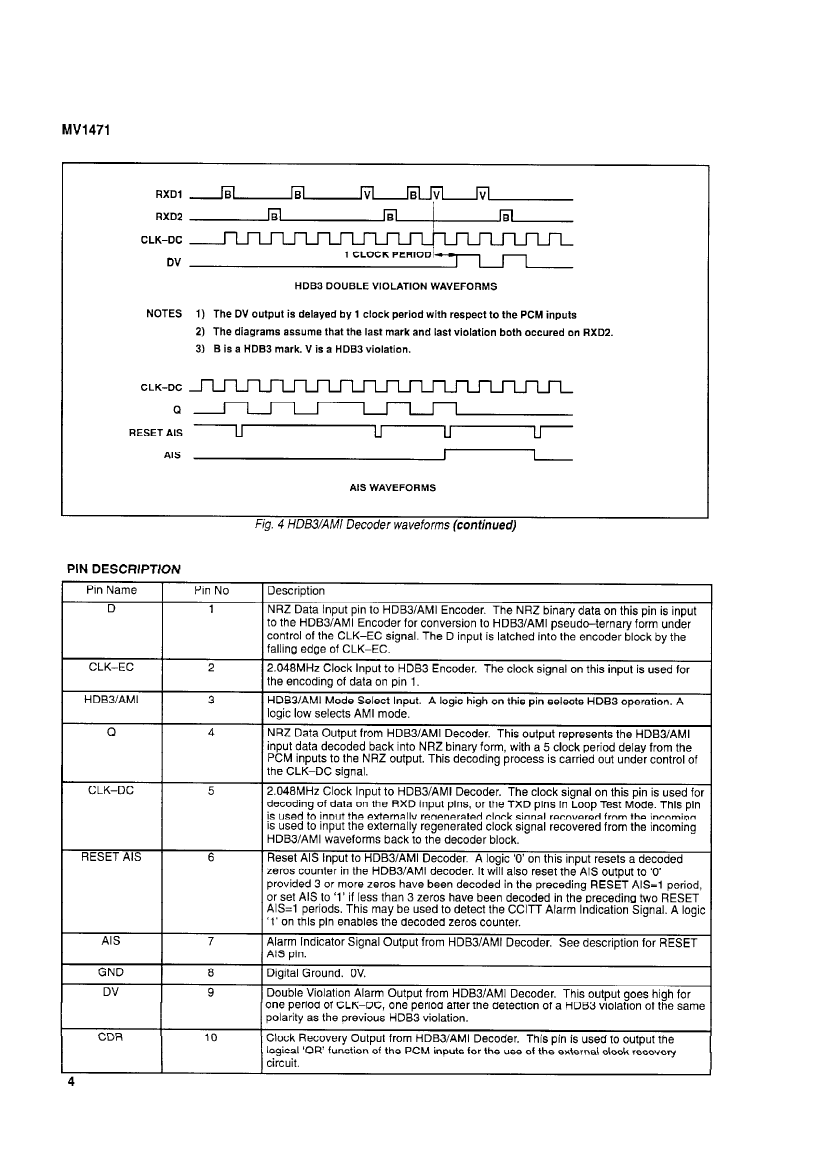

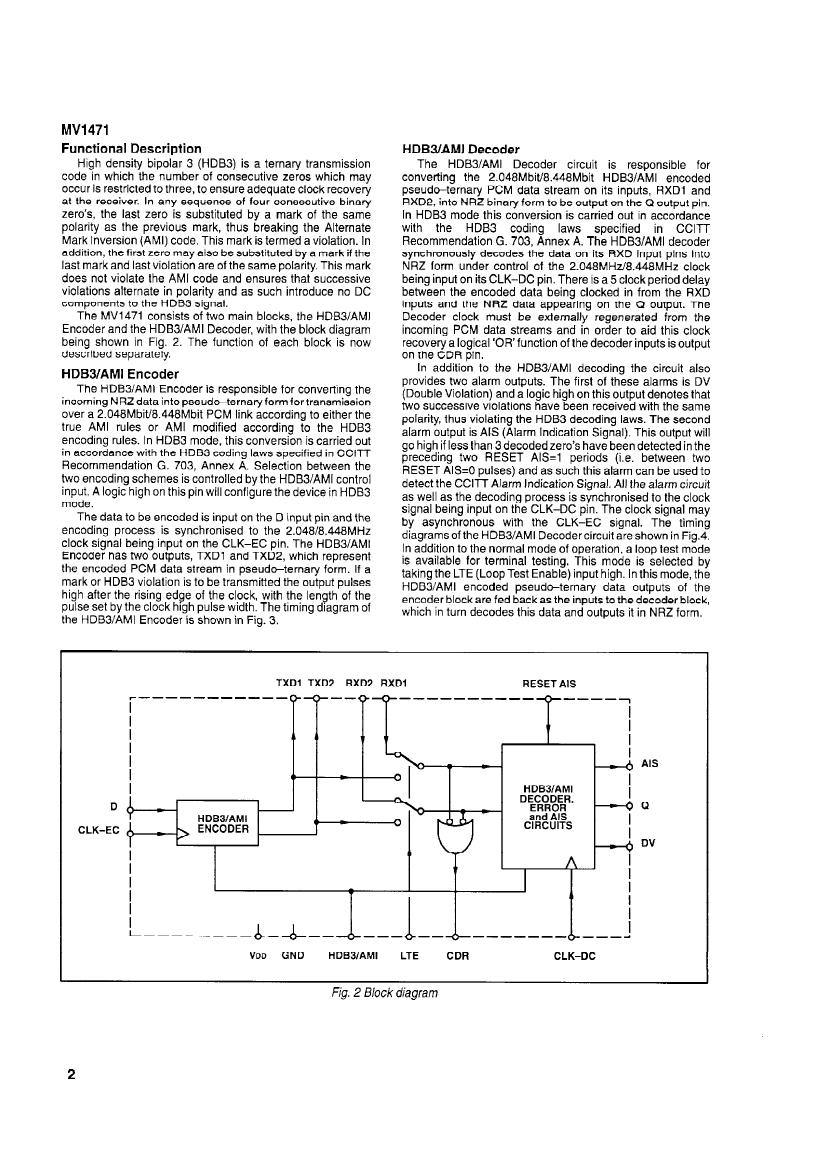

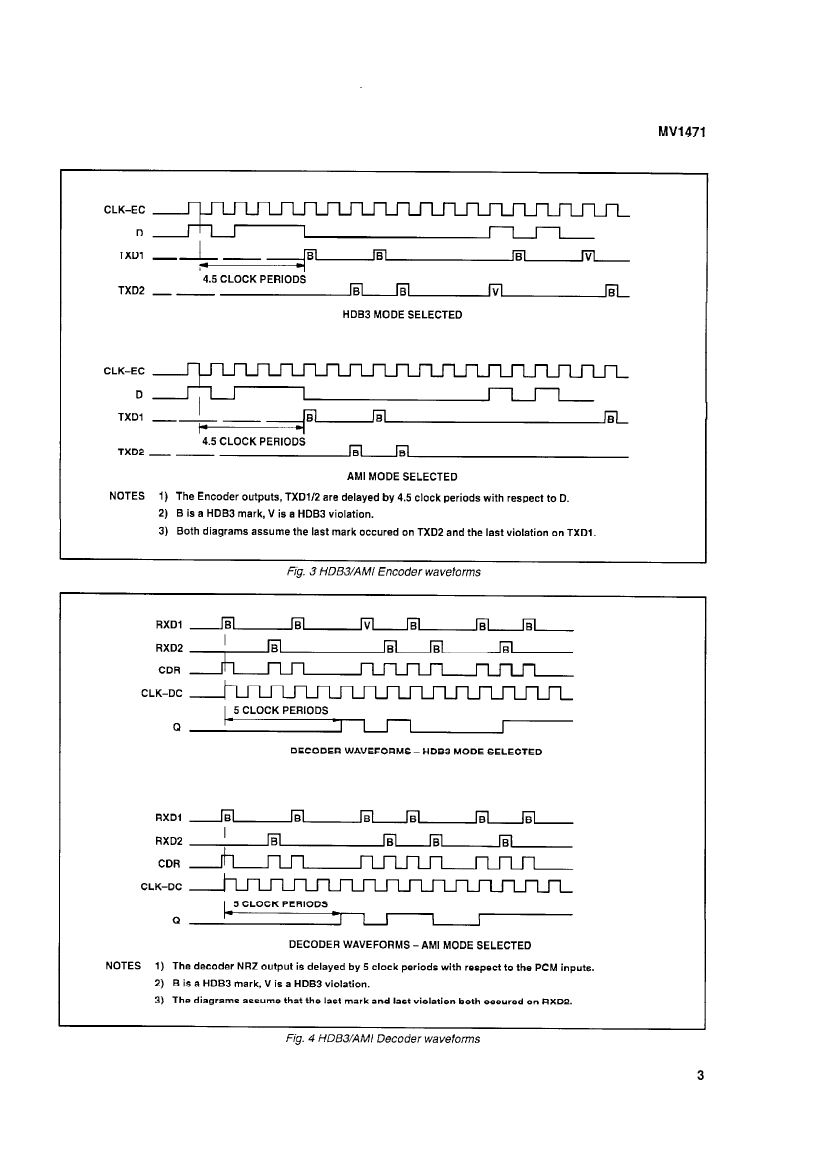

HDB3/AMI ENCODER/DECODER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zarlink Semiconductor (Microsemi)
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknow
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	20.32 mm
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Telecom integrated circuit types	HDB3 ENCODER/DECODER
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

Obsolescence Notice

This product is obsolete.

This information is available for your

convenience only.

For more information on

Zarlink’s obsolete products and

replacement product lists, please visit

http://products.zarlink.com/obsolete_products/

	MV1471/CG/DGAS	MV1471	MV1471/CG/DPAS
Description	HDB3/AMI ENCODER/DECODER	HDB3/AMI ENCODER/DECODER	HDB3/AMI ENCODER/DECODER
Is it Rohs certified?	incompatible	-	incompatible
Maker	Zarlink Semiconductor (Microsemi)	-	Zarlink Semiconductor (Microsemi)
package instruction	DIP, DIP16,.3	-	DIP, DIP16,.3
Reach Compliance Code	unknow	-	unknow
JESD-30 code	R-GDIP-T16	-	R-PDIP-T16
JESD-609 code	e0	-	e0
Number of functions	1	-	1
Number of terminals	16	-	16
Maximum operating temperature	70 °C	-	70 °C
Package body material	CERAMIC, GLASS-SEALED	-	PLASTIC/EPOXY
encapsulated code	DIP	-	DIP
Encapsulate equivalent code	DIP16,.3	-	DIP16,.3
Package shape	RECTANGULAR	-	RECTANGULAR
Package form	IN-LINE	-	IN-LINE
power supply	5 V	-	5 V
Certification status	Not Qualified	-	Not Qualified
Maximum seat height	5.08 mm	-	5.08 mm
Nominal supply voltage	5 V	-	5 V
surface mount	NO	-	NO
technology	CMOS	-	CMOS
Telecom integrated circuit types	HDB3 ENCODER/DECODER	-	HDB3 ENCODER/DECODER
Temperature level	COMMERCIAL	-	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	-	THROUGH-HOLE
Terminal pitch	2.54 mm	-	2.54 mm
Terminal location	DUAL	-	DUAL
width	7.62 mm	-	7.62 mm
