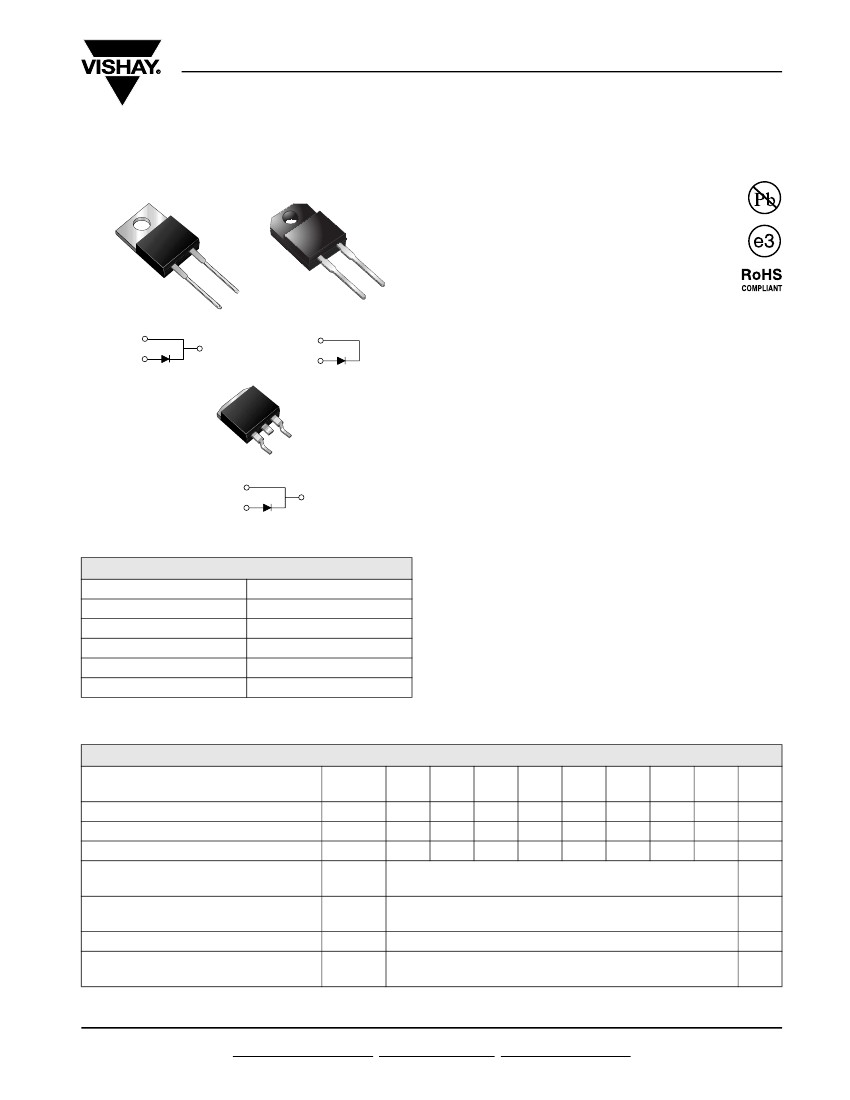

FES(F,B)8AT thru FES(F,B)8JT

Vishay General Semiconductor

Ultrafast Plastic Rectifier

TO-220AC

ITO-220AC

FES8xT

PIN 1

PIN 2

FESF8xT

PIN 1

CASE

PIN 2

TO-263AB

FEATURES

• Glass passivated chip junction

• Ultrafast recovery time

• Low switching losses, high efficiency

• Low leakage current

• High forward surge capability

• Meets MSL level 1, per J-STD-020, LF maximum

peak of 245 °C (for TO-263AB package)

• Solder dip 260 °C, 40 s (for TO-220AC and

ITO-220AC package)

• Component in accordance to RoHS 2002/95/EC

and WEEE 2002/96/EC

TYPICAL APPLICATIONS

For use in high frequency rectifier of switching mode

power supplies, inverters, freewheeling diodes,

dc-to-dc converters, and other power switching

application.

MECHANICAL DATA

Case:

TO-220AC, ITO-220AC, TO-263AB

Epoxy meets UL 94V-0 flammability rating

Terminals:

Matte tin plated leads, solderable per

J-STD-002 and JESD22-B102

E3 suffix for consumer grade, meests JESD 201 class

1A whisker test, HE3 suffix for high reliability grade

(AEC Q101 qualified), meets JESD 201 class 2

whisker test

Polarity:

As marked

Mounting Torque:

10 in-lbs maximum

FESB8xT

PIN 1

PIN 2

HEATSINK

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

max.

8.0 A

50 V to 600 V

125 A

35 ns, 50 ns

0.95 V, 1.30 V, 1.50 V

150 °C

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward rectified current

at T

= 100 °C

Peak forward surge current 8.3 ms single half

sine-wave superimposed on rated load

Operating storage and temperature range

Isolation voltage (ITO-220AC only)

from terminal to heatsink t = 1 min

SYMBOL

RRM

RMS

F(AV)

FSM

, T

STG

FES

8AT

FES

8BT

100

FES

8CT

150

105

150

FES

8DT

200

140

200

8.0

125

- 55 to + 150

1500

FES

8FT

300

210

300

FES

8GT

400

280

400

FES

8HT

500

350

500

FES

8JT

600

420

600

UNIT

°C
