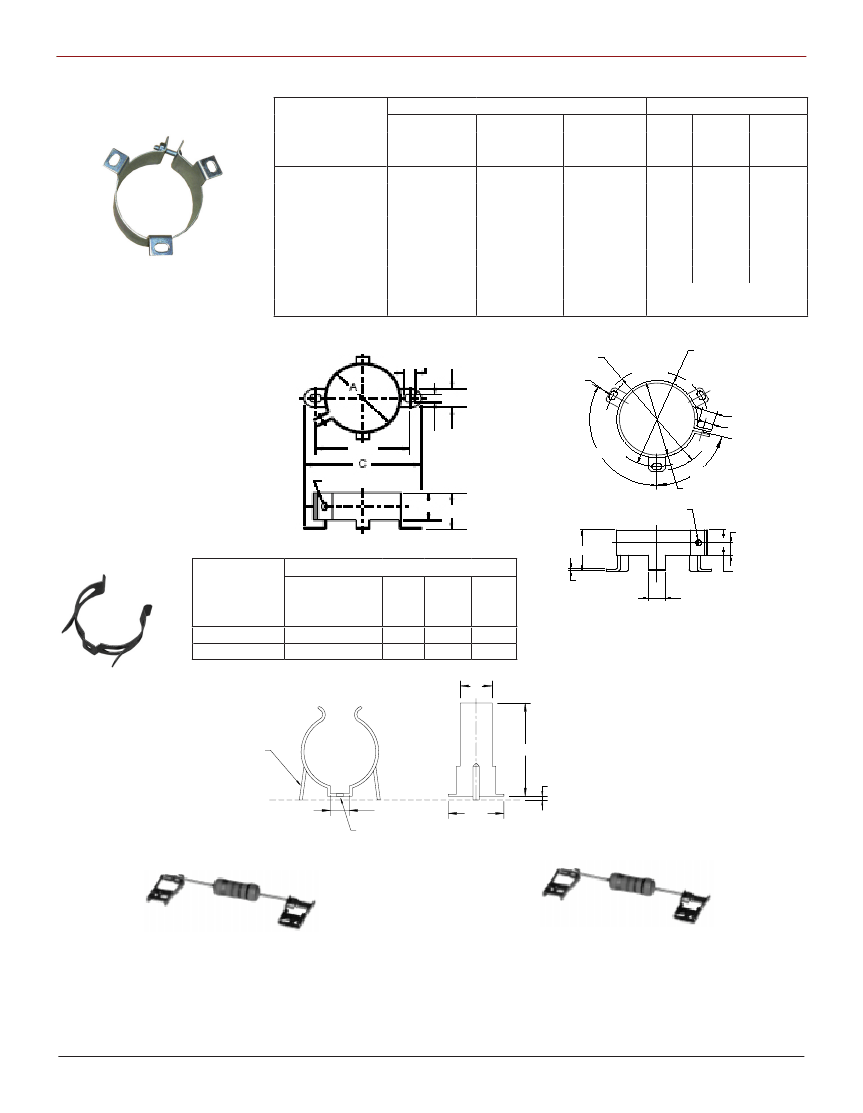

Capacitor Hardware

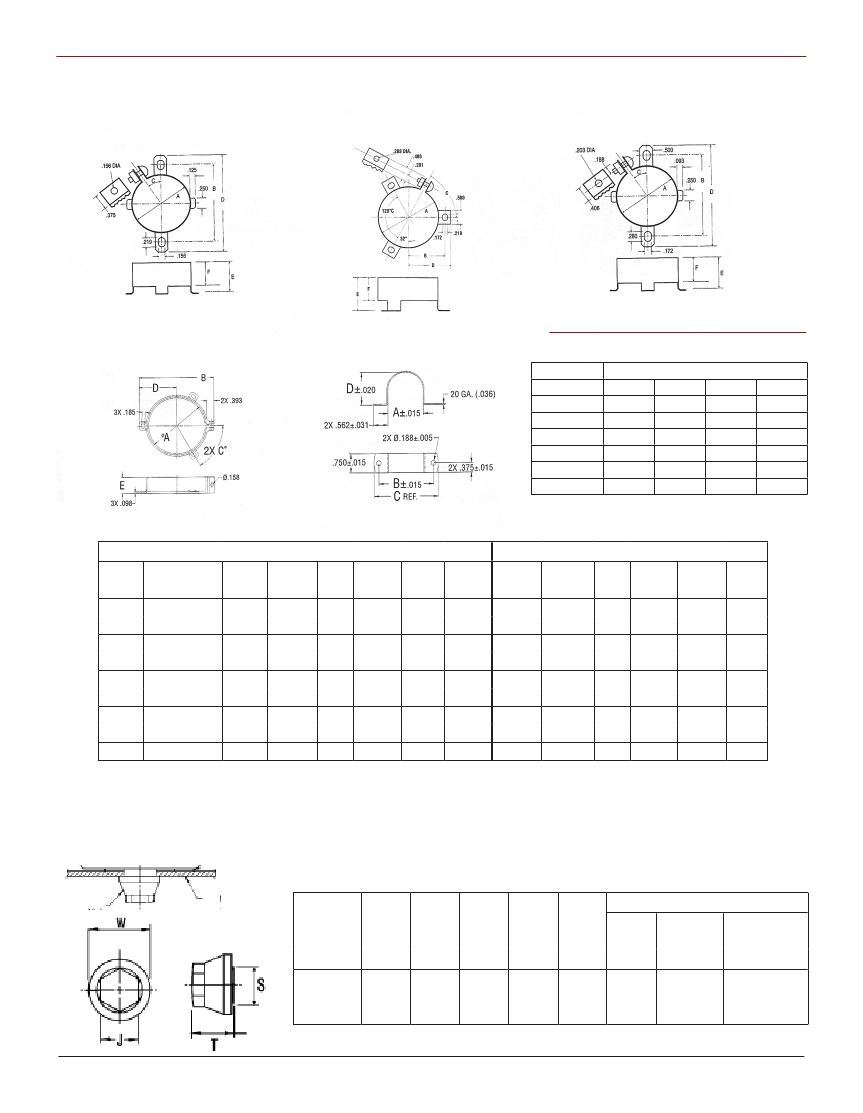

Type VR Vertical Mounting Clamp

Catalog Part Number

Diameter

of Part to be

Mounted

1" to 1-1/16

1-3/8" to 1-7/16

1-1/2" to 1-9/16

1-3/4" to 1-13/16

2" to 2-1/16

2-1/2" to 2-9/16

3" to 3-1/8

Screw

Nut

Without

Screw & Nut

VR1B

VR3B

VR4B

VR6B

VR8B

VR10B

VR12B

VRSCREW

VRNUT

Unassembled

Screw & Nut

Included

VR1

VR3

VR4

VR6

VR8

VR10

VR12

—

Assembled

with

Screw & Nut

VR1A

VR3A

VR4A

VR6A

VR8A

VR10A

VR12A

—

1-3/8"

1-1/2"

1-3/4"

2-1/2"

1-7/16"

1-25/32"

1-15/16"

2-1/4"

2-1/2"

3-7/16"

1-7/8*"

2-7/32"

2-11/32"

2-9/16"

2-13/16"

3-5/16"

3-13/16"

Dimensions

9/16" long 6-32 thread NC-2A

Standard hex nut to fit screws

CDE VR mounting clamps may be

used to mount any cylindrical ca-

pacitor with a 1” to 3” diameter

that is to be mounted in a verti-

cal position. Material is 1010 CRS,

commercial grade #4 temper ASI

scale. Parts are finished with .0001

(nominal) zinc chromate plating.

Use for mounting CG types, PSU, SF

and MPF types. Material thickness

is .035”

VR1, 3 & 4

.219”

.375”

C ±0.01”

0.176” x 0.281”

±0.016 (3 places).

VR6, 8,10 & 12

B Mtng ±0.03”

B Mtg

2 Holes

.1561” Dia.

.156”

120 º ±3 º

(3 Places)

.562” .750”

B Mtng ±0.03”

Ø 0.201” ±0.005”

0.18

75 º

A ±0.016”

0.34

8” ±

4” ±

0.01

6”

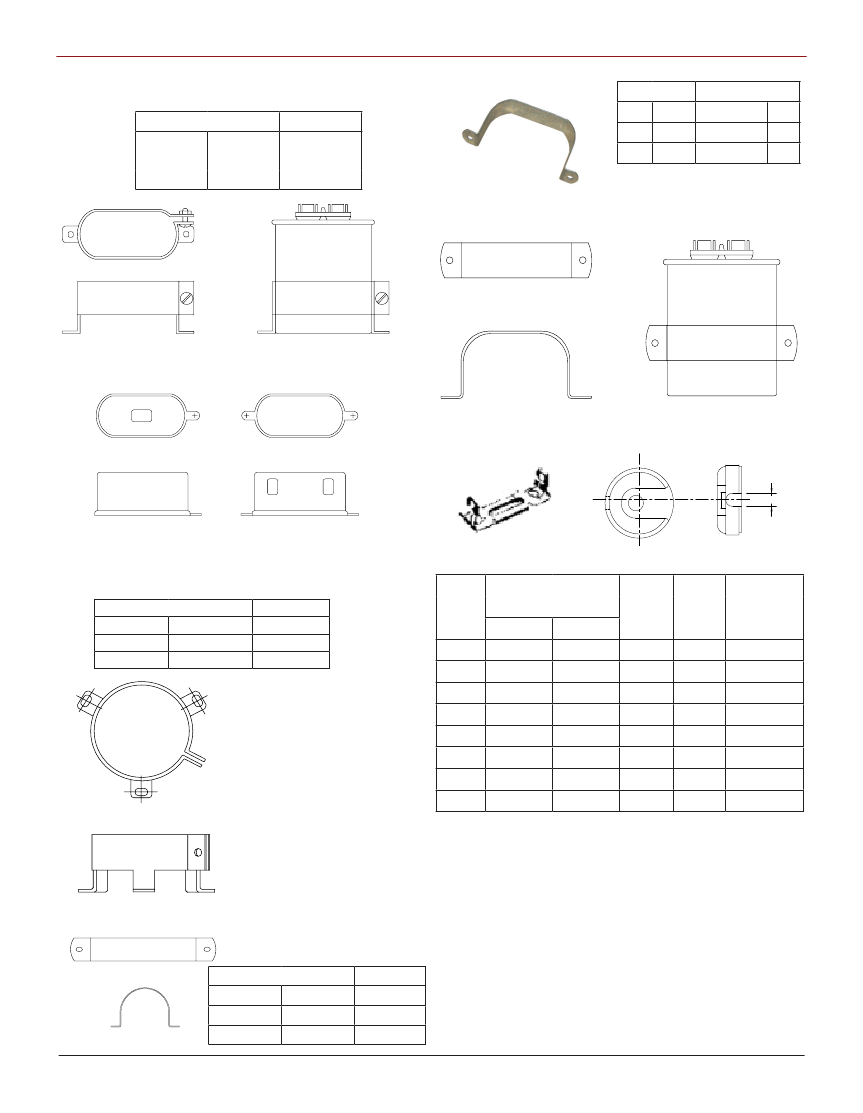

Type TH Horizontal Mounting Clip

Dimensions in Inches

Nominal Dia.

Catalog

Part Number

of Part to be

Mounted

0.375”±0.016”

1.125” ±0.016”

0.035”

0.075” ±0.016”

0.500” ±0.016”

0.015

0.030

(*)

(*) 0.340" except TH25 is 0.590".

TH17

TH25

0.625

1.375

Added tolerance to "C" dim.

0.312 0.720

0.312 1.500

Material Thickness

TH17 is 0.016”, TH25

is 0.025”.

Material: 1050 high

carbon steel with

phosphate and oil

finish. TH25 is 1060.

(*) 0.340” execpt TH25 is 0.590”

Retaining tabs

Retaining

must

extendtabs must

extend

lower

than base

base

than

of clip

These clips, though designed for

capacitors, have varied applica-

tions to retain many cylindrical

components. They are used ex-

tensively in the electrical and elec-

tronic industries to hold spindles,

condensers, capacitors, tubes,

rods and conduit. Clips have phos-

phate and oil finish.

C ±0.010"

0.135" Dia. Hole

0.135” Dia. Hole

0.594"

ACR15KT Motor Start Resistor Kit

ACR220KT Motor Run Resistor Kit

15K Ohm 2 watt bleeder resistors for AC motor start applica-

tions. Saves relay switch contacts and capacitor, particularly in

capacitor start applications. 1/4” quick connect terminals elimi-

nate need for soldering.

ACR15K:

Pack of 10, 15K Ohm 2 watt bleeder resistor without quick con-

nect terminals.

220K Ohm 1 watt bleeder resistors for AC motor run applica-

tions. Saves relay switch contacts and capacitor, particularly in

capacitor run applications. 1/4” quick connect terminals elimi-

nate need for soldering.

ACR220K:

Pack of 10, 220K Ohm 1 watt bleeder resistor without quick con-

nect terminals.
