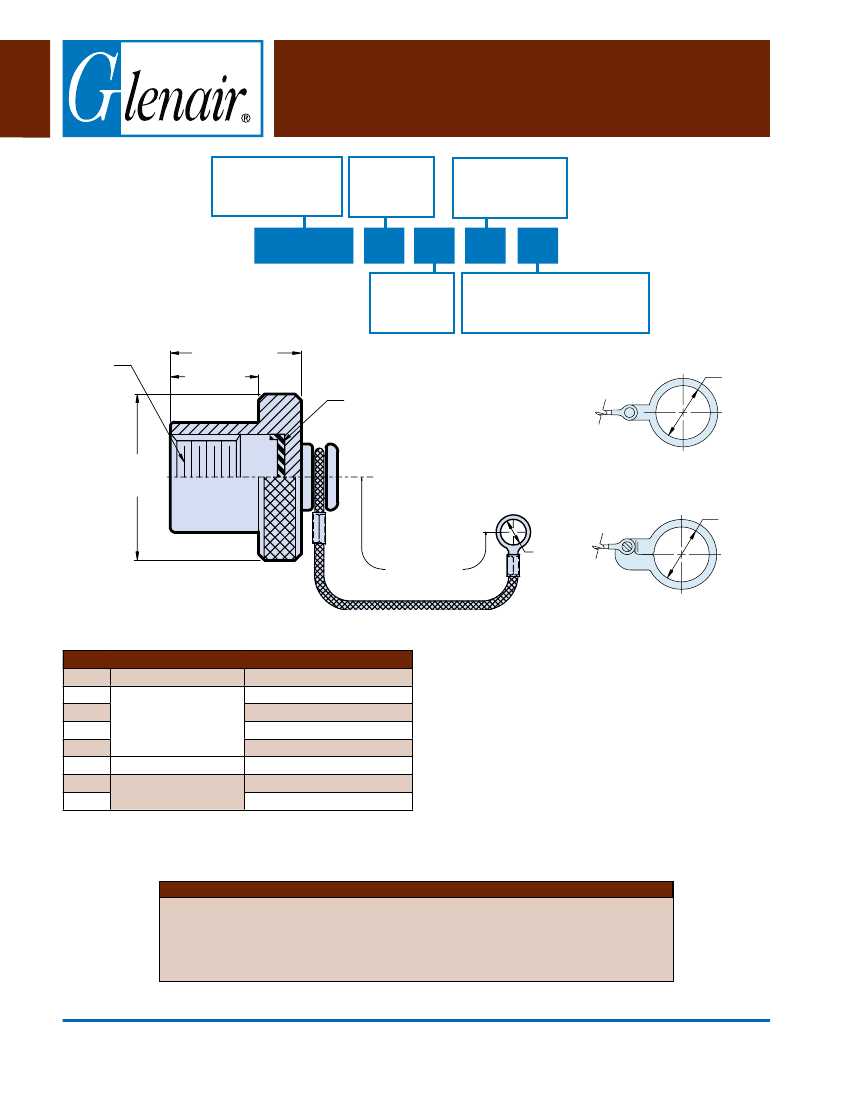

RF Connector
Covers and Accessories
Basic Number
660-108
= Series TNC
for MIL-PRF-39012 RF Coax Type TNC Connectors
Eyelet / Ring
Type and Size
(See Tables III, IV
and V, page 3)
660-108
Receptacle Dust Cover
Finish
(See Table II)
660-108
NF
G
01
-
2
Attachment Length
(In Inches)
Recommended Length = 2.0 Inches
Attachment
(See Table I,
page 3)
.4375-28
UNEF 2-B
.700 (17.78) Max
.420 (10.67)
Min
SOLID RING
- Style A
Gasket
B Dia.
Table IV
Page 3
.590
(14.99)
Max
Lug Termination
Dash No -02 Thru -160
(See Table IV, Page 3)
SPLIT RING
- Style C
L Dia.
Table V
Page 3
Length ± .13 (3.3)
See P/N Development
ØA
III
Table IV
Page 3
Code
M
MT
NF
ZR
Z1
BM
WB
Table II: Materials and Finishes
Material
Finish
electroless Nickel
Aluminum Alloy
6061-T6
303 stainless steel
Brass
Nickel Teflon
Cadmium, Olive Drab
Zinc-Nickel, Black
Passivate
Brass - electroless Nickel
White Bronze (Non-Magnetic)
Material and Finishes:
Gaskets – silicone or neoprene/N.A.
Attachments – see page 3
Covers – Aluminum alloy, brass, stainless steel/see Table II below for
finishes
Crimp rings and eyelets – Cres/passivate
Composite and other materials and finishes available.
Please consult factory
APPLICATION NOTES
1.
2.
3.
4.
Assembly identified with manufacturer’s name and part number, space permitting.
Attachment to withstand 25 Lb. pull test.
A = Maximum diameter over which mandrel will rotate freely (see Table IV, page 3).
Metric dimensions (mm) are in parentheses.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
16
E-Mail: sales@glenair.com

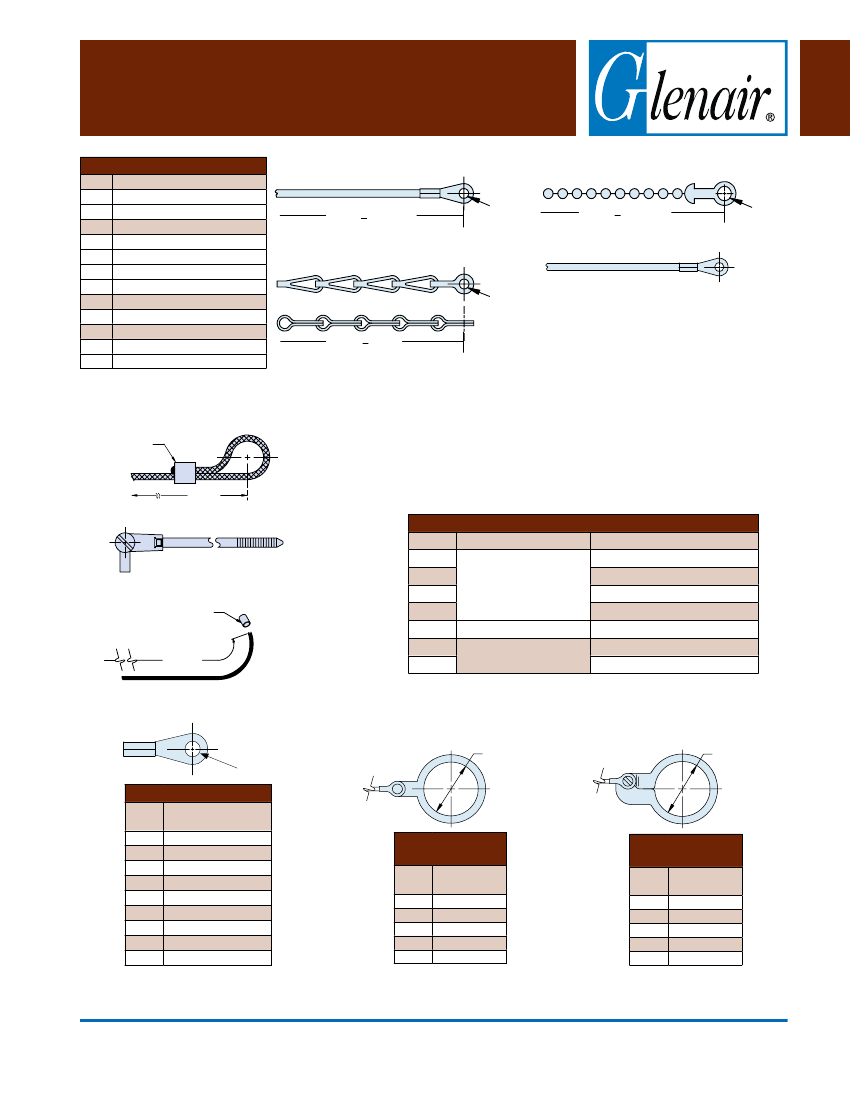

RF Coax Connector Protective Covers
Attachment Selections, Ring and Eyelet Dimensions
Table I: Attachments
Sym
Chain
D
Bead Chain, Cres, Passivate
S
#8 sash Chain, Cres, Passivate
Sym
Wire Rope
F
Wire rope, Nylon Jacket
H
Wire rope, Teflon Jacket
R
Wire rope, PVC Jacket
T
Wire rope, No Jacket
Sym
Fabric Rope
G
Flexible Nylon rope
Sym
None
N
No Attachment
NB
No Lanyard or Attachment Boss
WIRE ROPE
(Types F, H, R, T)
Length + .250 (6.4)
A Dia.
(Table III)
BEAD CHAIN
(Type D)
Length + .250 (6.4)
A Dia.
(Table III)
SASH CHAIN
(Type S)
A Dia.
(Table III)
Length + 1 Link
NYLON ROPE
(Type G)
NOTES
1.
Slip
Knot
Type SK
and SCS
Slip/Crimp Sleeve (SCS) for Type G Nylon Cord only provides “slip knot”
adjustment. May be crimped for permanent attachment.
Crimp Ferrule (CF) for Type S Wire Rope only. Supplied loose for user
termination.
2.
Type CF
Length
Determined
At.50 Dia
CF - Crimp Ferrule
Supplied Loose
for Wire Rope (S) Only
(See Table IV)
Length to
End of Wir
SK
SCS
Type WS
Type CF
CF - Crimp Ferrule
Supplied Loose
for Wire Rope (S) Only
(See Table IV)
Length to
End of Wir
ngth
mined
0 Dia
Code
M
MT
NF
ZR
Z1
BM
WB
Table II: Materials and Finishes
Material
Finish
electroless Nickel
Aluminum Alloy
6061-T6
303 stainless steel
Brass
Nickel Teflon
Cadmium, Olive Drab
Zinc-Nickel, Black
Passivate
Brass - electroless Nickel
White Bronze (Non-Magnetic)
pe WS
EYELET
SOLID RING
- Style A
A Dia.
Table III: Eyelet
Dash
P Dia ±.010 (0.3)
No.
01
.140 (3.6)
04
.197 (5.0)
06
.125 (3.2)
09
.156 (4.0)
00
No eyelet
WS
With strap
SK
slip Knot
SCS
slip/Crimp sleeve
CF
Crimp Ferrule (Loose)
B Dia.
SPLIT RING
- Style C
L Dia.
Table IV: Style A
Ring Diameter
Dash
N Dia
No.
±.015 (0.4)
101
103
105
106
107
.516
.641
.766
.896
1.016
(13.1)
(16.3)
(19.5)
(22.2)
(25.8)
Table V: Style C
Ring Diameter
Dash
L Dia
No.
±.015 (0.4)
52
54
56
58
60
.485
.640
.750
.890
1.015
(12.3)
(16.3)
(19.1)
(22.6)
(25.8)
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
3
E-Mail: sales@glenair.com
RF Connector
Covers and Accessories
