350586-4 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 350586-4

Preview

350586-4: Description09P UMNL HDR ASSY PC NATL LF; CategoryThe connector The connector; File Size184KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

350586-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	350586-4	-	-	View	Buy Now

350586-4 Overview

09P UMNL HDR ASSY PC NATL LF

350586-4 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
Other features	MATE-N-LOK
body width	0.8 inch
subject depth	0.58 inch
body length	0.8 inch
Body/casing type	PLUG
Connector type	COMBINATION LINE CONNECTOR
Contact arrangement	S0P9
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	2900VAC V
Durability	50 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	NATURAL
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Plug information	1-480706-0
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	50u inch
Guideline	UL
reliability	COMMERCIAL
Shell material	POLYAMIDE
Terminal length	0.245 inch
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-2
Base Number Matches	1

Preview

Download Datasheet

View All

8

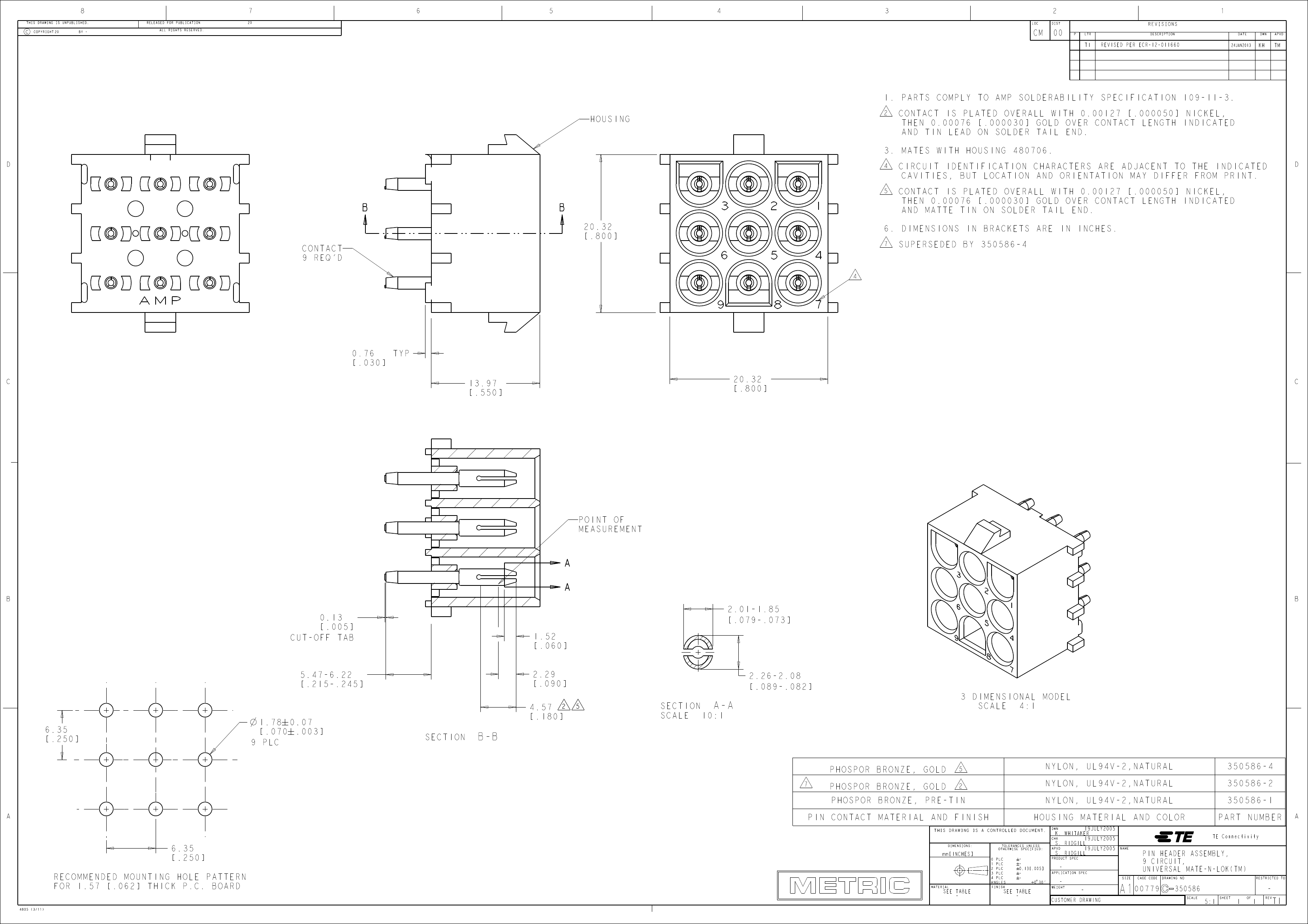

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

7

6

5

4

3

LOC

2

DIST

P

LTR

1

REVISIONS

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT

HOUSING

D

B

20.32

[ .800 ]

CONTACT

9 REQ'D

0.76

TYP

[ .030 ]

C

13.97

[ .550 ]

20.32

[ .800 ]

C

POINT OF

MEASUREMENT

A

B

A

0.13

[ .005 ]

CUT-OFF TAB

2.01-1.85

[.079-.073]

1.52

[ .060 ]

2.29

[ .090 ]

4.57

[ .180 ]

SECTION

A-A

SCALE

10:1

2.26-2.08

[.089-.082]

B

5.47 -6.22

[ .215 -.245 ]

3 DIMENSIONAL MODEL

SCALE

4:1

6.35

[ .250 ]

1.78 0.07

[ .070 .003 ]

9 PLC

B-B

NYLON, UL94V-2,NATURAL

PHOSPOR BRONZE, PRE-TIN

NYLON, UL94V-2,NATURAL

HOUSING MATERIAL AND COLOR

DWN

CHK

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

350586 -4

350586 -2

350586 -1

PART NUMBER

TE Connectivity

A

PIN CONTACT MATERIAL AND FINISH

THIS DRAWING IS A CONTROLLED DOCUMENT.

A

6.35

[ .250 ]

RECOMMENDED MOUNTING HOLE PATTERN

FOR 1.57 [.062] THICK P.C. BOARD

4805 (3/11)

MATERIAL

DIMENSIONS:

APVD

PRODUCT SPEC

NAME

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

APPLICATION SPEC

WEIGHT

A1

SIZE

CAGE CODE

DRAWING NO

RESTRICTED TO

SCALE

SHEET

OF

REV

350586-4 Related Products

	350586-4
Description	09P UMNL HDR ASSY PC NATL LF
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
Other features	MATE-N-LOK
body width	0.8 inch
subject depth	0.58 inch
body length	0.8 inch
Body/casing type	PLUG
Connector type	COMBINATION LINE CONNECTOR
Contact arrangement	S0P9
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	2900VAC V
Durability	50 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	NATURAL
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Plug information	1-480706-0
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	50u inch
Guideline	UL
reliability	COMMERCIAL
Shell material	POLYAMIDE
Terminal length	0.245 inch
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-2
Base Number Matches	1
