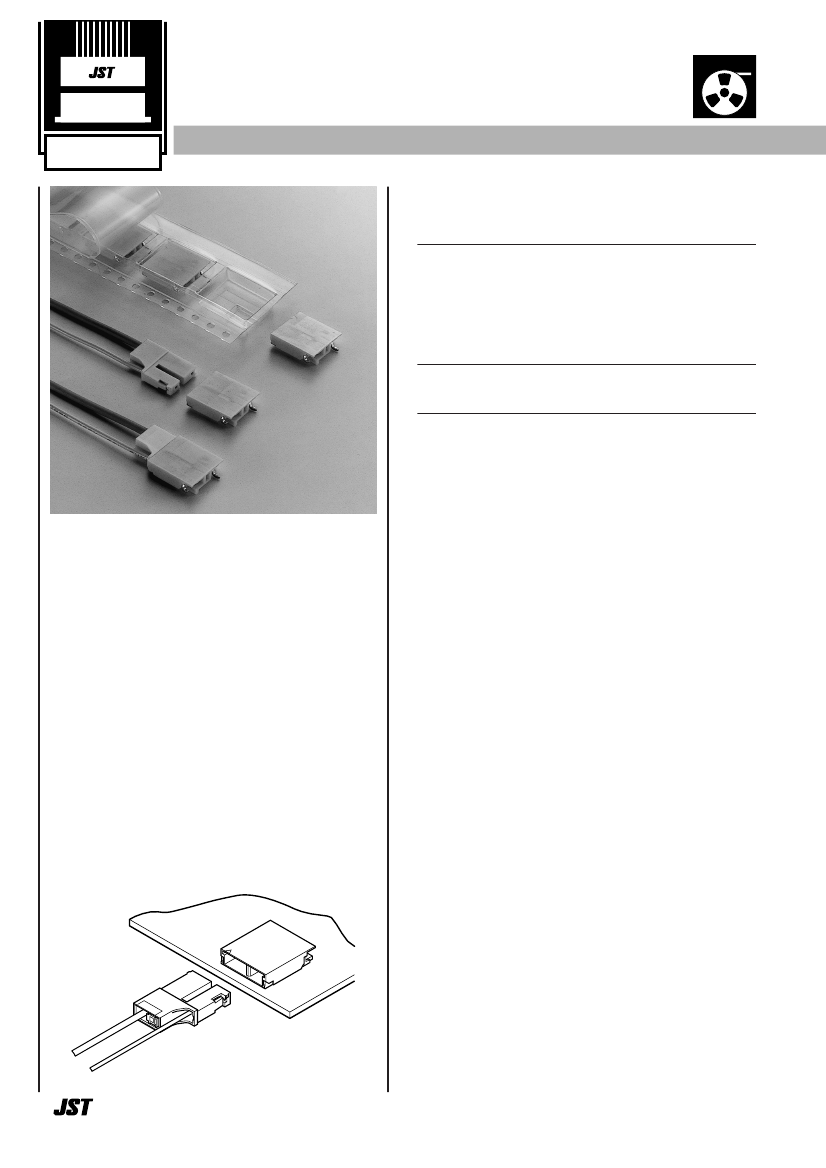

Crimp
BHT
CONNECTOR
Disconnectable Crimp style connectors
• High withstanding voltage
Emboss Tape
5.1mm
pitch
Features ––––––––––––––––––––––––
Conforming to IEC664-1 standards, the BHT connector is
designed to have a enough electrical creep distances at the
high-voltage side. Thus, compared to the conventional power
supply connector for liquid crystal display backlight lamps,
higher voltage is guaranteed.
• Low profile
Only 2.8mm height.
• Housing construction
Housing is of 2-piece construction, to prevent the contact for
the higher voltage side from being exposed, while the lower
voltage side is designed to be shorter for easy insertion of the
contact even with thin wires.
Low profile connectors with high
withstanding voltage, designed for
connecting liquid crystal display backlight
lamps to their starters.
Specifications –––––––––––––––––––
• Current rating: 1.0A AC, DC (AWG #24)
• Voltage rating: 1,500V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m
Ω
max.
After environmental testing/20m
Ω
max.
• Insulation resistance: 1,000M
Ω
min.
• Withstanding voltage: 4,000V AC/minute
• Applicable wire: AWG #28 to #24
Insulation O.D./0.9 to 1.7mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
H
JS
T
Standards ––––––––––––––––––––––
0
1
1
Recognized E60389
Certified LR20812
BHT
4.75
0.9
1.3
1.4
CONNECTOR
Contact –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Model No.
SBHT-002T-P0.5
1.5
mm
2
Applicable wire
AWG # Insulation O.D. (mm)
28 to 24
0.9 to 1.7
Q'ty /
reel
10,000
0.08 to 0.22
Material and Finish
Copper alloy, tin-plated (reflow treatment)
1.2
RoHS compliance
Housing –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
8.4
H JST
2.8
Circuits
2
Model No.
BHTR-02VS
Material
PBT, UL94V-0, natural (white)
Q'ty / box
1,000
13.2
RoHS compliance
5.1
2.2
Shrouded header –––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Circuits
2
10.0
3.35 1.75
H JST
Model No.
SM02B-BHTS-B-TB
Material and Finish
Q'ty / reel
1,250
11.0
2.8
1.0
Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
Wafer : PA 6T, UL94V-0, natural (ivory)
Solder tab: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
3.6
RoHS compliance
This product displays (LF)(SN) on a label.
Note: The products listed above are supplied on embossed tape.
PC board layout
(viewed from component side)
and Assembly layout ––––––––––––––––––
0
10.1
+0.1
0
8.2
-0.1
0.9
+0.1
0
1.0
+0.1
0
4.5
±0.05
3.0
±0.05
16.8
2.8
0
7.3
-0.1
11.1
+0.1
0
2.7
±0.05
1.8
+0.1
0
0
9.8
-0.1
12.3
+0.1
0
0.3
+0.1
0
Note:
1. Tolerances are non-cumulative: ±0.05mm for all centers.
2. The dimensions above should serve as a guideline. Contact JST for details.
Crimping machine, Applicator–––––––––––––––––––––––––––––––––––––––––––––––
Contact
SBHT-002T-P0.5
Crimping
machine
AP-K2N
Crimp applicator
MKS-L
–
Dies
MK/SBHT-002-05
–
0.8
+0.1
0
9.2
±0.05
Crimp applicator with dies
APLMK SBHT002-05
–
2
