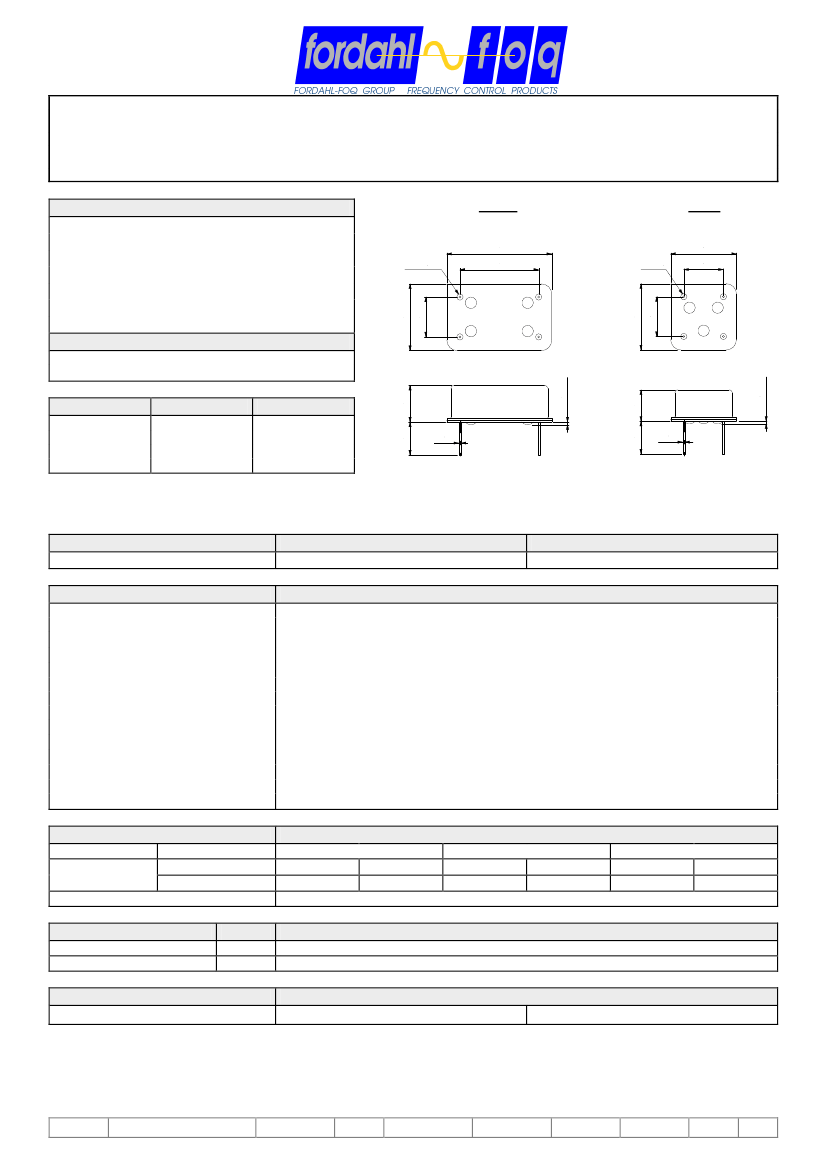

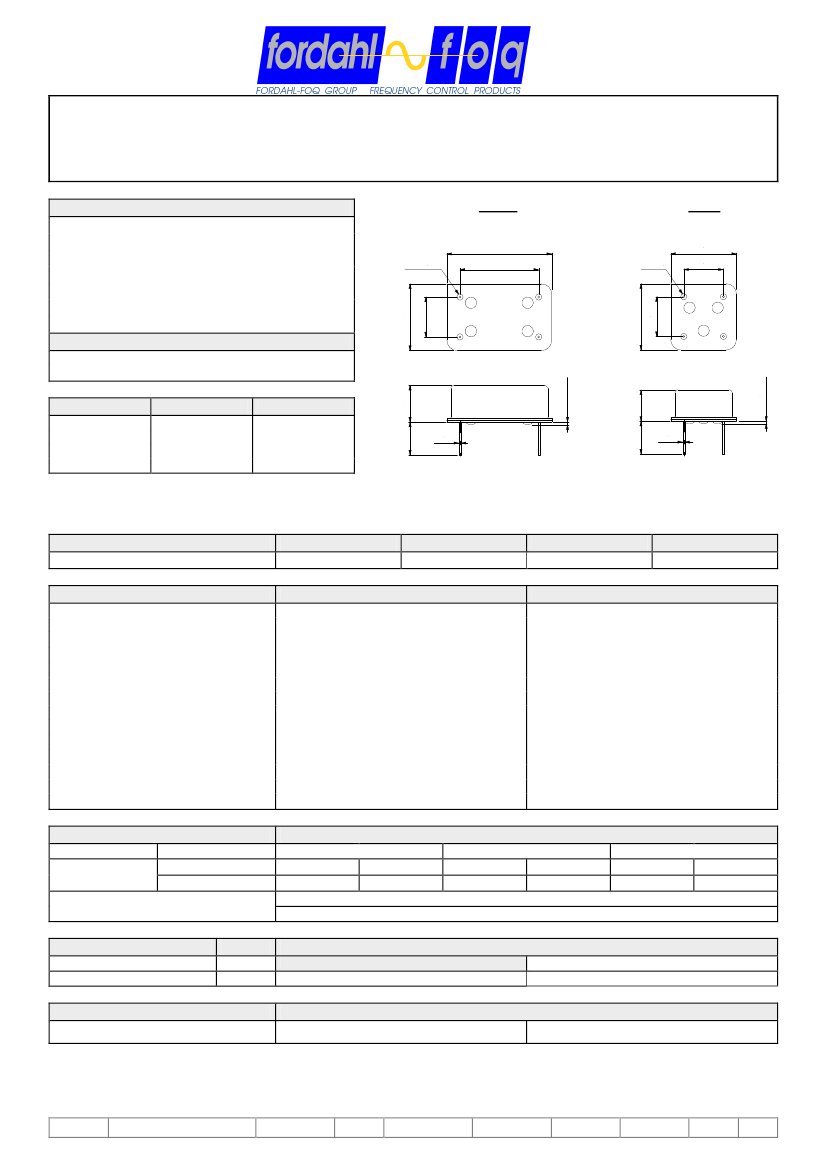

HCMOS & TTL COMPATIBLE CLOCK OSCILLATORS

DFN 14-B, DFN 4-B, DFN 14-H & DFN 4-H

KEY FEATURES

1 to 100 MHz

HCMOS/TTL compatible output

Standard DIL 14 or DIL 8 packages

APPLICATIONS

Clocking

H±0.1

PIN 1

DFN 14

DFN 4

20.3±0.1

15.24

PIN 1

12.7±0.1

7.62

12.7±0.1

7.62

0.75±0.1

Function

NC/Enable

GND

Output

Vcc

DFN 14

DFN 4

6.3

6±0.1

0.45

H = 5.10 mm

TYPE

Frequency Range

ELECTRICAL SPECIFICATIONS

supply voltage

supply current (no load)

≤

20 MHz

≤

70 MHz

> 70 MHz

DFN 14-B

1 to 100 MHz

DFN 4-B

1 to 70 MHz

DFN 14-H

1 to 100 MHz

DFN 4-H

1 to 70 MHz

5V±5%

≤

20 mA

≤

40 mA

≤

90 mA

HCMOS 15 pF or 10 TTL

40/60...60/40 % @ 50% level or 1.4 V

10 to 90 %

≤

5 ns

0.4 to 2.4 V

≤

3.5 ns

≥

4.5 V/

≤

0.5 V

≤

10 ms @ 4.75 V

5V±5%

≤

20 mA

≤

40 mA

≤

90 mA

HCMOS 50 pF up to 25 MHz or

15 pF > 25 MHz

40/60...60/40 % @ 50% level

10 to 90 %

≤

10 ns up to 25 MHz

≤

6 ns > 25MHz

≥

4.5 V/

≤

0.5 V

≤

10 ms @ 4.75 V

output load

duty cycle

rise/fall times

high/low levels

start up

FREQUENCY STABILITY

types

all types

remarks

temperature range

0 to 70°

-40 to 85°

stability [ ppm ] and temperature code

stability

code

stability

code

stability

code

XB25

XB50

XB100

≤

± 25

≤

± 50

≤

± 100

XE50

XE75

XE100

≤

± 50

≤

± 75

≤

± 100

all types > 70 MHz available with XB50 or XB100 stability/temperature codes

stability includes calibration at 25° temperature, ageing, Vcc and load changes 1 yr.

OPTIONS

tight symmetry

tri-state output on pin 1

CODE

high or open = enable, low = high Z

45/55...55/45 % available up to 25 MHz

high or open = enable, low = high Z

ORDERING CODE

Example

type + option code + frequency + stability/temperature code

DFN 14-BZ 16.000 MHz XE75

DFN 4-H 24.576 MHz XB100

TYPE

DFN 14-B/H & DFN 4-B/H

REVISION

CHECKED

DATE

14.10.2002

PAGE

0.85±0.1
