75433-4284 datasheet, PDF - EEWORLD Datasheet

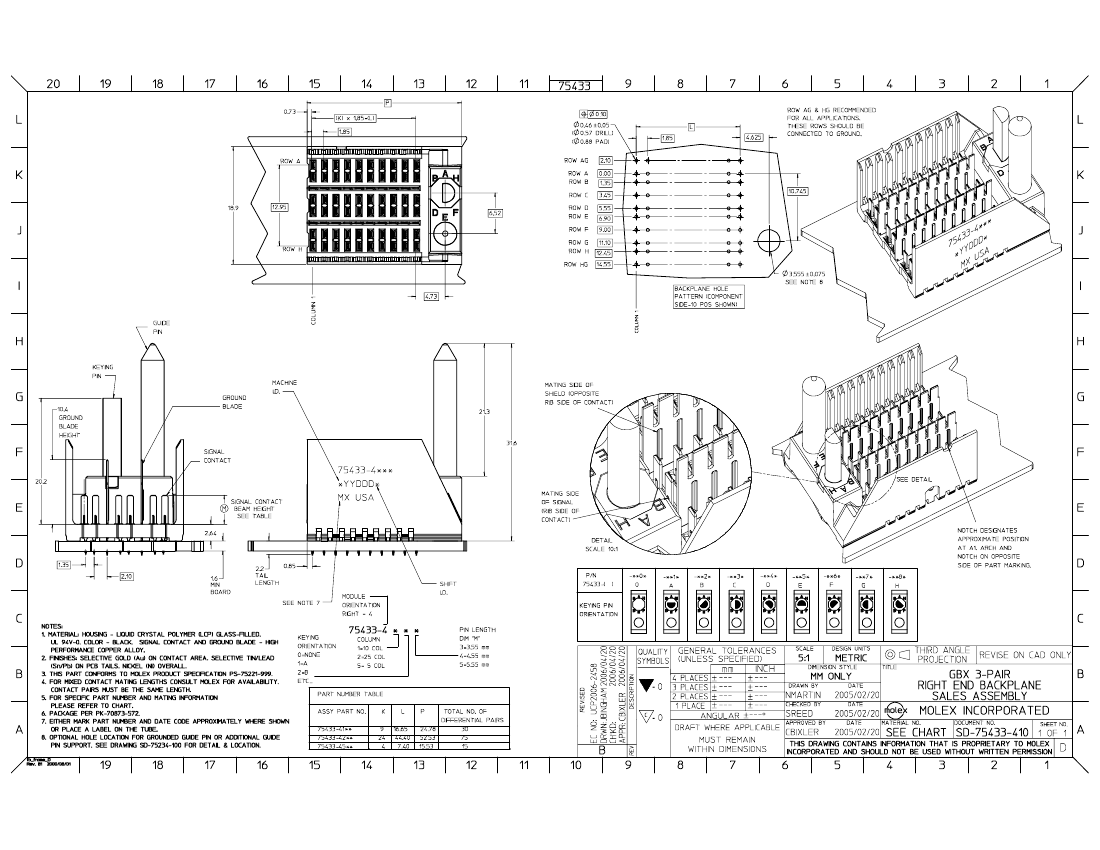

75433-4284: DescriptionBoard Connector, 150 Contact(s), 3 Row(s), Male, Straight, 0.073 inch Pitch, Press Fit Terminal, Guide Pin, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size198KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

75433-4284 Overview

Board Connector, 150 Contact(s), 3 Row(s), Male, Straight, 0.073 inch Pitch, Press Fit Terminal, Guide Pin, Black Insulator, Receptacle,

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	DIFFERENTIAL CONTACTS, 4 ROWS OF GROUND BLADE AVAILABLE, PANEL MOUNTABLE, POLARIZED
body width	0.744 inch
subject depth	0.638 inch
body length	2.068 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	1 mΩ
Contact style	BLADE PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.5838 N
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	75433
Plug contact pitch	0.073 inch
Match contact row spacing	0.073 inch
Mixed contacts	NO
Installation option 1	GUIDE PIN
Installation option 2	GUIDE SLOT
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	10
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.8288 mm
polarization key	POLARIZED KEY
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.087 inch
Terminal pitch	1.85 mm
Termination type	PRESS FIT
Total number of contacts	150
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N
Base Number Matches	1
