MK02571R3CAT2A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> MK02571R3CAT2A

MK02571R3CAT2A: DescriptionFixed Capacitor,; CategoryPassive components capacitor; File Size119KB，3 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

MK02571R3CAT2A Overview

Fixed Capacitor,

MK02571R3CAT2A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145116224044
package instruction	, 0402
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	8.5
capacitance	0.0000013 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.6 mm
JESD-609 code	e0
length	1 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	19.2308%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, 7 INCH
positive tolerance	19.2308%
Rated (DC) voltage (URdc)	50 V
size code	0402
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WRAPAROUND
width	0.5 mm

Preview

Download Datasheet

View All

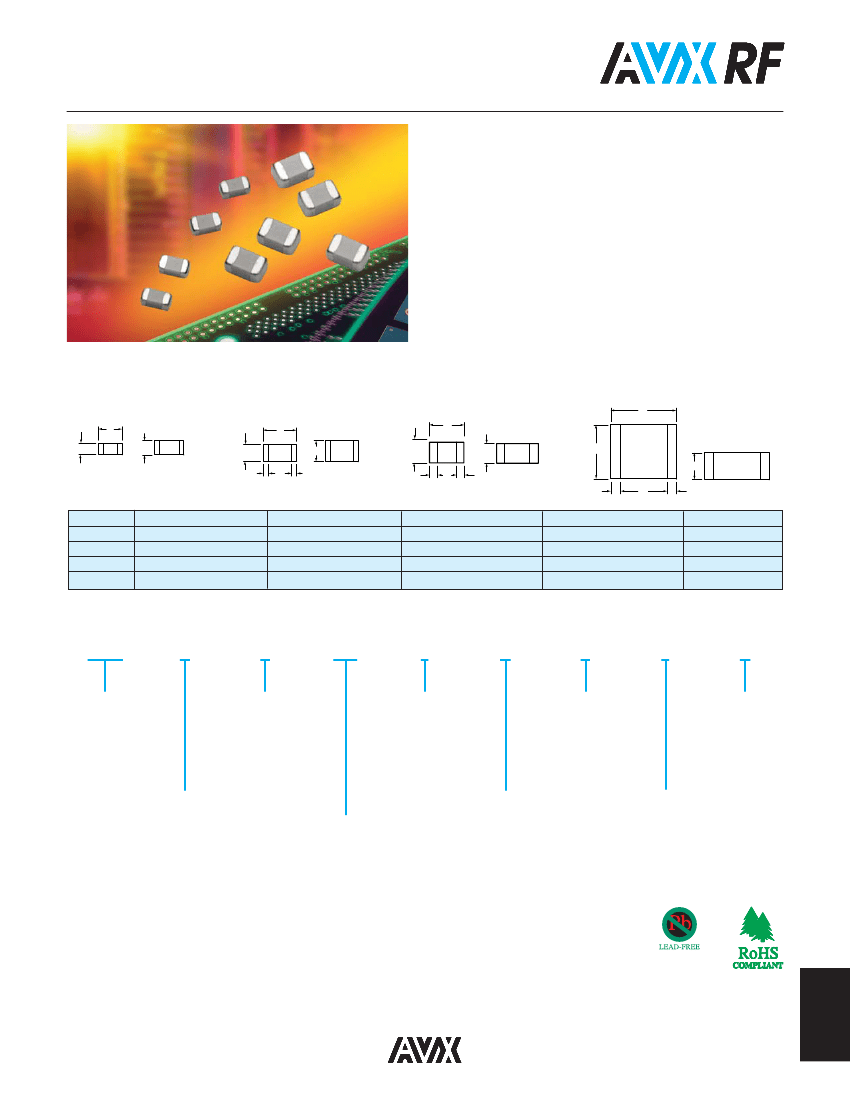

MK Series Capacitors

Ultra Low ESR, C0G (NP0) Chip Capacitors

GENERAL INFORMATION

Capacitors are C0G (NP0) chip capacitors specially designed

for “Ultra” low ESR for applications in the communications

market. Max ESR and effective capacitance are met on each

value producing lot to lot uniformity. Sizes available are EIA

chip sizes 0402, 0603, 0805, and 1210.

DIMENSIONS:

inches (millimeters)

0402

E D

0603

0805

1210

Size

0402

0603

0805

1210

0.039±0.004

0.060±0.010

0.079±0.008

0.126±0.008

(1.00±0.1)

(1.52±0.25)

(2.01±0.2)

(3.2±0.2)

0.020±0.004

0.030±0.010

0.049±0.008

0.098±0.008

(0.50±0.1)

(0.76±0.25)

(1.25±0.2)

(2.49±0.2)

0.024 (0.6) max

0.036 (0.91) max

0.040±0.005 (1.02±0.127)

0.050±0.005 (1.27±0.127)

N/A

0.010±0.005 (0.25±0.13)

0.020±0.010 (0.51±0.254)

0.025±0.015 (0.635±0.381)

inches (mm)

N/A

0.030 (0.76) min

0.020 (0.51) min

0.040 (1.02) min

HOW TO ORDER

MK05

Case Size

MK02 = 0402

MK03 = 0603

MK05 = 0805

MK10 = 1210

Dielectric =

Ultra Low

ESR

100

Capacitance

Tolerance

Code

B = ±0.1pF

C = ±0.25pF

D = ±0.5pF

F = ±1%

G = ±2%

J = ±5%

K = ±10%

M = ±20%

Termination

T = 100% Tin

Special Code

A = Standard

Voltage Code

3 = 25V

5 = 50V

1 = 100V

2 = 200V

V = 250V

7 = 500V

Failure Rate

Code

A = Not Applicable

Packaging

Code

2 = 7" Reel

4 = 13" Reel

9 = Bulk

Capacitance

EIA Capacitance Code in pF.

First two digits = significant figures

or “R” for decimal place.

Third digit = number of zeros or

after “R” significant figures.

LEAD-FREE COMPATIBLE
