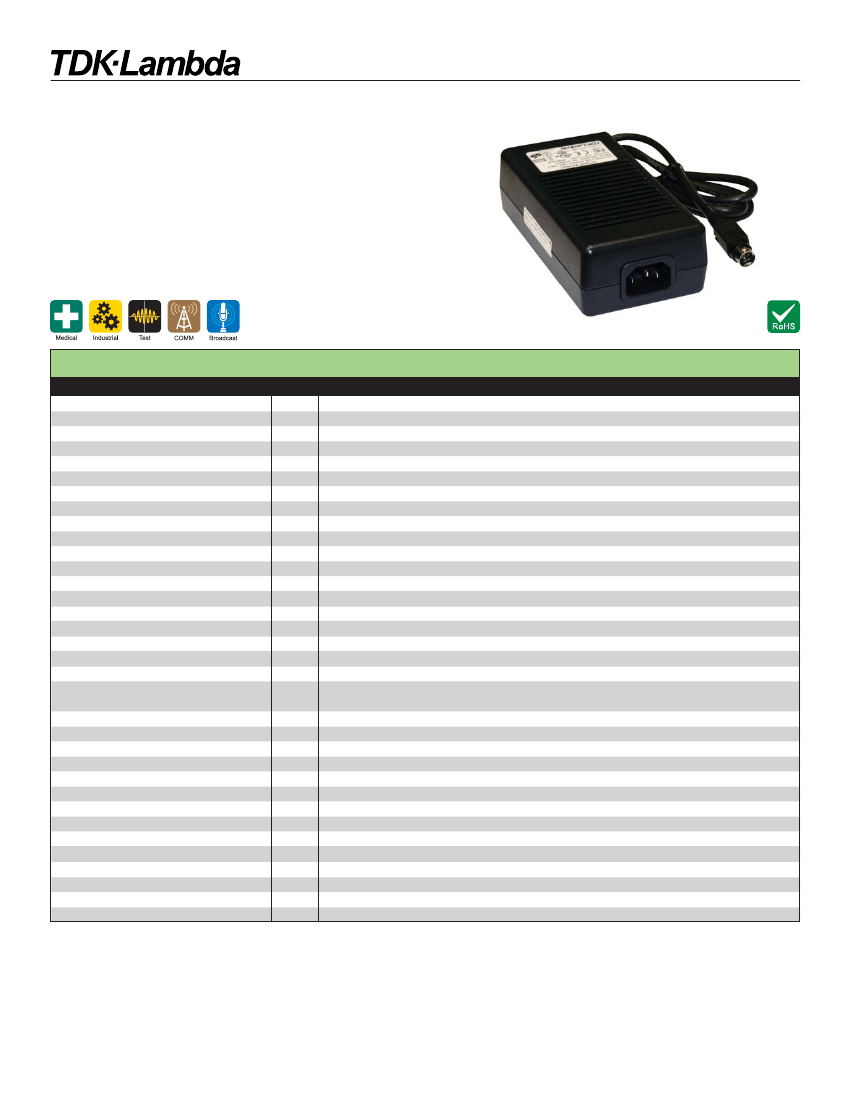

DTM65-C Series
40W to 65W Medical AC-DC External Power Supplies
Features
CEC, EISA
(1)
& ErP Stage 2 Compliant
Wide Range AC Input
Medical Certifications
85% Efficient, >87% average (12V models & above)
Key Market Segments & Applications
Specifications
Model
Input Voltage range
Inrush Current
Input Current
Power Factor
Leakage Current (264VAC 63Hz)
Hold Up Time (Typ)
Temperature Coefficient
Voltage Accuracy
Adjustment Range
Minimum Load
Total Regulation
Ripple & Noise
Short Circuit Protection
Overvoltage Protection
Efficiency
Operating Temperature
Storage Temperature
Humidity (non condensing)
Cooling
Withstand Voltage
Vibration (non operating)
Shock
Safety Agency Approvals
California Energy Commission (CEC)
EISA
Offload Power Consumption
Conducted & Radiated EMI
Immunity
Weight (Typ)
Size (WxLxH)
Cable Length
AC Input Connector
Output Connector
Warranty
VAC
A
A
-
μA
ms
-
%
-
A
-
%
-
V
%
-
-
-
-
-
-
-
-
-
-
-
-
-
g
in
mm
-
-
yrs
90 - 264VAC (47 - 63Hz)
<100A at 230VAC input, 25°C ambient cold start
2A at 90VAC, Full Load
None
<300uA
16ms at 115VAC input
±0.05%/°C
±1%
None
None
5V to 15V Models: ±5%, >15V models ±3%
1% or 100mV whichever is the greater
Continuous - hiccup mode
110 - 150% of nominal (Cycle input power to reset)
>87%, average efficiency for 12V and greater models, >75% <12V models
0 to +50°C
-10 to +70°C
10 - 90% RH
Convection
Input to Ground 1.5kVAC, Input to Output 4kVAC (Reinforced)
(2 x MOPPS 3rd Edition) (Output is connected to Ground)
23.52m/s
2
(10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour)
< 196.1 m/s
2
(20G)
UL/CSA/IEC/EN 60601-1, ANSI/AAMI ES60601-1, CE Mark
See model selector
See model selector
< 0.5W
EN55011, EN60601-1-2 Class B
EN55011: 2007 +A2: 2007
460g
2.72 x 5.2 x 1.57
1050mm
IEC 320-C14 (Accepts IEC 320-C13)
Kycon KPPx-4P or equivalent, Pins 1 & 2: -Vout, Pins 3 & 4: +Vout
Two Years
(1) EISA - Energy Independence and Security Act of 2007
1-800-526-2324 • www.us.tdk-lambda.com/lp/
58
Disclaimer: us.tdk-lambda.com/lp/legal.htm
DTM65-C Series
Output Ratings
Model
DTM65PW050C
DTM65PW120C
DTM65PW150C
DTM65PW180C
DTM65PW240C
DTM65PW360C
DTM65PW480C
Output (V)
5
12
15
18
24
36
48
Maximum
Output (A)
8.0
5.0
4.0
3.6
2.7
1.8
1.35
Maximum
Power (W)
40
60
60
65
65
65
65
CEC
-
V
V
V
V
V
V
EISA
Efficiency Level
-
V
V
V
V
V
V
Outline Drawing
DC OUTPUT CABLE
69.0
132.0
40.0
NOTE:
1. AC INLET: IEC320-C14 STANDARD
2. BOX COLOR: BLACK
3. TOLERANCE: ±0.5mm
4. UNIT: mm
RUBBER FOOT X4
Other AC-DC Products
DT62-C
DT80-C
DT100 / 150-C
DTM110-C
62W CEC Compliant Adapters
80W CEC Compliant Adapters
100W & 150W CEC Compliant Adapters
110W CEC Compliant Medical Adapters
For Additional Information, please visit
us.tdk-lambda.com/lp/products/dt-c-series.htm
1-800-526-2324 • www.us.tdk-lambda.com/lp/
59
Revision B5: Jul 2014
