BR6203: DescriptionWide Band Medium Power Amplifier, 5MHz Min, 500MHz Max, H2, TO-8B; CategoryWireless rf/communication Radio frequency and microwave; File Size201KB，4 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

BR6203 Overview

Wide Band Medium Power Amplifier, 5MHz Min, 500MHz Max, H2, TO-8B

BR6203 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	13 dB
Maximum input power (CW)	18 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

Cross Reference Guide

BR6203 / SBR6203*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

5.0 - 500.0 MHz

14.5 dB Typical

13.0 dB Min

5.5 dB Typical

7.5 dB Max

25.0 dBm Typical

22.5 dBm Min

36.0 dBm Typical

42.0 dBm Typical

1.5/2.0 Input Typ/Max

1.5/2.0 Output Typ/Max

-15.5 dB Typical

-15.0 dB Min

15.0 Volts

127.0 mA

-55.0 - 85.0 °C

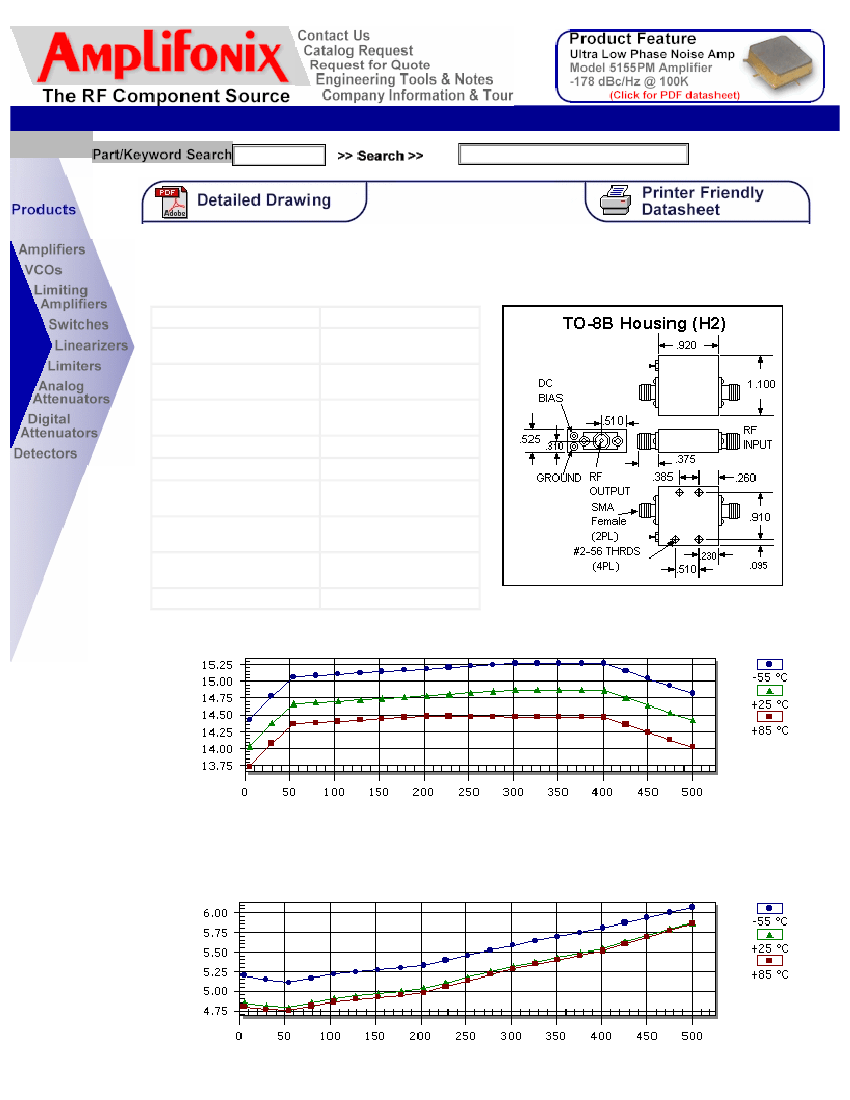

Package Drawing

Gain

Frequency (MHz)

Noise Figure

BR6203 Related Products

	BR6203	SBR6203
Description	Wide Band Medium Power Amplifier, 5MHz Min, 500MHz Max, H2, TO-8B	Wide Band Medium Power Amplifier, 5MHz Min, 500MHz Max, H2, TO-8B
Maker	API Technologies	API Technologies
Reach Compliance Code	compliant	compliant
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM	SMA-F, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL	COAXIAL
Gain	13 dB	13 dB
Maximum input power (CW)	18 dBm	18 dBm
Maximum operating frequency	500 MHz	500 MHz
Minimum operating frequency	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2	2
Base Number Matches	1	1
