20-503-20H

Description
IC Socket, DIP20, 20 Contact(s), 2.54mm Term Pitch, 0.9inch Row Spacing, Wire Wrap
CategoryThe connector    socket
File Size144KB,1 Pages
ManufacturerAries Electronics

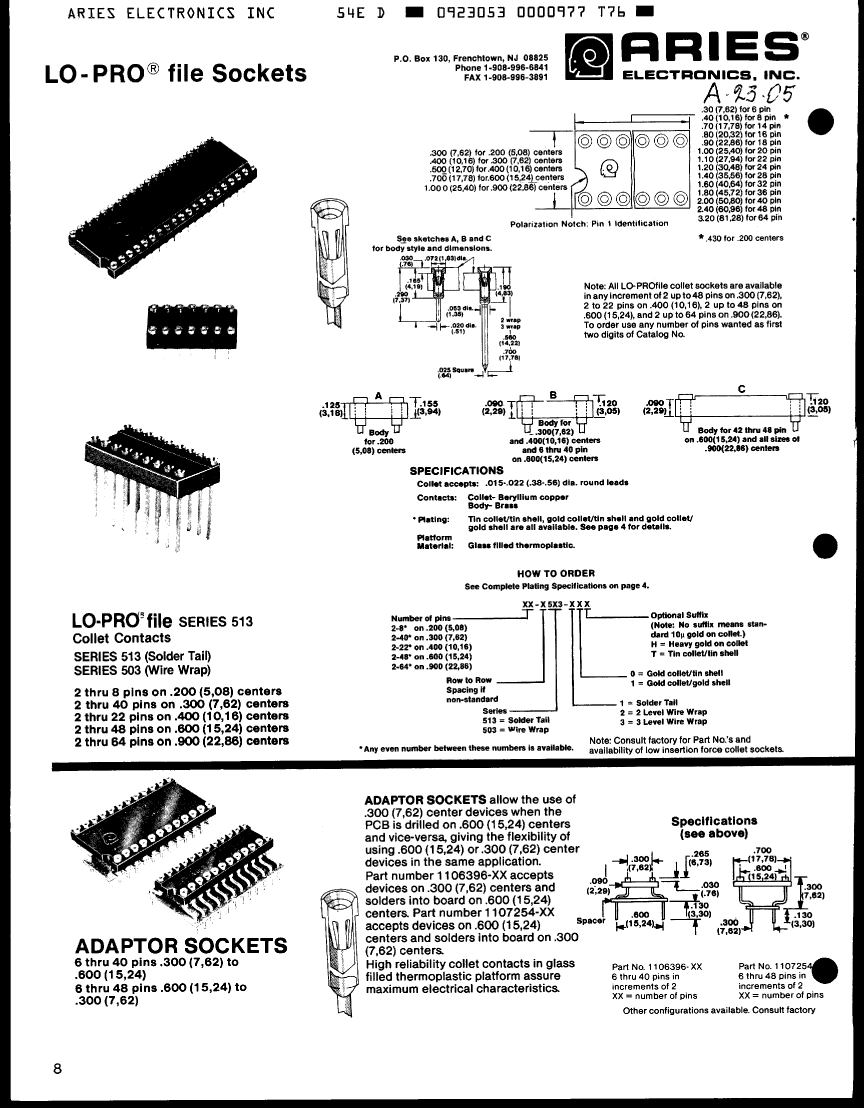

Download Datasheet Parametric View All

20-503-20H Overview

IC Socket, DIP20, 20 Contact(s), 2.54mm Term Pitch, 0.9inch Row Spacing, Wire Wrap

20-503-20H Parametric

Parameter NameAttribute value
MakerAries Electronics
Reach Compliance Codecompliant
body width1 inch
subject depth0.19 inch
body length1 inch
Contact completed and terminatedGOLD
Contact styleRND PIN-SKT
Device slot typeIC SOCKET
Type of equipment usedDIP20
Shell materialGLASS FILLED THERMOPLASTIC
Manufacturer's serial number513
Plug contact pitch0.1 inch
Installation methodSTRAIGHT
Number of contacts20
PCB contact patternRECTANGULAR
PCB contact row spacing0.9 mm
Terminal pitch2.54 mm
Termination typeWIRE WRAP
Base Number Matches1
