MNR32J0ABJ182

Description
Array/Network Resistor, Isolated, Metal Glaze/thick Film, 0.125W, 1800ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1012, CHIP
CategoryPassive components    The resistor
File Size82KB,5 Pages
ManufacturerROHM Semiconductor
Websitehttps://www.rohm.com/
Environmental Compliance
Download Datasheet Parametric View All

MNR32J0ABJ182 Overview

Array/Network Resistor, Isolated, Metal Glaze/thick Film, 0.125W, 1800ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1012, CHIP

MNR32J0ABJ182 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid1238037299
package instructionCHIP
Reach Compliance Codecompliant
ECCN codeEAR99
YTEOL0
structureRectangular
Component power consumption0.125 W
The first element resistor1800 Ω
JESD-609 codee3
Installation featuresSURFACE MOUNT
Network TypeISOLATED
Number of components1
Number of functions2
Number of terminals4
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package height0.55 mm
Package length2.6 mm
Package shapeRECTANGULAR PACKAGE
Package formSMT
Package width3.1 mm
method of packingTR, EMBOSSED, 7 INCH
Rated temperature70 °C
resistance1800 Ω
Resistor typeARRAY/NETWORK RESISTOR
Second/last element resistor1800 Ω
size code1210
surface mountYES
technologyMETAL GLAZE/THICK FILM
Temperature Coefficient200 ppm/°C
Terminal surfaceTin (Sn) - with Nickel (Ni) barrier
Terminal shapeWRAPAROUND
Tolerance5%
Operating Voltage200 V

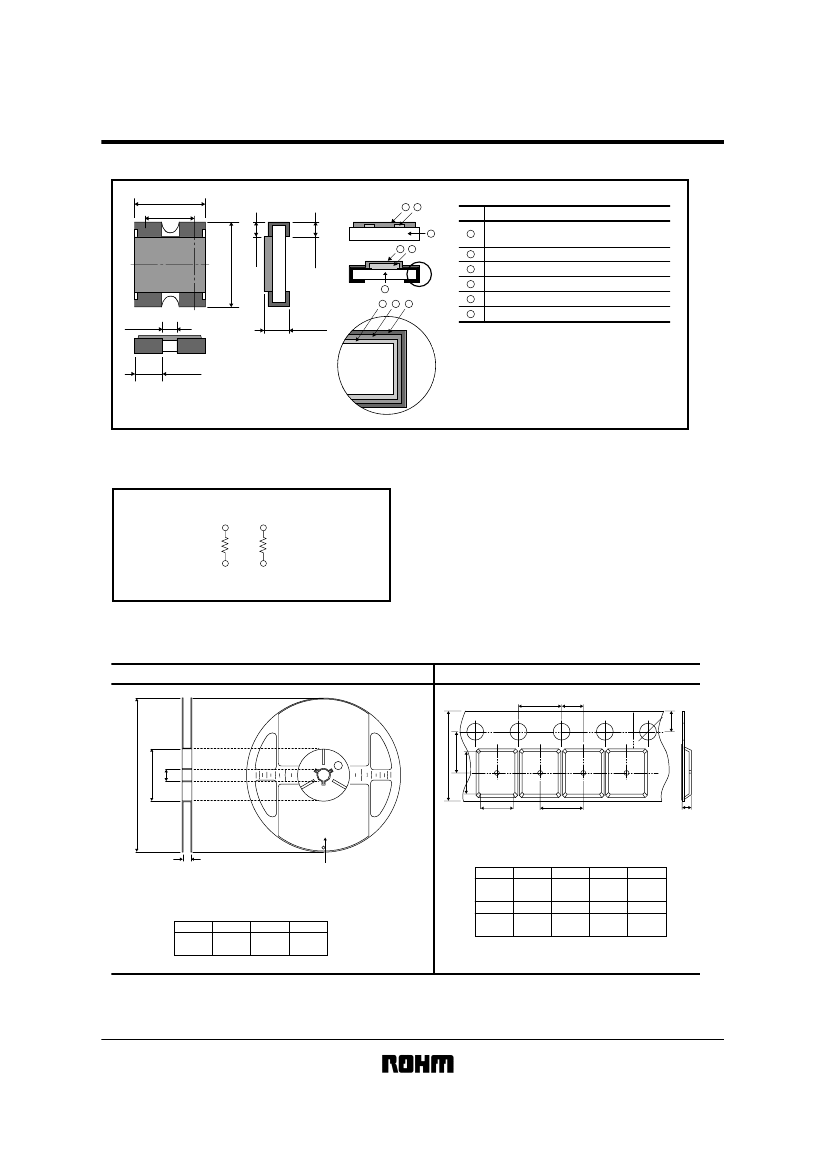

MNR32
Resistors
Chip resistor networks
MNR32
(3216×2 size)
!
Features
1) Convex electrodes
Easy to check the fillet after soldering is finished.
2) Compatible with a wide range of mounting equipment.
Squared corners make it excellent for mounting using image recognition devices.
3) High-density mounting
Can be mounted even more densely than two 3216 chips (MCR18). Also, the number of parts and costs of mounting
have been reduced.
4) ROHM resistors have approved ISO-9001 certification.
Design and specifications are subject to change without notice. Carefully check the specification sheet supplied with
the product before using or ordering it.
!
Ratings
Item
Rated power
Conditions
Power must be derated according to the power derating curve in
Figure 1 when ambient temperature exceeds 70°C.
100
80
POWER LOAD (%)
Specifications
0.125W (1 / 8W)
at 70°C
60
40
20
0
−55
0
70
100 125
AMBIENT TEMPERATURE (°C)
Fig.1
Rated voltage
The voltage rating is calculated by the following equation.
If the value obtained exceeds the limiting element voltage,
the voltage rating is equal to the maximum operating voltage.
E: Rated voltage (V)
E= P×R
P: Rated power (W)
R: Nominal resistance (Ω)
Nominal resistance
Operating temperature
See Table 1.
−55°C ∼
125°C
Limiting element voltage
200V
