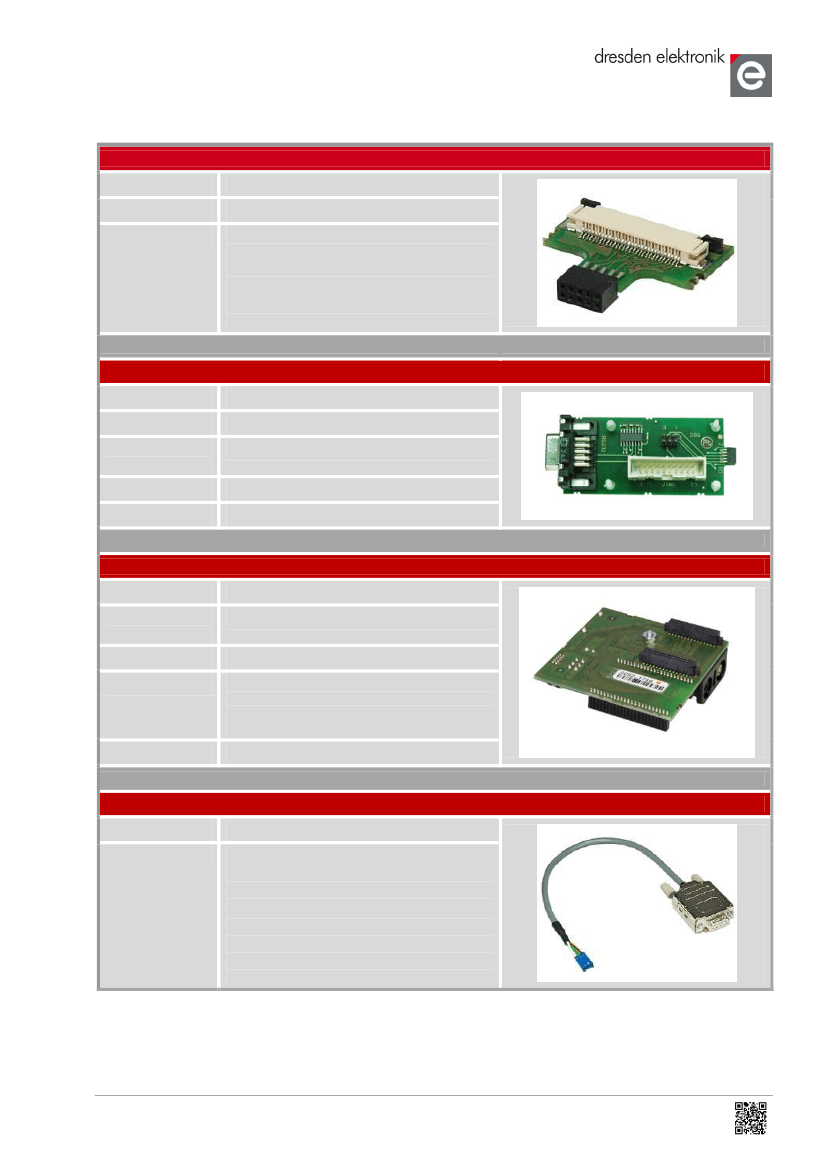

Adapters
JTAG Adapter (Part No. 27863)
Dimensions
IP protection
Connections
23 x 22 mm
IP00
30 pin ribbon cable (JTAGICE mkII)
10 pin serial connector (2-rowed,
1.27 mm pitch)
SAM ICE Adapter (Part No. 28337)
Dimensions
IP protection
Operating
temperature
Power supply
Connections
82 mm (with connector) x 35 mm
IP00
0°C ... 65°C
over USB
RS232, JTAG, deUSB Target
deRFtoRCB Adapter (Part No. 28216)
Dimensions
Control and
display elements
Power supply
Connections
52 x 52 mm
3 x LED (red), 1 x button
2 batteries, size AAA (1.8 - 3.6 VDC)
2 x 23 pin serial connector (for deRFmega128)
2 x 30 pin I/O connector (for STB)
1 x 10 pin I/O connector (JTAG)
1 x 6 pin I/O connector (Debug/Trace)
1 x JTAG, 1 x Debug/Trace
Interfaces
RCB Breakout Board RS232 Cable (Part No. 26790)
Length
Interfaces
300 mm
SUB D 9
3 pin serial connector
