1025090-023: DescriptionRF Connector, Female, Panel Mount, Cable Mount, Jack; CategoryThe connector The connector; File Size39KB，1 Pages; ManufacturerElectro Technik Industries

Download Datasheet Parametric Compare View All

1025090-023 Overview

RF Connector, Female, Panel Mount, Cable Mount, Jack

1025090-023 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Body/casing type	JACK
Connector type	RF CONNECTOR
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	1025090
Installation method	STRAIGHT
Installation type	CABLE
Options	GENERAL PURPOSE
Panel mounting	YES
Base Number Matches	1

Preview

Download Datasheet

View All

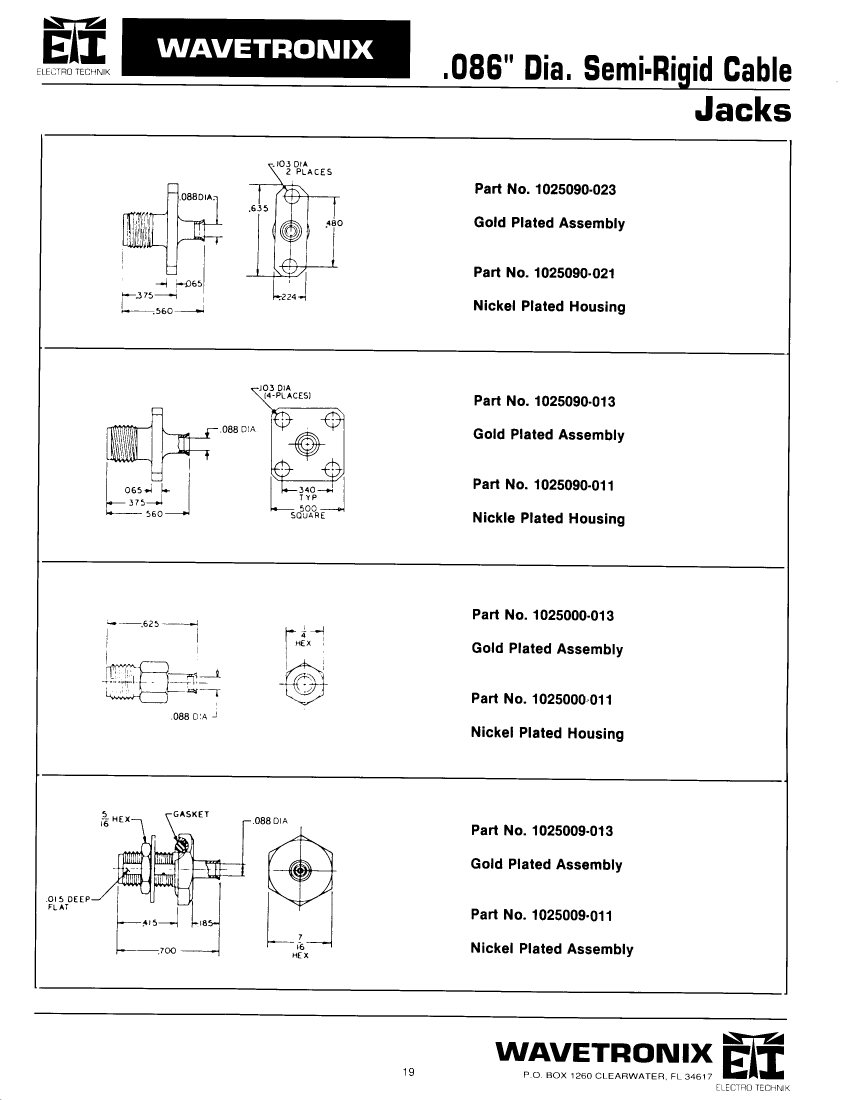

WAVETRON IX

EROECNK

.086” Dia. Semi•Rigid Cable

Jacks

Part No. 1025090-023

Gold Plated Assembly

Part No. 1025090-021

Nickel Plated Housing

J03 DIA

(4-PLACES)

Part No. 1025090-013

Gold Plated Assembly

Part No. 1025090-011

4

ryp

500

SQUARE

Nickle Plated Housing

Part No. 1025000-013

HEX

—I

Gold Plated Assembly

Part No. 1025000-011

Nickel Plated Housing

T~z~

088

C:A

7’>

K>

Part No. 1025009-013

Gold Plated Assembly

.015 DEEP-

FLAT

Part No. 1025009-011

Nickel Plated Assembly

WAVETRONIX

19

P 0 BOX 1260 CLEARWATER FL 346

ECRO

C

1025090-023 Related Products

	1025090-023	1025000-011	1025090-011	1025090-013	1025009-011	1025000-013	1025090-021	1025009-013
Description	RF Connector, Female, Panel Mount, Cable Mount, Jack	RF Connector, Female, Cable Mount, Jack	RF Connector, Female, Panel Mount, Cable Mount, Jack	RF Connector, Female, Panel Mount, Cable Mount, Jack	RF Connector, Female, Panel Mount, Cable Mount, Jack	RF Connector, Female, Cable Mount, Jack	RF Connector, Female, Panel Mount, Cable Mount, Jack	RF Connector, Female, Panel Mount, Cable Mount, Jack
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK
Connector type	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	1025090	1025000	1025090	1025090	1025009	1025000	1025090	1025009
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	NO	YES	YES	YES	NO	YES	YES
Base Number Matches	1	1	1	1	1	1	1	1
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
