Technical Data Sheet

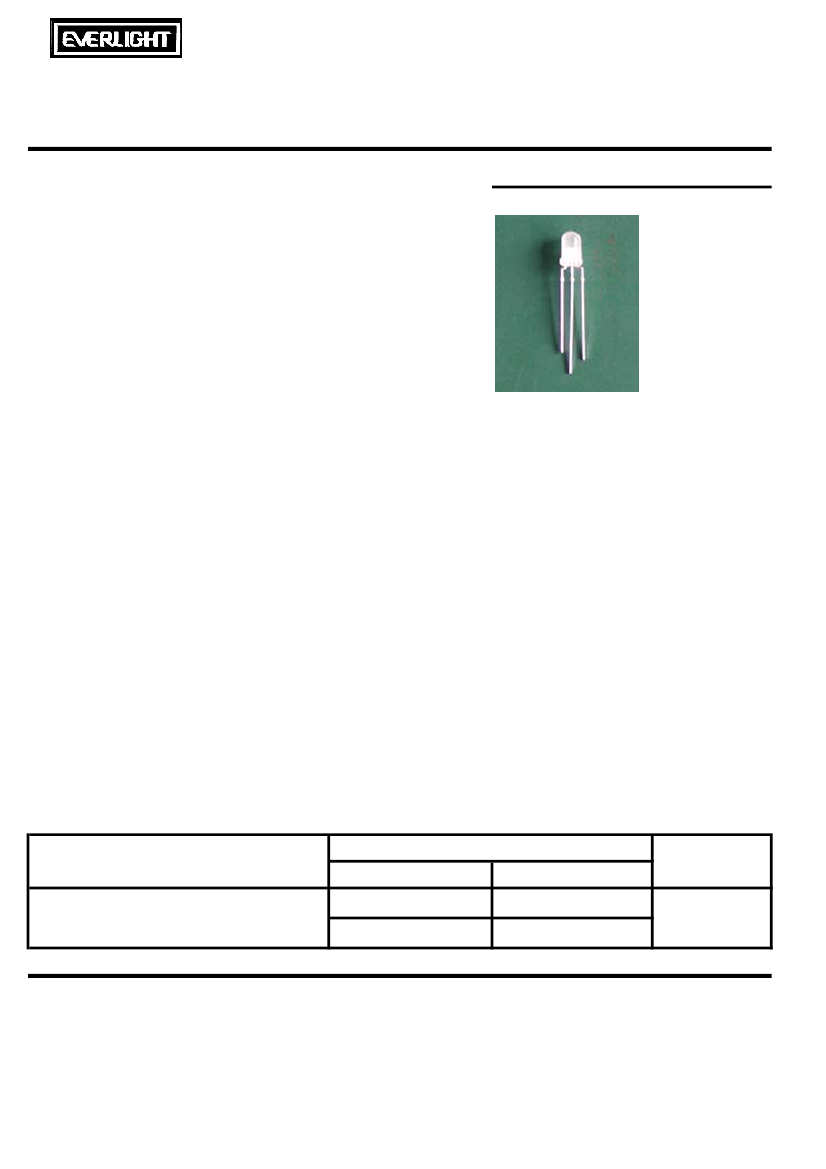

5.0mm Multi-Color Round Type LED Lamps
339-1SURSYGW/S530-A3
█
Features :
●
Two chips are matched for uniform
light output, wide viewing angle
●
●
●
Long life-solid state reliability
I.C. compatible/Low power consumption
Pb free
●
The product itself will remain within RoHS compliant version
█
Descriptions :
●
The 339-1 LED lamps contain two integral
chips and is available as both bicolor
and bipolar types.
The Hyper Red and Super Yellow Green
light is emitted by diodes of
AlGaInP
and AlGaInP respectively.
●
●
Type of bipolar lamps are both White
Diffused and Color Diffused while the
bicolor are White Diffused
█
Applications :
●
●
●
●
TV set
Monitor
Telephone
Computer
Chip
Material
AlGaInP
AlGaInP
PART NO.
339-1SURSYGW/S530-A3
Emitted Color
Hyper Red
Super Yellow Green
Lens Color
White Diffused
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-033-1183
http : //www.everlight.com
Prepared date
2006/3/13
Rev.:
1
Page:
1 of 7
Prepared by:Xiuzen Feng
BG0310076,R0302970
Technical Data Sheet
5.0mm Multi-Color Round Type LED Lamps
339-1SURSYGW/S530-A3
Package Dimensions
SYG
SUR
Notes:
1.All dimensions are in millimetres
2. An epoxy meniscus may extend about 1.5mm(0.059'') down to the lead.
3. Tolerances unless Dimension
±0.25mm.
█ Absolute Maximum Ratings at Ta = 25℃
Parameter
Forward
Current
Operating Temperature
Storage Temperature
Soldering Temperature
Electrostatic Discharge
Power Dissipation
Topr
Tstg
Tsol
ESD
Pd
Symbol
I
F
SUR/S530
SYG/S530
Rating
25
25
℃
℃
℃
Unit
mA
-40 to +85
-40 to +100
260
±
5
2000
SUR/S530
SYG/S530
60
60
160
160
5
V
mW
Peak Forward Current
Reverse Voltage
I
F
(Peak)
V
R
SUR/S530
SYG/S530
mA
V
Note: *1:I
FP
Conditions --Pulse Width ≦ 1msec and Duty ≦ 1/10.
*2:Soldering time ≦ 5 seconds.
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-033-1183
http : //www.everlight.com
Prepared date:
2006/3/13
Rev.:
1
Page: 2 of 7
Prepared by:Xiuzen Feng
Technical Data Sheet
5.0mm Multi-Color Round Type LED Lamps
339-1SURSYGW/S530-A3
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous
Intensity
Viewing
Angle
2θ1/2
λp
SUR/S530
SYG/S530
Dominant
Wavelength
Spectrum Radiation
Bandwidth
Forward Voltage
V
F
△λ
λd
SUR/S530
SYG/S530
SUR/S530
SYG/S530
SUR/S530
SYG/S530
Reverse Current
I
R
Iv
Symbol
SUR/S530
SYG/S530
Min.
25
16
/
/
/
/
/
/
/
/
/
/
Typ.
50
32
100
632
575
624
573
20
20
2.0
2.0
/
Max.
/
/
/
/
/
/
/
/
/
2.4
2.4
10
V
nm
nm
deg
nm
Unit
mcd
I
F
=
I
F
=
I
F
=
Condition
20
20
20
mA
mA
mA
Peak Wavelength
I
F
=
20
mA
I
F
=
I
F
=
20
20
5
mA
mA
V
μA V
R
=
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number : CDLE-033-1183
http : //www.everlight.com
Prepared date:
2006/3/13
REV.:
1
Page: 3 of 7
Prepared by:Xiuzen Feng
Technical Data Sheet
5.0mm Multi-Color Round Type LED Lamps
339-1SURSYGW/S530-A3

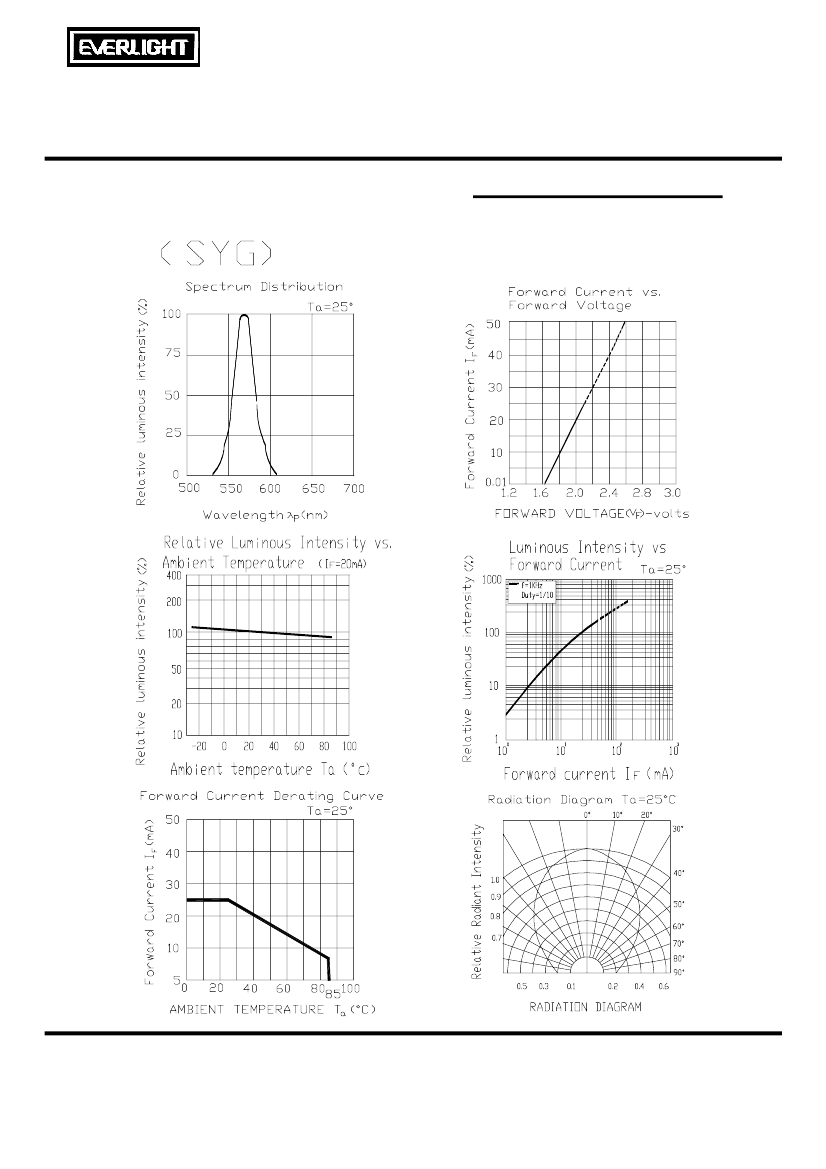

Typical Electro-Optical Characteristic Curves:
█
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-033-1183
http : //www.everlight.com
Prepared date:
2006/3/13
Rev.:
1
Page: 5 of 7
Prepared by:Xiuzen Feng
Technical Data Sheet
5.0mm Multi-Color Round Type LED Lamps
339-1SURSYGW/S530-A3

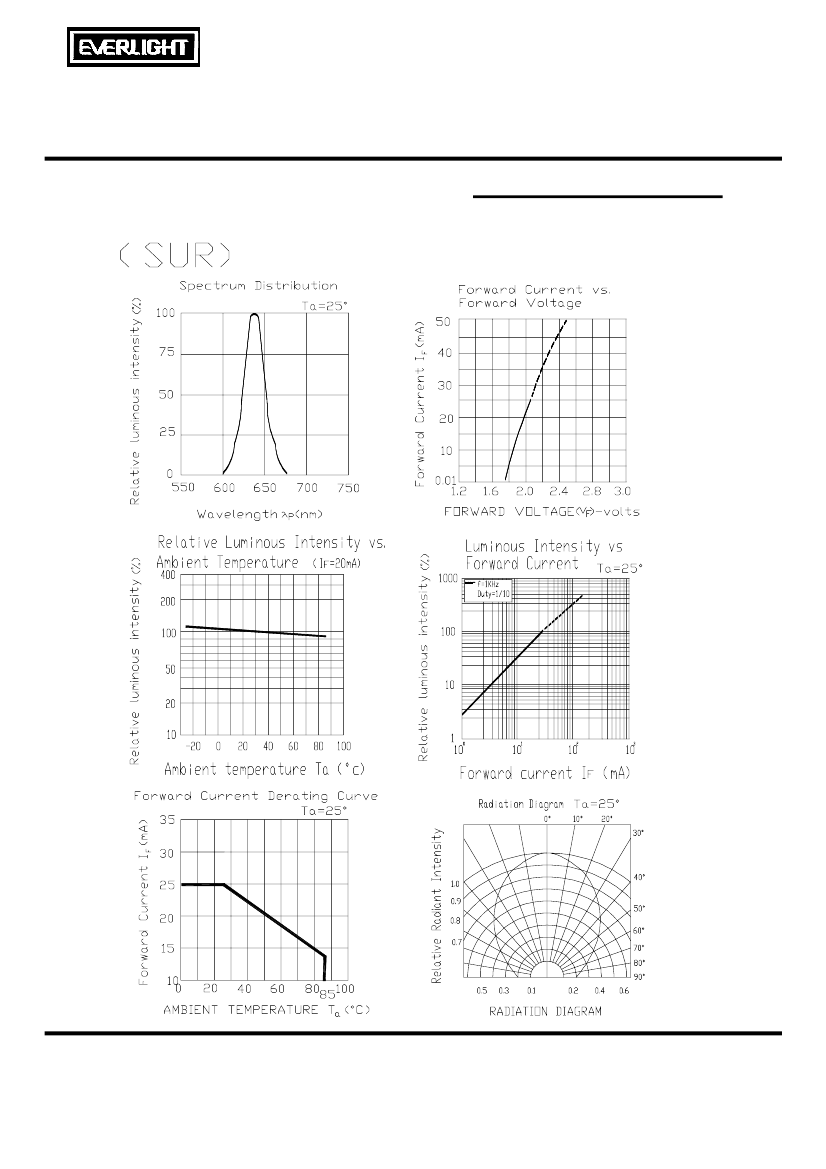

Typical Electro-Optical Characteristic Curves:
█
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-033-1183
http : //www.everlight.com
Prepared date:
2006/3/13
Rev.:
1
Page: 4 of 7
Prepared by:Xiuzen Feng
