Solid State Sensors

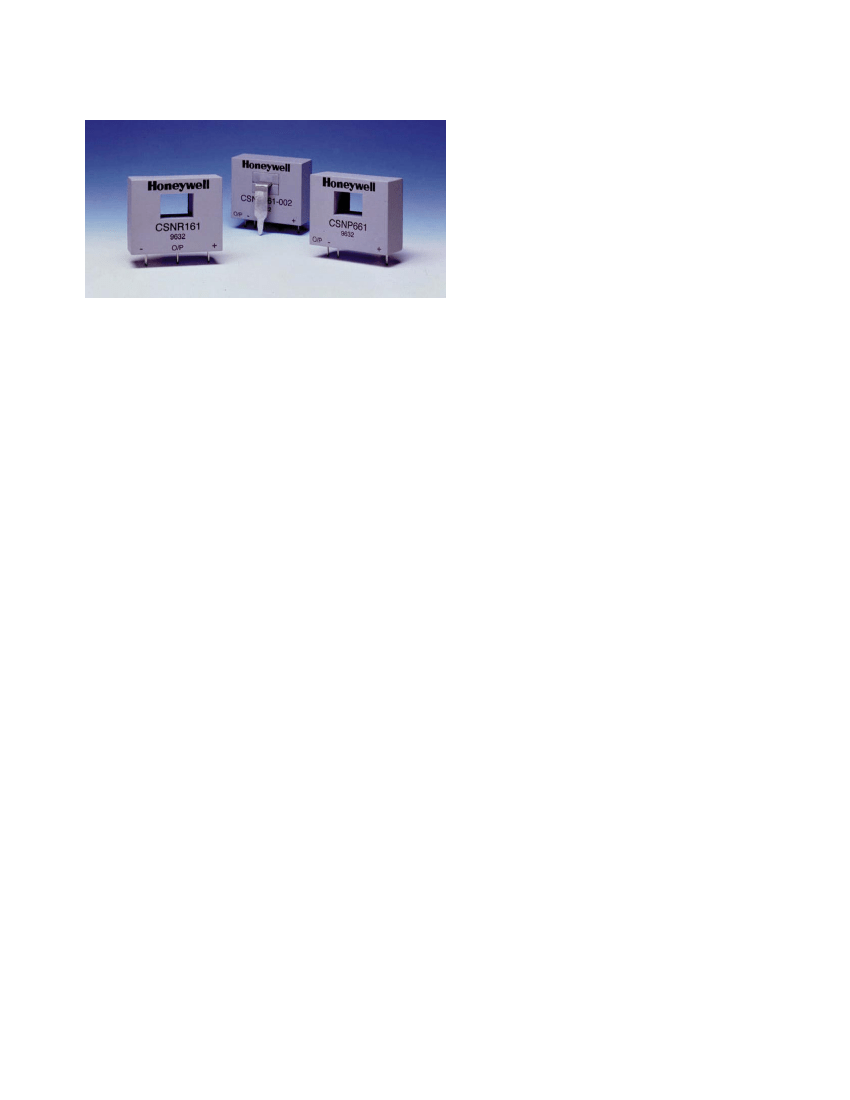

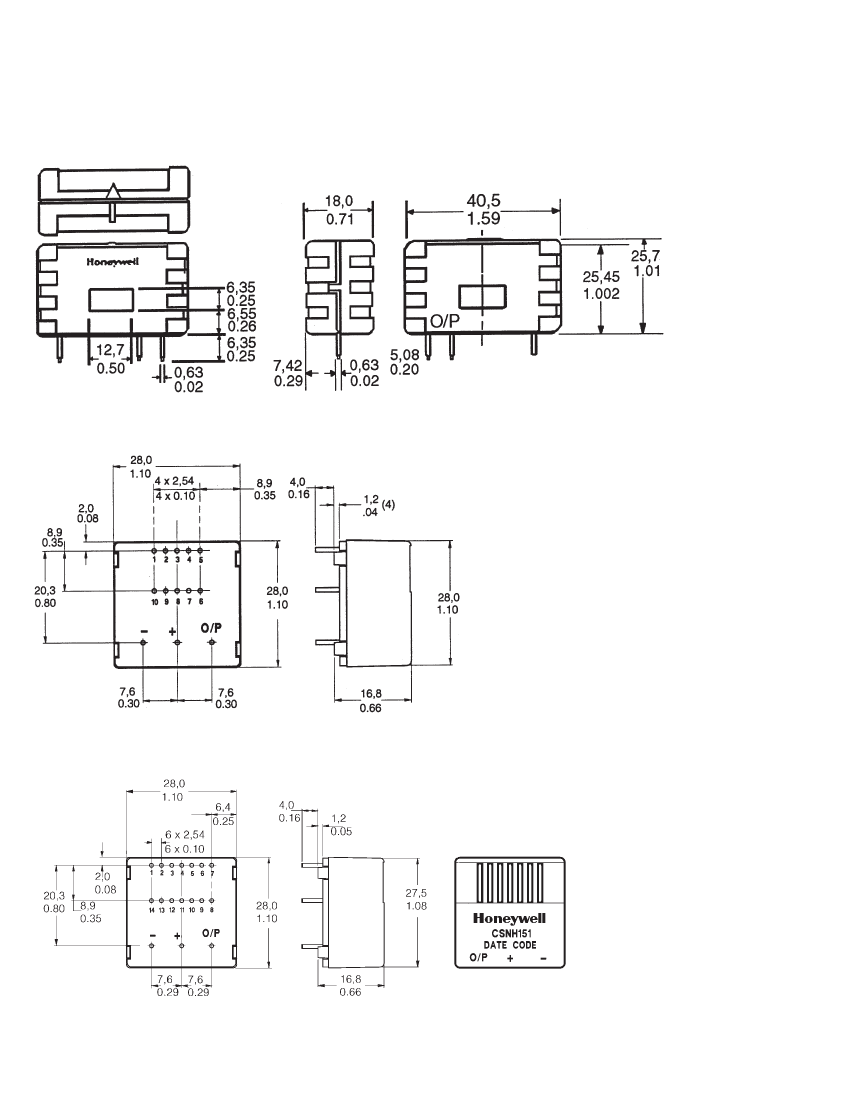

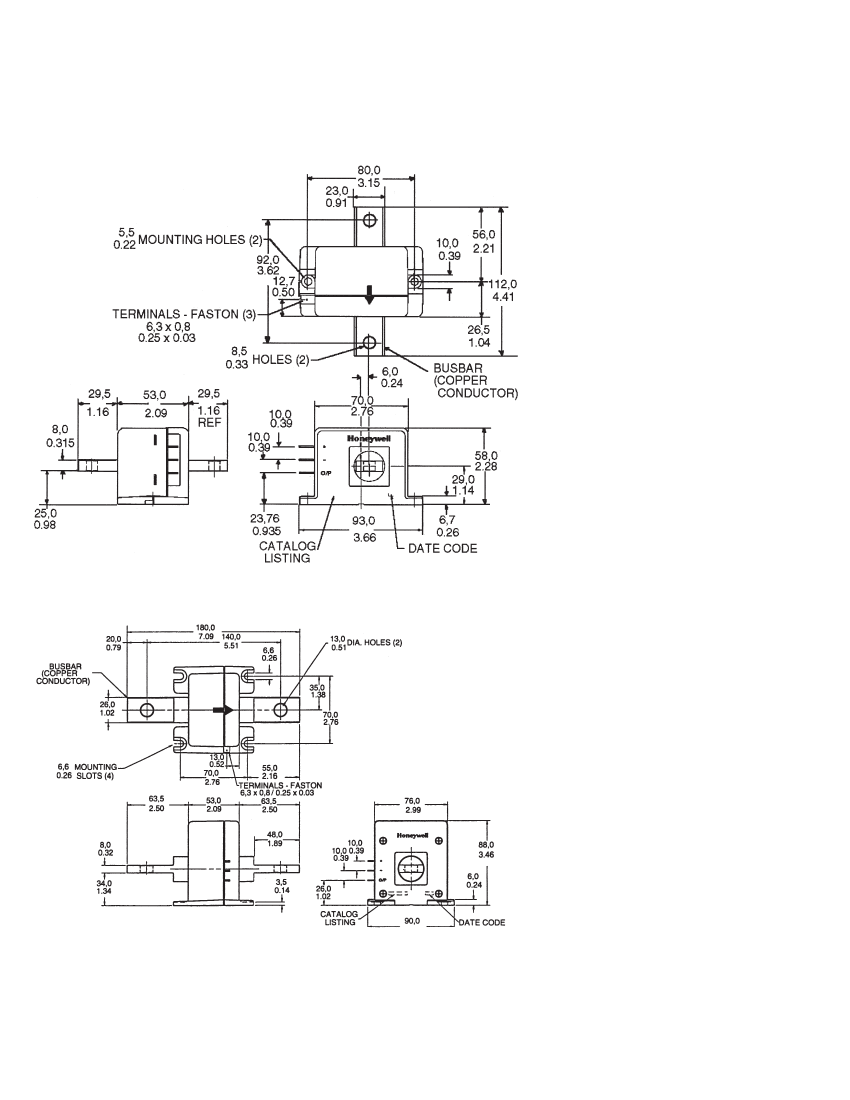

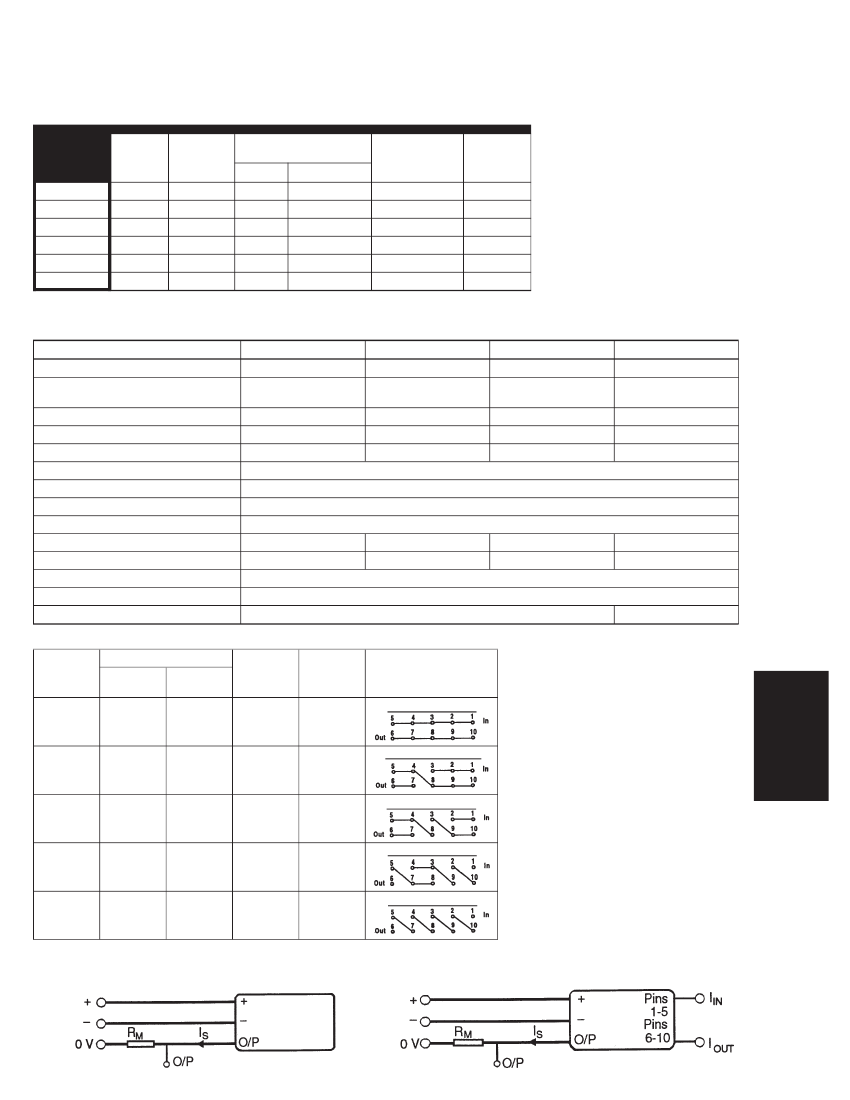

Closed Loop Current Sensors

CSN Series

CATALOG NUMBER SYSTEM

PLEASE NOTE: This matrix is intended

only

to aid you in identifying sensor cata-

log listings. It is not all-inclusive, and

must

not be used

to form new listings.

Example: CSNA111

CSN

Closed Loop Current Sensor

Current Range (Peak/RMS nom.)

±70

A/50 A rms nom.

±100

A/50 A rms nom.

±90

A/50 A rms nom.

±22

A/15 A rms nom.

±36

A/25 A rms nom.

±150

A/100 A rms nom.

±600

A/300 A rms nom.

±1200

A/500 A rms nom.

±600

A/300 A rms nom.

±1200

A/500 A rms nom.

±90

A/50 A rms nom.

±200

A/125 A rms nom.

±150

A/50 A rms nom.

FEATURES

Current sensing up to 1200 amps

Measures AC, DC and impulse

currents

Lowest cost/performance ratio

Rapid response, no overshoot

High overload capacity

High level of electrical isolation

between primary and secondary

circuits

Small size and weight

CLOSED LOOP SENSORS

Closed loop current sensors measure

AC, DC and impulse currents over 0-25,

0-50, 0-100, 0-600 and 0-1200 Amp rang-

es. The CSN Series is based on the princi-

ples of the Hall effect and the null balance

or zero magnetic flux method (feedback

system). The magnetic flux in the sensor

core is constantly controlled at zero. The

amount of current required to balance

zero flux is the measure of the primary

current flowing through the conductor,

multiplied by the ratio of the primary to

secondary windings. This closed loop

current is the output from the device and

presents an image of the primary current

reduced by the number of secondary

turns at any time. This current can be

expressed as a voltage by passing it

through a resistor.

Supply Voltage

±15

±13

±5

±12

V to 18 V

±15

V to 24 V

±12

V to 15 V

Coil Characteristics

1:1000 turns/90 @ 70°C

1:2000 turns/160 @ 70°C

1:2000 turns/130 @ 70°C

1:1000 turns/50 @ 70°C

1:1000 turns/110 @ 70°C

1:1000 turns/30 @ 70°C

1:2000 turns/80 @ 70°C

1:2000 turns/25 @ 70°C

1:5000 turns/50 @ 85°C

Housing Material

Polycarbonate/ABS blend

PDFINFO

p a g e - 0 6 0

Honeywell MICRO SWITCH Sensing and Control 1-800-537-6945 USA

1-815-235-6847 International 1-800-737-3360 Canada
