SJ016M0039A3S-0511 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> SJ016M0039A3S-0511

SJ016M0039A3S-0511: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 39uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size196KB，3 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/; Environmental Compliance

Download Datasheet Parametric View All

SJ016M0039A3S-0511 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 39uF, Through Hole Mount, RADIAL LEADED

SJ016M0039A3S-0511 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2043032261
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	39 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
leakage current	0.00624 mA
Manufacturer's serial number	SJ
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	TAPE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	16 V
ripple current	154 mA
surface mount	NO
Delta tangent	0.16
Terminal shape	WIRE

Preview

Download Datasheet

View All

yageo corporation

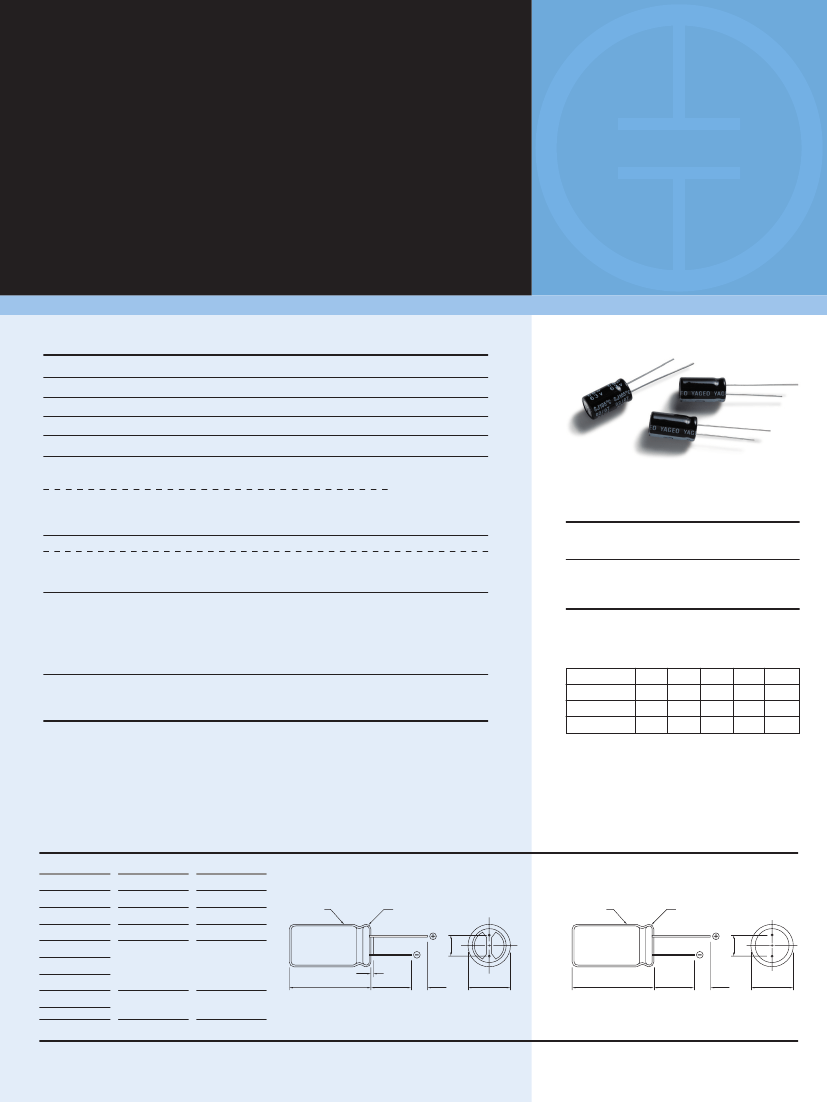

aLUMinUM eLectroLytic capacitors

[ Low impedance and High ripple series ]

Miniature aluminum

electrolytic capacitors

Features:105°c 1000~5000hours,Low impedance and high ripple

recommended applications:aV(tV,Video,audio),Monitor/computer,oa/Ha/

commuciation,converter/inverter,adapter,sMps

electrical characteristics

operating temperature : -40° ~ +105°c

Working Voltage : 6.3 ~ 100V

rate capacitance range : 5.6 ~ 6800µF

capacitance tolerance : -20 ~ +20%

Dc Leakage current (µa) : i = 0.01 cV(µa) or 3µa Whichever is greater.

Dissipation Factor : at 100KHz, 105°c

WV (V) : 6.3

100

D.F (%) : 22

For capacitor whose capacitance exceeds 1000µF. the value of D.F(%) is increased by 2% for every

addition of 1000µF.

WV (V)

Z - 40°c / Z + 20°c

6.3

100

impedance : Z - 25°c / Z + 20°c

description

Features:105°c 1000~5000hours,Low impedance

and high ripple

recommended applications:aV(tV,Vid

eo,audio),Monitor/computer,oa/Ha/

commuciation,converter/inverter,adapter,sMps

after applying rated voltage with max ripple current for 1000~5000 hours at 105°c,the capacitor

shall meet the following requirement.

(a)capacitance change:Within±25% of the initial value

(b)Dissipation Factor:Not more than 200% of the specified value

(c)Leakage Current:Not more than the specified value

after placed at 105°c without voltage applied for 1000 hours(500 hours for L=7),the capacitor

shall meet the same requirement as endurance.

Multiplier for Ripple Current

Frequency coefficient

Frequency(Hz) 50

5.6~390µF 0.60

470~1000µF 0.65

1200~6800µF 0.75

120

0.70

0.75

0.80

0.85

0.90

0.95

10K 100K

0.95 1.00

0.98 1.00

1.00 1.00

diagram of dimensions

dø

4.0

5.0

6.3

8.0

10.0

12.0

13.0

16.0

18.0

1.5

2.0

2.5

3.5

5.0

dø

0.45

0.5

rubber stand-off

Vinyl sleeve

(p.V.c)

rubber end seal

Vinyl sleeve

(p.V.c)

Dimensions : mm

rubber end seal

F0.5

0.6

0.4Max.

15Min.

5Min.

D0.5

15Min.

5Min.

D0.5

7.5

0.8

L ≤16 : L+1.5max

L >16 : L+2max

Dø =8&10 : L+2.5

Dø <20 : Dø+0.5

Dø ≥20 : Dø+1
