350714-4 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 350714-4

Preview

350714-4: Description15P UMNL PIN HDR ASSY 94VO LF; CategoryThe connector The connector; File Size243KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

350714-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	350714-4	-	-	View	Buy Now

350714-4 Overview

15P UMNL PIN HDR ASSY 94VO LF

350714-4 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	16 weeks
Other features	MATE-N-LOK
Connector type	POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	350736-1
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	POLYAMIDE
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

8

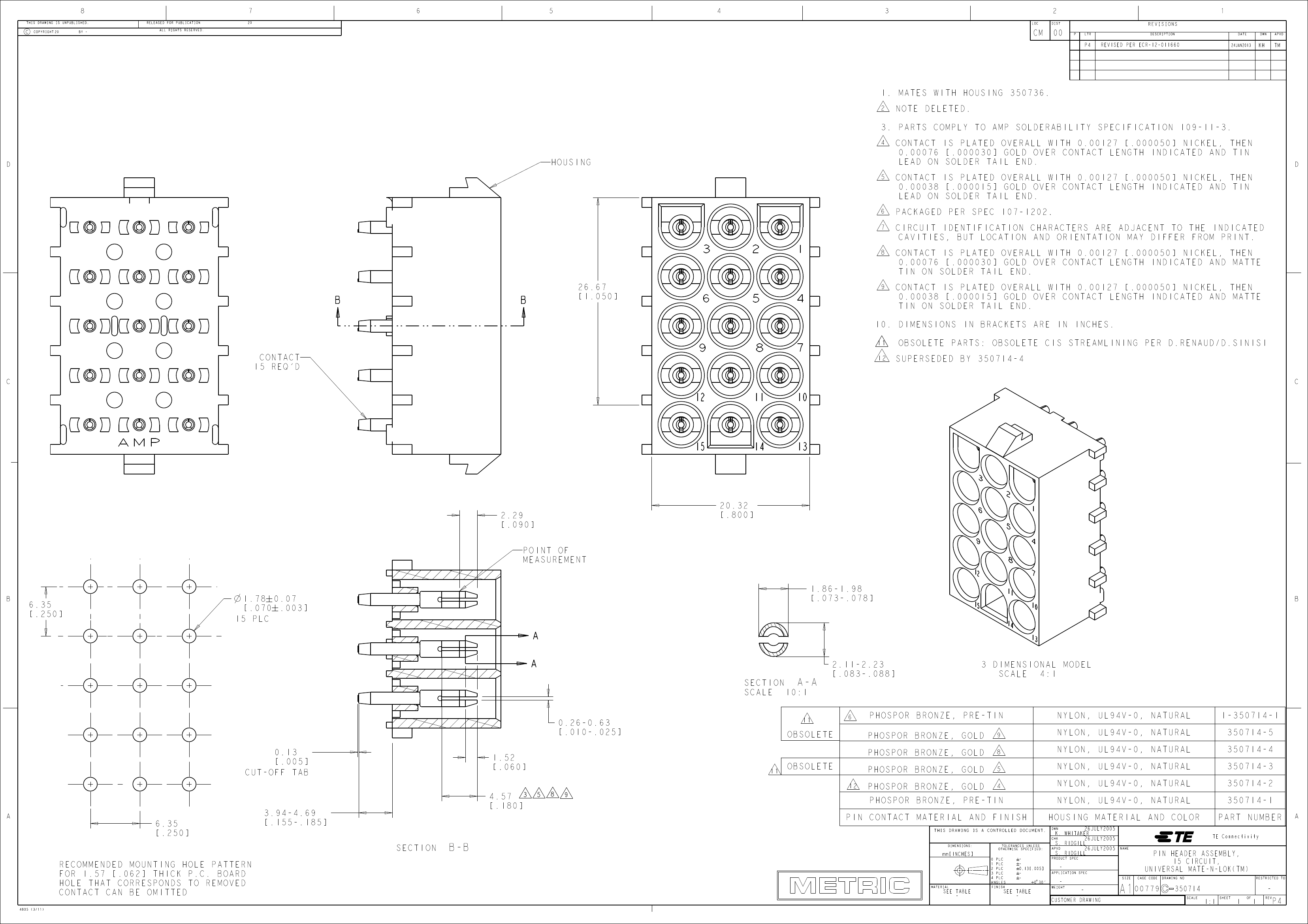

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

7

6

5

4

3

LOC

2

DIST

P

LTR

1

REVISIONS

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT

D

HOUSING

D

B

26.67

[ 1.050 ]

CONTACT

15 REQ'D

C

2.29

[ .090 ]

POINT OF

MEASUREMENT

20.32

[ .800 ]

B

6.35

[ .250 ]

1.78 0.07

[ .070 .003 ]

15 PLC

1.86 -1.98

[ .073 -.078 ]

B

A

SECTION

A-A

SCALE

10:1

0.26 -0.63

[ .010 -.025 ]

0.13

[ .005 ]

CUT-OFF TAB

1.52

[ .060 ]

4.57

[ .180 ]

2.11 -2.23

[ .083 -.088 ]

3 DIMENSIONAL MODEL

SCALE

4:1

PHOSPOR BRONZE, PRE-TIN

OBSOLETE

NYLON, UL94V-0, NATURAL

1- 350714 -1

350714 -5

350714 -4

350714 -3

350714 -2

350714 -1

PART NUMBER

TE Connectivity

A

6.35

[ .250 ]

RECOMMENDED MOUNTING HOLE PATTERN

FOR 1.57 [.062] THICK P.C. BOARD

HOLE THAT CORRESPONDS TO REMOVED

CONTACT CAN BE OMITTED

4805 (3/11)

3.94 -4.69

[ .155 -.185 ]

SECTION

PHOSPOR BRONZE, PRE-TIN

PIN CONTACT MATERIAL AND FINISH

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

NYLON, UL94V-0, NATURAL

HOUSING MATERIAL AND COLOR

A

B-B

NAME

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

PRODUCT SPEC

APPLICATION SPEC

WEIGHT

A1

SIZE

CAGE CODE

DRAWING NO

RESTRICTED TO

SCALE

SHEET

OF

REV

350714-4 Related Products

	350714-4	350714-1
Description	15P UMNL PIN HDR ASSY 94VO LF	15P UMNL PIN HDR ASSY 94VO
Brand Name	AMP	AMP
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Factory Lead Time	16 weeks	21 weeks 5 days
Other features	MATE-N-LOK	MATE-N-LOK
Connector type	POWER CONNECTOR	POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn)
Contact point gender	MALE	MALE
Contact material	PHOSPHOR BRONZE	NOT SPECIFIED
DIN compliance	NO	NO
empty shell	NO	YES
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e3	e3
MIL compliance	NO	NO
Plug information	350736-1	350736-1
Mixed contacts	NO	NO
Installation type	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLDER	SOLDER
Total number of contacts	15	15
UL Flammability Code	94V-0	94V-0
