Datasheet> All Categories > The connector> The connector> 5917738-5

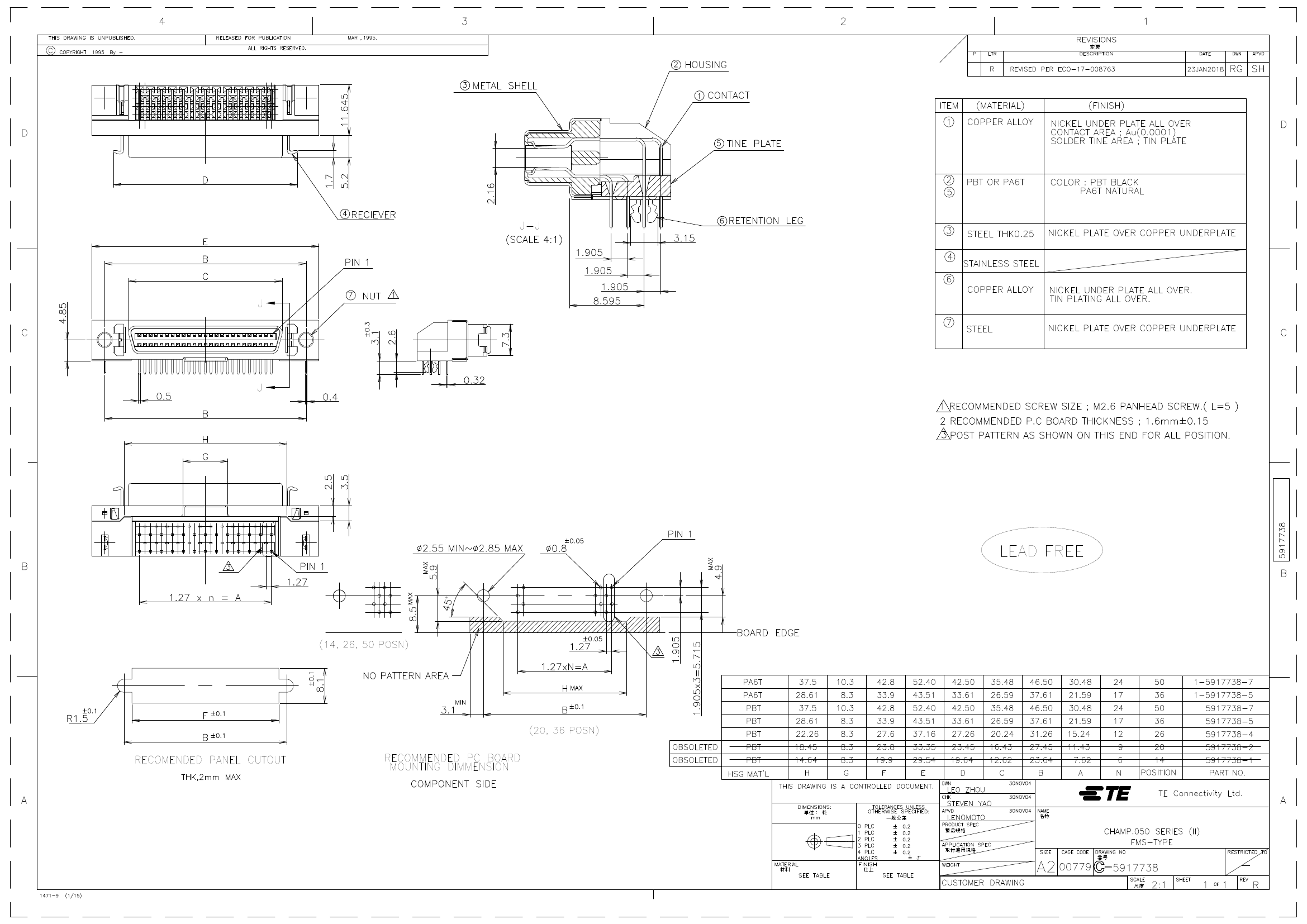

Preview

5917738-5: DescriptionCHAMP 050 FMS REC HDR ASY 36P; CategoryThe connector The connector; File Size111KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5917738-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5917738-5	-	-	View	Buy Now

5917738-5 Overview

CHAMP 050 FMS REC HDR ASY 36P

5917738-5 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	20 weeks 5 days
body width	0.382 inch
subject depth	0.458 inch
body length	1.713 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	4
Number of rows loaded	2
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
reliability	COMMERCIAL
Shell surface	NICKEL OVER COPPER
Shell material	STEEL
Terminal length	0.122 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	36
Base Number Matches	1

Preview

Download Datasheet

View All

5917738-5 Related Products

	5917738-5	5917738-4	5917738-7
Description	CHAMP 050 FMS REC HDR ASY 36P	CHAMP 050 FMS REC HDR ASSY 26P	CHAMP 050 FMS REC HDR ASSY 50P
Brand Name	AMP	AMP	AMP
Is it Rohs certified?	conform to	conform to	conform to
Maker	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Factory Lead Time	20 weeks 5 days	10 weeks	20 weeks
body width	0.382 inch	0.382 inch	0.382 inch
subject depth	0.458 inch	0.458 inch	0.458 inch
body length	1.713 inch	1.463 inch	2.063 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	RECTANGULAR CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Insulator color	BLACK	BLACK	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD AND PANEL
PCB row number	4	4	4
Number of rows loaded	2	2	2
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	1.905 mm	1.905 mm	1.905 mm
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL OVER COPPER	NICKEL	NICKEL
Shell material	STEEL	STEEL	STEEL
Terminal length	0.122 inch	0.122 inch	0.122 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	36	26	50
Base Number Matches	1	1	1
package instruction	-	ROHS COMPLIANT	ROHS COMPLIANT
DIN compliance	-	NO	NO
empty shell	-	NO	NO
Filter function	-	NO	NO
IEC compliance	-	NO	NO
MIL compliance	-	NO	NO
Mixed contacts	-	NO	NO
Options	-	GENERAL PURPOSE	GENERAL PURPOSE
Housing size	-	2/A	5/D
