Part Number

Search

3-208403-3

Description
PIN HDR ASSY,10P,MMATE LF
CategoryThe connector
File Size55KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

3-208403-3 Online Shopping

Suppliers Part Number Price MOQ In stock
3-208403-3 - - View Buy Now

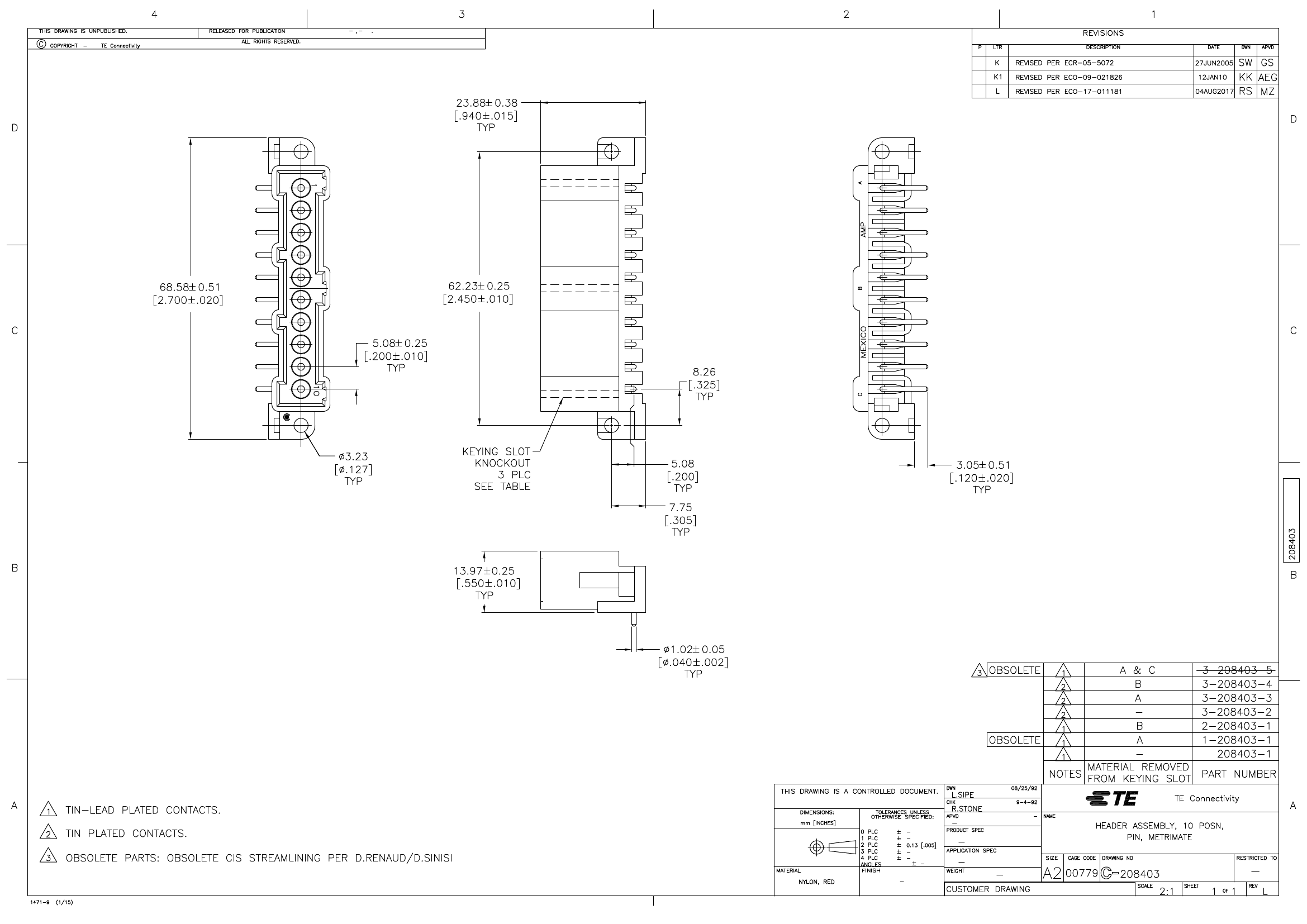

3-208403-3 Overview

PIN HDR ASSY,10P,MMATE LF

3-208403-3 Parametric

Parameter NameAttribute value
Connector typefemale end
Connector Systemwire to board
Connectors and terminals terminate toA printed circuit board
Connector typePublic end
Connector configurationDirect plug-in
PCB mounting directionright angle
Number of Positions10
Rows1
keyingA
Operating voltage (VAC)600
Operating voltage (VDC)600
Drawer typestandard
Contact Current Rating (Max) (A)7.5
Tail plating materialtin
Terminal conduction (typ.)signal (data)
Terminal typePin
Terminal layoutDirect plug-in
PCB Termination MethodsThrough Hole - Solder
joint alignmentwith
Joint alignment typeKeyway punch
joint fixationwith
Joint fixation typeLock public end
PCB installation and fixationwith
PCB mounting fixation typemounting hole, mounting hole
Centerline (Pitch) (in).2
Shell materialNylonGF
Shell colorred
Length (in)2.7
Height (in).55
tail length3.05 mm [ .12 in ]
PCB thickness (recommended)1.6 mm [ .063 in ]
Width (in).94
Working group temperature range-55 – 130 °C [ -67 – 266 °F ]
Applicable toplug housing
UL flammability ratingUL 94V-0
UL file numberE28476
Tested by VDEyes
UL ratingcertified, recognized
Agencies/StandardsCSA, UL
Encapsulation methodbox and tube, tube
Package quantity7

3-208403-3 Related Products

3-208403-3 3-208403-4
Description PIN HDR ASSY,10P,MMATE LF PIN HDR ASSY,10P,MMATE LF
Connector System wire to board wire to board
Connectors and terminals terminate to A printed circuit board A printed circuit board
Connector configuration Direct plug-in Direct plug-in
PCB mounting direction right angle right angle
Number of Positions 10 10
Rows 1 1
keying A B
Operating voltage (VAC) 600 600
Operating voltage (VDC) 600 600
Drawer type standard standard
Contact Current Rating (Max) (A) 7.5 7.5
Tail plating material tin tin
Terminal conduction (typ.) signal (data) signal (data)
Terminal type Pin Pin
Terminal layout Direct plug-in Direct plug-in
PCB Termination Methods Through Hole - Solder Through Hole - Solder
joint alignment with with
Joint alignment type Keyway punch Keyway punch
joint fixation with with
Joint fixation type Lock public end Lock public end
PCB installation and fixation with with
PCB mounting fixation type mounting hole, mounting hole mounting hole, mounting hole
Centerline (Pitch) (in) .2 .2
Shell material NylonGF NylonGF
Shell color red red
Length (in) 2.7 2.7
Height (in) .55 .55
tail length 3.05 mm [ .12 in ] 3.05 mm [ .12 in ]
PCB thickness (recommended) 1.6 mm [ .063 in ] 1.6 mm [ .063 in ]
Width (in) .94 .94
Working group temperature range -55 – 130 °C [ -67 – 266 °F ] -55 – 130 °C [ -67 – 266 °F ]
Applicable to plug housing plug housing
UL flammability rating UL 94V-0 UL 94V-0
UL file number E28476 E28476
Tested by VDE yes yes
UL rating certified, recognized certified, recognized
Agencies/Standards CSA, UL CSA, UL
Encapsulation method box and tube, tube box and tube, tube
Package quantity 7 7
Connector type Public end Public end
