1809076 Overview

pluggable terminal blocks 2 pos 5.08mm pitch through hole header

1809076 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerPHOENIX CONTACT
Reach Compliance Codeunknown
ECCN codeEAR99
Samacsys Confidence4
Samacsys StatusReleased
Samacsys PartID449361
Samacsys Pin Count2
Samacsys Part CategoryConnector
Samacsys Package CategoryHeader, Shrouded
Samacsys Footprint Name1809076_a
Samacsys Released Date2019-01-14 14:34:52
Is SamacsysN
Terminal and terminal strip typesSTRIP TERMINAL BLOCK
Base Number Matches1
https://www.phoenixcontact.com/us/produkte/1809076

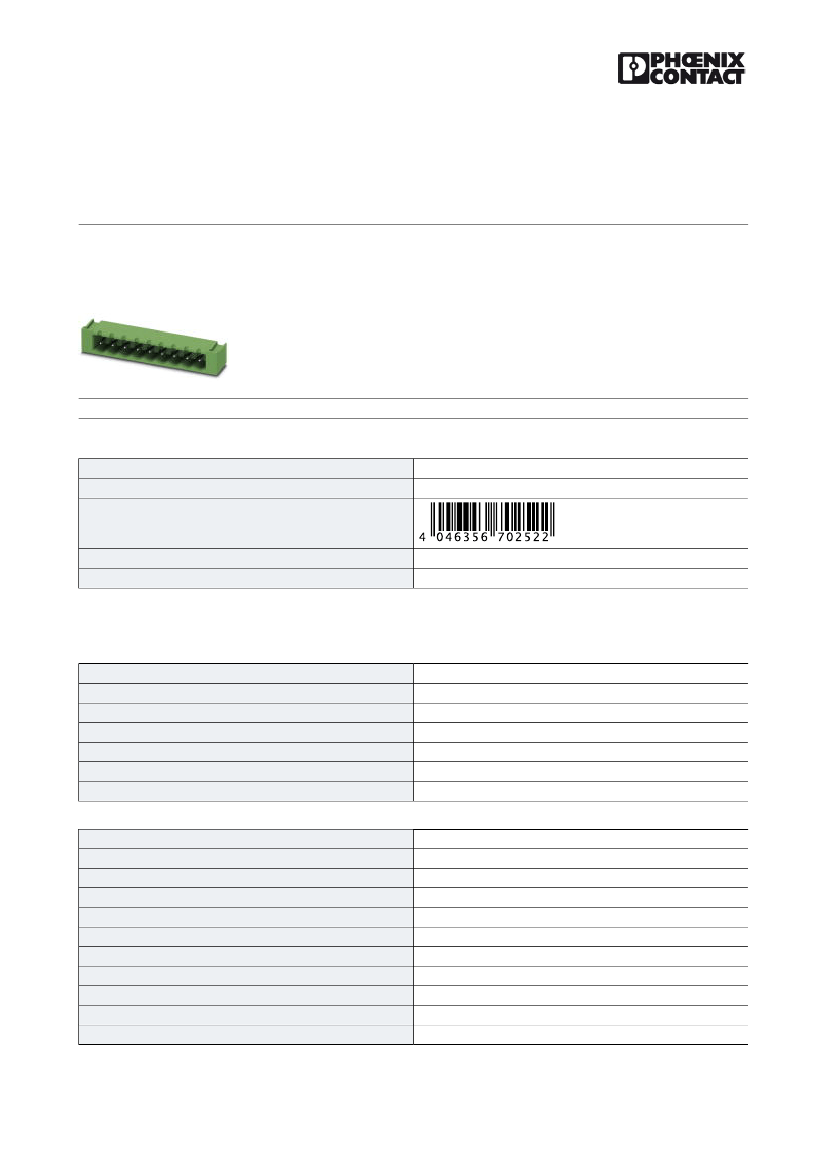

Printed-circuit board connector - MSTBA 2,5/ 2-G-5,08-
LR - 1809076
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in
the user's documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 2, Pitch: 5.08 mm,
Color: green, Contact surface: Tin, Assembly: Soldering
Key commercial data
Packing unit
Minimum order quantity
GTIN
Custom tariff number
Country of origin
85366990
GERMANY
0
1
Technical data

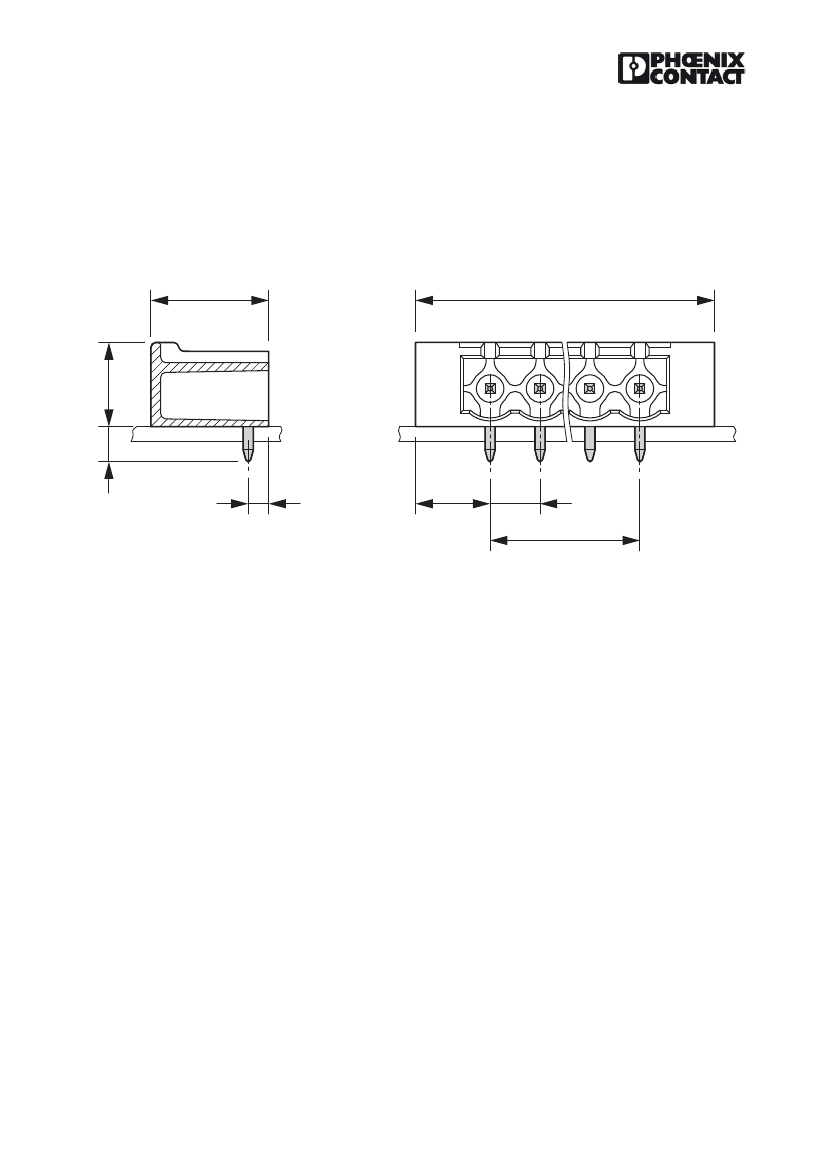

Dimensions / positions
Length
Height
Pitch
Dimension a
Number of positions
Pin dimensions
Hole diameter
12 mm
11.9 mm
5.08 mm
5.08 mm
2
1 x 1 mm
1.4 mm
Technical data
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current IN
Nominal voltage UN
Maximum load current
MSTBA 2,5/..-G-LR
IIIa
4 kV
4 kV
4 kV
320 V
400 V
EN-VDE
12 A
250 V
12 A
07.06.2012   Page 1 / 5
