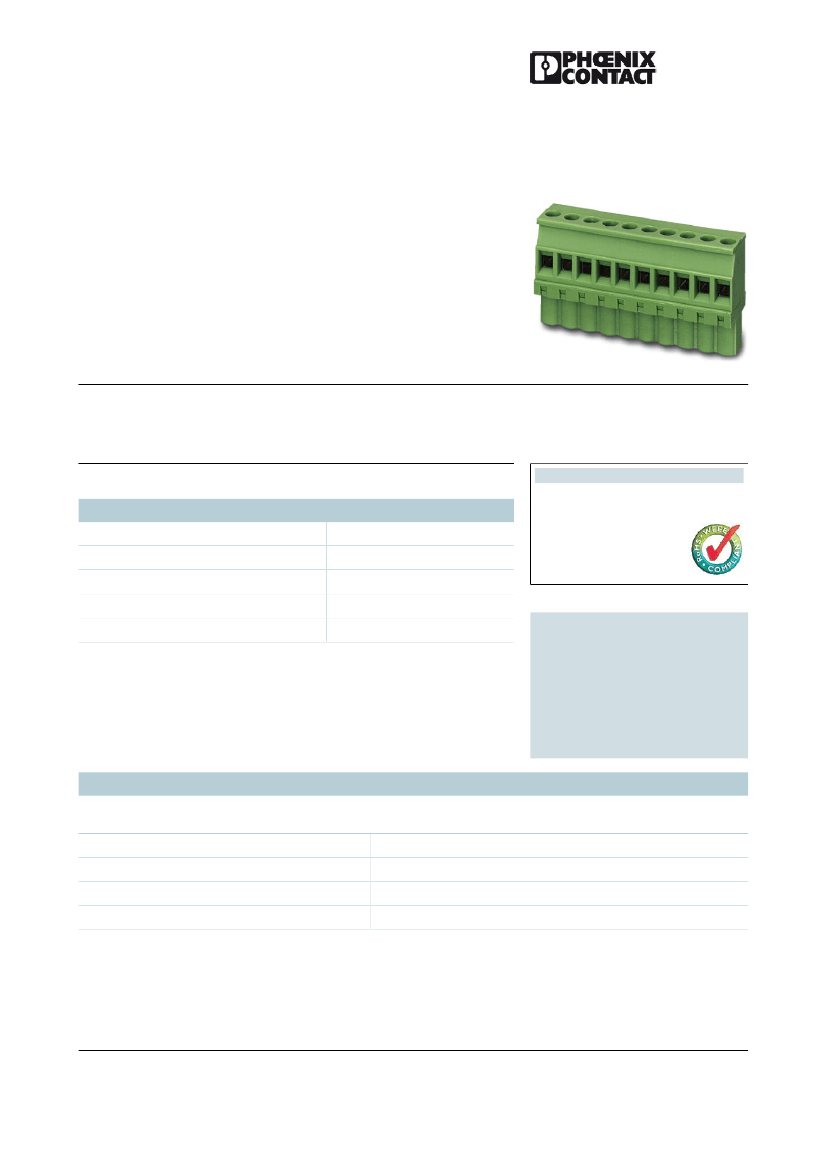

MVSTBW 2,5/ 9-ST-5,08
Order No.: 1792825
The figure shows a 10-position version of the product
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1792825
Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch:
5.08 mm, Number of positions: 9, Connection type: Screw connection,
Color: green
Product notes
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
Catalog page information
4017918045258
50 pcs.
85366990
0.02037 KG
Page 203 (CC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
01/01/2003
Technical data
Dimensions / positions
Pitch
Dimension a
Number of positions
Screw thread
5.08 mm
40.64 mm
9
M3
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 7
Mar 10, 2010
MVSTBW 2,5/ 9-ST-5,08
Order No.: 1792825
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1792825
Tightening torque, min
Tightening torque max
Technical data
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Nominal cross section
Maximum load current
Insulating material
Inflammability class acc. to UL 94
Internal cylindrical gage
Stripping length
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
0.5 Nm
0.6 Nm
I
4 kV
4 kV
4 kV
320 V
630 V
EN-VDE
12 A
250 V
2.5 mm²
12 A
PA
V0
A3
7 mm
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.25 mm²
2.5 mm²
0.25 mm²
2.5 mm²
24
12
0.2 mm²
1 mm²
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 7
Mar 10, 2010
MVSTBW 2,5/ 9-ST-5,08
Order No.: 1792825
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1792825
2 conductors with same cross section, stranded
min.
2 conductors with same cross section, stranded
max.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Certificates / Approvals
0.2 mm²
1.5 mm²
0.25 mm²
1 mm²
0.5 mm²
1.5 mm²
Certification
CSA
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
CUL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
UL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
CB, CSA, CUL, GOST, UL, VDE-PZI
300 V
10 A
28-12
300 V
10 A
30-12
300 V
10 A
30-12
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 7
Mar 10, 2010
MVSTBW 2,5/ 9-ST-5,08
Order No.: 1792825
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1792825
Accessories
Item
Marking
1051993
0804293
B-STIFT
SK 5,08/3,8:FORTL.ZAHLEN
Marker pen, for manual labeling of unprinted Zack strips, smear-
proof and waterproof, line thickness 0.5 mm
Marker card, printed horizontally, self-adhesive, 12 identical
decades marked 1-10, 11-20 etc. up to 91-(99)100, sufficient for
120 terminal blocks
Marker cards, unprinted, with pitch divisions, self-adhesive, 10-
section marker strips, 12 strips per card, can be labeled with the
M-PEN
Designation
Description
0805412
SK 5,08/3,8:UNBEDRUCKT
Plug/Adapter
1734634
1734401
CP-MSTB
CR-MSTB
Keying profile, is inserted into the slot on the plug or inverted
header, red insulating material
Coding section, inserted into the recess in the header or the
inverted plug, red insulating material
Tools
1205053
SZS 0,6X3,5
Screwdriver, bladed, matches all screw terminal blocks up to 4.0
mm² connection cross section, blade: 0.6 x 3.5 mm, without VDE
approval
Additional products
Item
General
1899207
DFK-MSTBVA 2,5/ 9-G-5,08
Header, Nominal current: 12 A, Nom. voltage: 250 V, Nom.
voltage: 250 V, Pitch: 5.08 mm, Number of positions: 9, Color:
green, Assembly: Soldering
Header, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08
mm, Number of positions: 9, Color: green, Assembly: Press-in
Header, Nominal current: 12 A, Nom. voltage: 200 V, Pitch: 5.08
mm, Number of positions: 9, Color: green, Assembly: Press-in
Plug component, Nominal current: 12 A, Nom. voltage: 320 V,
Pitch: 5.08 mm, Number of positions: 9, Connection type: Spring-
cage conn., Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 9, Connection type: Crimp
connection, Color: green
Header, Nominal current: 10 A, Nom. voltage: 250 V, Pitch: 5.08
mm, Number of positions: 9, Color: green, Assembly: Soldering
Designation
Description
1880371
1859580
1873427
EMSTBA 2,5/ 9-G-5,08
EMSTBVA 2,5/ 9-G-5,08
FKIC 2,5/ 9-ST-5,08
1823914
ICC 2,5/ 9-STZ-5,08
1762444
MDSTB 2,5/ 9-G1-5,08
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 4 / 7
Mar 10, 2010
MVSTBW 2,5/ 9-ST-5,08
Order No.: 1792825
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1792825
1842131
1762570
1845400
1770782
1757310
1768011
1788790
MDSTBA 2,5/ 9-G-5,08
MDSTBV 2,5/ 9-G1-5,08
MDSTBVA 2,5/ 9-G-5,08
MSTB 2,5/ 9-G-5,08-LA
MSTBA 2,5/ 9-G-5,08
MSTBA 2,5/ 9-G-5,08-LA
MSTBVK 2,5/ 9-G-5,08
Header, Nominal current: 10 A, Nom. voltage: 250 V, Pitch: 5.08
mm, Number of positions: 9, Color: green, Assembly: Soldering
Header, Nominal current: 10 A, Nom. voltage: 250 V, Pitch: 5.08
mm, Number of positions: 9, Color: green, Assembly: Soldering
Header, Nominal current: 10 A, Nom. voltage: 250 V, Pitch: 5.08
mm, Number of positions: 9, Color: green, Assembly: Soldering
Header, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08
mm, Number of positions: 9, Assembly: Soldering
Header, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08
mm, Number of positions: 9, Color: green, Assembly: Soldering
Header, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08
mm, Number of positions: 9, Assembly: Soldering
Plug component, Nominal current: 12 A, Nom. voltage: 320 V,
Pitch: 5.08 mm, Number of positions: 9, Connection type: Screw
connection, Assembly: DIN rail, Color: green
Plug component, Nominal current: 12 A, Nom. voltage: 320 V,
Pitch: 5.08 mm, Number of positions: 9, Connection type: Screw
connection, Assembly: Direct mounting, Color: green
Header, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08
mm, Number of positions: 9, Color: green, Assembly: Soldering
Header, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08
mm, Number of positions: 9, Color: green, Assembly: Soldering
Feed-through modular terminal block, Nominal current: 12
A, Nominal voltage: 250 V, Cross section: 0.2 mm² - 4 mm²,
AWG: 24 - 12, Mounting type: NS 32, NS 35/15, NS 35/7,5,
Pitch: 5.08 mm, Width: 5.1, Color: gray
Feed-through modular terminal block, Nominal current: 12
A, Nominal voltage: 250 V, Cross section: 0.2 mm² - 4 mm²,
AWG: 24 - 12, Mounting type: NS 32, NS 35/15, NS 35/7,5,
Pitch: 5.08 mm, Width: 5.08, Color: gray
Feed-through modular terminal block, Nominal current: 12
A, Nominal voltage: 250 V, Cross section: 0.2 mm² - 4 mm²,
AWG: 24 - 12, Mounting type: NS 35/7,5, NS 35/15, NS 32,
Pitch: 5.08 mm, Width: 5.1, Color: blue
Feed-through modular terminal block, Type of connection: Special
and hybrid connection, Screw connection, Cross section: 0.2
mm² - 4 mm², AWG 24 - 12, Width: 5.08 mm, Color: gray,
Mounting type: NS 32, NS 35/15, NS 35/7,5
Feed-through modular terminal block, Type of connection: Screw
connection, Screw connection, Number of positions: 1, Cross
section: 0.2 mm² - 4 mm², AWG 24 - 12, Width: 5.1 mm,
Color: gray, Mounting type: NS 32, NS 35/15, NS 35/7,5
Feed-through modular terminal block, Type of connection: Screw
connection, Screw connection, Cross section: 0.2 mm² - 4 mm²,
AWG 24 - 12, Width: 5.1 mm, Color: blue, Mounting type: NS
32, NS 35/15, NS 35/7,5
1788606
MVSTBU 2,5/ 9-GB-5,08
1769531
1767449
3002076
SMSTB 2,5/ 9-G-5,08
SMSTBA 2,5/ 9-G-5,08
UK 3-MVSTB-5,08
3002102
UK 3-MVSTB-5,08-LA 24RD
3002063
UK 3-MVSTB-5,08/EK
3002131
UK 3D-MSTBV-5,08
3002144
UK 3D-MSTBV-5,08-LA 24RD
3002173
UK 3D-MSTBV-5,08/EK
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 5 / 7
Mar 10, 2010
