1792669 Overview

pluggable terminal blocks 6 pos 5.08mm pitch through hole header

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/us/produkte/1792669

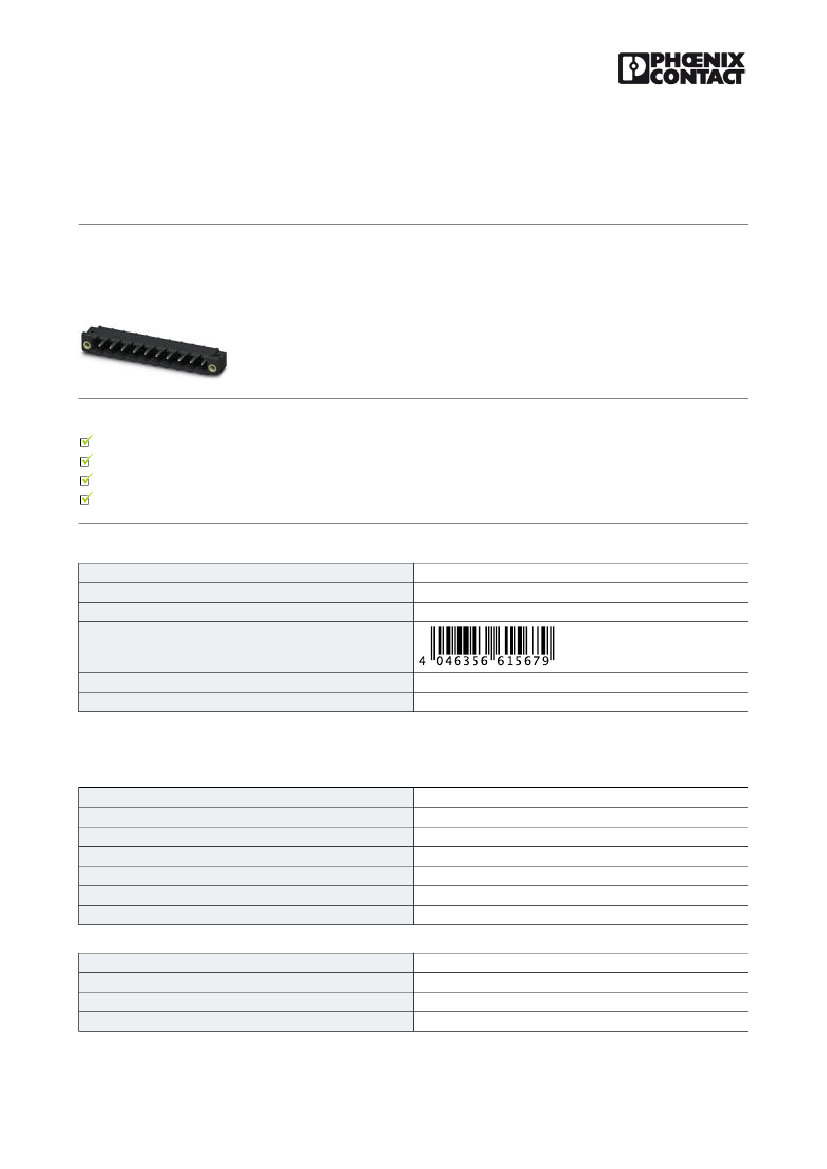

Printed-circuit board connector - CC 2,5/ 6-GF-5,08-LR

P26THR - 1792669

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in

the user's documentation. Our General Terms of Use for Downloads are valid

(http://download.phoenixcontact.com)

Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 6, Pitch: 5.08 mm,

Color: Black, Contact surface: Tin, Assembly: SMD/THT/THR

Why buy this product

Standard pin length of 2.6 mm, other pin lengths available on request

Plug-in direction parallel to the PCB

Delivery form: box packaging, in bulk for small series

Use in SMT reflow processes

Key commercial data

Packing unit

Minimum order quantity

Catalog page

GTIN

Custom tariff number

Country of origin

85366990

GERMANY

Page 273 (CC-2011)

Technical data

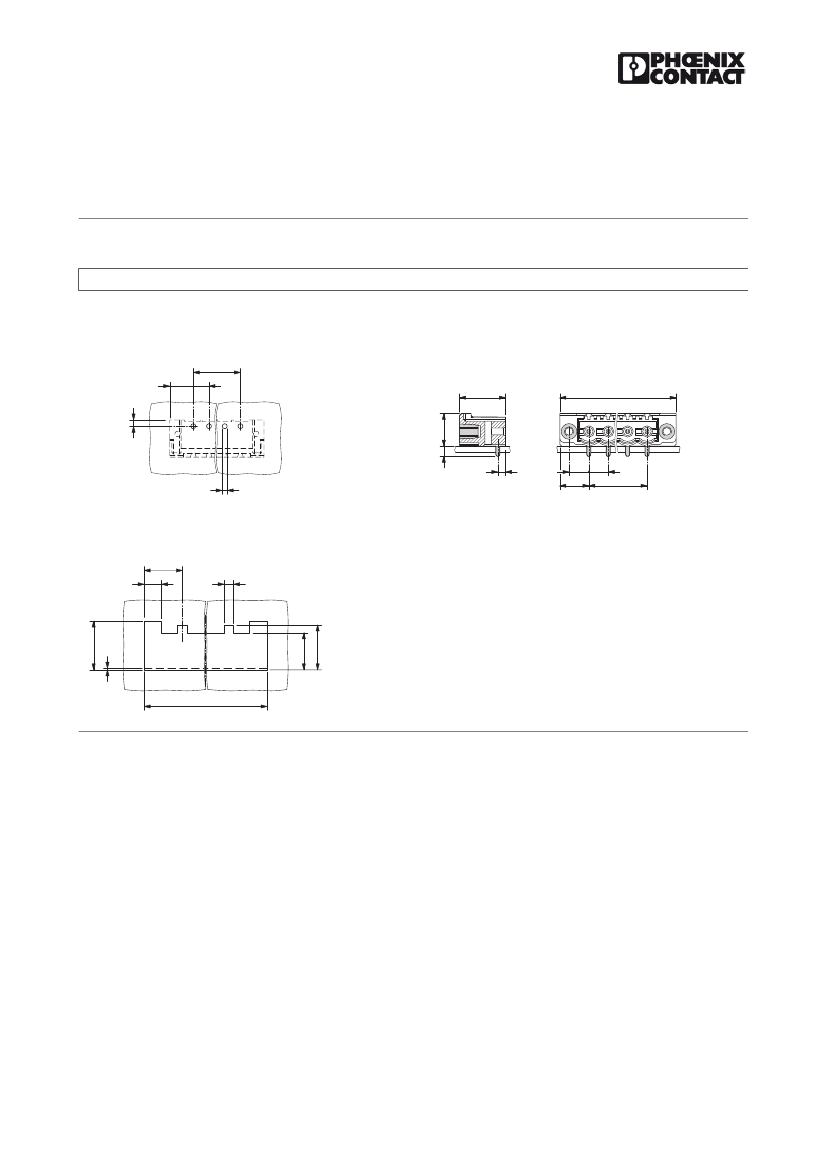

Dimensions / positions

Length

Height

Pitch

Dimension a

Number of positions

Pin dimensions

Hole diameter

12 mm

11.2 mm

5.08 mm

25.4 mm

1 x 1 mm

1.6 mm

Technical data

Range of articles

Insulating material group

Rated surge voltage (III/3)

Rated surge voltage (III/2)

CC 2,5/..-GF-LR

IIIa

4 kV

06.06.2012 Page 1 / 3
