Feed-through terminal block - PT 1,5/S/1P BU - 3208595
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

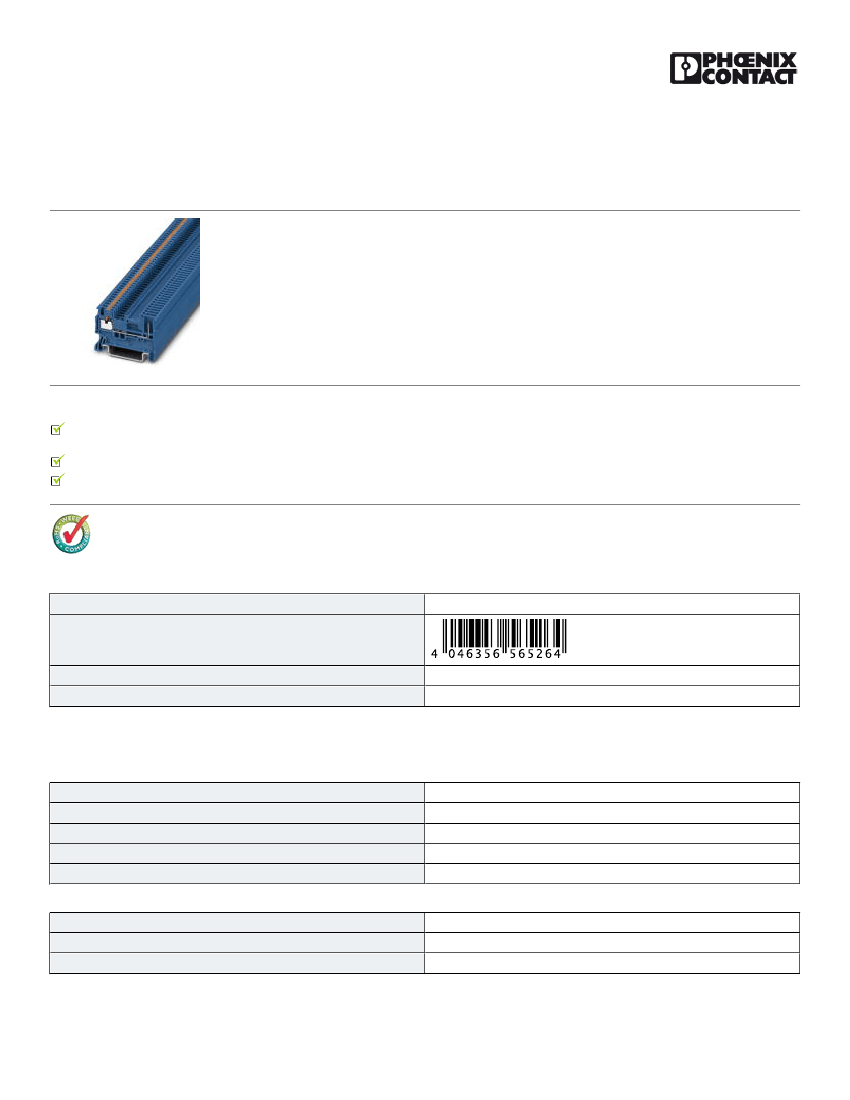

Feed-through terminal block, Connection method: Push-in / plug connection, Cross section: 0.14 mm² - 1.5 mm²,
AWG: 26 - 16, Width: 3.5 mm, Color: blue, Mounting type: NS 35/7.5, NS 35/15
Product Features
The push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring
of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
Key commercial data
Packing unit
GTIN
Custom tariff number
Country of origin
85369010
POLAND
1 PCE
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
1
2
blue
PA
V0
Dimensions
Width
Length
Height NS 35/7,5
3.5 mm
46 mm
32 mm
07.05.2013 Page 1 / 23
https://www.phoenixcontact.com/us/produkte/3208595
Feed-through terminal block - PT 1,5/S/1P BU - 3208595
Technical data
Dimensions
Height NS 35/15
39.5 mm
Technical data
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Open side panel
17.5 A (with 1.5 mm conductor cross section)
6 kV
3
III
I
IEC 61984
17.5 A (observe derating)
500 V
ja
2
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Min. AWG conductor cross section, stranded
Max. AWG conductor cross section, stranded
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
Connection method
Stripping length
Internal cylindrical gage
0.14 mm²
1.5 mm²
26
16
0.14 mm²
1.5 mm²
26
14
0.14 mm²
1.5 mm²
0.14 mm²
1 mm²
Push-in / plug connection
8 mm
A1 / B1
Classifications
ETIM
ETIM 4.0
ETIM 5.0
EC000897
EC000897
UNSPSC
UNSPSC 11
39121410
07.05.2013 Page 2 / 23
https://www.phoenixcontact.com/us/produkte/3208595
Feed-through terminal block - PT 1,5/S/1P BU - 3208595
Classifications
UNSPSC
UNSPSC 12.01
UNSPSC 13.2
UNSPSC 6.01
UNSPSC 7.0901
39121410
39121410
30211811
39121410
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27141124
27141124
27141124
27141124
27141124
27141124
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / GOST / GL / LR / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-14
15 A
300 V
C
26-14
15 A
300 V
D
26-14
5A
600 V
07.05.2013 Page 3 / 23
https://www.phoenixcontact.com/us/produkte/3208595
Feed-through terminal block - PT 1,5/S/1P BU - 3208595
Approvals
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-14
15 A
300 V
C
26-14
15 A
300 V
D
26-14
5A
600 V
GOST
GL
LR
cULus Recognized
Accessories
Accessories
Assembly

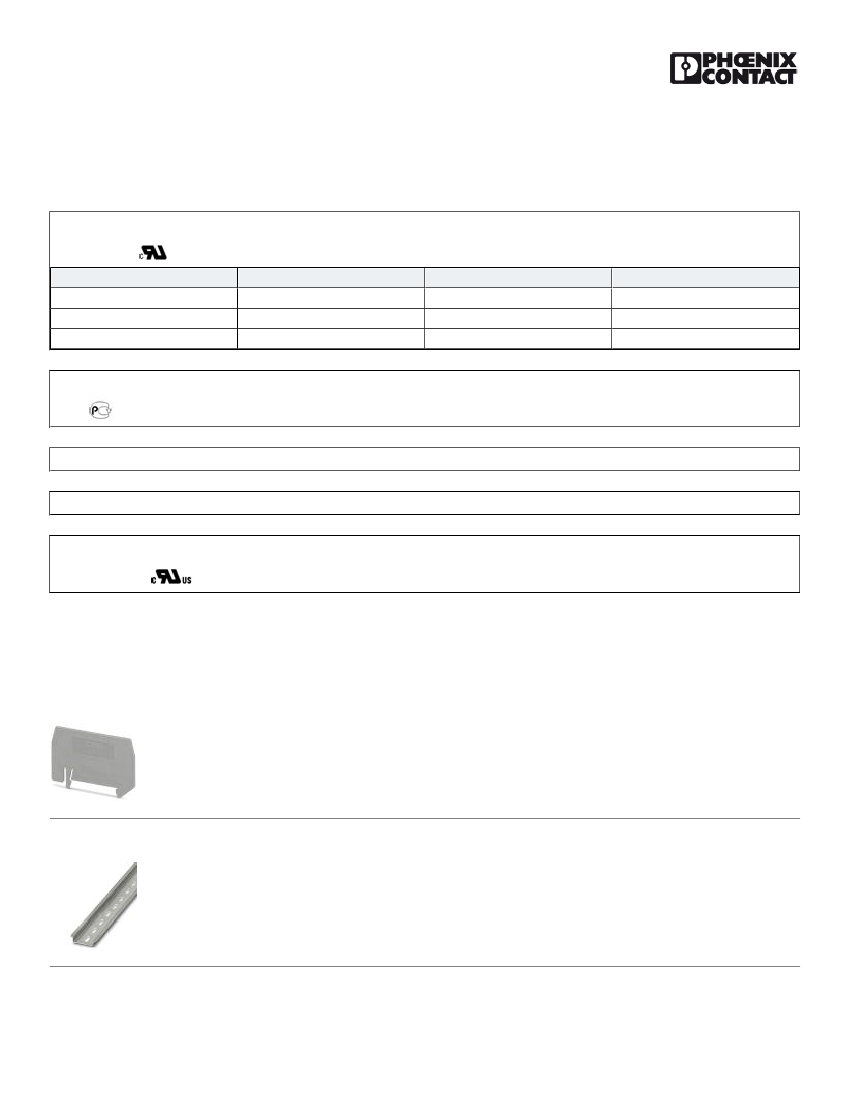

Partition plate - ATP-ST 4 - 3030721
Partition plate, Length: 61 mm, Width: 2 mm, Height: 42 mm, Color: gray
DIN rail perforated - NS 35/ 7,5 PERF 2000MM - 0801733
DIN rail, material: steel galvanized and passivated with a thick layer, perforated, height 7.5 mm, width 35 mm, length:
2000 mm
07.05.2013 Page 4 / 23
https://www.phoenixcontact.com/us/produkte/3208595
Feed-through terminal block - PT 1,5/S/1P BU - 3208595
Accessories

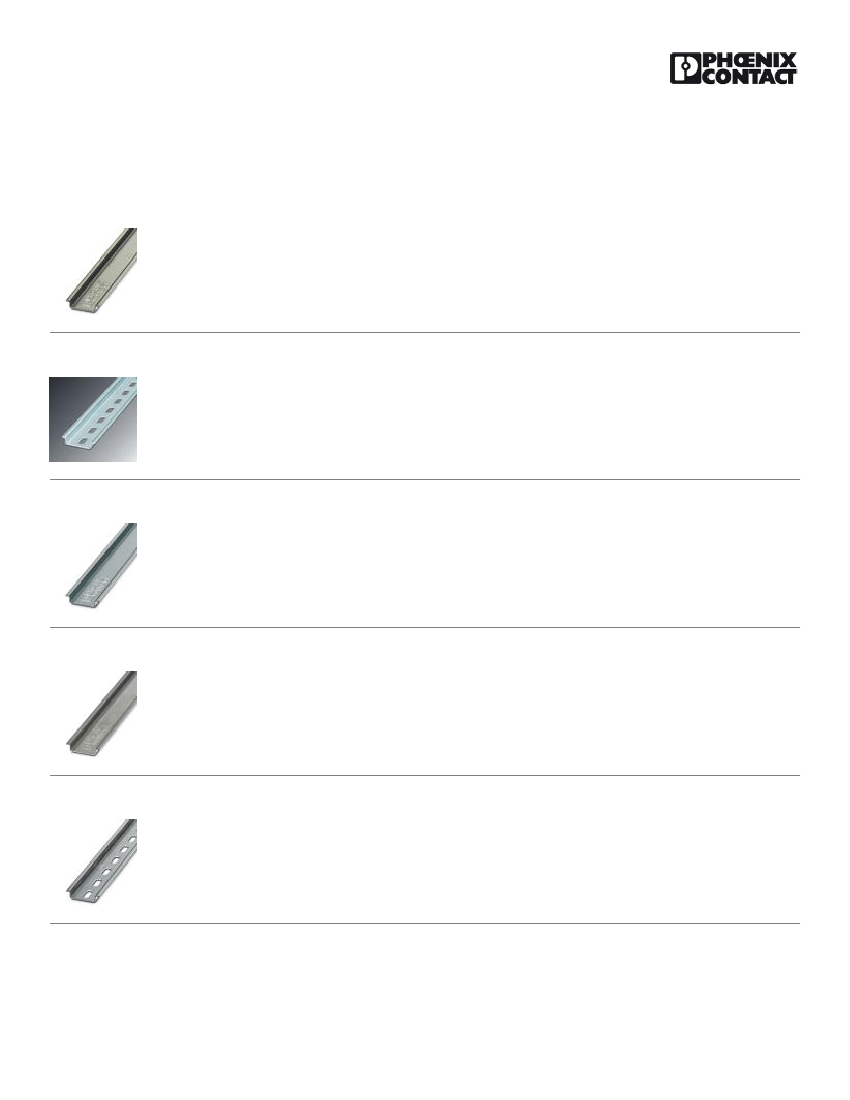

DIN rail - NS 35/ 7,5 UNPERF 2000MM - 0801681
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail - NS 35/ 7,5 WH PERF 2000MM - 1204119
DIN rail 35 mm (NS 35)
DIN rail - NS 35/ 7,5 WH UNPERF 2000MM - 1204122
DIN rail 35 mm (NS 35)
DIN rail, unperforated - NS 35/ 7,5 AL UNPERF 2000MM - 0801704
DIN rail, unperforated, Width: 35 mm, Height: 7.5 mm, Length: 2000 mm, Color: silver
DIN rail - NS 35/ 7,5 ZN PERF 2000MM - 1206421
DIN rail, material: Galvanized, perforated, height 7.5 mm, width 35 mm, length: 2 m
07.05.2013 Page 5 / 23
