8350-8065 datasheet, PDF - EEWORLD Datasheet

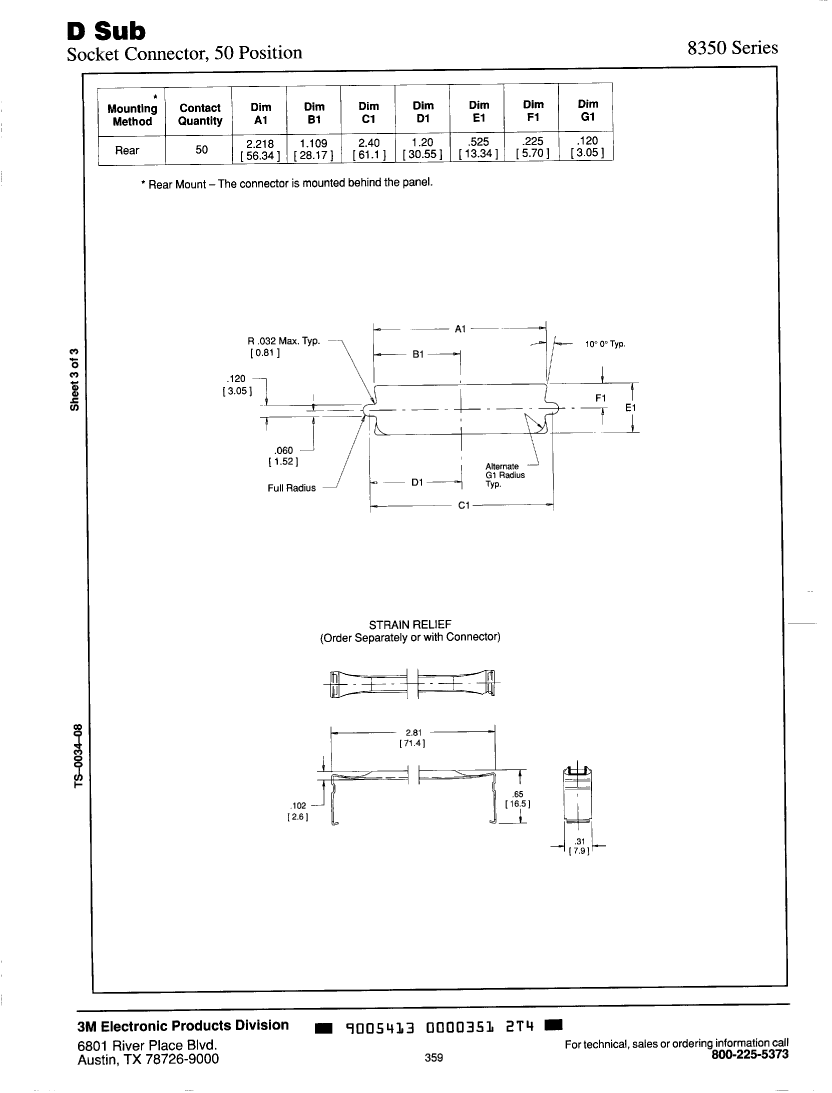

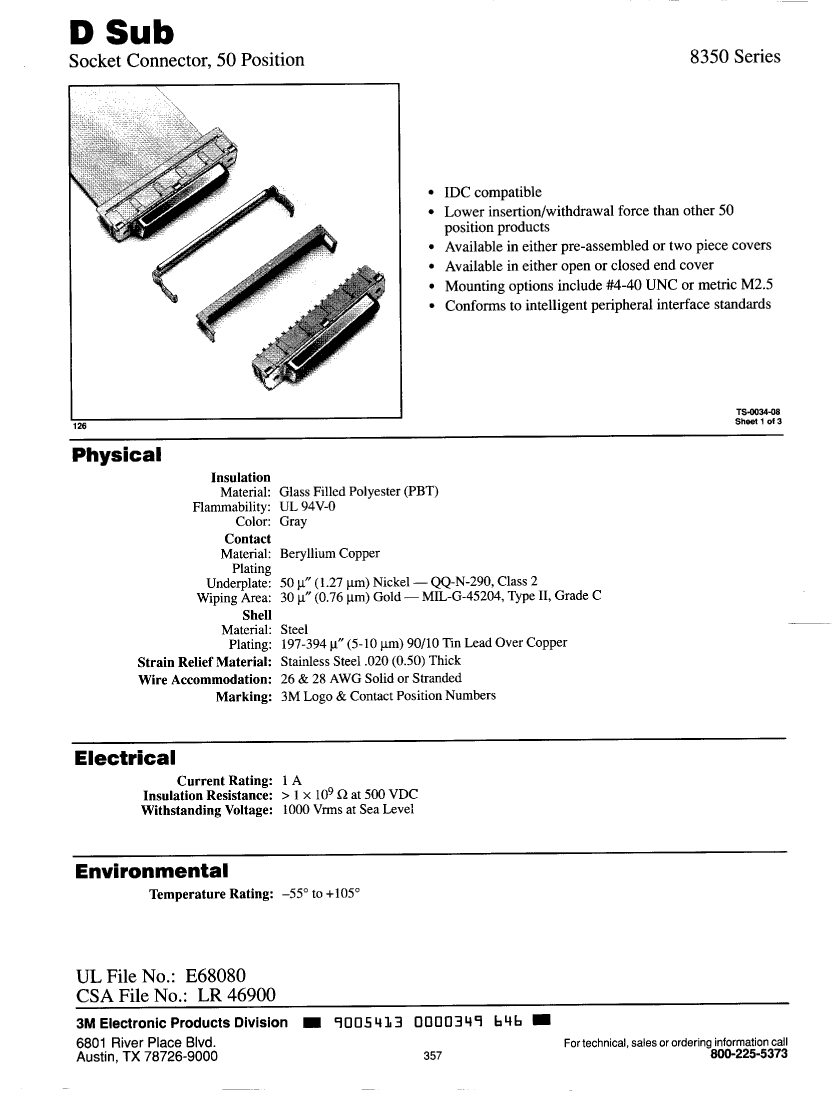

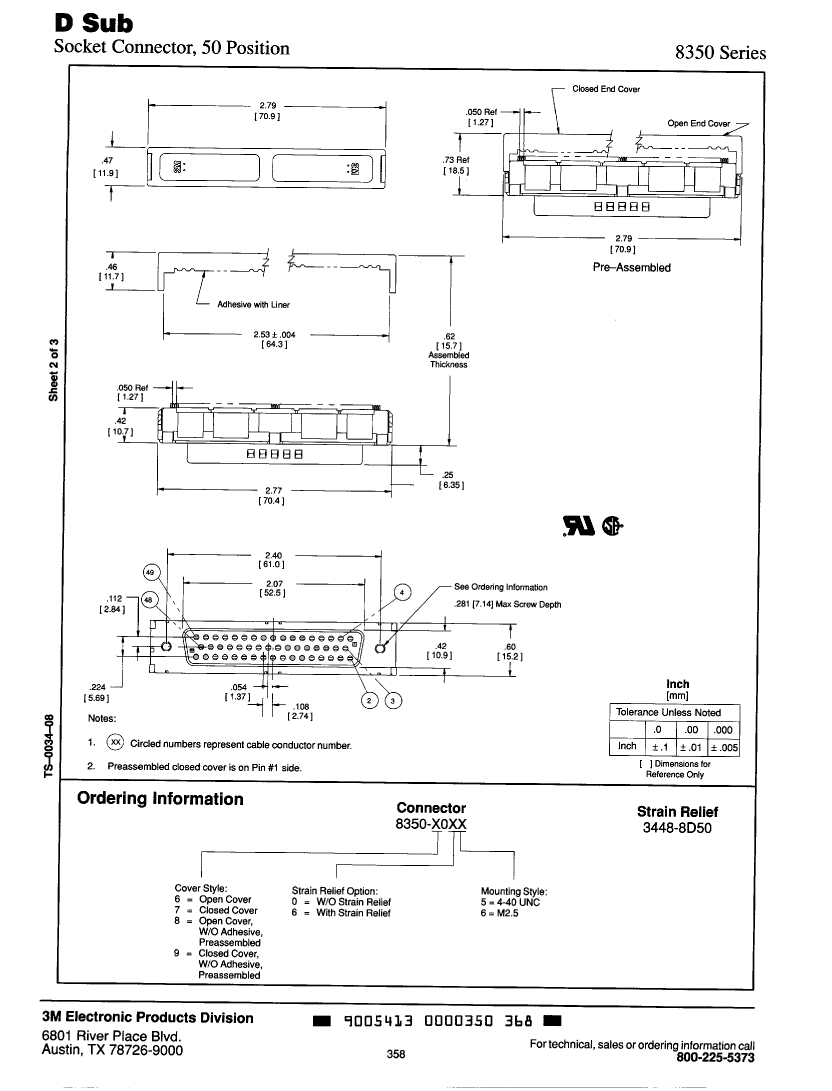

8350-8065: DescriptionCONNECTOR,D-SHELL,CABLE MNT,PLUG,50 CONTACTS,SKT,0.109 PITCH,IDC TERMINAL,#4-40; CategoryThe connector The connector; File Size186KB，3 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

8350-8065 Overview

CONNECTOR,D-SHELL,CABLE MNT,PLUG,50 CONTACTS,SKT,0.109 PITCH,IDC TERMINAL,#4-40

Parameter Name	Attribute value
Objectid	300006990
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.6 inch
subject depth	0.42 inch
body length	2.79 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	STAGGERED
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	THREADED
Installation type	CABLE
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL, CSA
Shell surface	TIN LEAD
Shell material	STEEL
Termination type	IDC
Total number of contacts	50
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG
