GCB25DYHN-S1355: DescriptionCard Edge Connector, 50 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size287KB，1 Pages; ManufacturerSullins Connector Solutions

Download Datasheet Parametric Compare View All

GCB25DYHN-S1355 Overview

Card Edge Connector, 50 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Locking

GCB25DYHN-S1355 Parametric

Parameter Name	Attribute value
Maker	Sullins Connector Solutions
Reach Compliance Code	compliant
body width	0.32 inch
subject depth	0.488 inch
body length	1.425 inch
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Durability	500 Cycles
maximum insertion force	1.112 N
Insulation resistance	5000000000 Ω
insulator material	POLYAMIDE
Manufacturer's serial number	GCB
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	50
Evacuation force-minimum value	.0834 N
Base Number Matches	1

Preview

Download Datasheet

View All

8

7

6

5

4

3

2

1

REV.

B

C

D

F

REVISIONS

ECO. NO

DESCRIPTION

DATE

ADD POSITION OPTIONS, UPDATE PCB

2214

12/10/10

HOLE SIZE TO .032 (WAS .040 MIN)

ADD 'G' & 'F' MATERIAL OPTION, 'M'

2716

1/4/2013

PLATING, TOL FOR TAIL LENGTH

2940

ADD MATERIALS 'R' & 'A', ADD 'B' PLATING 3/21/2014

BY

JH

NC

F

E

C

B

A

D

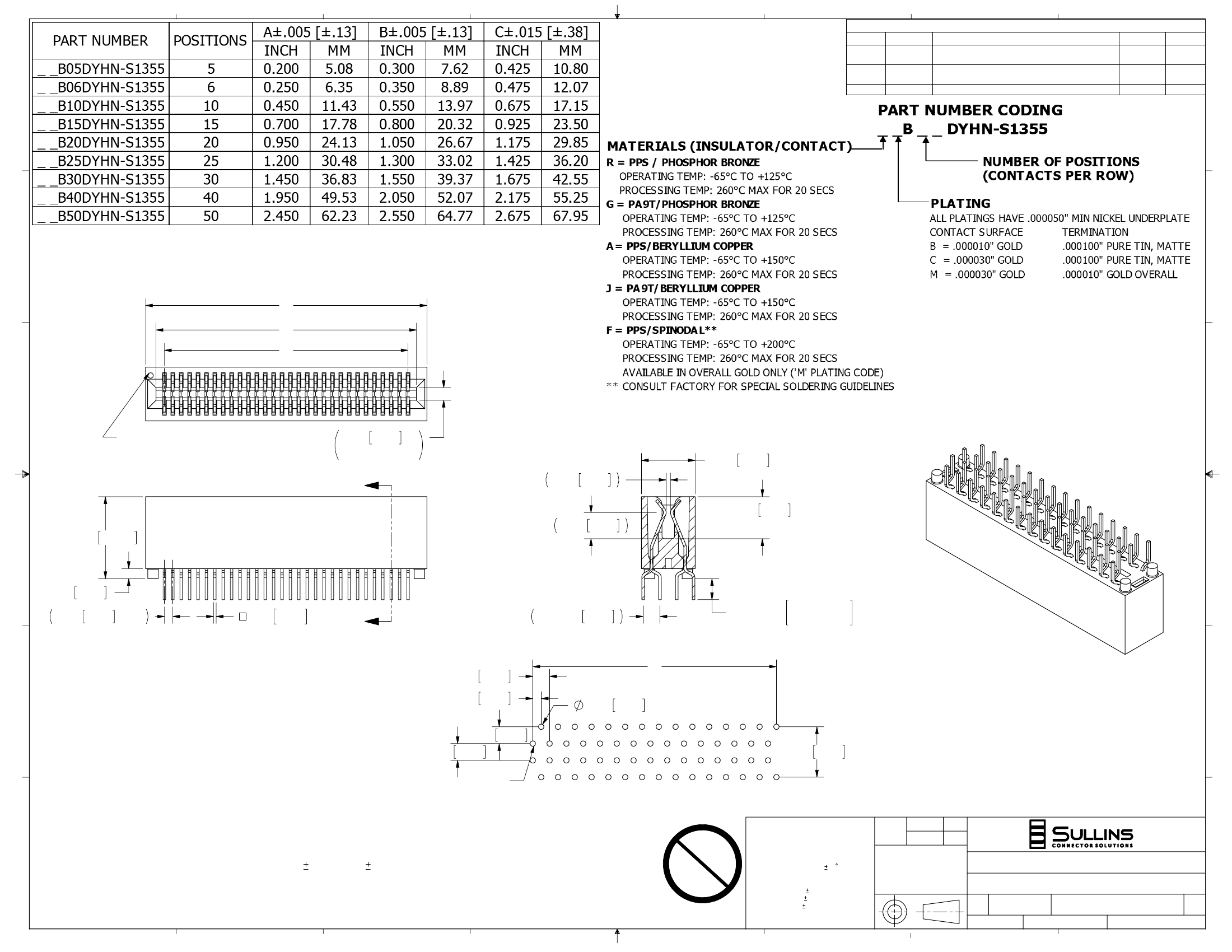

PIN 1 INDICATOR

.075 1.91

SEE NOTE 13

.320 8.13

.026 0.66

.155 3.94

.250 6.35

INSERTION DEPTH

C

A

C

.488 12.40

.060 1.52

.050 1.27 TYP

.016 0.41

A

3X .100 2.54

SECTION A-A

.100 2.54

A

+.035

+0.89

.125 - .025 3.18 - 0.64

B

A

.050 1.27

NOTES:

.032 0.81 MIN TYP

1. INSULATOR MATERIAL: SEE PART NUMBER CODING

2. CONTACT MATERIAL: SEE PART NUMBER CODING

.100 2.54

3. PLATING: SEE PART NUMBER CODING

.100 2.54

4. OPERATING TEMPERATURE: SEE PART NUMBER CODING

5. PROCESSING TEMP: SEE PART NUMBER CODING

6. UL FLAMMABILITY RATING: 94V-0

PIN 1

7. OPERATING VOLTAGE: 300 VAC MINIMUM AT SEA LEVEL

PCB LAYOUT RECOMMENDED

8. CURRENT RATING: 1 AMP

9. CONTACT RESISTANCE: 30 MILLI OHMS MAX

10. INSULATION RESISTANCE: 5000 MEGA OHMS

11. DURABILITY: 500 CYCLES MIN

12. CONNECTOR IDENTIFICATION: THE PART SHALL BE MARKED WITH A PART NUMBER AND LOT CODE

13. BOARD THICKNESS ACCOMMODATED: .062 .008[1.57 0.20]

14. INSERTION FORCE: 4 OZ MAX PER CONTACT PAIR WHEN USING A .062[1.57] TEST BLADE

15. WITHDRAWAL FORCE: 3/8 OZ MIN PER CONTACT PAIR USING .062[1.57] PCB

16. MODIFICATION: .488 INSULATOR HEIGHT, .320 WIDTH, .250 INSERTION DEPTH, SPECIAL FOOTPRINT.

FIRST POSITION BOTH ROWS BENT IN, SECOND ROW BOTH ROWS BENT OUT. ALTERNATE IN AND OUT

RoHS

COMPLIANT

B

.300 7.62

CUSTOMER COPY

UNLESS OTHERWISE SPECIFIED: DRAWN DATE NAME

DIMENSIONS ARE IN INCHES [MM]

10/10/12 JH

TOLERANCES:

ANGULAR:

1

THE INFORMATION HEREIN CONTAINS

PROPIETARY INFORMATION OF

SULLINS ELECTRONICS AND IS NOT

TO BE REPRODUCED, USED OR

DISCLOSED TO OTHERS FOR ANY

PURPOSE EXCEPT AS SPECIFICALLY

AUTHORIZED IN WRITING BY AN

OFFICER OF SULLINS ELECTRONICS.

Pb

4

TITLE

.050" PITCH ULTRA THIN CONNECTOR

SIZE

A

DECIMALS

.XX= .02 [.5]

.XXX= .005 [.13]

.XXXX= .0005 [.013]

PART NUMBER

SCALE: 3:1

3

2

C

CAGE CODE

_ _B_ _DYHN-S1355

DWG. NO.

54453

C11238

1

REV

SHEET 1 OF 1

D

8

7

6

5

FILE NAME: C11238, _ _B_ _DYHN-S1355 CANTILEVER

GCB25DYHN-S1355 Related Products

	GCB25DYHN-S1355	GCB15DYHN-S1355	GCB50DYHN-S1355
Description	Card Edge Connector, 50 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Locking	Card Edge Connector, 30 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Locking	Card Edge Connector, 100 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Locking
Maker	Sullins Connector Solutions	Sullins Connector Solutions	Sullins Connector Solutions
Reach Compliance Code	compliant	compliant	compliant
body width	0.32 inch	0.32 inch	0.32 inch
subject depth	0.488 inch	0.488 inch	0.488 inch
body length	1.425 inch	0.925 inch	2.675 inch
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ	30 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Durability	500 Cycles	500 Cycles	500 Cycles
maximum insertion force	1.112 N	1.112 N	1.112 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	POLYAMIDE	POLYAMIDE	POLYAMIDE
Manufacturer's serial number	GCB	GCB	GCB
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	4	4	4
Number of rows loaded	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm
Plating thickness	30u inch	30u inch	30u inch
Rated current (signal)	1 A	1 A	1 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.125 inch	0.125 inch	0.125 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	50	30	100
Evacuation force-minimum value	.0834 N	.0834 N	.0834 N
Base Number Matches	1	1	-
